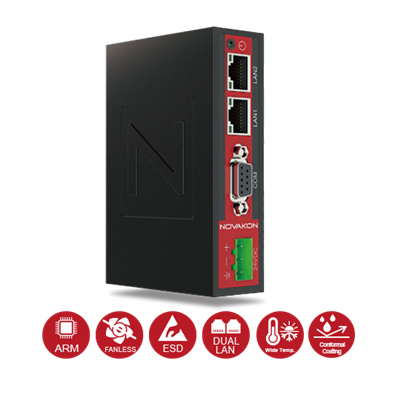

Novakon Protocol gateway DIN-rail Protocol Conversion Gateway ARM Cortex-A8 (1GHz) CPU, 512MB RAM, 4GB eMMC, dual Ethernet ports, 19.2 ~ 28.8V isolated power, metal chassis, iM-Connect Protocol Conversion Software Runtime

With promo code $142.65

Save $588

NZD $ 731 .54

$ 731 .54

Novakon Protocol gateway DIN-rail Protocol Conversion Gateway ARM Cortex-A8 (1GHz) CPU, 512MB RAM, 4GB eMMC, dual Ethernet ports, 19.2 ~ 28.8V isolated power, metal chassis, iM-Connect Protocol Conversion Software Runtime

Brand: Novakon
MPN: GW-01
Part #: IPCNVAGW01
UPC:

CLEARANCE

With promo code $142.65

Save $588 with code CLEARANCE

Without promo code

NZD $ 731 .54

Part of Clearance Zone

In stock

Delivery: Order now and it ships on 15 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Novakon
MPN: GW-01
Part #: IPCNVAGW01
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU

- Ethernet ports x 2 ; Serial port x 2 (DB9 x 1)

- 19.2 ~ 28.8V, Isolated Power

- Isolated Communication Port

- Fan-less, compact design

- PCB conformal coating protection

- -20°C~70°C wide operating temperature

- Metal chassis, DIN-rail mounting

- Powered by Novakon Software iM-Connect®

Specifications

Processor

TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU

Memory

512MB SDRAM (1GB option)

Thermal Design

Fanless

PCB Conformal Coating

Yes

Storage

4GB eMMC (8GB option)

USB Host

RS-232/422/485

RS-232 x 1, RS-422/485 x 1 (DB9 x 1)

LAN

2 x 10/100 Mbit Ethernet Port

Power Connector

3-Pin terminal block

Dimensions (mm)

120 x 85.45 x 31.25

Net Weight (kgs)

0.45

Power Input Range

19.2 ~ 28.8V, Isolated Power

LED Indicator

Chassis Material

SECC

Mounting

25mm DIN-rail mounting

Accessories

Setup Manual x 1, 25mm DIN Rail Clip x 1, M3x6mm flat head screw x 2, Recovery USB Drive x 1

Operating Temperature

-20°C~70°C

Storage Temperature

-20°C~80°C

Storage Humidity

10%~90% @40°C (non-condensing)

ESD Protection

Contact Discharge 4kV, Air Discharge 8kV

Certification

CE/FCC (EN 61000-6-4, EN 61000-6-2, EN55032, EN55035), Class A

Built-in Software

iMConnect® Protocol Conversion Software Runtime

Operating Systems

Linux Kernel 3.14

Manufacturer Part No:

GW-01

Brand:

Novakon

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCNVAGW01

Product Model:

Protocol gateway

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
