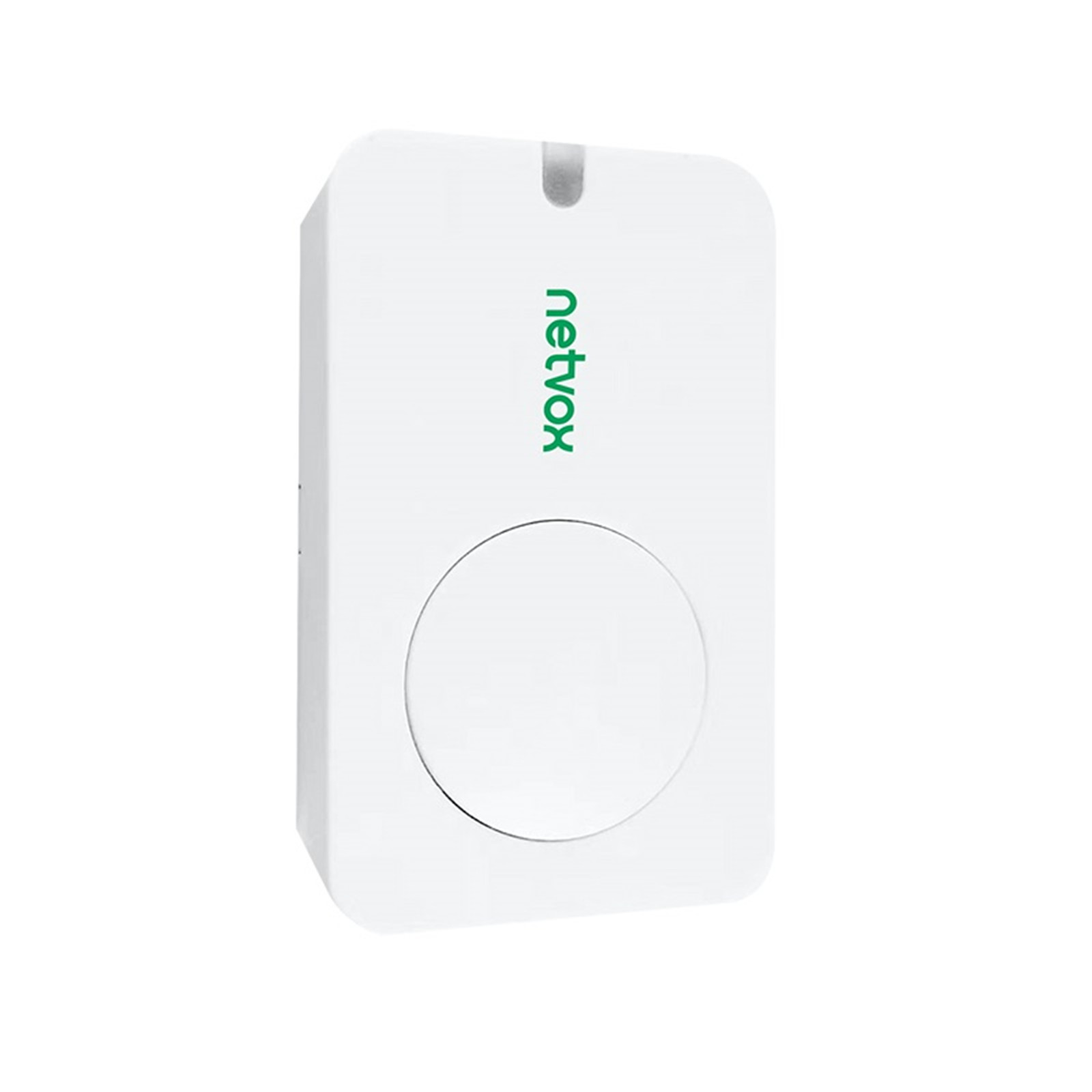

Netvox LoRa module Wireless Activity Event Counter (Powered by 2 X CR2450 Battery)
Out of stock
Netvox LoRa module Wireless Activity Event Counter (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R311FB
- Part #: IPCNVX4808835
- UPC:
- Brand: Netvox
- MPN: R311FB
- Part #: IPCNVX4808835
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Security Sensors





Netvox LoRa module Wireless Activity Event Counter (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R311FB
- Part #: IPCNVX4808835

Product URL: https://www.pbtech.com/pacific/product/IPCNVX4808835/Netvox-LoRa-module-Wireless-Activity-Event-Counter
Features
R311FB - Wireless Activity Event Counter
The device detects the number of movements or vibrations (such as detecting the motor a few times a day), the maximum number of movements or vibrations can reach 2^32 times (theoretical value), and sends the information of the number of movements or vibrations to the gateway for processing. Apply SX1276 wireless communication module.
- Adopt SX1276 wireless communication module
- 2 x 3.0V CR2450 button batteries
- Vibration counter detection
- Compatible with LoRaWAN™ Class A
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R311FB/R311FBdatasheet.pdf
Specifications
Electric:
Input Power
2pcs 3.0V CR2450 button battery
Working Voltage
DC 2.4V~3.0V
Standby Current
41 uA /3.0V
Transmitting Current (max)
120 mA / 3.0V
Receiving Current (max)
11 mA / 3.0V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
57 mm x 35 mm x 15.2 mm
Operating Temperature
-20 to 55C
Weight
48.9g
Storage Temperature Range
-40 to 85C
Environment Humidity Range
<90%RH (No condensation)
