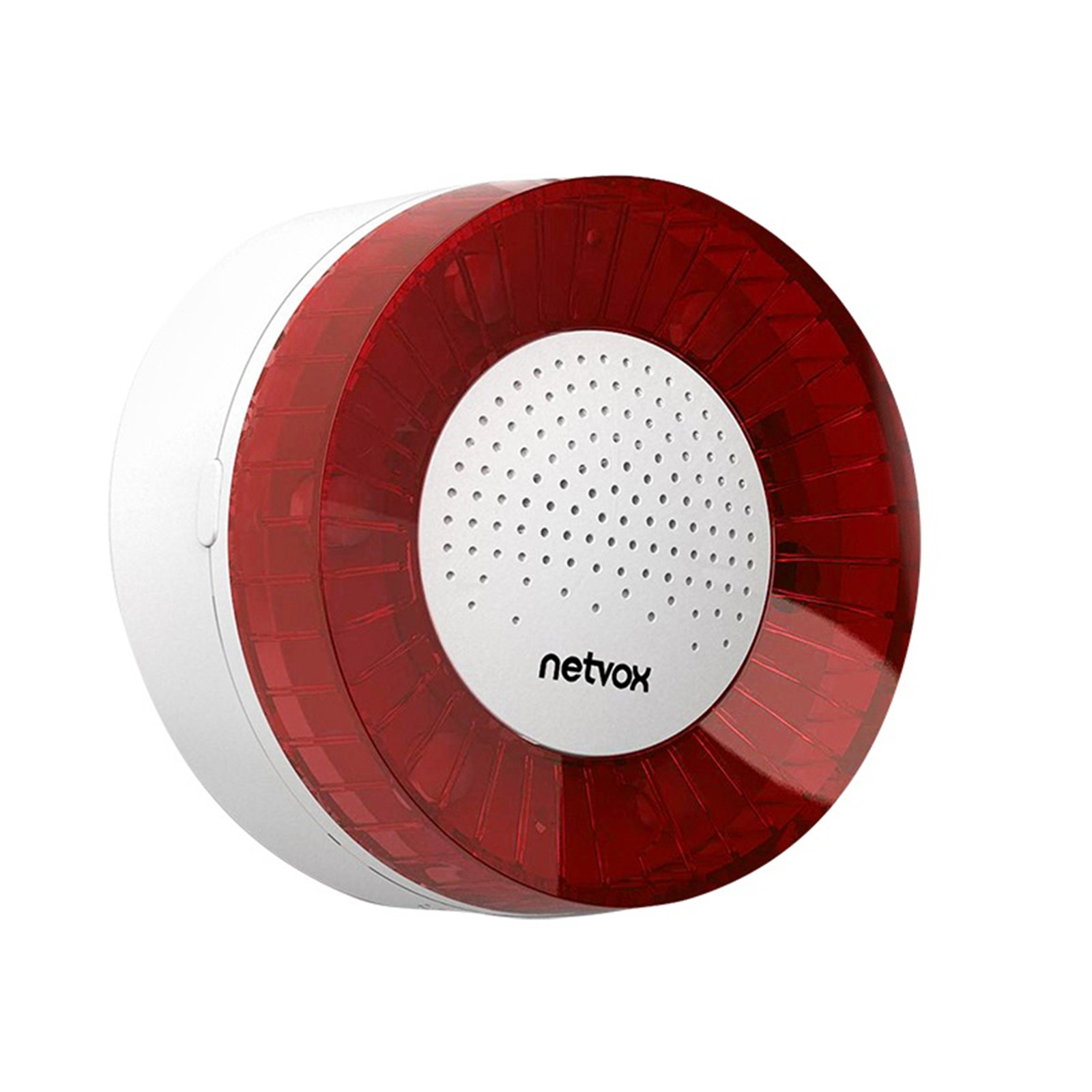

Netvox LoRa module Wireless Siren (DC-Powered)
- Brand: Netvox
- MPN: R602A
- Part #: IPCNVX4808853

Product URL: https://www.pbtech.com/pacific/product/IPCNVX4808853/Netvox-LoRa-module-Wireless-Siren-DC-Powered
Features
R602A- LoRa- Siren
R602A is a smart wireless alarm that can communicate with other devices through a wireless network. It has a high-decibel speaker and high-brightness LED which can realize sound and light alarms. It adopts SX1276 wireless communication module.
- LoRaWAN™ Class C compatible
- Apply SX1276 wireless communication module
- A high-decibel speaker and high-brightness LED, it can be used as a sound and light alarm
- Payload can remotely turn off the sound individually or turn off both lights and sounds
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R602A/R602Adatasheet.pdf
Specifications
Electric:
Input Power
DC +12V
Working Current (max)
250mA(DC 12V)
Standby Current (max)
30mA(DC 12V)
Alarm sound level (at three meters)
>=80dB
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
F85mm * 52mm
Environment Temperature
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
