Netvox LoRa module Wireless Temperature Sensor - DS18B20 (Powered by 2 X ER14505 3.6V Lithium AA Battery)

PB Tech price

NZD $ 216 .28

$ 216 .28

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Netvox LoRa module Wireless Temperature Sensor - DS18B20 (Powered by 2 X ER14505 3.6V Lithium AA Battery)

LoRaWAN Sensors AS923

Brand: Netvox
MPN: R718AD
Part #: IPCNVX4808856
UPC:

PB Tech price

NZD $ 216 .28

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Netvox
MPN: R718AD
Part #: IPCNVX4808856
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

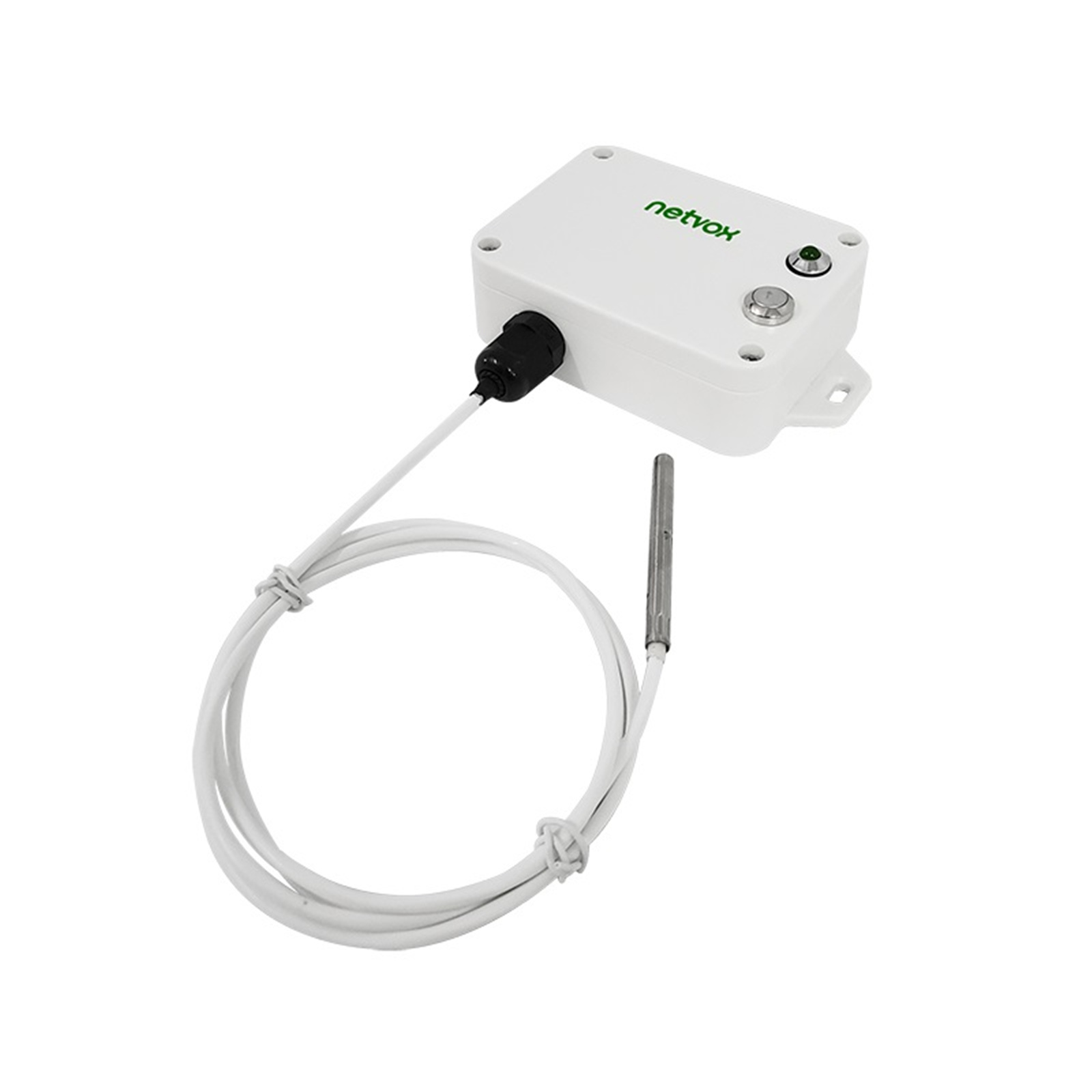

R718AD-Wireless Temperature Sensor

The R718AD is a wireless communication device for detecting temperature. The temperature sensor probe contacts an object to detect the temperature, and the detected data is transmitted to other devices through a wireless network. The SX1276 wireless communication module is used.

- Apply SX1276 wireless communication module
- 2 ER14505 battery (3.6V/section) in parallel power supply
- Temperature detection
- LoRaWAN™ Class A compatible
- The base is attached with a magnet that can be attached to a ferromagnetic material object
- Frequency Hopping Spread Spectrum (FHSS)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Improved power management for longer battery life

Download data sheet: http://www.netvox.com.tw/um/R718AD/R718ADdatasheet.pdf

Specifications

Electric:

Power Supply

2x3.6V ER14505 lithium batteries(3.6V2400mah/section)

Operating Voltage

3.1v to 3.65v

Standby Current

24uA

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Accuracy

±0.1V

Low Voltage Threshold

3.2V

Measurement Range

-40°C to 125C

Wire Length

Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension

L:112mm*W:88.19mm*H:32mm

Environment Temperature Range

-20 to 55C

Storage Temperature Range

-40 to 85C

Environment Humidity Range

<90%RH (No condensation)

Manufacturer Part No:

R718AD

Brand:

Netvox

Product Type:

LoRa module

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCNVX4808856

Product Model:

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
