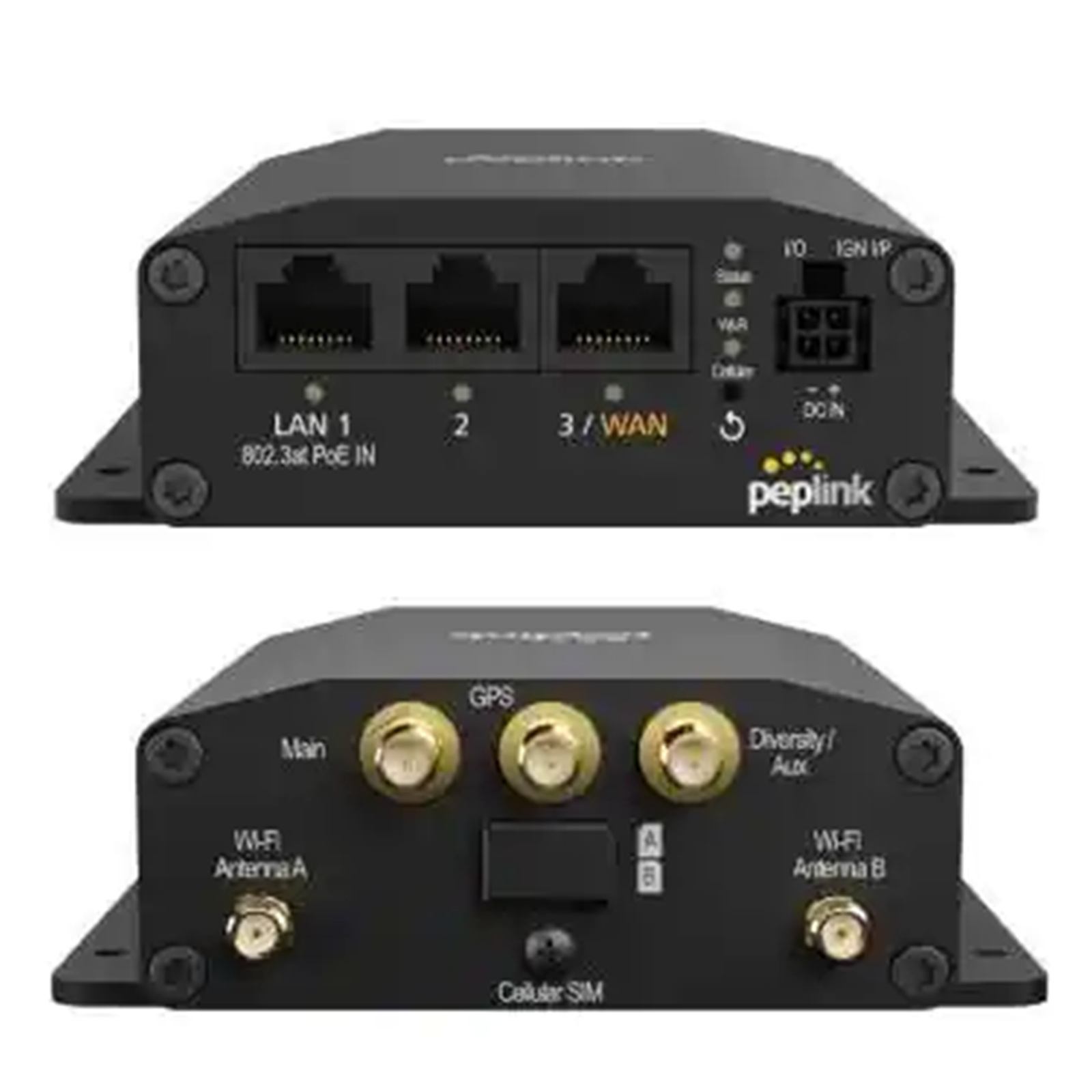

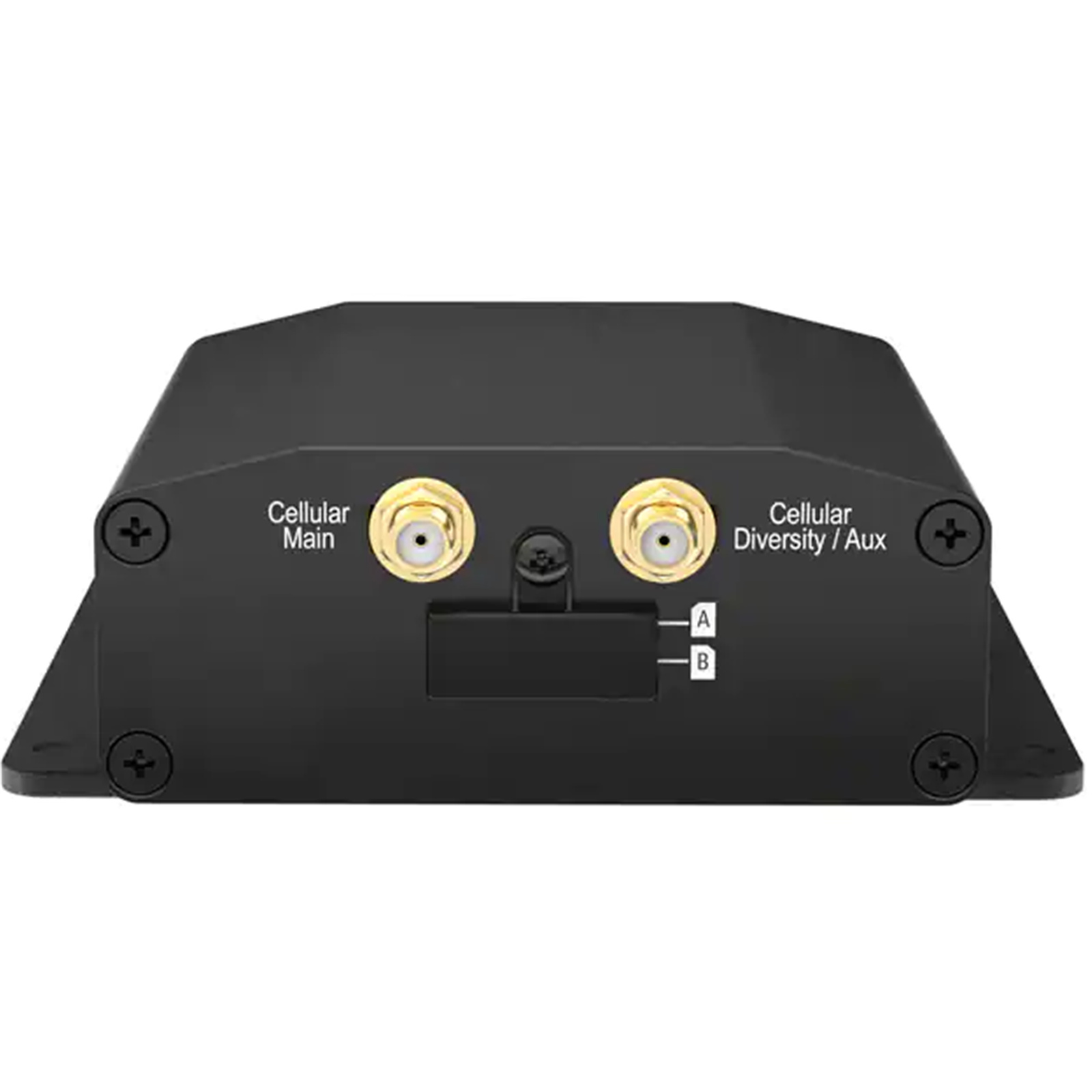

Peplink Industrial 4G LTE Router MAX BR1 Mini LTE Core (Europe/Int l GSM) 1x Embedded 4G LTE Modem (Europe and Int l GSM) 1x Optional Ethernet WAN Optional WAN Failover Full antenna set

Brand: Peplink
MPN: MAX-BR1-MINI-LTE-E-T-M-PRM
Part #: IPCPPL210036
UPC:

Out of stock

Click or hover over image to enlarge

Brand: Peplink
MPN: MAX-BR1-MINI-LTE-E-T-M-PRM
Part #: IPCPPL210036
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Constant Connectivity

With the BR1 Mini, there is always a way to connect. Use a combination of cellular, Ethernet#, and Wi-Fi WAN# to provide users with constant connectivity.

Reliable Hotspot

When working from home, reliable connectivity is critical. The BR1 Mini provides this seamlessly: no matter what WAN connection the BR1 Mini uses, the user experience remains consistent.

OOBM Support

Create a modern out-of-band network to manage all your equipment. Give yourself console and Ethernet connectivity to all of your devices. Display your devices console interface over the cloud via InControl so you can securely manage from anywhere without the usual headaches.

Deploy Anywhere

The BR1 Mini Core is designed to function where other routers can't. It is certified for vibration resistance and rolling stock (E Mark, EN 61373, EN 50155, EN 61000). It accepts multiple power inputs and a wide voltage range. Finally, it has an optional mount for Class 1 Div 2 support, and can function in extreme heat and cold.

Specifications

WAN Interface

1x 10/100M Ethernet Port #
1x Embedded LTE Modem with Redundant SIM Slot

LAN interface

1x 10/100M Ethernet Port

Wi-fi Interface

802.11b/g/n Wi-Fi WAN # or AP

Number of PepVPN SpeedFusion Peers

2/5 *

Router Throughput

100 Mbps

Number of IPsec Tunnels

Recommended Users

Downlink/Uplink Datarate

150Mbps/50Mbps (CAT 4)
300Mbps/50Mbps (CAT 6)

Cellular and GPS
Antenna Connector

2x SMA Antenna Connectors
1x SMA GPS Antenna Connector
1x Wi-Fi Connector

Power Input

DC Jack/Terminal Block: 12V - 28V DC
Passive PoE Input (WAN Port, 12V - 28V DC)

Power Consumption

12W (max.)

Dimension

4.1 x 4.3 x 1.2 inches
105 x 110 x 30 mm

Weight

0.54 pound, 244 grams

Operating Temperature

-40° - 149°F, -40° - 65°C

Humidity

15% - 95% (non-condensing)

Manufacturer Part No:

MAX-BR1-MINI-LTE-E-T-M-PRM

Brand:

Peplink

Product Type:

(Europe/Int l GSM)

UPC

Product Family:

Industrial 4G LTE Router

Shipping Weight:

1 kg

PB Part No:

IPCPPL210036

Product Model:

MAX BR1 Mini LTE Core

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
