Fanvil i56A SIP Indoor Station
- Brand: Fanvil
- MPN: FAN-i56A
- Part #: IPHFAN1069

Product URL: https://www.pbtech.com/pacific/product/IPHFAN1069/Fanvil-i56A-SIP-Indoor-Station
Features

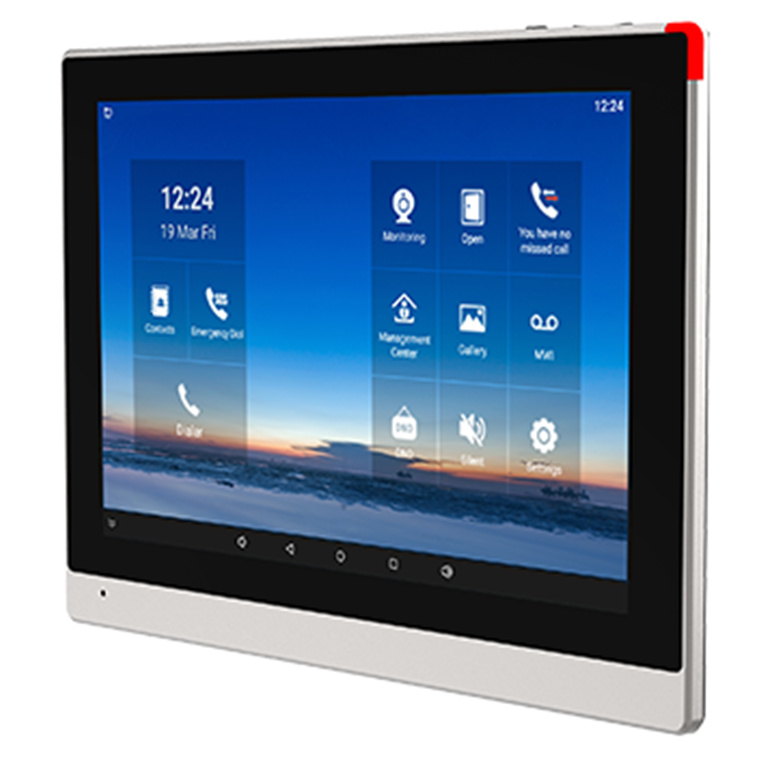

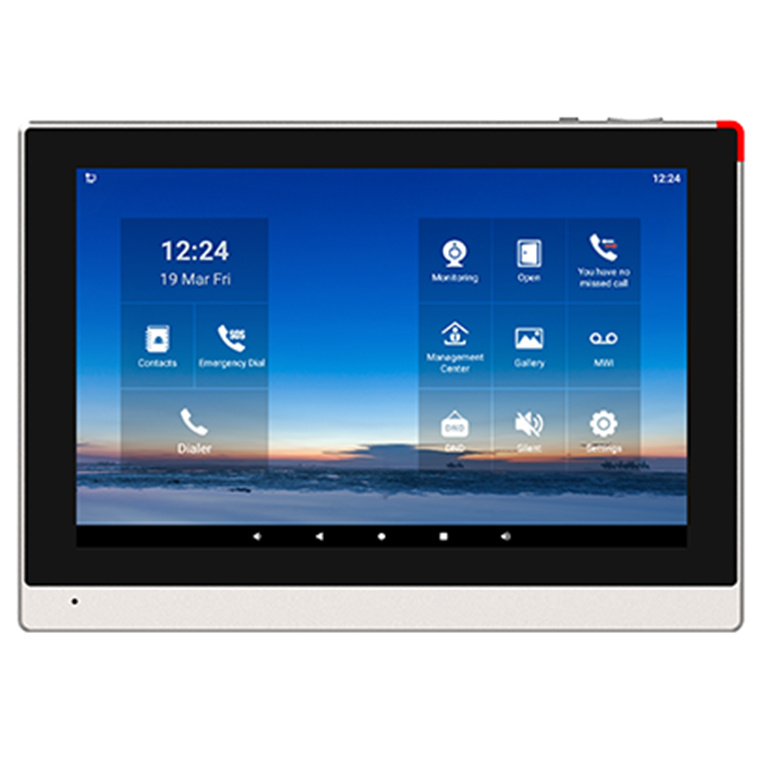

Fanvil i56A is a 10.1-inch color touch screen SIP indoor station with Android 9.0 OS, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i56A can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.
- Android 9.0 OS
- 10.1-inch color touch screen
- Built-in 1W double speakers with AEC
- Support visual intercom and remote access control
- Real-time monitor of the door phone and cameras
- Built-in 2.4G/5G Wi-Fi and Bluetooth 5.0
- 1 pair of RS-485 interfaces
- 8 alarm input interfaces and 2 short circuit output interfaces

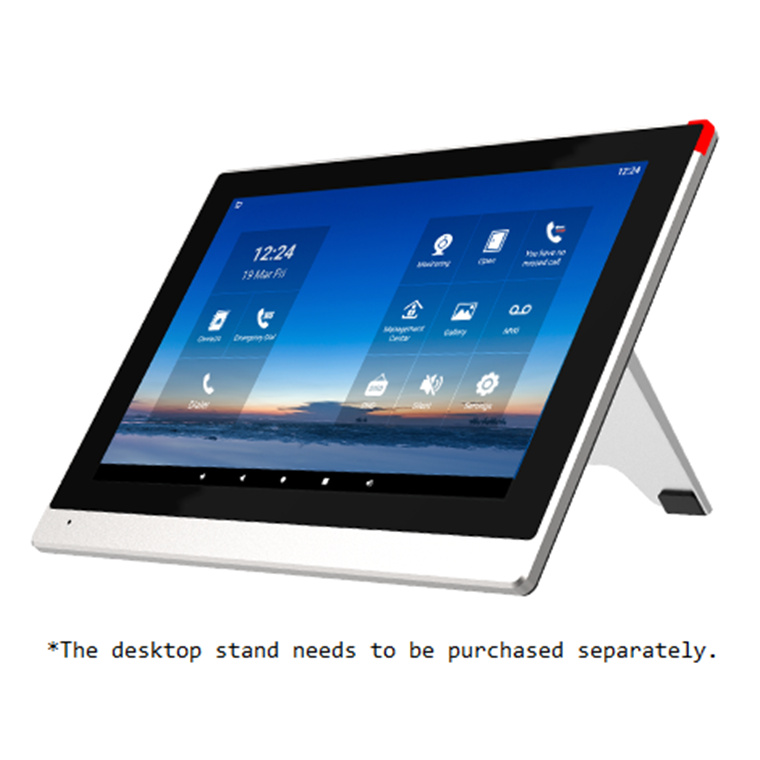

- Wall-mounted and desktop installation methods (with the external desk stand)
- Compatible with major platforms: 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc.
Specifications
System
Android 9.0
Screen
10.1-inch 280X800 color touch screen
HD Audio
Yes
Wideband Codecs
G.722,Opus
Speaker Power
1W double speakers
Video Resolution
1080P
Video Codec
H.264
ONVIF
Yes
SIP Lines
6
Bluetooth
Built-in Bluetooth 5.0
WiFi
Built-in 2.4/5G WiFi
Buttons
3
Alarm Input Interface
8
Short Circuit Output
2
Door Bell Interface
No
RS-485 Interface
1
TF Interface
1
USB Port
1
Network
10/100Mbps
PoE
Yes
Installation Mode
Wall-mounted and desktop installation methods
