Fanvil FAN-i10SV i10SV (1 button) integrates access control, audio broadcasting functions & aHDcamera for ease of communication. And with its wide temperature adaptability (-20 C - 50 C) and being dustproof & waterproof, it can be used in v
- Brand: Fanvil
- MPN: FAN-i10SV
- Part #: IPHFAN1108

Product URL: https://www.pbtech.com/pacific/product/IPHFAN1108/Fanvil-FAN-i10SV-i10SV-1-button-integrates-access
Features

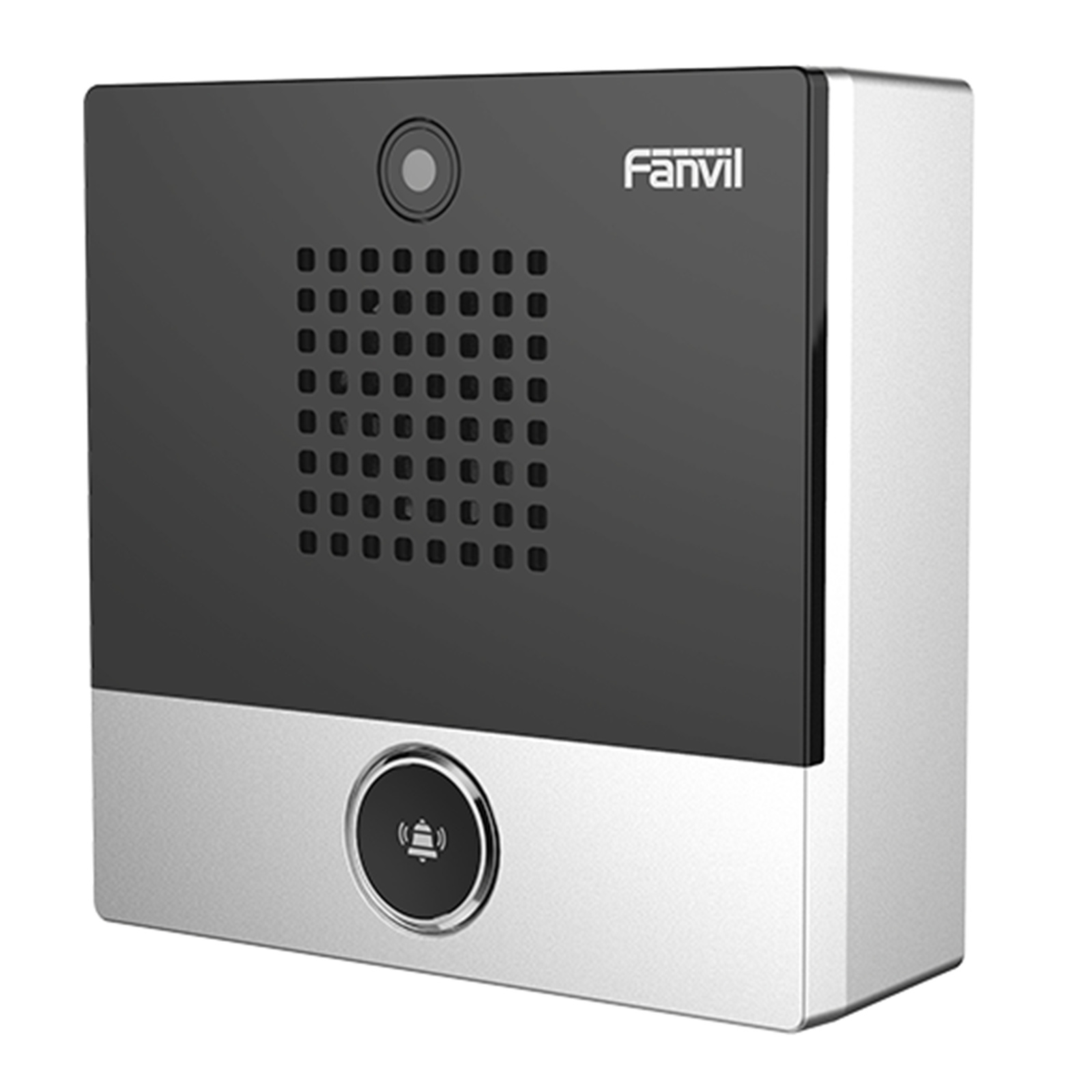

Fanvil i10SV (1 button) mini SIP intercom
Fanvil i10SV (1 button) integrates access control, audio broadcasting functions & a HD camera for ease of communication. And with its wide temperature adaptability (-20°C - 50°C) and being dust proof & waterproof, it can be used in various environments
- Easy installation and configuration.
- IP54 waterproof and dustproof.
- -20 °C to 50 °C wide range temperature adaptability.
- Built-in 1W speaker and Acoustic Echo Canceller (AEC).
- Built-in 1short circuit input/output interface.
- Functionality including security, intercom and broadcasting.
- Built-in HD camera and with backlight compensation function (for i10SV).
- Adaptive 10/100 Mbps network port, integrated PoE
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.
Specifications
Video
Sensor
1/5" color CMOS
Pixels
2 Mega
Video coding
H.264
Resolution
720P, 1080P
Minimum illumination
40%
Viewing angle
Diagonal: 73°
Horizontal: 63.3°
Vertical: 49.6°
Network
Physical
10/100 Mbps Ethernet
IP mode
IPv4/IPv6/IPv4&IPv6
IP configuration
Static IP / DHCP / PPPoE
VPN
L2TP / OpenVPN
Physical Specifications
DSS Keys, follow model
i10SV: 1 DSS key (speed dial key)
RJ45 port x1
connect the network
WAN port
connect the network, Power over Ethernet (IEEE 802.3af), class 3
Short circuit input and output port x1 (built-in relay)
Relay: MAX DC30V / 1A, AC125V / 0.5A
Port
terminal socket
DC port
DC power input
DC power input
DC12V / 1A
Port
terminal socket
Power Consumption (Adapter)
1.32~2.33W
Power Consumption (PoE)
1.76~2.85W
Protection level
IP54
Housing material
ABS
Installation
Wall-mounted
Working temperature
-20? ~ 50?
Storage temperature
- 30? ~ 60?
Working humidity
10~95%
Device dimensions
88x88x32 mm
