Fanvil FAN-A201 Fanvil A201 Ceiling Speaker Broadcasting device

PB Tech price

NZD $ 235 .65

$ 235 .65

Fanvil FAN-A201 Fanvil A201 Ceiling Speaker Broadcasting device

Brand: Fanvil
MPN: FAN-A201
Part #: IPHFAN1160
UPC:

PB Tech price

NZD $ 235 .65

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Fanvil
MPN: FAN-A201
Part #: IPHFAN1160
UPC:

Be the first to review this product

Colour

White

Interface

Microphone

Microphone Noise Cancelling

Not Specified

Noise Cancelling

Not Specified

Sound Mode

Not Specified

Wireless Technology

View full specs

Returns & Warranty Bulk Quote Print Page

Features

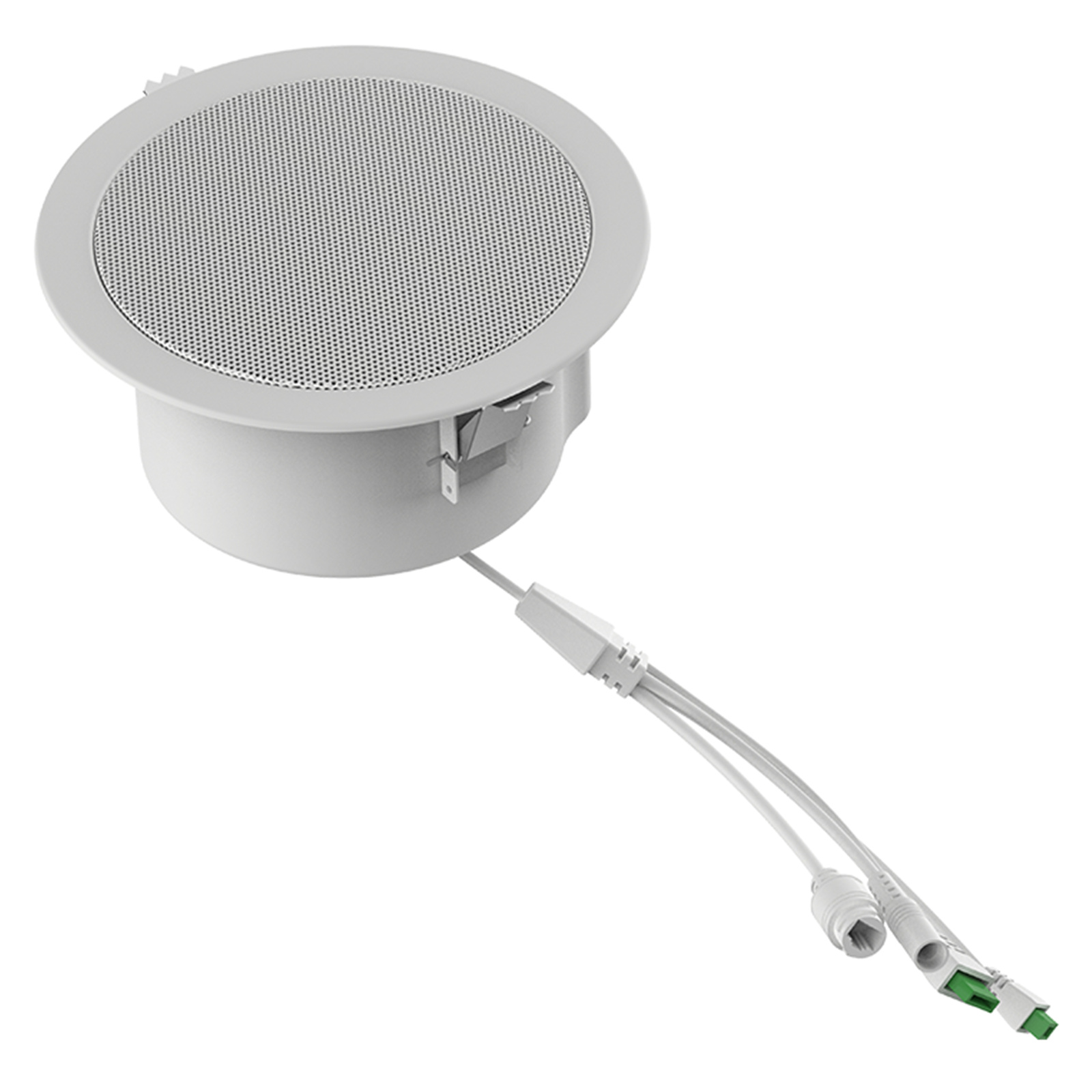

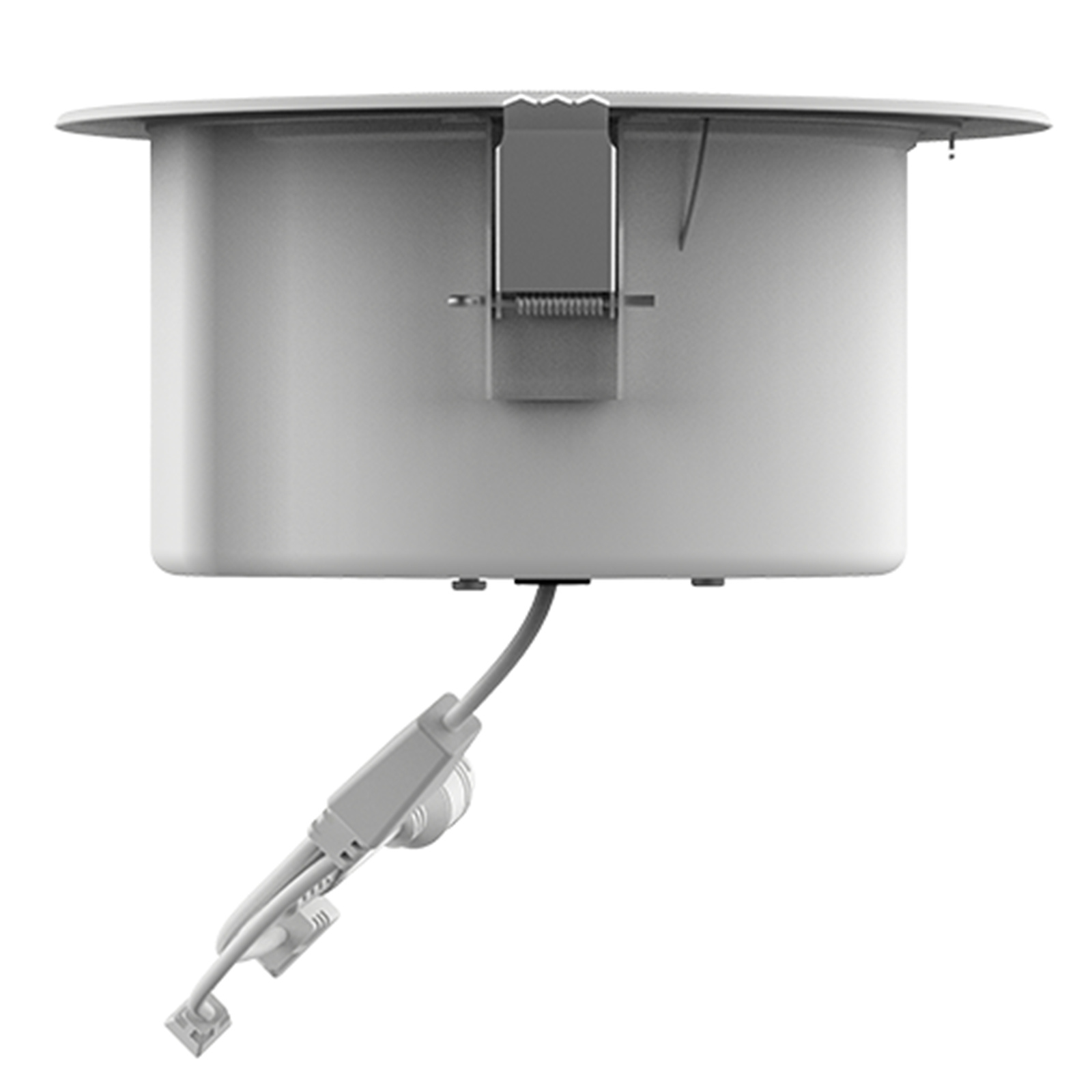

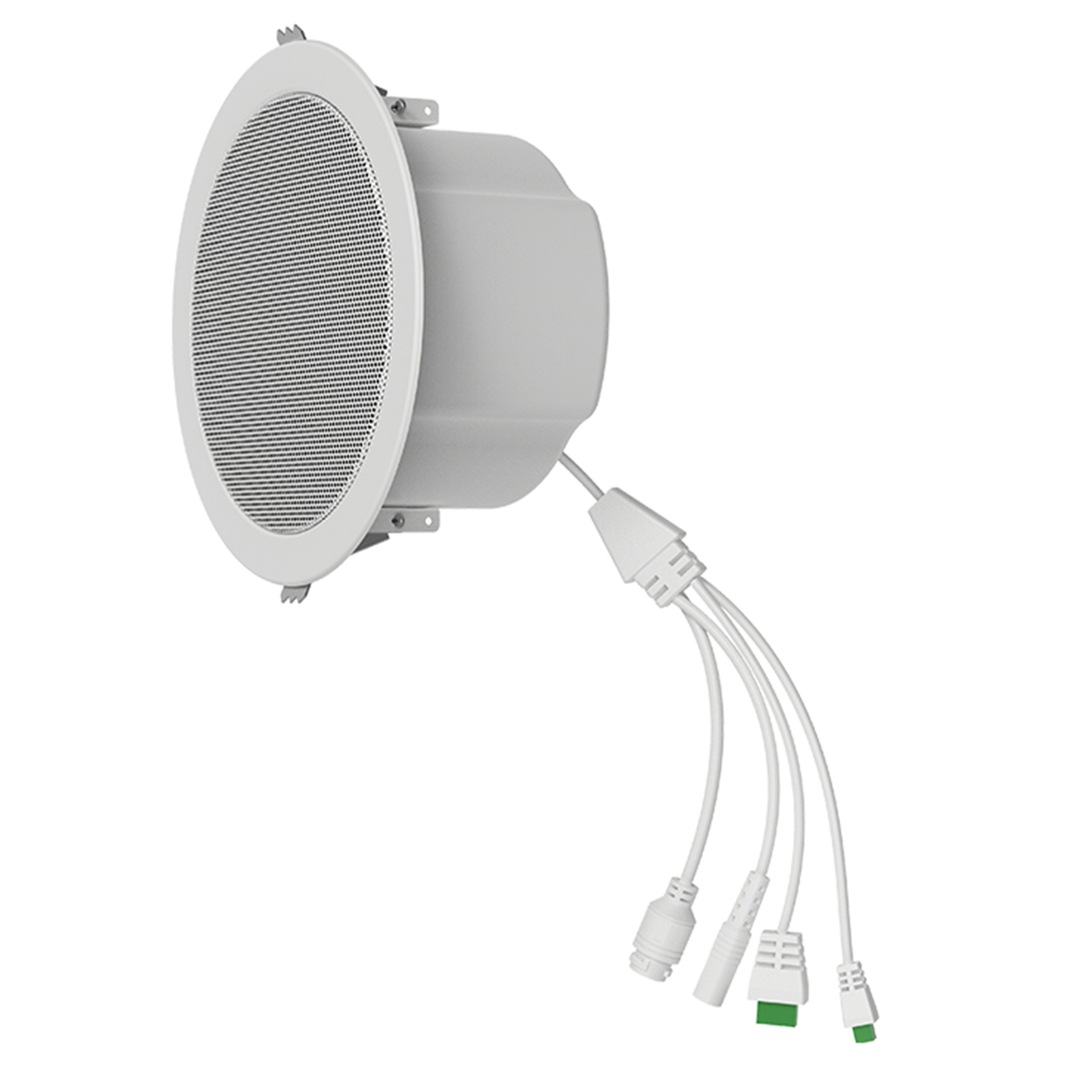

Fanvil A201 ceiling speaker is a commercial-grade IP audio terminal. It can function independently as an audio system or integrate with external systems such as unified communication systems, video surveillance systems, Fanvil broadcast & intercom system, access control systems, digital billboards, and fire alarm systems, facilitating unified configuration and operation, suitable for most indoor environments.

Fashionable and Aesthetically Pleasing, with Excellent Sound Quality

Fanvil A201 ceiling speaker adopts a minimalist exterior design, which is not only stylish and beautiful but also easy to install. With its outstanding audio design, the sound quality is even more robust and clear.

One-Stop Experience with Five Highlighted Functions

Linkage with Security System

Fanvil A201 ceiling speaker can integrate with IP cameras, alarm lights, electric locks, and other security and alarm devices through HTTP API and short-circuit I/O interfaces, enabling remote control, video surveillance, and broadcasting functionalities.

Multiple Software Management Options

Application Scenarios

Specifications

Type

Ceiling-mounted IP speaker

Color

White

Codecs

G.711A/U, G.729A/B, iLBC, G.723, G.726-32K, G.722, Opus

DTMF

In-band, Out-of-band (RFC2833/SIP INFO)

Speaker frequency response

250-20 kHz

Speaker sensitivity

90±3 dB (1m/1W)

Speaker impedance

8Ω

Max SPL

100 dB

Speaker power

PoE 6W, PoE+ 10W, DC 12-24V/2A 10W

Microphone

Omnidirectional, Sensitivity -38±3 dB, Impedance 2.2kΩ, Bias 2V

RJ45 (LAN)

DC 12-24V (circular jack)

Short-circuit input

Short-circuit output (Max 30V/2A)

Working temperature

-25-55°C

Storage temperature

-30-60°C

Working humidity

10-95%

Installation

Ceiling-mounte

Dimensions

Φ200 × 90 mm

Manufacturer Part No:

FAN-A201

Brand:

Fanvil

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

IPHFAN1160

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
