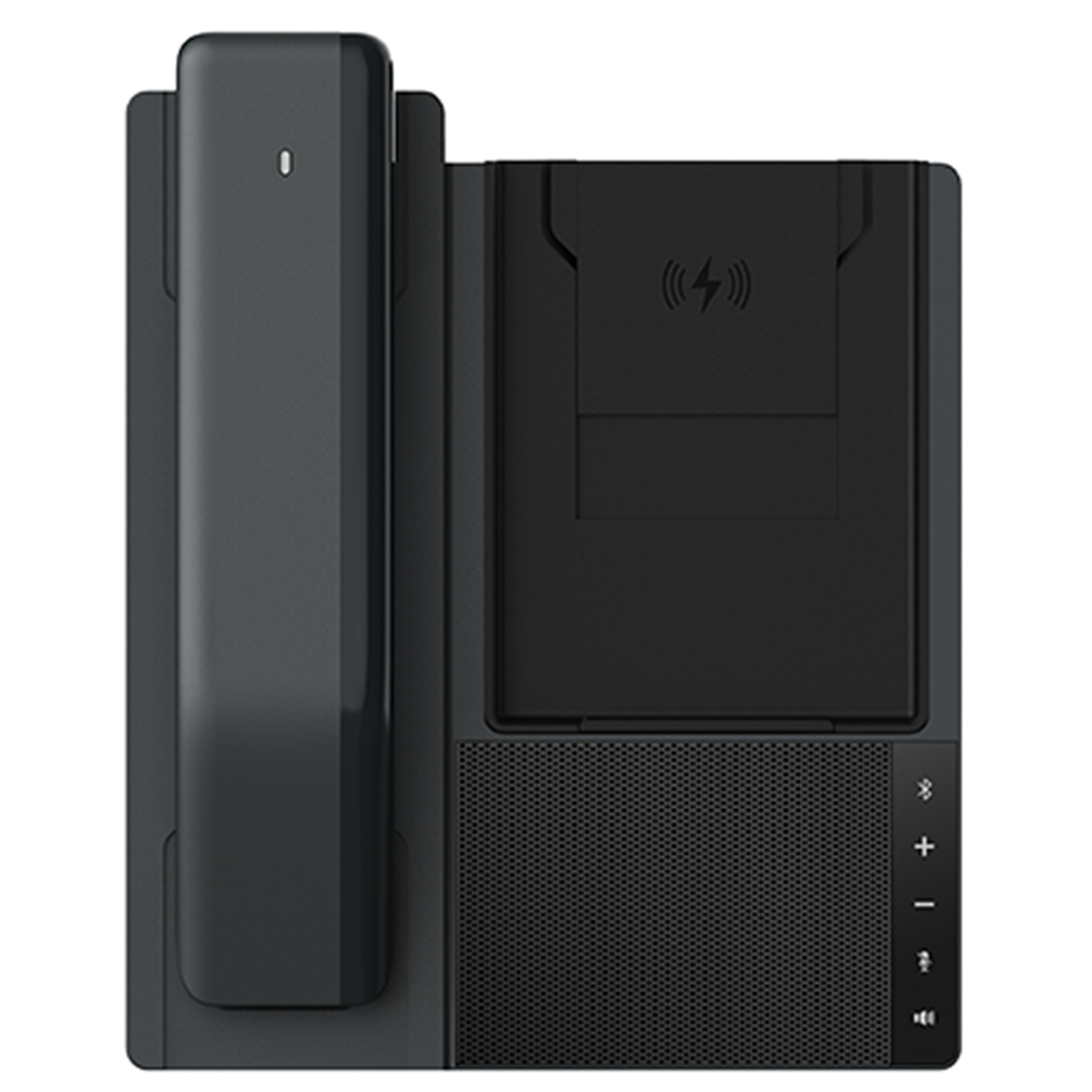

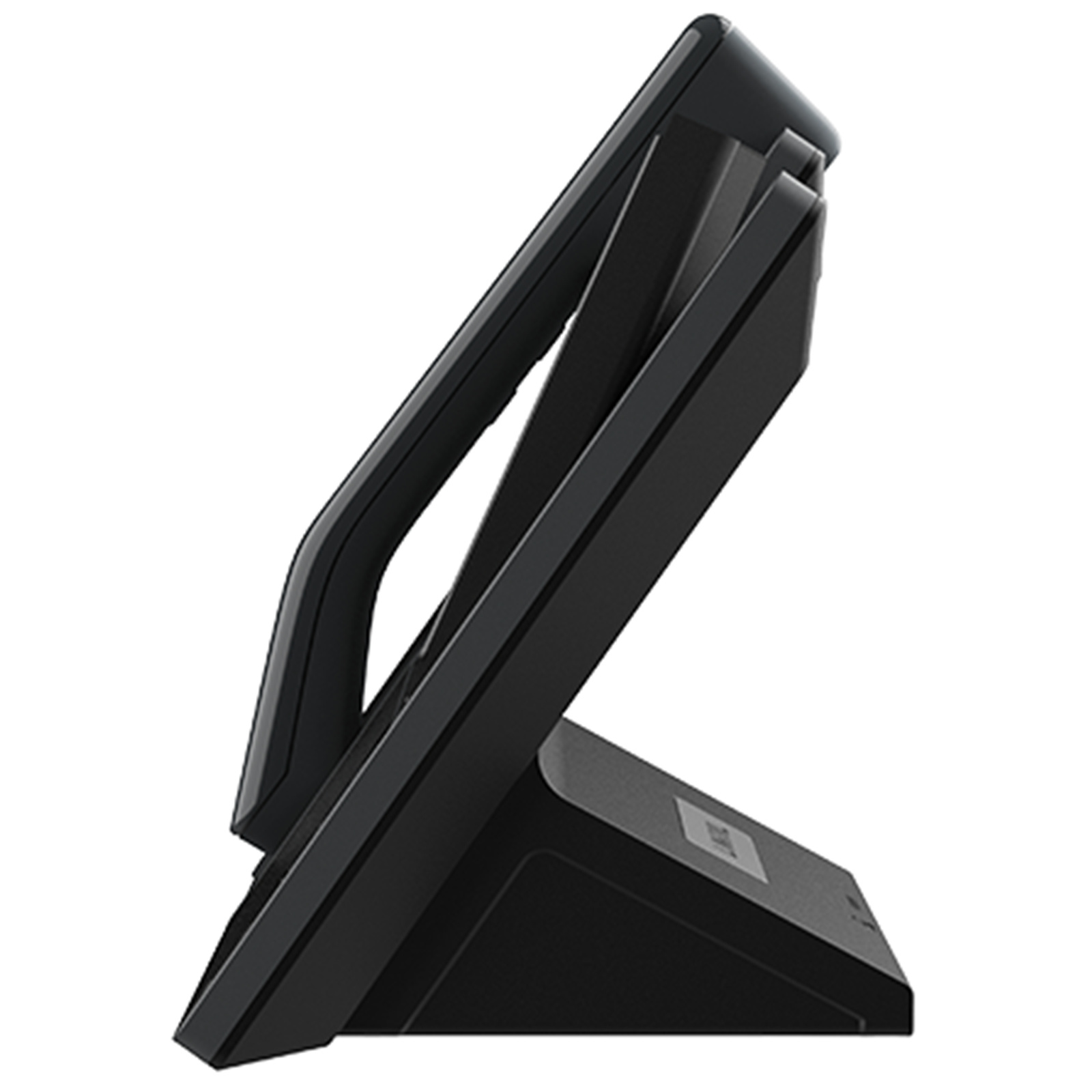

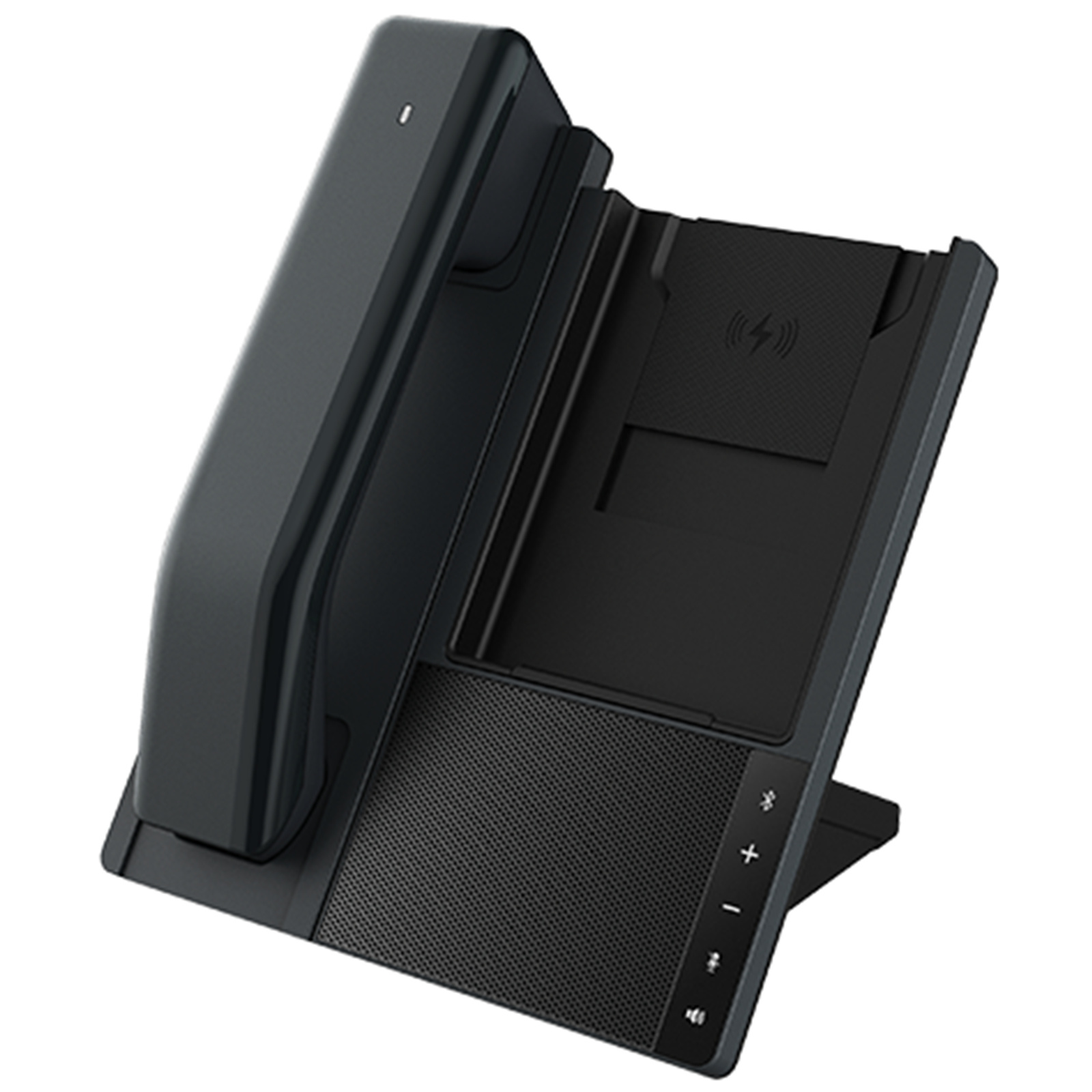

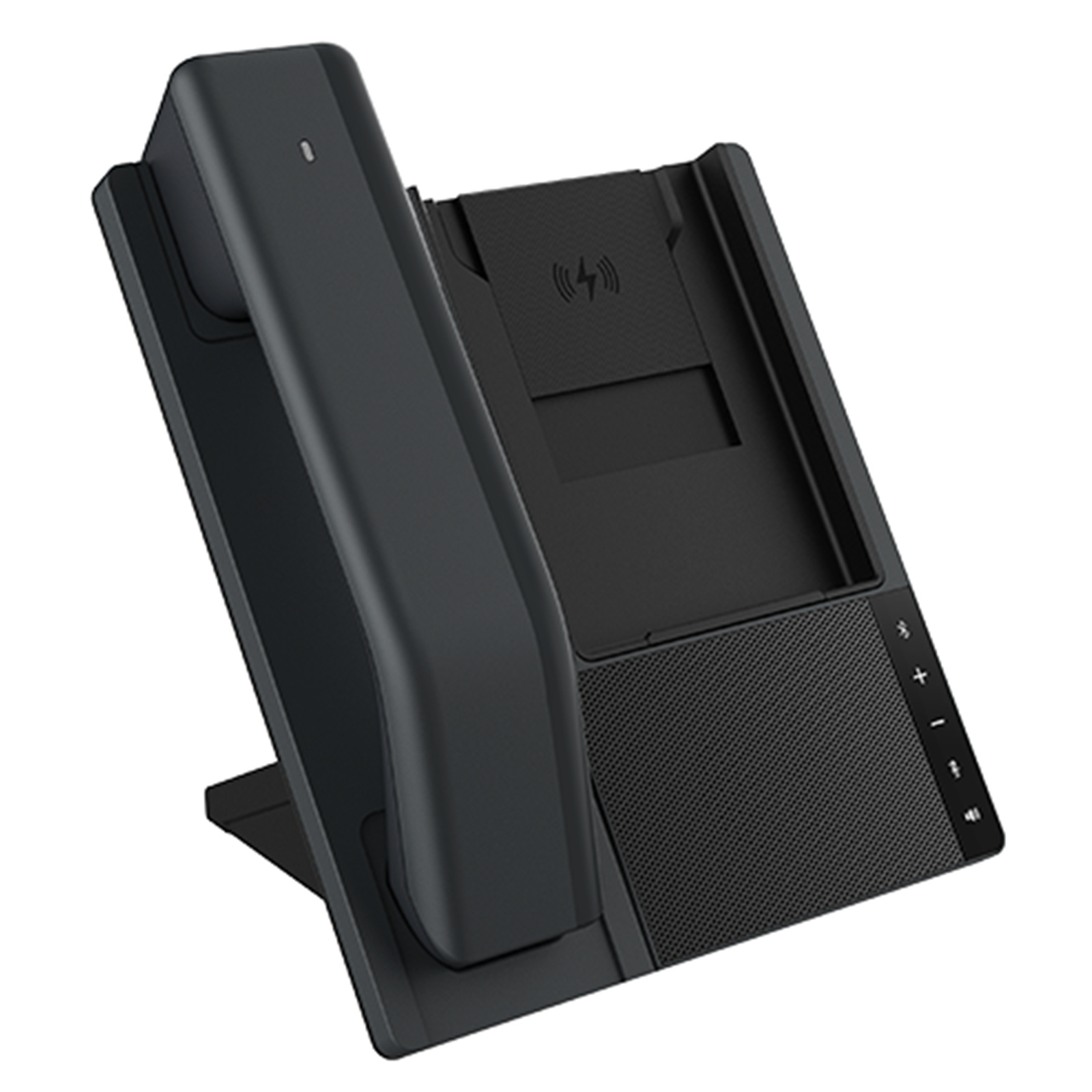

Fanvil DB20-H All In One PC & Smart Phone Communication Station

PB Tech price
PB Tech price
NZD $ 161 .74
$ 161 .74
$161.74  +GST
$161.74

Fanvil DB20-H All In One PC & Smart Phone Communication Station

  • Brand: Fanvil
  • MPN: LIN-DB20-H
  • Part #: IPHFAN1209
  • UPC:
PB Tech price
NZD $ 161 .74 $ 161 .74
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 10 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$161.74  +GST
$161.74
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Fanvil
  • MPN: LIN-DB20-H
  • Part #: IPHFAN1209
  • UPC:

Colour

Black

Interface

USB

Microphone

Yes

Microphone Noise Cancelling

Not Specified

Noise Cancelling

Not Specified

Sound Mode

Not Specified

Wireless Technology

Bluetooth

View full specs
Returns & Warranty Bulk Quote Print Page

Features

All-in-one Phone Station

Best companion for PC and smartphone Works with phones calls, UC services and softphone.



Convergence For Convenience

- Free your desk space
- Softphone/UC Companion
- Retro phone experience for PC & phone
- Wireless mobile phone charger



Efficiency, Easy And Seamless



Smooth Communication

Adjustable phone stand for better view angle while video conferencing.
Intuitive pickup and hangup behavior makes communication ever easier!



Free Your Working Space

Integrate daily used accessories into one. Working with your PC and mobile phone seamlessly. Wireless handset provides you the ease of use, and lasts for over 14 hours talk time.



Details

Specifications

Base

Microphone

- Type: 2 omnidirectional analog microphones
- Voice pickup range: 1.5 meters
- Sensitivity: -32dBFs
- Frequency: 45Hz~7KHz
- SNR: >65dB(A)
- Full-duplex
- Beamforming
- Environment Noise Cancellation (ENC)
- Adjustive Noise Suppression (ANS)
- Automatic Gain control (AGC)

Speakerphone

- Speakerphone/Rated power: 4? 3W/f40mm
- Sensitivity: 87dB±2dB
- Frequency range: 195Hz~20KHz
- Music mode bandwidth: 195Hz~20KHz
- Speaker mode bandwidth: 195Hz~20KHz

Wireless Handset

Microphone

- Type: 2 omnidirectional analog microphones
- Sensitivity: -38dBFs
- Frequency :45Hz-8KHz

Hearing Aid Compatible (HAC)

Yes

Battery

- Battery capacity: 300mAh
- Talk time: 14h
- Charging time: 3.4h
- Standby time: 21h (Automatically shut down if no operation performed for 10 minutes)

Connectivity

Base (PC/mobile device)

USB/Bluetooth

Handset

Bluetooth

Bluetooth

- Version: Bluetooth 5.4
- Profiles: A2DP, HSP
- Operating range: Up to 10m/33ft
- Pairing list: Up to 8 devices
- Simultaneous connections: 2

Wireless Charging

Number of wireless charging coils

1

Charging power

10W for mobile phone charging, 5W for handset charging

Effective distance of wireless charging

Coil is aligned with the center within a diameter range of 3~5mm

Compatibility

UC Compatibility

Mainstream UC or video conferencing services

Physical Specifications

Dimensions

- Base: 204.8*174.9*114.8mm
- Handset: 203.7*45.8*47mm

Weight

- Base: 752g
- Handset: 180g

Temperature and humidity

- Working temperature: -10°C - 60°C
- Working humidity: 10% - 95%RH

Manufacturer Part No:
LIN-DB20-H
Brand:
Fanvil
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
IPHFAN1209
Product Model:
DB20-H
Warranty: 12 months *
