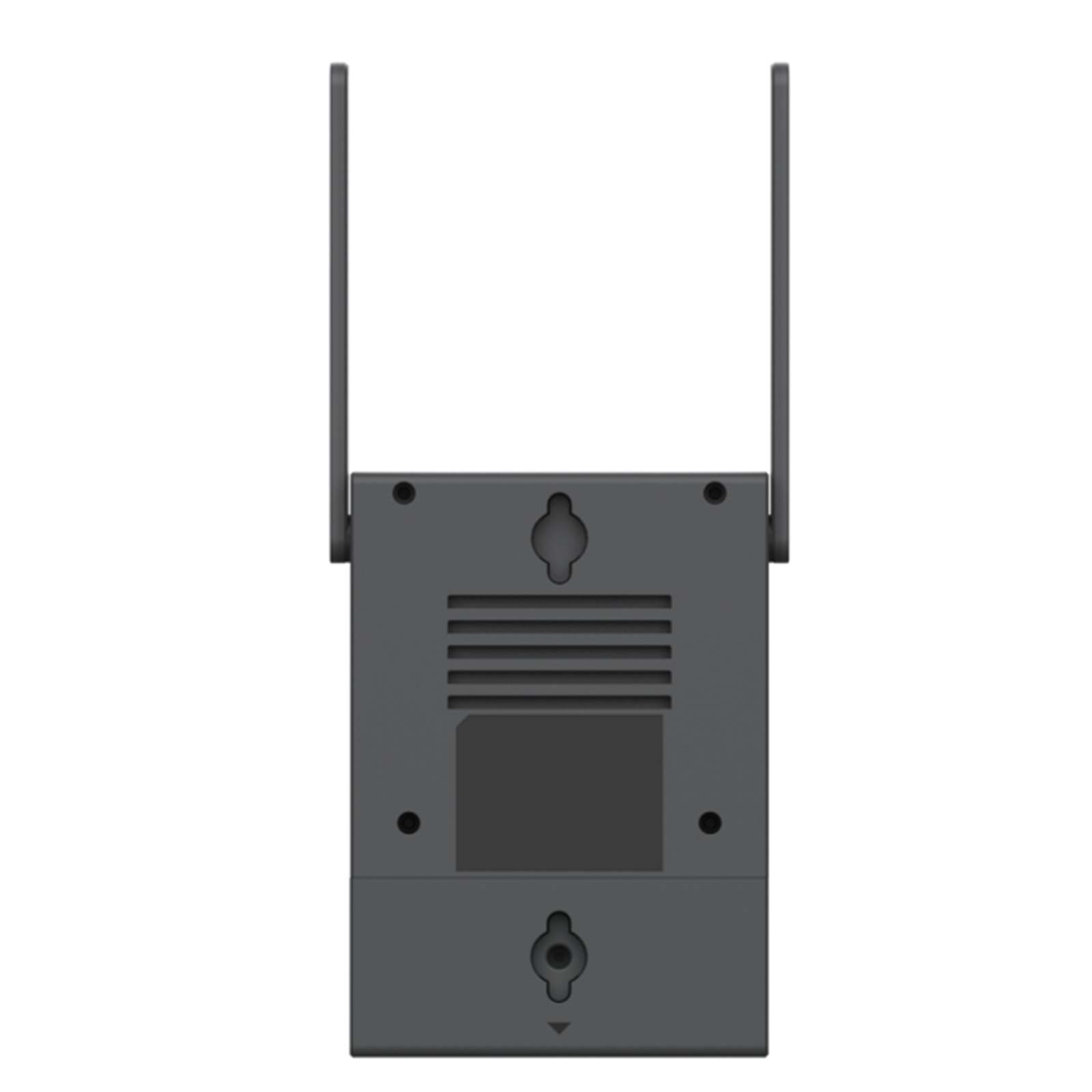

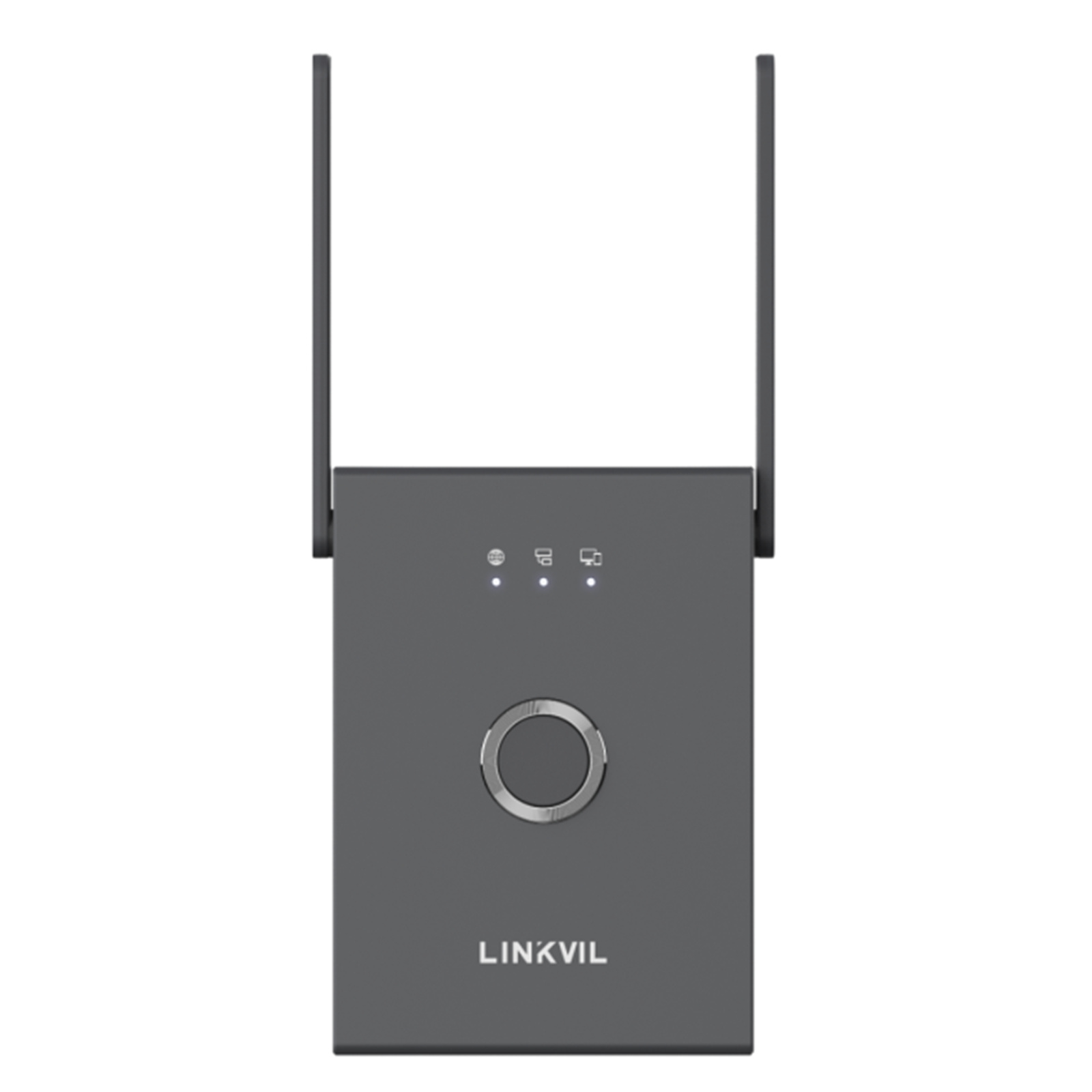

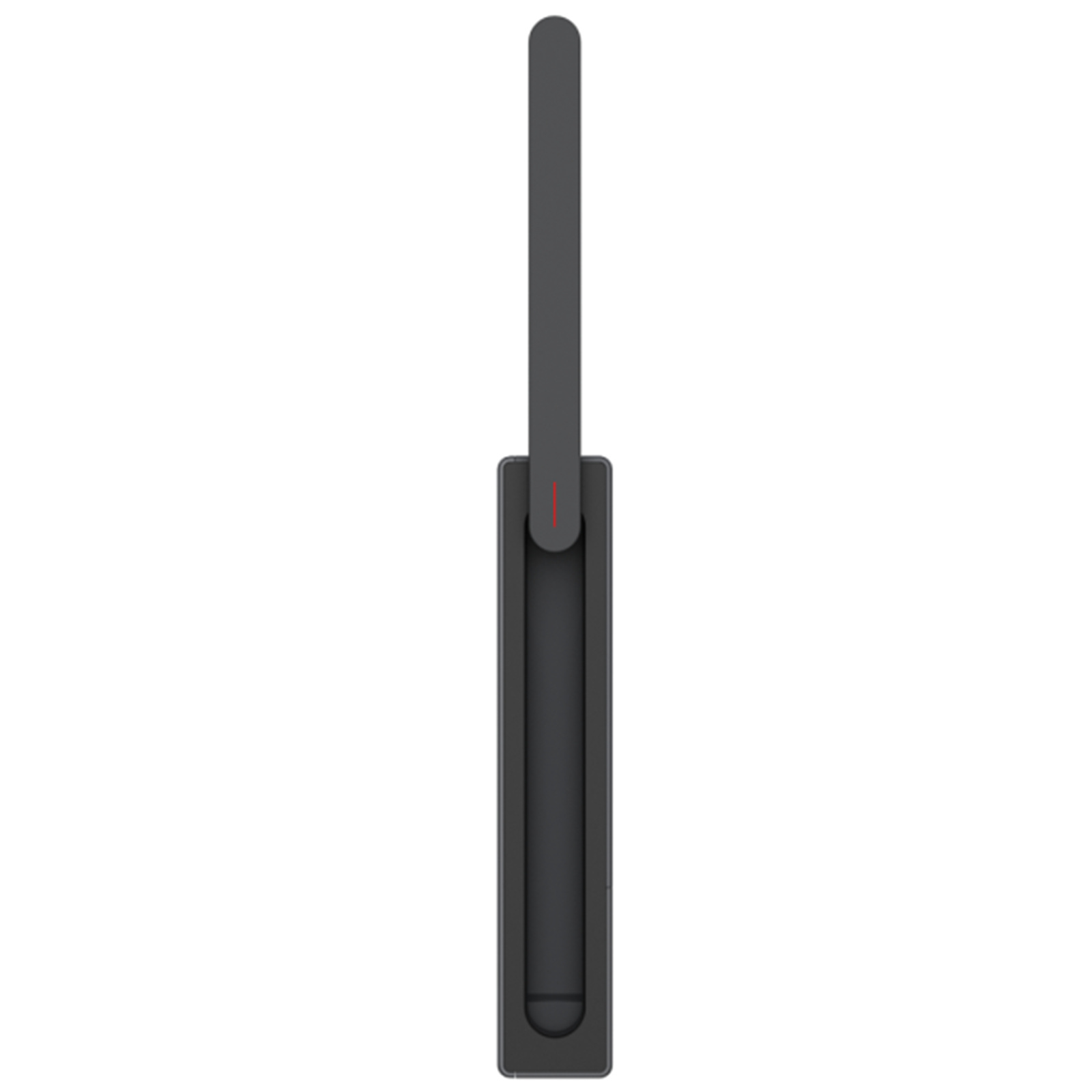

Fanvil LIN-W710H LINKVIL Cordless Multi-cell System Base Station

The LINKVIL by Fanvil IPCT Base W710H is a long-range cordless multi-cell base station designed for seamless communication. The IPCT (IP Cordless Telecommunications) system supports both single-cell and multi-cell modes, offering flexible and scalable configuration options. In LAN environments, the system enables internal communication without requiring SIP account registration.

The Single-Cell System, managed by the W710H-Manager, supports up to 30 terminals and 16 simultaneous calls, while also providing a wireless network. The Multi-Cell System, composed of W710H-Managers and W710H-Base stations, supports up to 300 terminals and 200 simultaneous calls, offering seamless roaming and switching capabilities.

This IPCT solution delivers reliable, long-range, high-capacity IP cordless communication, ideal for enterprises, shopping malls, residential areas, hotels, warehouses, and other mobile office scenarios.

- Up to 200 simultaneous calls
- Up to 20 bases
- Up to 300 terminals
- Up to 300 SIP accounts
- Up to 300 internal extensions
- Support XML/LDAP/Remote Phonebook
- Local phonebook: 1000 local contact for each terminal
- Seamless roaming and switching
- Wireless signal coverage extends up to 100 meters indoors and 700 meters outdoors
- Employing Fanvil wireless technology for high-quality, reliable communication

Scalable and High-Capacity Communication

LINKVIL Cordless Multi-cell System supports 1 W710H manager, 20 base stations, and 300 W610H handsets. It enables up to 200 simultaneous calls, with each base station handling 16 calls, ensuring crystal-clear and seamless communication at scale.

Seamless Roaming with Extensive Signal Coverage

With a signal radius range of up to 100m indoors and 700m outdoors without any distraction*, users can move freely between base stations while enjoying uninterrupted roaming and seamless call switching.

*Test data may vary based on actual environmental conditions.

Single-Cell System Support for Flexible Deployment

The W710H functions as both a manager and a base station. With just one W710H manager and W610H handsets, users can quickly set up a single-cell system. To extend coverage, simply integrate additional W710H base stations, setting up a multi-cell system.

High Performance Low Power Consumption

The W710H boasts ultra-low power consumption and can be charged using a power bank, ensuring uninterrupted operation during power outages.

Application Scenarios
