Yealink CS10 Low-Profile 2-Way Coaxial Ceiling Loudspeaker

PB Tech price
PB Tech price
NZD $ 577 .20
$ 577 .20
$577.20  +GST
$577.20

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Yealink CS10 Low-Profile 2-Way Coaxial Ceiling Loudspeaker

  • Brand: Yealink
  • MPN: CS10
  • Part #: IPHYLK6160596
  • UPC: 841885120793
CLEARANCE
PB Tech price
NZD $ 577 .20 $ 577 .20
Hurry, only 2 units left!


Delivery: Order now and it ships on 22 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$577.20  +GST
$577.20
  • Brand: Yealink
  • MPN: CS10
  • Part #: IPHYLK6160596
  • UPC: 841885120793

Room Size

N/A

Meeting Platform

Not Specified

Features

Practical and Aesthetic Integration

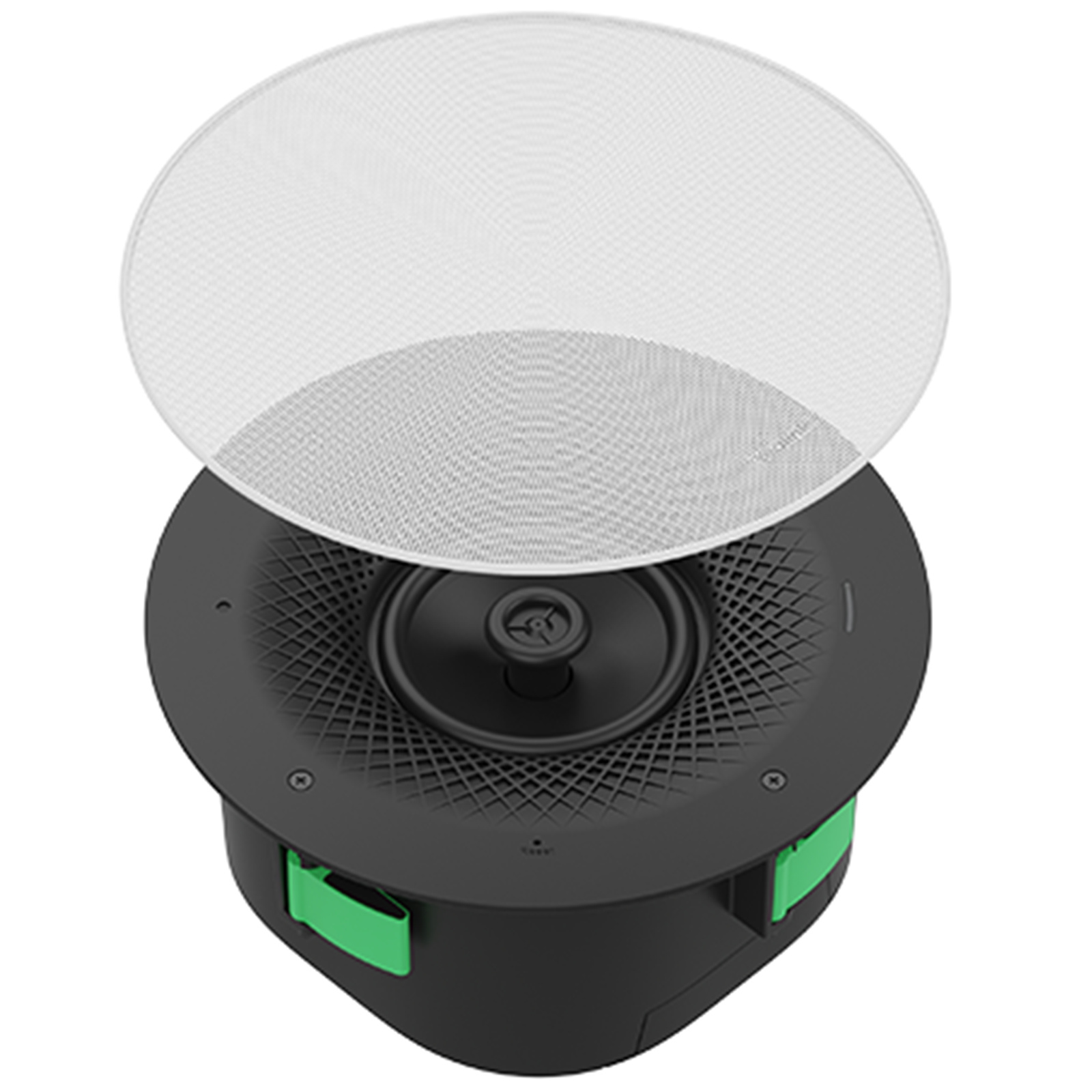

The Yealink CS10, available in black and white, features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover*. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.

Specially Designed for Conference Space

The CS10 boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.

Video Conferencing Perfected

CS10 was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.

Versatile Adaptability

Yealink CS10 provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.

Specifications

Package Content

CS10 Speaker
White Mesh Cover (Black Optional)
Quick Start Guide
Assembly Fixing Bracket
Dust Cover
Deployment Instruction Template
Bracing Bridge
Dust Cover Screw × 6 (M3 × 4CMHOZN3)

Audio Specifications

Frequency Response (-6dB)

100-20kHz

Maximum SPL

Continuous: 99dB @20W 1m
Sensitivity: 88dB@1m 1W

Speaker Specification

LF

5.7 inch (145 mm) woofer

HF

1.1 inch (28 mm) tweeter

Nominal Impedance

8O

Nominal Coverage Angle

120

Product Specifications

Size

- ?294 × H125.8mm (with cover mesh)
- ?287.2 × H125mm (without cover mesh)

Weight

- 2808g (without cover mesh);
- 207g (Cover mesh)

Product Color

white/black

Cover Mesh Color

white/black

Product Materials

- Cover Mesh: PC/ABS Welded SPCC
- Main Body Shell: PA (Polyamide) with 15% GF
- Bottom Shell: aluminum alloy
- Cover Plate: PC/ABS and SGCC

Physical Specifications

Operating Temperature

0-50°C

Storage Temperature

0-50°C

Operating Humidity

5%~90%

Rated Power

24W (20W typical power)

Power Supply

PoE+ (IEEE 802.3at class 4)

Interface

1 × RJ-45

Manufacturer Part No:
CS10
Brand:
Product Type:
-
UPC
841885120793
Product Family:
-
Shipping Weight:
5.51 kg
PB Part No:
IPHYLK6160596
Product Model:
CS10
