Keychron KEYC-G124 Kailh Jellyfish Box Switch Y - Linear
- Brand: Keychron
- MPN: KEYC-G124
- Part #: KEYKCH1306

Product URL: https://www.pbtech.com/pacific/product/KEYKCH1306/Keychron-KEYC-G124-Kailh-Jellyfish-Box-Switch-Y
Features
Keychron KEYC-G124 Kailh Jellyfish Box Switch Y(Linear)

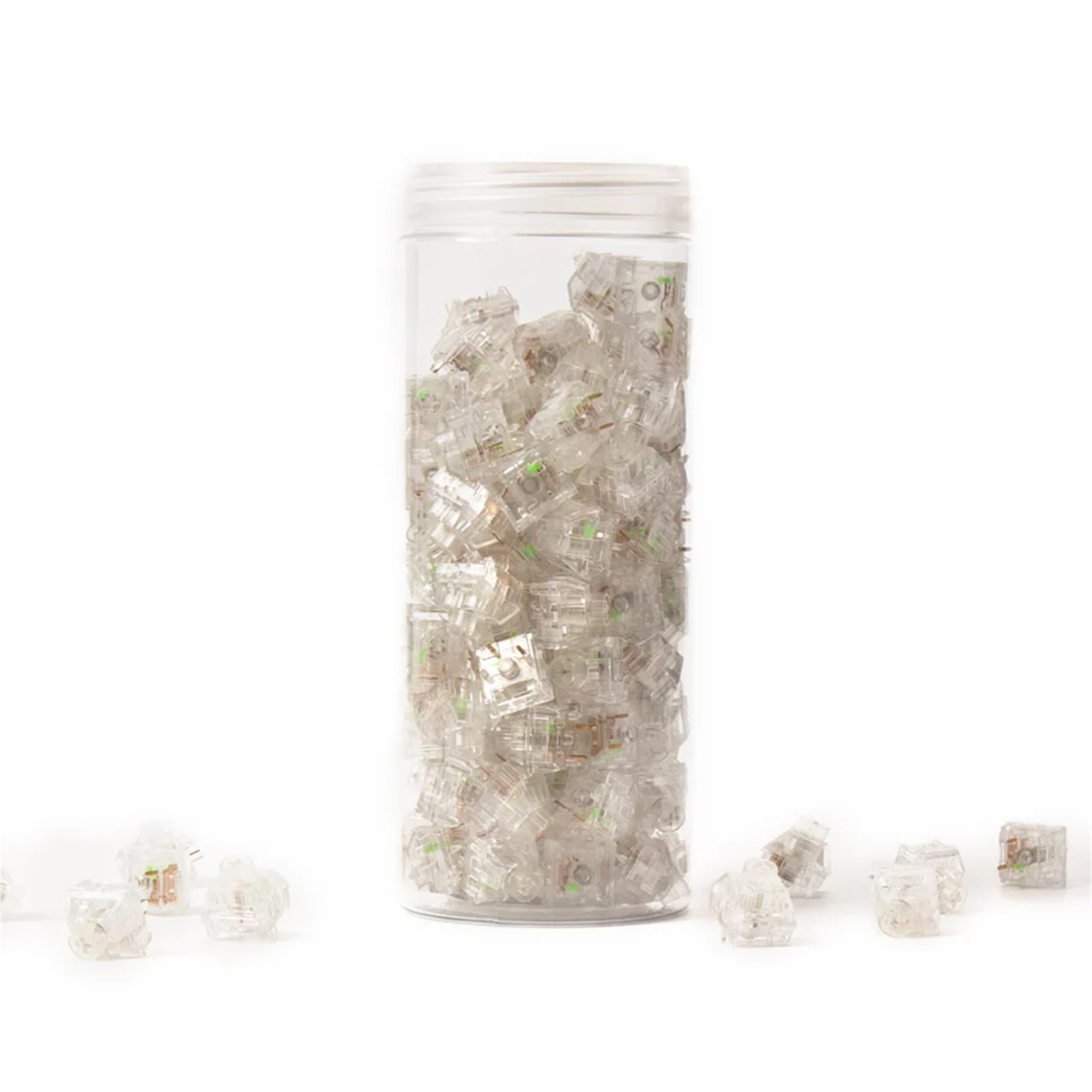

Each Kailh Jellyfish Box Switch Set comes with 110 switches and the bottle.
Fully Transparent Body Structure As Jellyfish
The Kailh Jellyfish Switch is a unique box switch with durable PC housings and a special nylon stem design. It has a jellyfish-like transparent appearance, IP54 splash, and dust resistance. Its box structure also provides closed-loop protection for the switch.
Gold Contact
The Jellyfish Switches are equipped with a gold contact allowing for high corrosion-resistant and antioxidant properties. These contacts also create a latency-free connection with your keyboard and delivers a highly responsive typing experience.
Linear
The silver 18mm spring has an actuation of 50g and a strong rebound. It has little to no spring noise.
Perfect Backlight Effect
The Jellyfish Switches come in linear and clicky options to meet the need of beginners and switch enthusiasts.
Product Structure
Specifications
Stem
Nylon
Top Housing
PC
Bottom Housing
PC
Contact
Composite gold
Spring
Spring steel
Protecting Cover
PC
Slider
POM
Light Guide Post
PC
Pins
5-Pin
Factory Pre-lubed
No
SMD LED Support
Yes
Type
Linear
Operation Force
50±10 gf
Pre-travel
1.8±0.4 mm
Return Force
=15 gf
Total Travel
3.6±0.3 mm
Sound Level
Low
Operation Life
Up to 100M cycles
Suitable For
Gaming/office
Compatible Keyboard
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V and V Max series, Q, Q Pro and Q Max series Keychron keyboards, and L and P Series Lemokey keyboards.
