Features

Aten 4 Port USB Boundless KM Switch

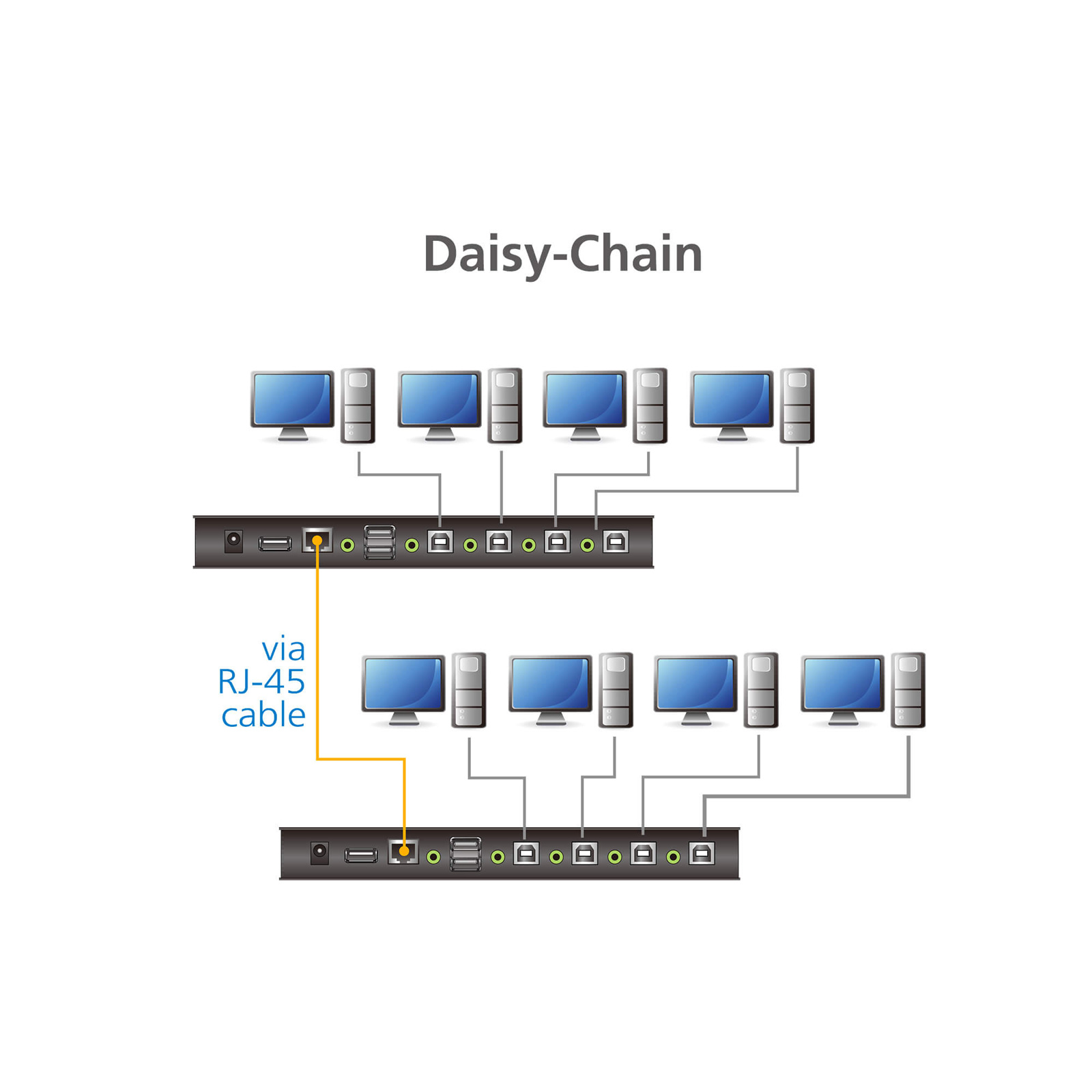

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

Innovative port selection

The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN's exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display. Move the mouse cursor in any direction to switch the control focus without limitations.

Boundless Switching function

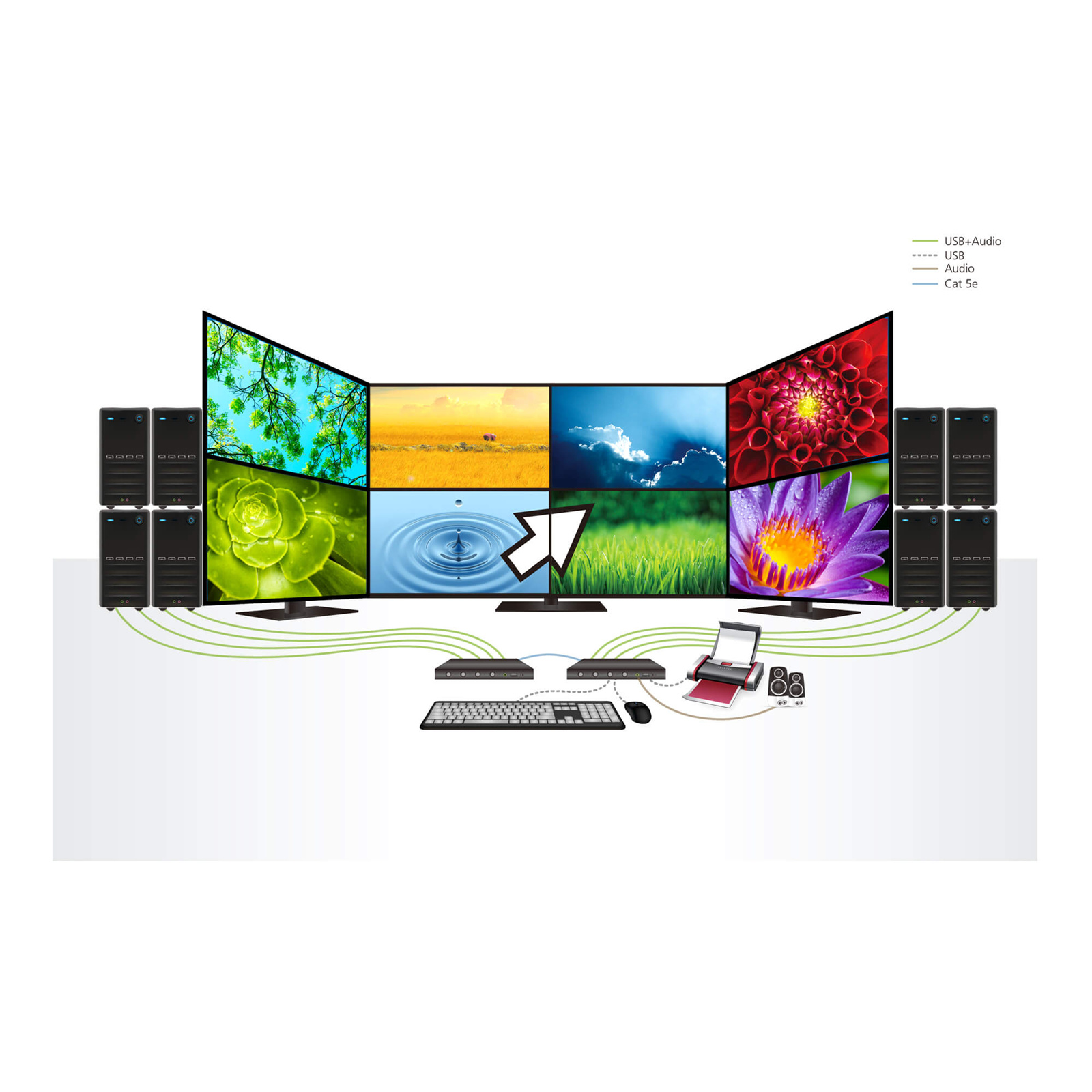

The CS724KM's Boundless Switching function supports extended desktops with up to four monitors (one per computer), and up to eight monitors when two switches are daisy-chained, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across multiple displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.

Advanced features

The CS724KM also provides an intuitive GUI-based configuration utility that allows users to customize their mouse cursor movement paths according to the specific monitor layout at the desktop or workstation. The configuration tool is easy to set up and compatible with Windows operating systems. Further advanced features of the CS724KM include bus-power mode which means no external power adapter is required, as well as independent switching of the keyboard/mouse, USB peripheral, and audio focus via hotkeys. With a rich feature set, the CS724KM is designed to simplify administrative tasks, save space, and increase work productivity in multi-monitor extended desktop environments, and is especially suitable for complex multitasking applications in control rooms in any industry.

Specifications

Computer Connections

Port Selection

Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands

Console Ports

2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
1 x RJ-45

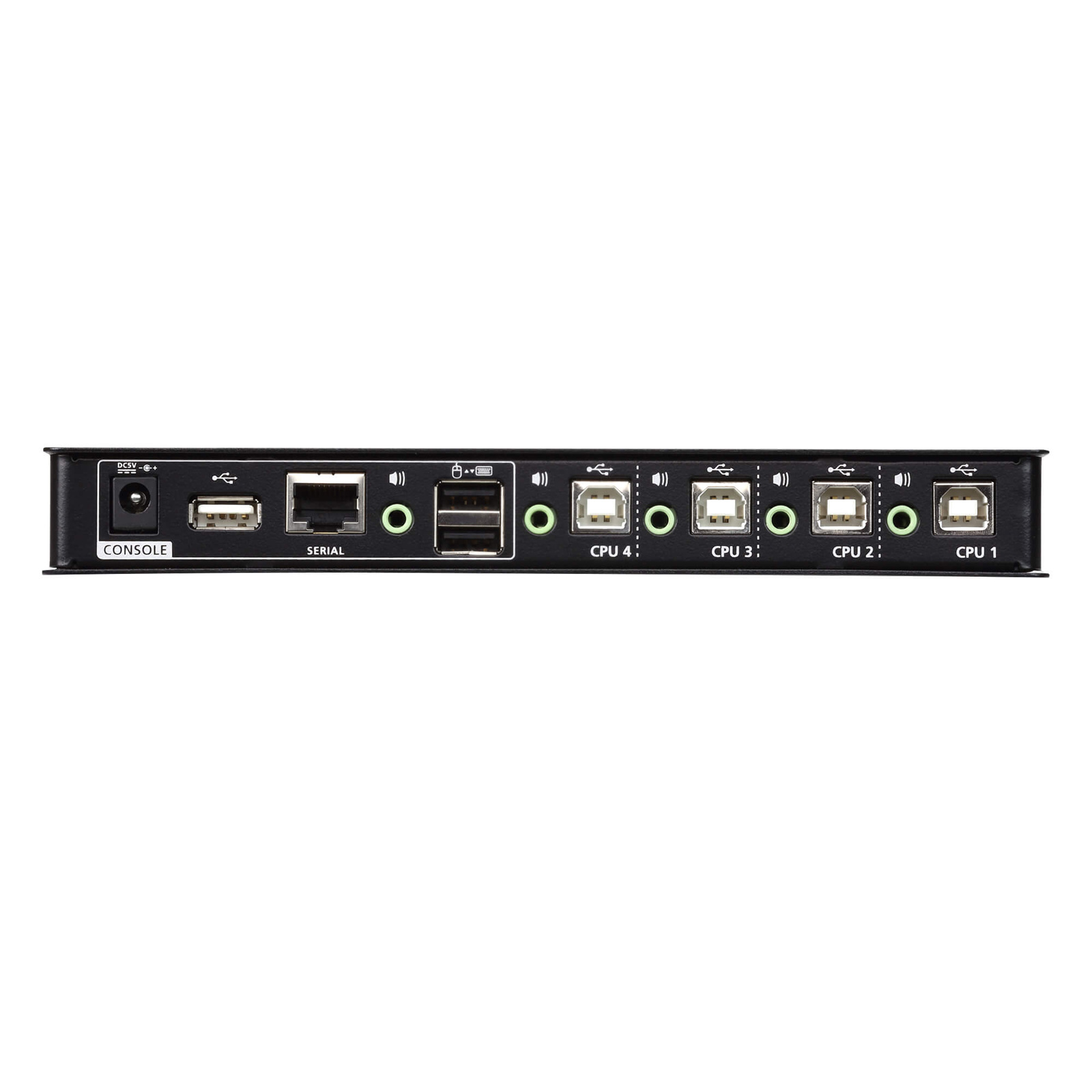

KVM (Computer) Ports

4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green)

Power

1 x DC Jack

USB Hub

2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)

Port Selection

4 x Pushbutton

Station Selection

1 x Slide Switch

LEDs Selected

4 (Green)

Keyboard / Mouse

USB

Scan Interval

1-99 seconds (default: 5 sec.)

Power Consumption

DC5V:1.69W:33BTU

Operating Temperature

0-50°C

Storage Temperature

-20-60°C

Humidity

0-80% RH, Non-condensing

Housing

Metal, Plastic

Weight

0.50 kg

Dimensions (L x W x H)

20.00 x 8.06 x 2.50 cm

Manufacturer Part No:

CS724KM

Brand:

Aten

Product Type:

UPC

672792008184

Product Family:

Shipping Weight:

1.05 kg

PB Part No:

KVMATN0126

Product Model:

CS724KM

Warranty: 24 months *
