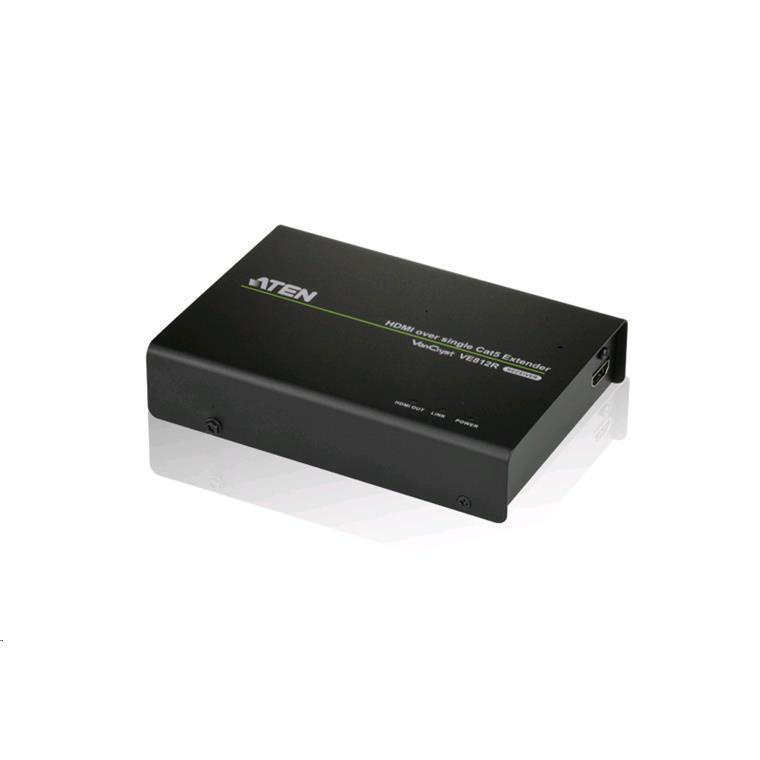

The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 100 m.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Package Contents
1x VE812R HDMI Over Single Cat 5 Receiver
1x Power Adapter
1x Mounting Kit
1x User Instructions
Specifications
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Warranty:
24 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Reviews
There are currently no reviews for this product
Do you own this product?
Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au
Returns & Warranty
7 day right of exchange
If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.
To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.
If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.
Please note, items purchased on finance cannot be exchanged for a gift card.
Hassle free warranty service
If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.
If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.
Date Created: 15:29, 13-09-2025 Product URL: https://www.pbtech.com/pacific/product/KVMATN0802/Aten-VE812R-HDMI-HDBaseT-Receiver--4K100m--HDBaseT
Features
The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 100 m.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Package Contents
1x VE812R HDMI Over Single Cat 5 Receiver
1x Power Adapter
1x Mounting Kit
1x User Instructions
Specifications
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output
1 x HDMI Type A Female (Black)
Power
Connectors
1 x DC Jack
Consumption
5.3 VDC, 4.5W
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.41 kg ( 0.9 lb )
Dimensions (L x W x H)
14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Carton Lot
5 pcs
Date Created: 15:29, 13-09-2025 Product URL: https://www.pbtech.com/pacific/product/KVMATN0802/Aten-VE812R-HDMI-HDBaseT-Receiver--4K100m--HDBaseT
Aten VE812R HDMI HDBaseT Receiver ( 4K/100m ) (HDBaseT Class A )
PB Tech price
PB Tech price
NZD $304.80$304.80
Product Attributes
Part #:KVMATN0802
Device Type:
Receivers
Extension Distance:
100m
Video Interface:
HDMI
Maximum Supported Resolution:
4096x2160
Wireless Technology:
N/A
