LENKENG LKV724P 1-In-4-Out 4K30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.

PB Tech price

NZD $ 411 .30

$ 411 .30

LENKENG LKV724P 1-In-4-Out 4K30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.

Brand: LENKENG
MPN: LKV724P
Part #: KVMLNK1173
UPC:

PB Tech price

NZD $ 411 .30

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 08 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: LENKENG
MPN: LKV724P
Part #: KVMLNK1173
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

LENKENG 1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.

1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6A/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Receiver.

Features:

Zero latency transmission
Supports up to 4K@30Hz resolution, downward compatible
Supports HDR10

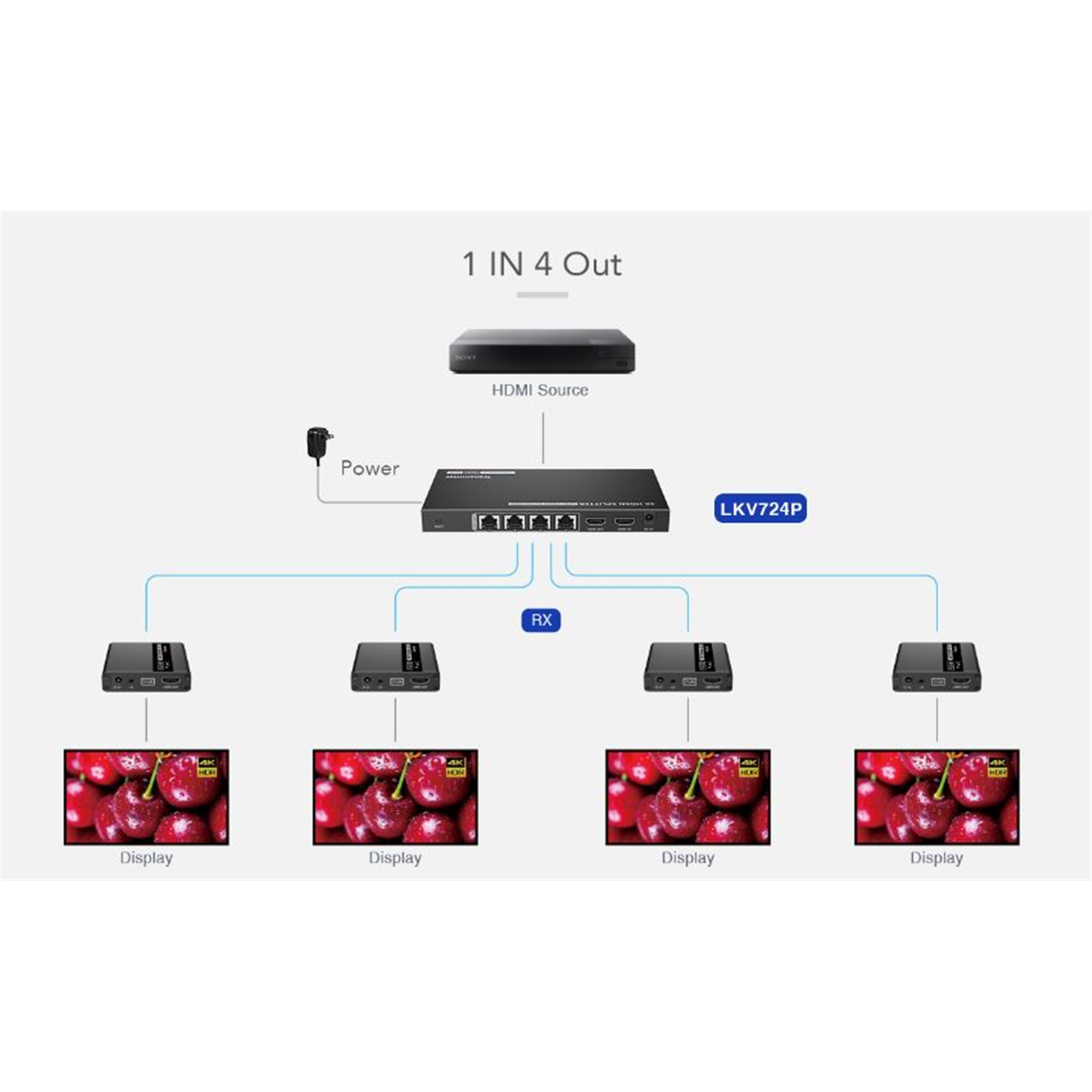

Distribute 1 HDMI source to 4 displays

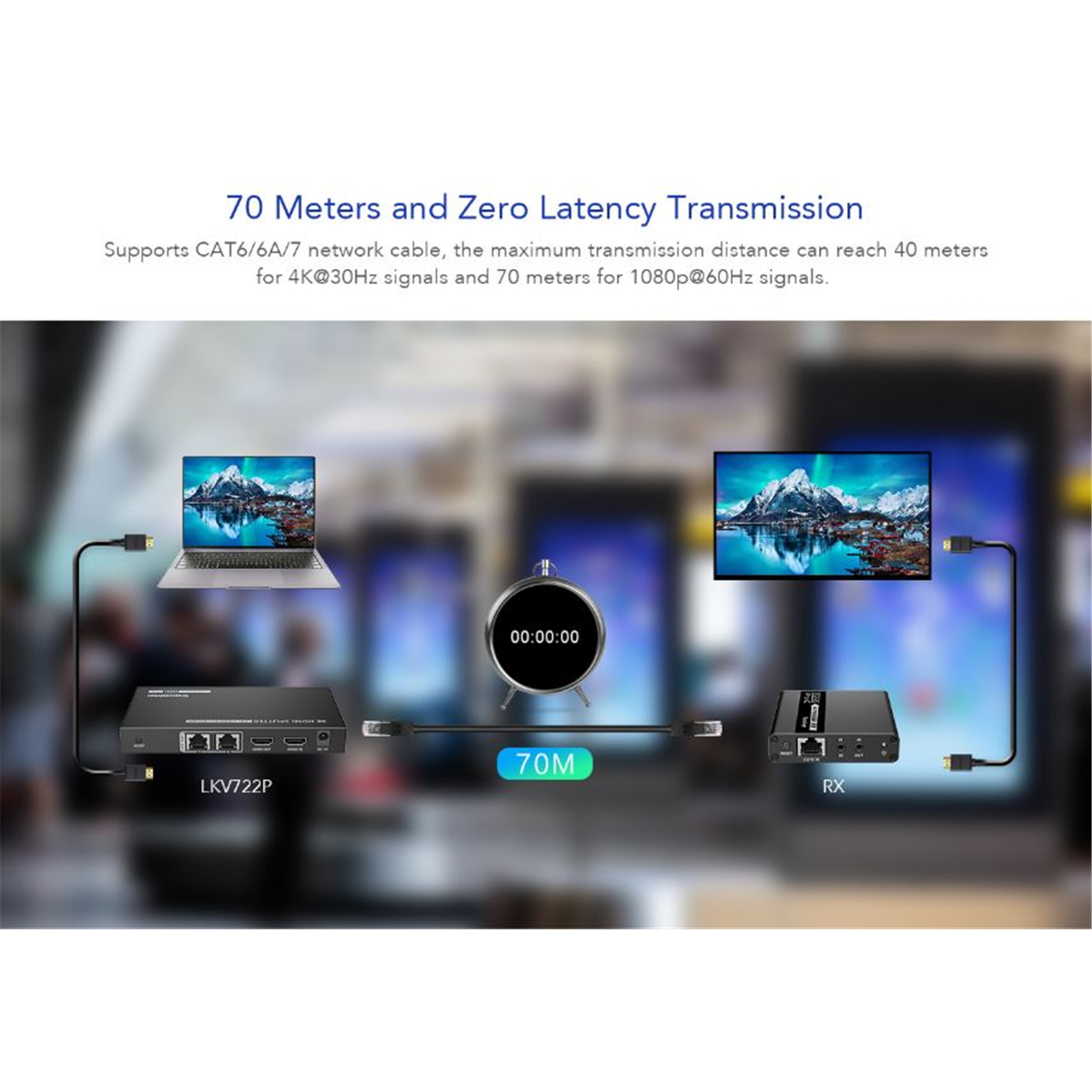

Support CAT6/6A/7 network cable, which can transmit 1080p signal up to 70m and 4K@30Hz signal up to 40m
Supports power over a network cable, only the transmitter needs to be powered
The transmitter supports HDMI loop out
Supports bi-directional IR passthrough (20~60KHz)

4K@30Hz HDR for visually lossless transmission

Supports 4K@30Hz HDR, so the image can be clearer, have higher saturation and show more outstanding details.

Specifications

Splitter

1 input, 4 output

HDMI compliance

HDMI 1.4

HDCP compliance

HDCP 1.4

Transmission medium

CAT6/CAT6A/CAT7

Transmission distance

1080p@60Hz=70m, 4K@30Hz=40m

Video bandwidth

10.2Gbps

Video support

800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz

Audio support

PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH

PoE

support

1080P HDR10

support

HDMI Loop-out

support

EDID through

support

RS-232 Control

3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600

Bi-directional IR passback

support

Input TMDS signal

0.7~1.2Vp-p

Input DDC signal

5Vp-p

Input

HDMI IN x1, DC2.1 x1, 3.5mm jack x1 (IR)

Output

HDMI OUTx1, RJ45 x4, 3.5mm jack x1 (IR)

HDMI connector

Type A 19 Pins, Female

Network cable standard

CAT6/CAT6A/CAT7, follow IEEE-5688 standard

Mechanical

Housing

TX: Iron, RX: Aluminium alloy material+crystal panel

Dimensions (LxWxH mm)

TX: 191.5(L) x 96.5(W) x 19.0(H) mm, RX: 80.0(L) x 75.0(W) x 18.0(H) mm

Weight

TX: 435g, RX: 160gx4

Power supply

TX: DC 12V/2A

Power consumption

TX: 10W, RX: 2.5W

Operation temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Relative humidity

0%~90%(no condensation)

Protection

Lightning protection, surge protection, ESD protection

Manufacturer Part No:

LKV724P

Brand:

LENKENG

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

KVMLNK1173

Product Model:

LKV724P

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
