LENKENG 1-In-8-Out 4K 30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
LENKENG 1-In-8-Out 4K 30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
- Brand: LENKENG
- MPN: LKV728P
- Part #: KVMLNK1174
- UPC:
- Brand: LENKENG
- MPN: LKV728P
- Part #: KVMLNK1174
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Extenders





LENKENG 1-In-8-Out 4K 30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
- Brand: LENKENG
- MPN: LKV728P
- Part #: KVMLNK1174

Product URL: https://www.pbtech.com/pacific/product/KVMLNK1174/LENKENG-1-In-8-Out-4K-30Hz-HDMI-Extender-1x-HDMI-i
Features
LENKENG 1-In-8-Out 4K@30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

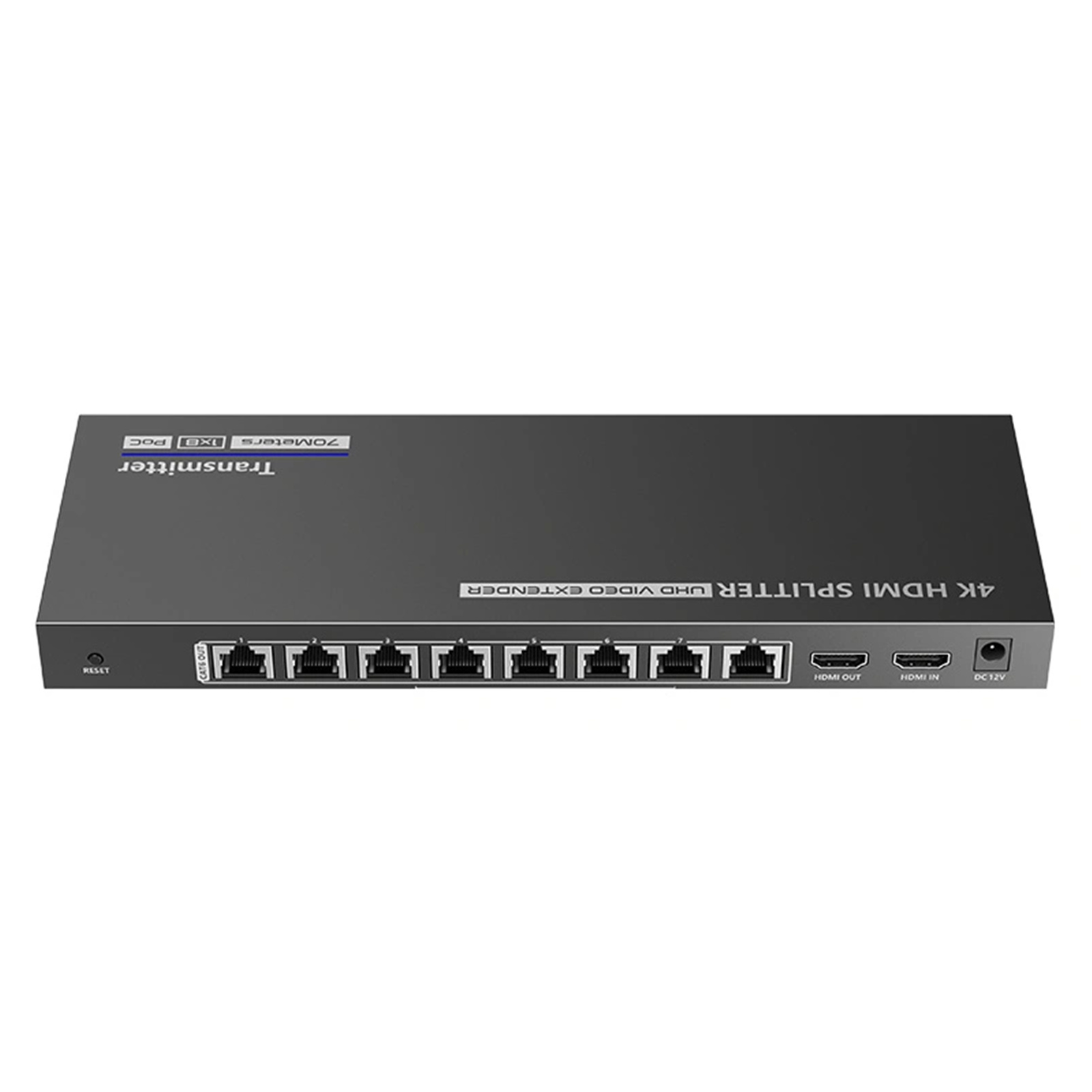

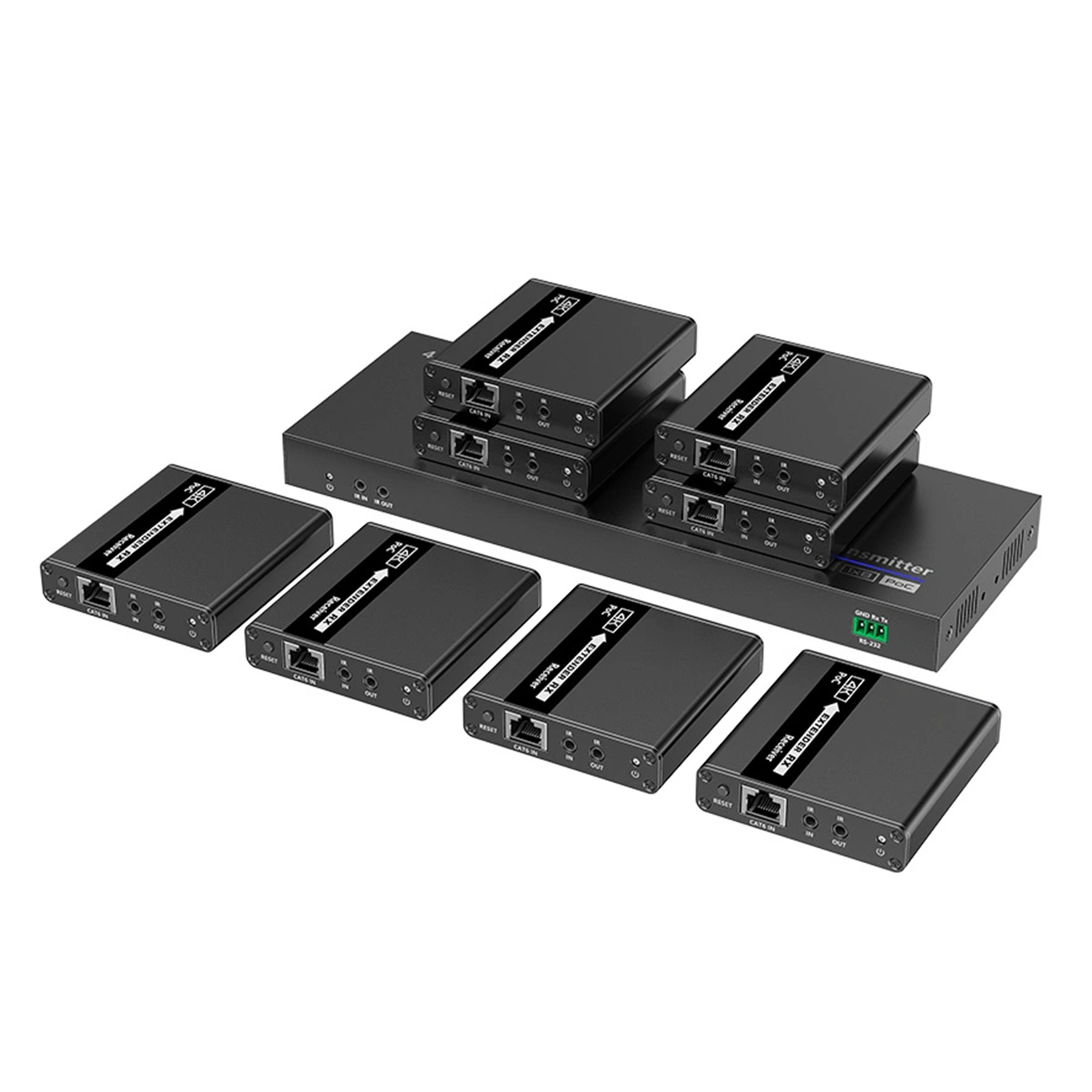

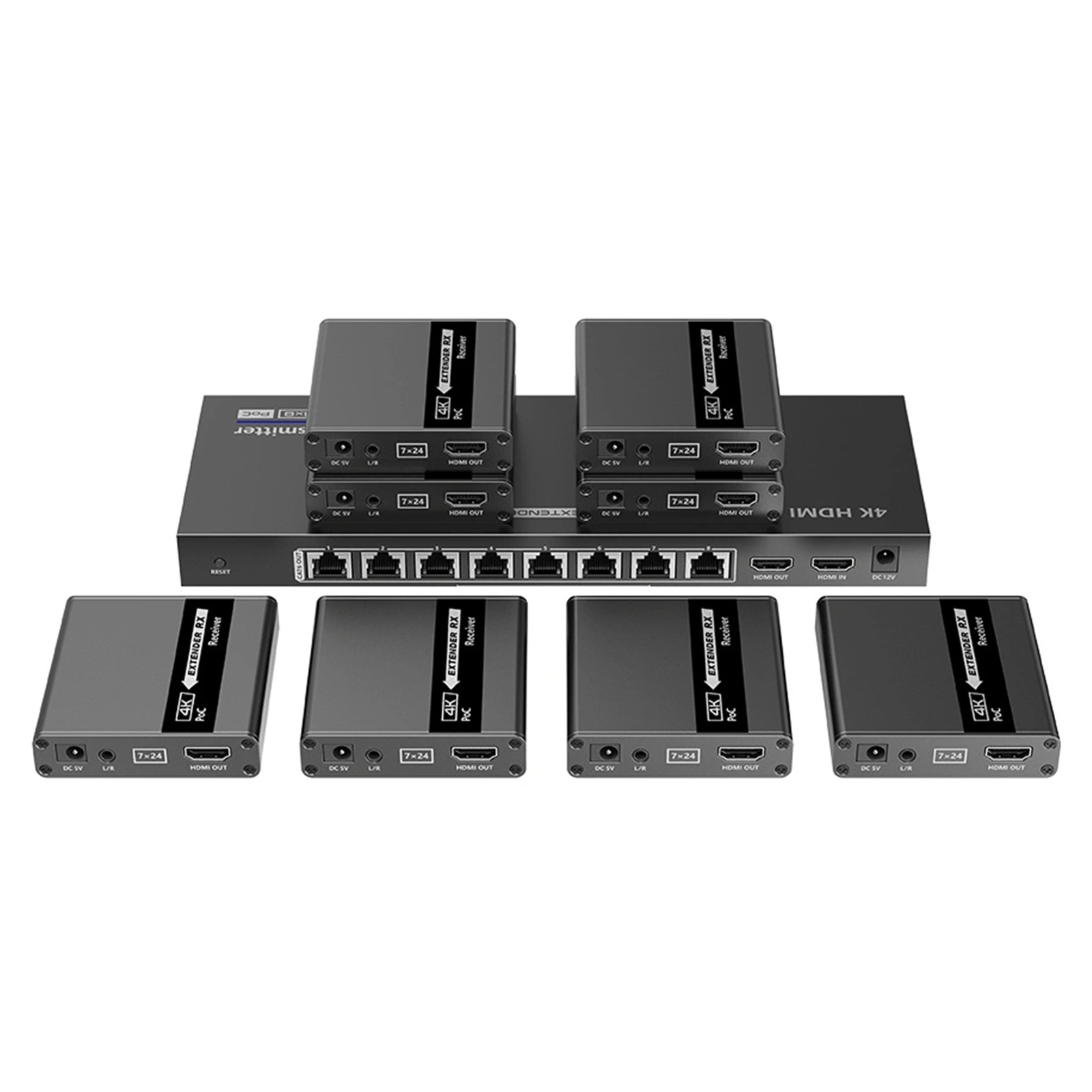

1-In-8-Out 4K@30Hz HDMI Extender. Distributes 1 HDMI input signal to 8 identical signal outputs, extending these signals up to 70m. Supports 4K@30Hz resolution, bi-directional IR passthrough, RS-232 control and 3.5mm L/R audio output functions.
- Zero-latency transmission
- Supports up to 4K@30Hz resolution, downward compatible
- Supports HDR10
- Distribute 1 HDMI source to 8 HDIMI displays
- Support CAT6/6A/7 network cable, which can transmit 1080p signal up to 70m and 4K@30Hz signal up to 40m
- Supports power over network cable, only the transmitter needs to be powered
- Transmitter supports HDMI loop out
- Supports bi-directional IR passthrough (20~60KHz)
- Supports RS-232 command control
- Surge protection, lightning protection, ESD protection
Specifications
Splitter
1 input, 8 output
HDMI compliance
HDMI 1.4
HDCP compliance
HDCP 1.4
Transmission medium
CAT6/CAT6A/CAT7
Transmission distance
Video bandwidth
10.2Gbps
Video support
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz
Audio support
PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH
PoE
support
1080P HDR10
support
HDMI Loop-out
support
EDID through
support
RS-232 Control
3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600
Bi-directional IR passback
support
Input TMDS signal
0.7~1.2Vp-p
Input DDC signal
5Vp-p
Input
HDMI IN ×1, DC2.1 ×1, 3.5mm jack ×1 (IR)
Output
HDMI OUT×1, RJ45 ×8, 3.5mm jack ×1 (IR)
HDMI connector
Type A 19 Pins, Female
Network cable standard
CAT6/CAT6A/CAT7, follow IEEE-5688 standard
Mechanical
Housing
TX: Iron, RX: Aluminium alloy material+crystal panel
Dimensions (L×W×H mm)
TX: 272.0(L) x 96.5(W) x 23.0(H) mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm
Weight
TX: 615g, RX: 160g x8
Power supply
TX: DC12V/5A
Power consumption
TX<34W RX<2.5W
Operation temperature
-20°C~60°C
Storage temperature
-30°C~70°C
Relative humidity
0%~90% (no condensation)
Protection
Lightning protection, surge protection, ESD protection
