LENKENG LKV109VW-V2.0 3x3 HDMI Videowall Controller with 1x HDMI In & 9x HDMI Out. Up to 4096x2160 60Hz Res Input, Supports 1080P Output. RS-232 Control, 3.5mm L/R Channel and S/PDIF Audio Out, Plug & Play

PB Tech price
PB Tech price
NZD $ 833 .91
$ 833 .91

Out of stock

LENKENG LKV109VW-V2.0 3x3 HDMI Videowall Controller with 1x HDMI In & 9x HDMI Out. Up to 4096x2160 60Hz Res Input, Supports 1080P Output. RS-232 Control, 3.5mm L/R Channel and S/PDIF Audio Out, Plug & Play

  • Brand: LENKENG
  • MPN: LKV109VW-V2.0
  • Part #: KVMLNK1199
  • UPC:
PB Tech price
NZD $ 833 .91 $ 833 .91


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
  • Brand: LENKENG
  • MPN: LKV109VW-V2.0
  • Part #: KVMLNK1199
  • UPC:

Features

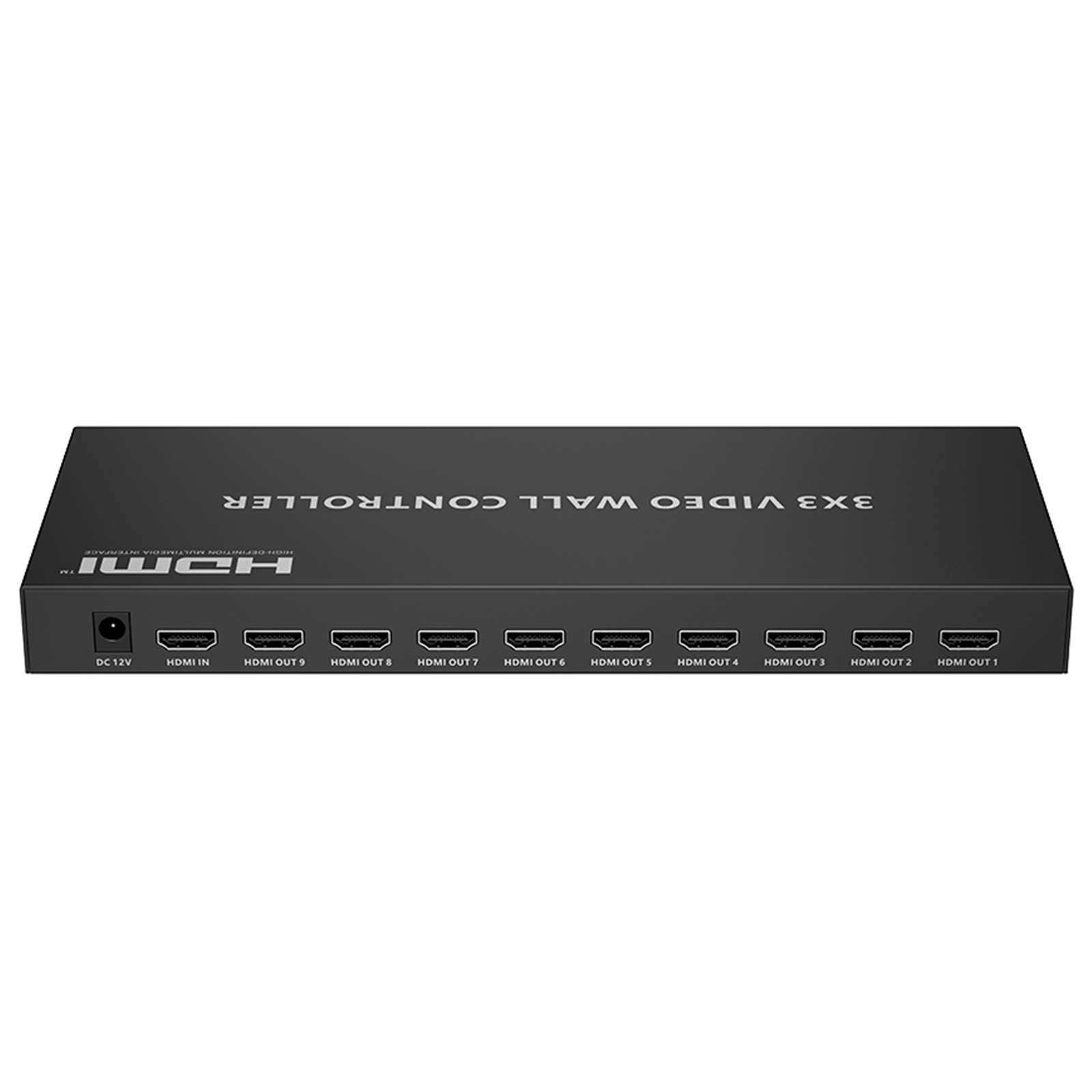

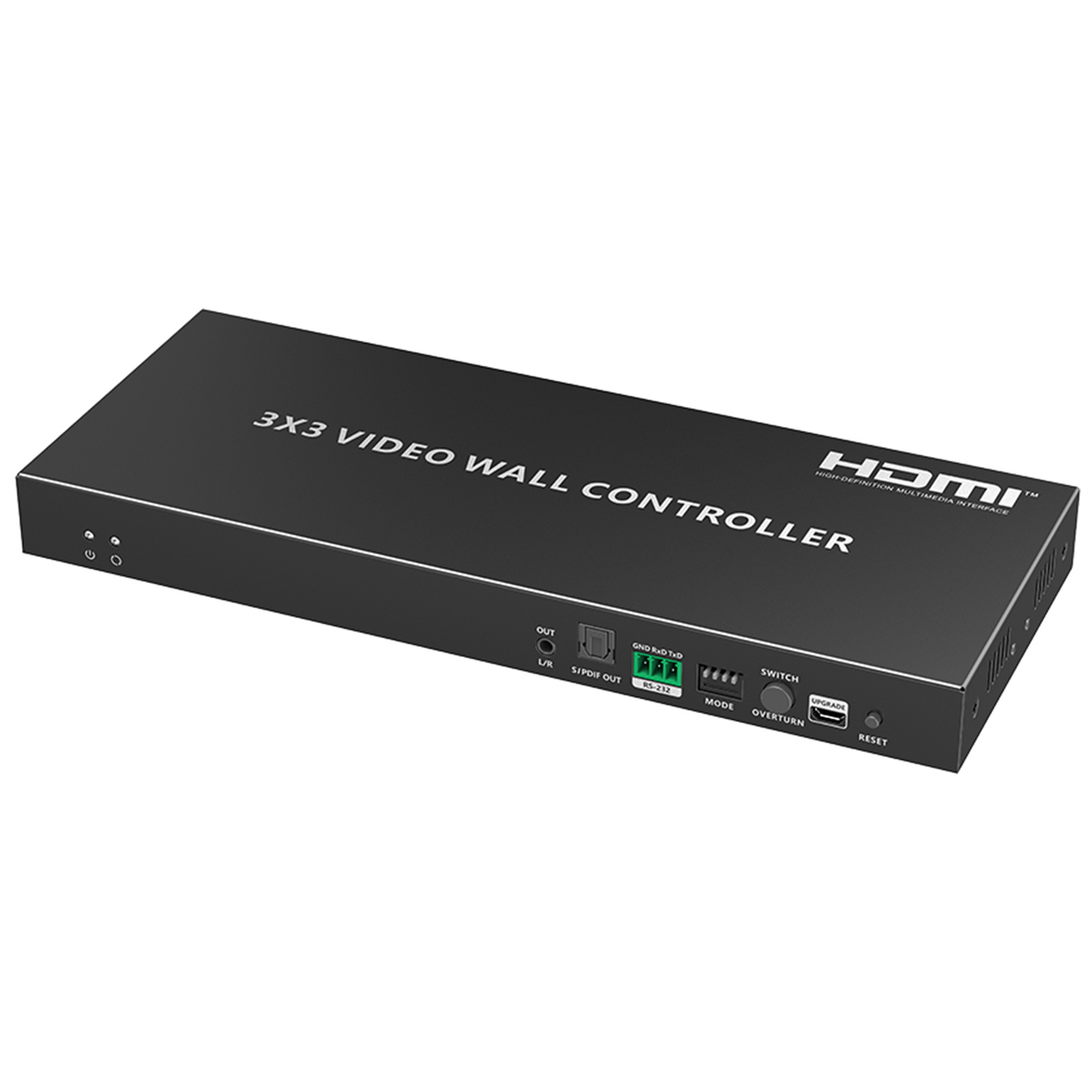

LENKENG 3x3 HDMI Videowall Controller with 1x HDMI In & 9x HDMI Out

This product is a 1-in-9-out video wall controller, supports one HDMI source input and nine HDMI outputs. Supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/ 3x3 splicing modes, which can be set by RS-232 or dip switch. Equipped with 3.5mm audio output,S/PDIF audio output,180-degree rotation of display image.The product can flexibly adapt to different installation requirements, which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre, training and other fields.


Specifications

Video Signal

HDMI Input

1x HDMI

HDMI Output

9x HDMI

Compatibility

HDMI 2.0
HDCP 1.4/HDCP 2.2

Resolutions

Input: 4096x2160@ 24/25/30/50/60Hz, 3840x2160@ 24/25/30/50/60Hz, 3440x1440@ 60Hz, 2560x1600@ 60Hz, 2560x1440@ 60Hz, 2560x1080@ 60Hz, 2048x1536@ 60Hz,
1920x1200@ 60Hz, 1080P@ 24/25/30/50/60Hz
Output: 1080P@ 30/60Hz

Audio signal

3.5mm Output

PCM

S/PDIF Output

PCM

HDMI Output

PCM

Splice Settings

Mode

1x1, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, 2x2, 2x3, 3x2, 2x4, 4x2 & 3x3

RS-232 (GND/RxD/TxD)

Baud rate: 9600

The mode can be switched using RS-232 only when the DIP switch is set to 1111

Operating Environment

Working temperature

20?~60?

Storage temperature

-30?~70?

Humidity

0%~90%RH (No condensation)

Physical Properties

Housing

Iron

Weight

775g

Color

Black

Dimensions (LxWxH)

265x105x25mm

Protection

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection

Manufacturer Part No:
