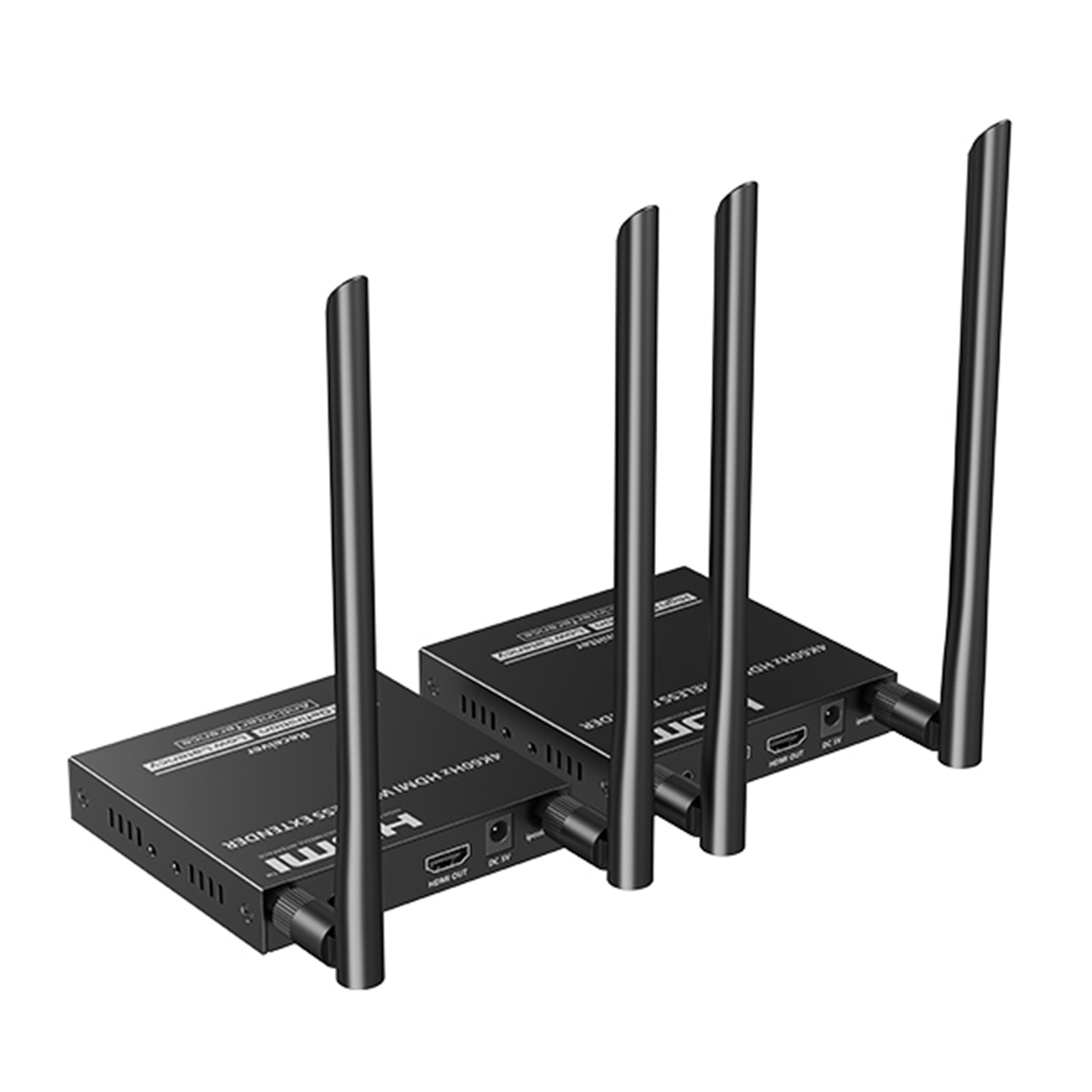

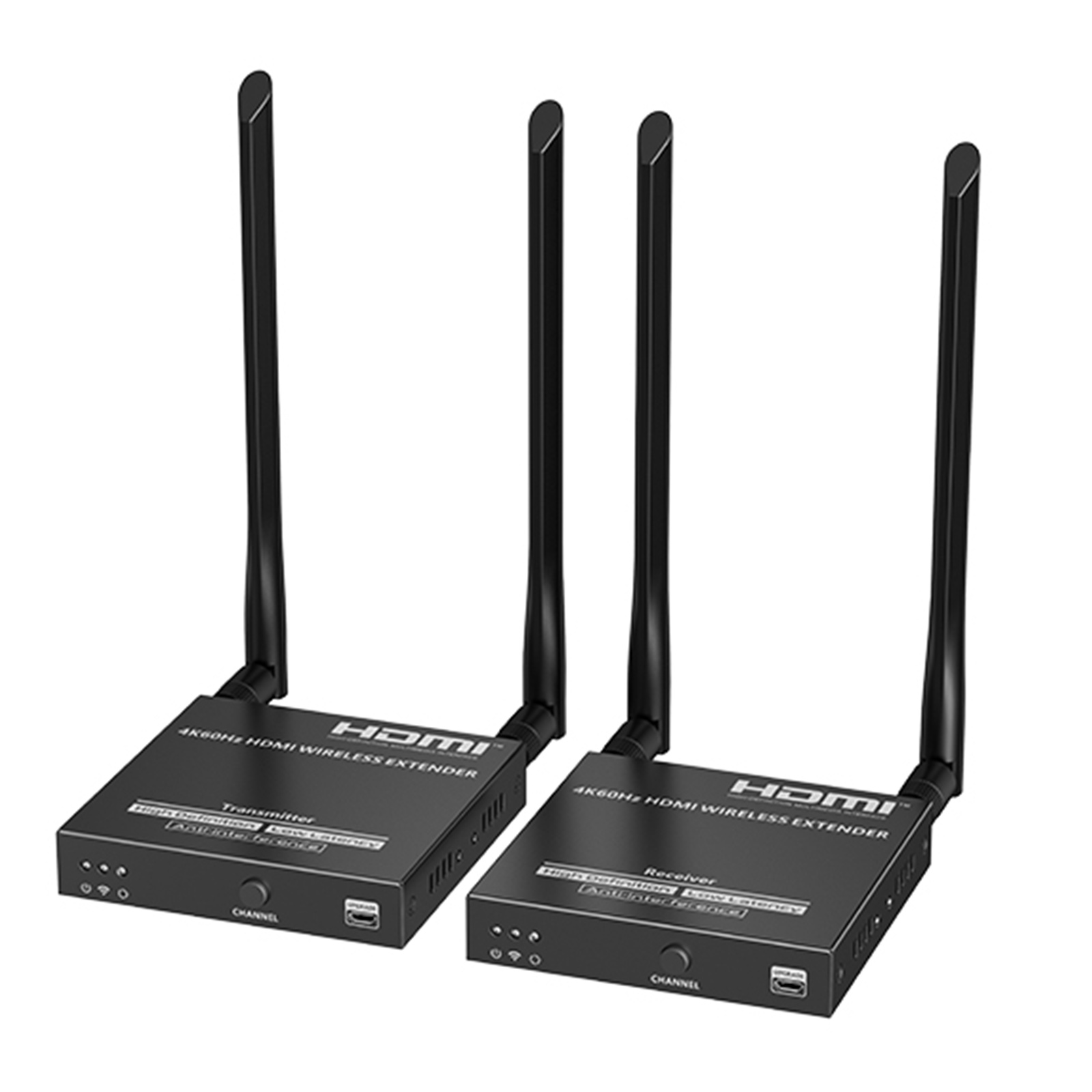

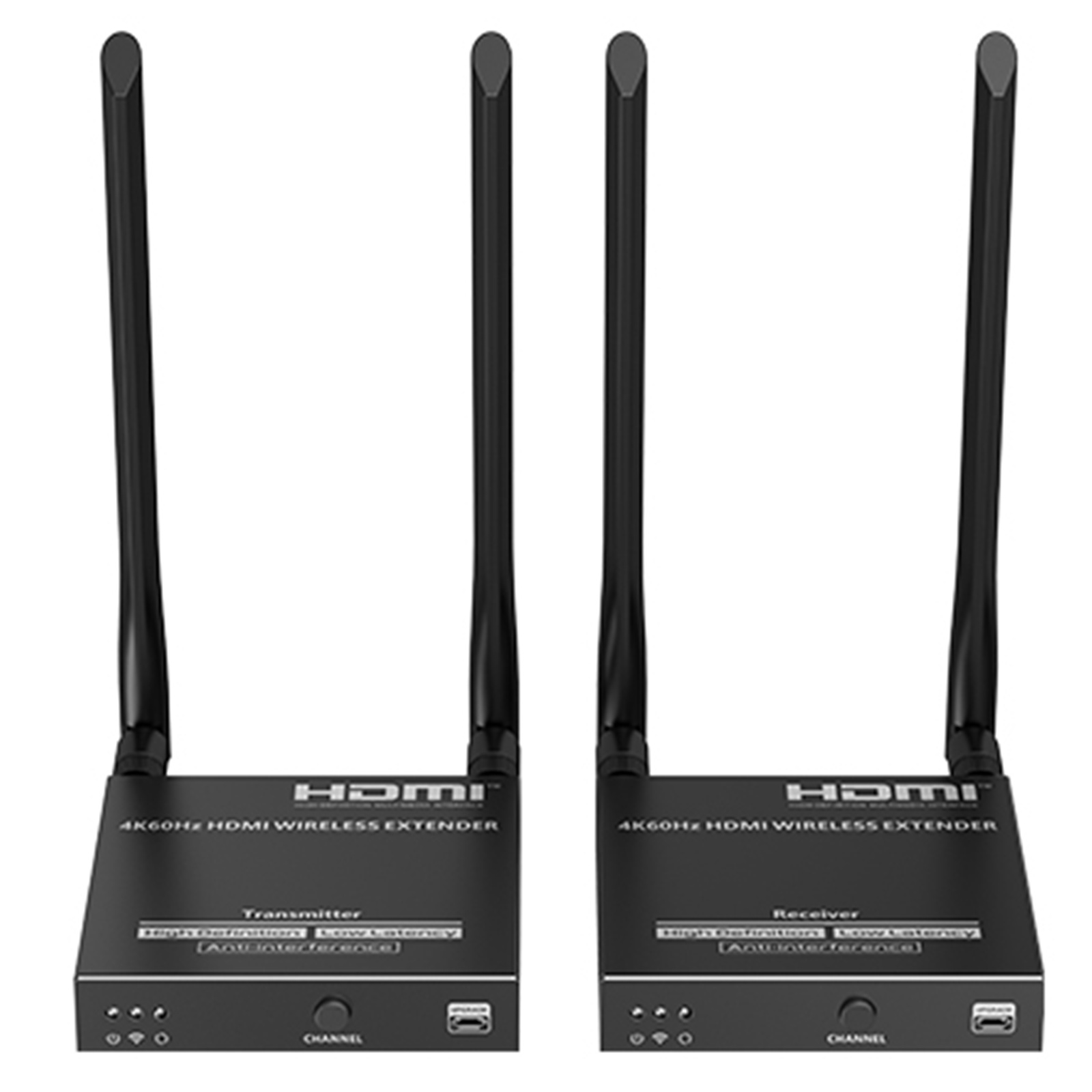

LENKENG LKV699E LENKENG 4K Wireless HDMI to HDMI Extender up to 4K 60Hz for 50m.LowLatency,Switchable Channel and IR Pass-trough.
- Brand: LENKENG
- MPN: LKV699E
- Part #: KVMLNK1202

Product URL: https://www.pbtech.com/pacific/product/KVMLNK1202/LENKENG-LKV699E-LENKENG-4K-Wireless-HDMI-to-HDMI-E
Features
- Adopting ipcolor STREAM technology can realize high definition and low-latency transmission.
- Supports up to 4096x2160 @ 60Hz resolution, backward compatible.
- Supports up to 1-to-4 wireless transmission, and the transmission distance up to 50 meters (line of sight, 1-to-1).
- The transmitter supports HDMI loop out.
- In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
- Supports IR passback.
- Supports 5G wireless frequency bands, strong anti-interference.
- Supports firmware upgrade via Micro USB port.
- Supports stable 24/7 operation.
Specifications
Voltage/Current
DC 5V/2A
Power consumption
TX = 5W, RX = 4W
HDMI version
HDMI 2.0
HDCP version
HDCP 1.4/HDCP 2.2
Maximum transfer rate
18Gbps
Resolution supported
4096x2160 @ 24/30/50/60Hz, 3840x2160 @ 24/30/50/60Hz, 1080P @ 50/60Hz, 720P @ 50/60Hz, 1920x1200, 2560x1440
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Wi-Fi Frequency bands
5.18~5.24 GHz
Transmission distance
One-to-one = 50m;
One-to-two = 30m;
One-to-three = 20m;
One-to-four = 15m
Latency
4K @ 60Hz: 130~220ms , 1080P @ 60Hz: 70~120ms For reference only, delays may vary depending on the resolution, transmission distance, and connection capacity
Connection types
One-to-one
One-to-two
One-to-three
One-to-four
SSID pairing
Supported
ESD protection
1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
Lightning protection, Surge protection
Infrared frequency
20~60kHz
Receiving range
= 5m
Working temperature
-20~60°C
Storage temperature
-30~70°C
Humidity (no condensation)
0~90% RH
Dimension
TX: 106(W) x 103(L) x 20.6(H) mm
RX: 106(W) x 103(L) x 20.6(H) mm
Color
Black
Material
Iron
Net weight
TX: 299g;RX: 299g
