Rextron VKSP-1004 1-4 UHD Display Port Splitter Supports 4K UHD60Hz (3840x2160),QHD (2560x1440) & FHD (1920x1080). Output Port Supports DP++. Auto EDID Configuration. HDCP 1.4 and DP 1.3 Compliant
Rextron VKSP-1004 1-4 UHD Display Port Splitter Supports 4K UHD60Hz (3840x2160),QHD (2560x1440) & FHD (1920x1080). Output Port Supports DP++. Auto EDID Configuration. HDCP 1.4 and DP 1.3 Compliant
- Brand: Rextron
- MPN: VKSP-1004
- Part #: KVMREX1319
- UPC:
- Brand: Rextron
- MPN: VKSP-1004
- Part #: KVMREX1319
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Desktop Switches





Rextron VKSP-1004 1-4 UHD Display Port Splitter Supports 4K UHD60Hz (3840x2160),QHD (2560x1440) & FHD (1920x1080). Output Port Supports DP++. Auto EDID Configuration. HDCP 1.4 and DP 1.3 Compliant
- Brand: Rextron
- MPN: VKSP-1004
- Part #: KVMREX1319

Product URL: https://www.pbtech.com/pacific/product/KVMREX1319/Rextron-VKSP-1004-1-4-UHD-Display-Port-Splitter-Su
Features

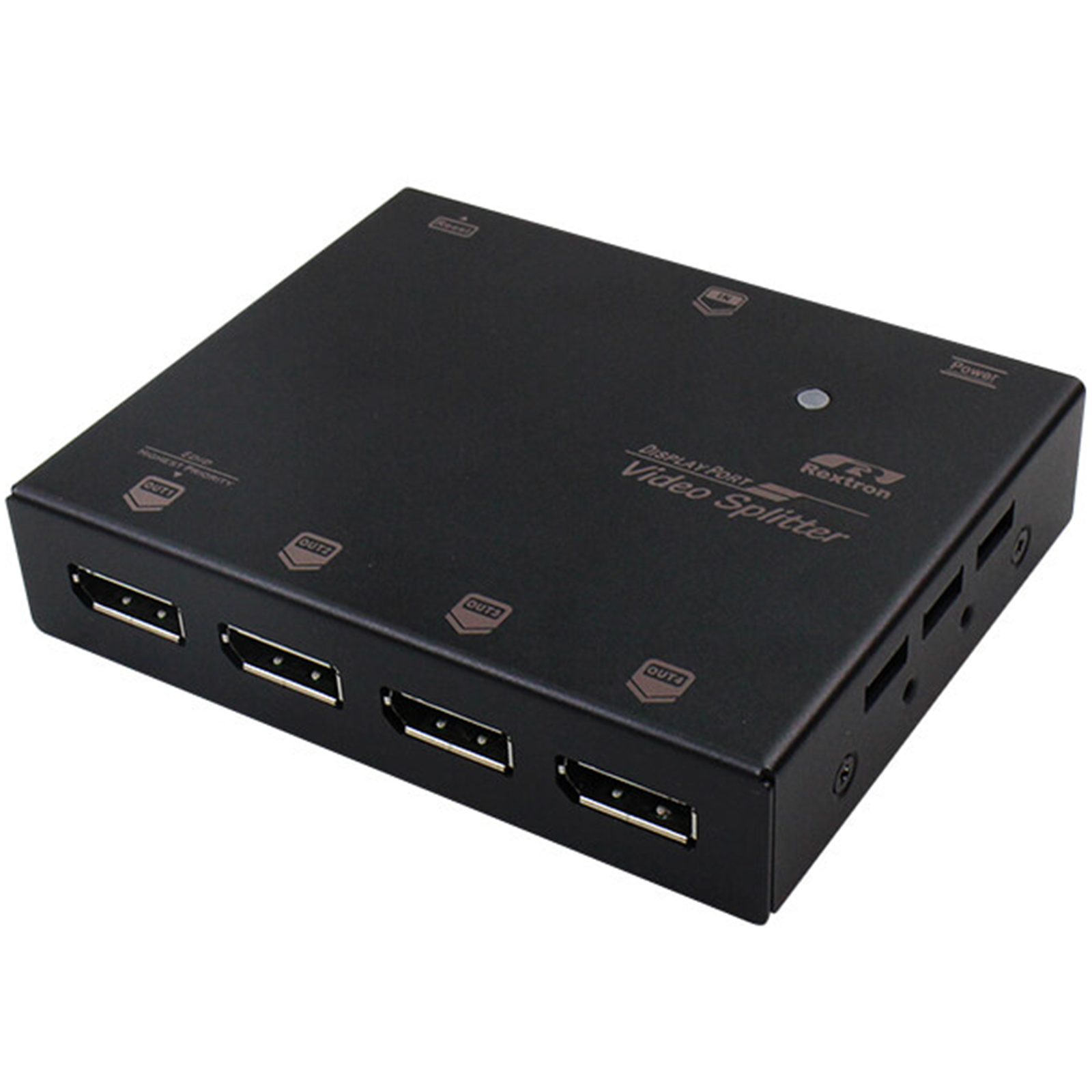

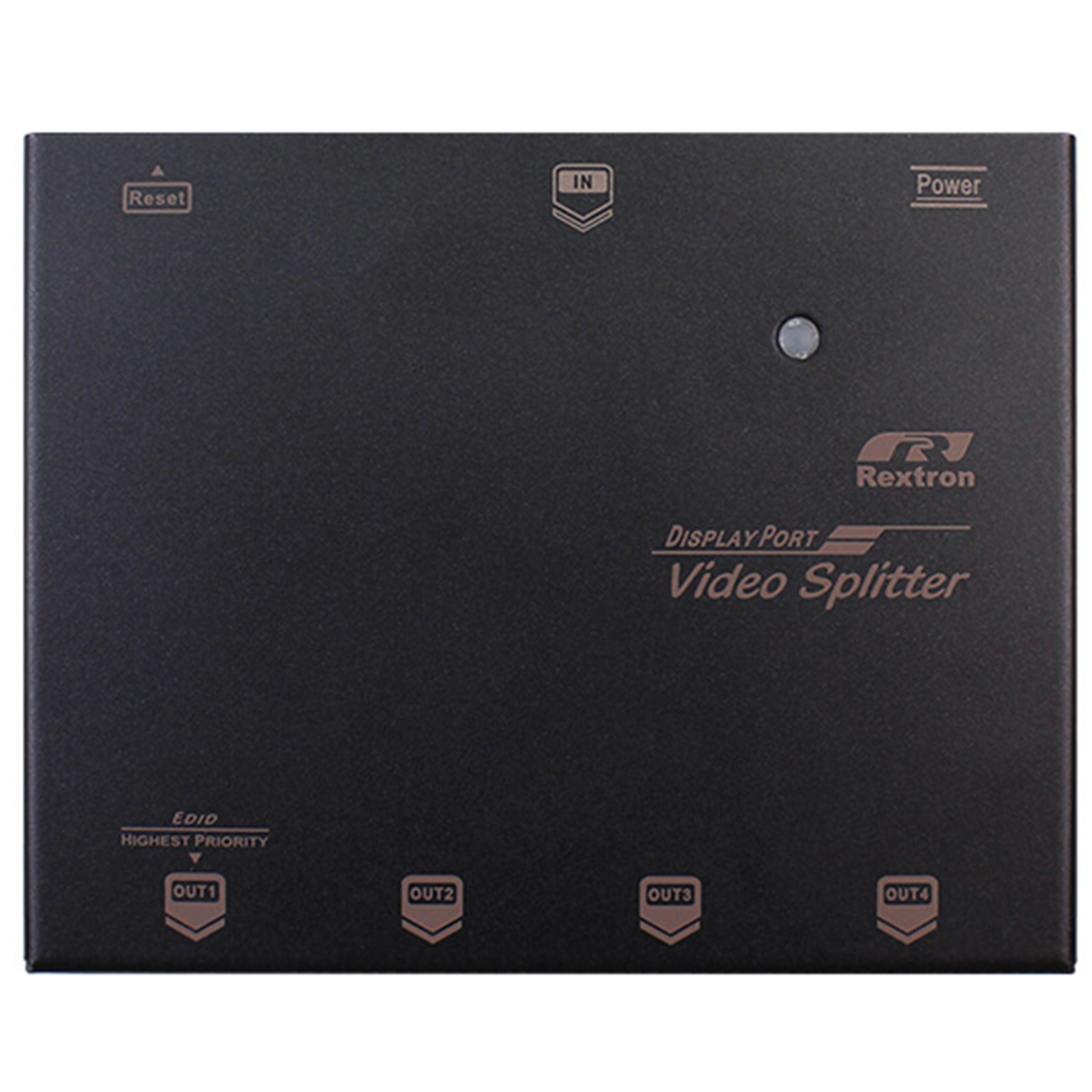

VKSP-1004, 4 Ports True 4K DisplayPort Video Splitter , distributes DisplayPort video out to 4 monitors, EDID Auto Learning and EDID Copy functions allow the 4K DisplayPort Splitter either to read the necessary EDID information from the splitter unit itself or to copy EDID from the EDID compliant monitor, which ensures the accurate output display.
VKSP-1004 Dual-mode DisplayPort (DP++) enables the support of DisplayPort, DVI, and HDMI monitors and allows DP Signal to be converted to DVI or HDMI Signal via simple cable Adapter.
- An easy and affordable way to duplicate one DP video input to 4 DisplayPort outputs
- Support DisplayPort resolutions of maximum up to 4K 60Hz, QHD (2560x1440) & FHD (1920 x 1080)
- Accurate and reliable reproduction of digital video signals without attenuation and distortion
- Output Port Support DP ++ (Dual-mode DisplayPort). DP++ can directly output HDMI signals using a simple passive adapter.
- Support auto EDID configuration
- Incorporate EDID and HDCP handling procedures for continuous video output
- Support over 100 popular resolution
- HDCP 1.4 Compliant
- DP 1.3 Compliant
Specifications
Video Resolution (Max.)
4K@60Hz (4:4:4)
Video Input
DP x 1
Video Output
DP (DP++) x 4
HDCP Compliance
HDCP 1.4 Compliant
LED Indicator
Power Status x 1
Power Supply
DC 5V ( Mini-USB )
Enclosure
Metal
Dimension H x W x D (mm)
20 x 108 x 87
Weight (g)
270
