StarTech.com VS721MULTI Multiple Video Input to HDMI Switcher
Out of stock
StarTech.com VS721MULTI Multiple Video Input to HDMI Switcher
- Brand: StarTech.com
- MPN: VS721MULTI
- Part #: KVMSTT2316161
- UPC: 065030848497
- Brand: StarTech.com
- MPN: VS721MULTI
- Part #: KVMSTT2316161
- UPC: 065030848497
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular AV Switches
StarTech.com VS721MULTI Multiple Video Input to HDMI Switcher
- Brand: StarTech.com
- MPN: VS721MULTI
- Part #: KVMSTT2316161
- UPC:065030848497
Product URL: https://www.pbtech.com/pacific/product/KVMSTT2316161/StarTechcom-VS721MULTI-Multiple-Video-Input-to-HDM
Features
Share an HDMI® display between multiple analog or digital video sources (e.g VGA, Component, S-Video, Composite, HDMI)
- Supports analog PC Resolution input and output up to WUXGA (1920x1200) @ 60Hz
- HDMI® and HDCP compliant
- Supports analog HDTV RGB/YPbPr/YCbCr input, output up to 1080p @ 60Hz
The VS721MULTI Multiple Video Input to HDMI® Switcher enables users to switch between 7 different audio-video sources to a single HDMI-equipped display.
This versatile switcher is the perfect solution for combining digital and analog video sources (RGB/YPbPr/YCbCr) with your digital HDMI® display, eliminating the cost of upgrading individual components (i.e. DVD player, PC, VCR, etc.).
An all-in-one multimedia solution, the video converter/switcher includes support for full high definition 1080p video resolution as well as digital and analog audio. Plus, the switch features RS232 remote serial control, and includes a convenient IR remote control for switching between video sources .
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Convert analog and digital video to HDMI® for a variety of applications such as switching between consumer electronics devices (e.g. Blu-ray Disc™ players, satellite receivers, video game consoles and other devices)
The StarTech.com Advantage
- By enabling you to share a single HDMI® display between up to seven different types of digital or analog video source, the switcher/converter offers an all-in-one multimedia switching solution
- The switcher features RS232 remote serial control (with software), and a convenient IR remote control that makes it easy to switch between video sources
- The switcher/converter maximizes compatibility with A/V devices, by converting analog video sources (e.g. VGA, Component, Composite, S-Video) to an HDMI® Display
Specifications

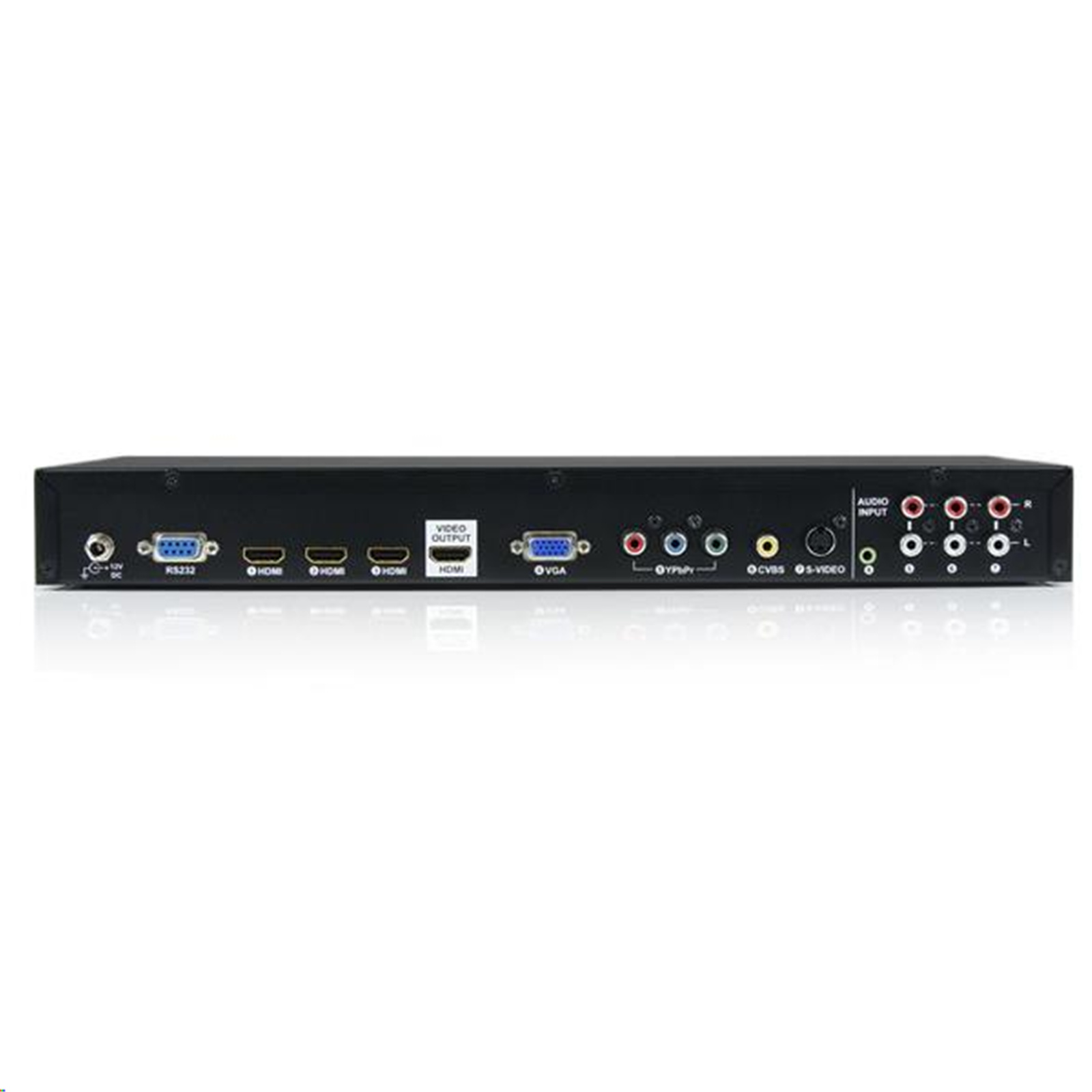

Connector(s)
Connector A
3 - HDMI (19 pin)
1 - VGA (15 pin, High Density D-Sub)
1 - Component Video (3 x RCA)
1 - S-Video (4 pin, Mini-DIN)
1 - Composite Video (1 x RCA)
3 - RCA
1 - 3.5 mm Mini-Jack (3 Position)
Connector B
HDMI (19 pin)
Environmental
Operating Temperature
0°c to 70°c (32°F to 158°F)
Storage Temperature
-20°c to 85°c (-4°F to 185°F)
Humidity
0% to 95% RH Non-Condensing
Hardware
AV Input
Component
Composite
HDMI
VGA
S-Video
AV Output
HDMI
Ports
7
Cabling
HDMI
Audio
Yes
Industry Standards
High Speed HDMI®, HDCP

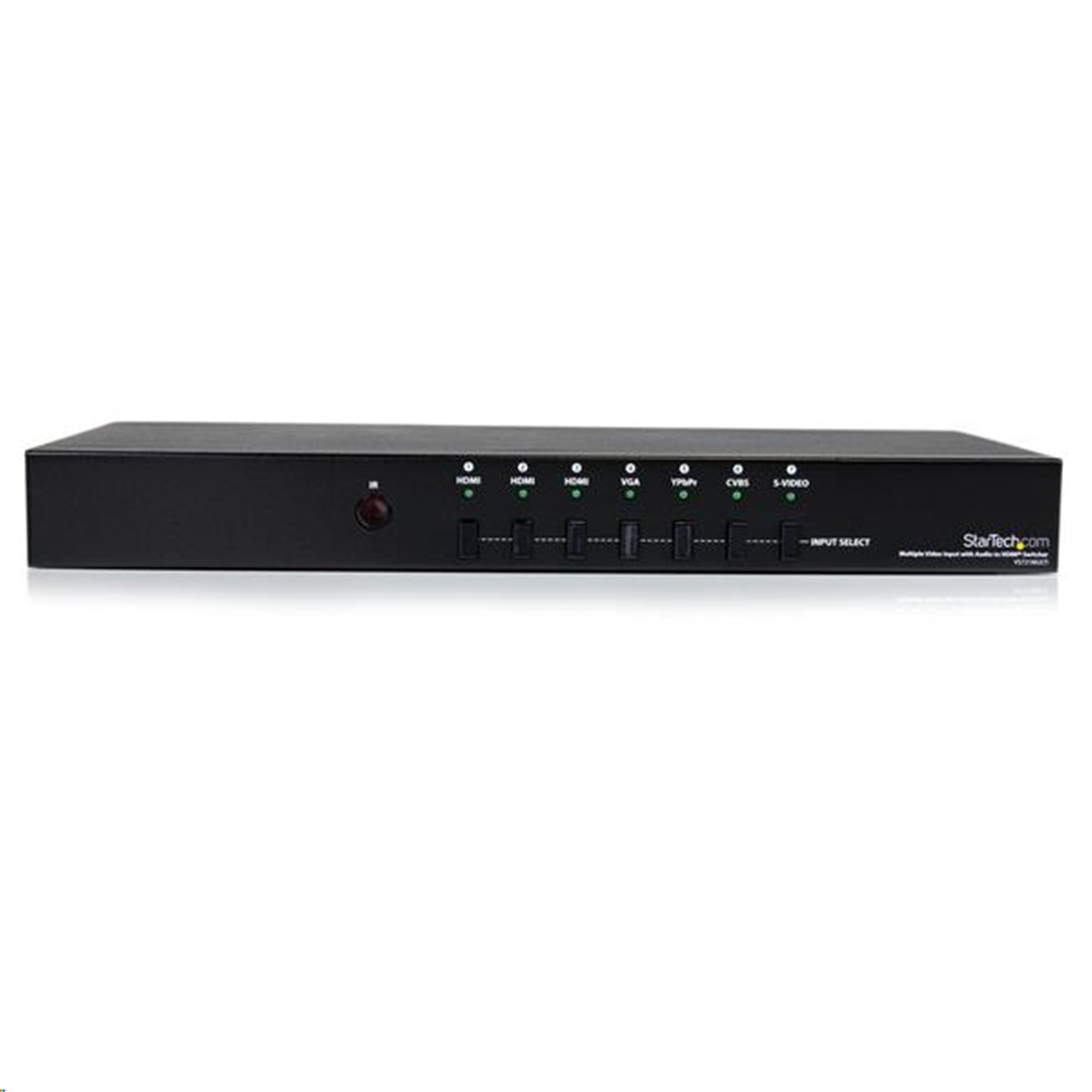

Indicators
LED Indicators
1 - 1 - HDMI
1 - 2 - HDMI
1 - 3 - HDMI
1 - 4 - VGA
1 - 5 - YPbPr
1 - 6 - CVSB
1 - 7 - S-VIDEO
Packaging Information
Package Height
3.5 in [9.0 cm]
Package Length
18.1 in [45.9 cm]
Package Width
10.2 in [26.0 cm]
Shipping (Package) Weight
6.0 lb [2.7 kg]
Performance
Maximum Analog Resolutions
VGA: 1920x1200
YPbPr: 1920x1080
Maximum Digital Resolutions
1920x1200
Supported Resolutions
Support VGA mode
640x480, 720x400, 800x600, 848x480, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1400x1050, 1440x900, 1440x1050, 1600x1200, 1680x1050, 1920x1080, 1920x1200
Support YPbPR mode
720x480, 720x576, 720x480, 720x576, 1280x720, 1920x1080, 1920x1080
Wide Screen Supported
Yes
Physical Characteristics
Color
Black
Material
Aluminum
Product Length
15.1 in [38.4 cm]
Product Width
6.8 in [17.3 cm]
Product Height
1.8 in [4.5 cm]
Weight of Product
4.0 lb [1.8 kg]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.6 A
Output Voltage
12V DC
Output Current
1.5 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
18
Software
OS Compatibility
Windows® 11, 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows® Server 2008 R2, 2003(32/64)

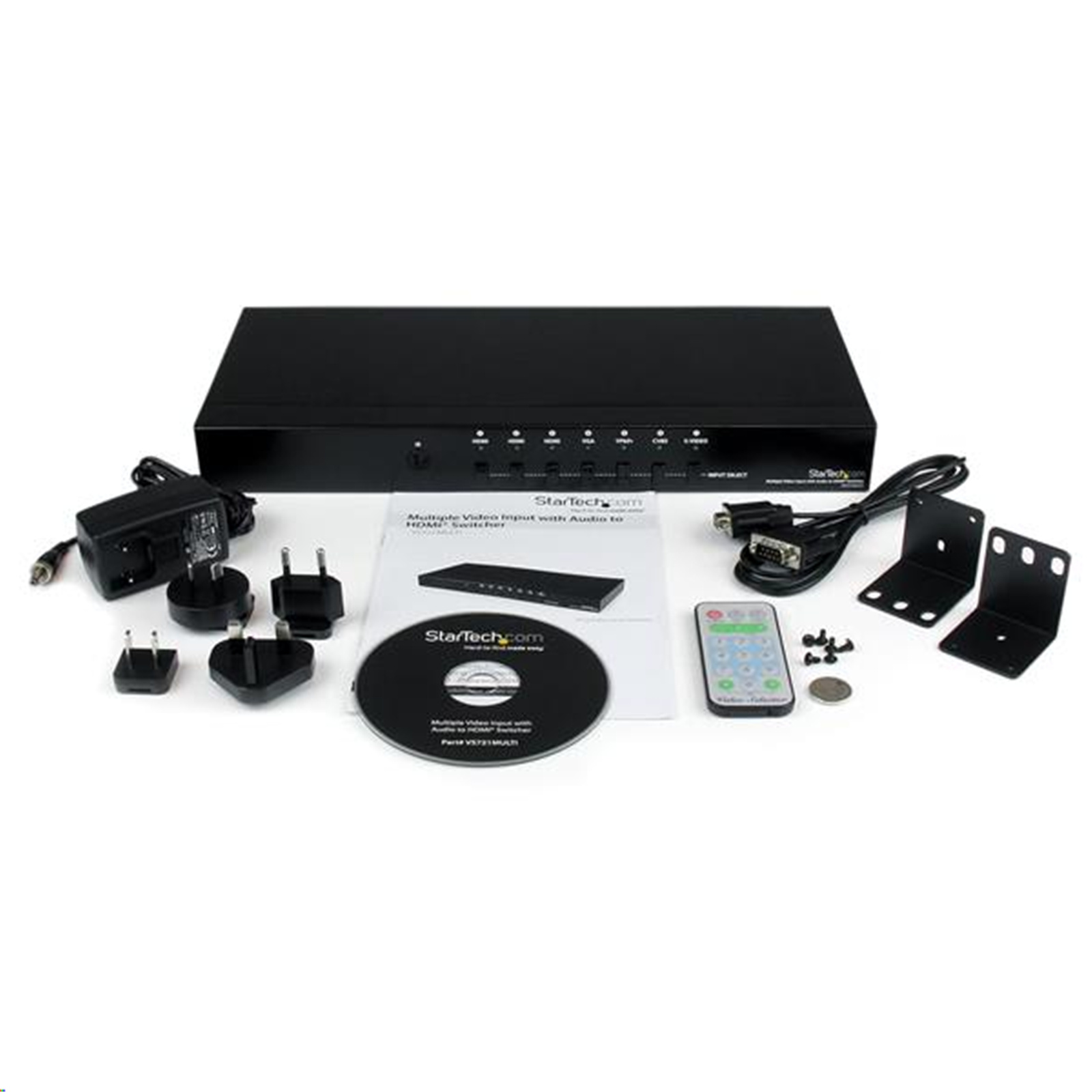

What's in the Box
Included in Package
1 - multiple format to HDMI audio video switch
1 - IR remote control
1 - mounting kit
1 - RS232 serial cable (6 ft.)
1 - RS-232 control software CD
1 - universal power adapter (NA, EU, UK, AU)
1 - instruction manual
