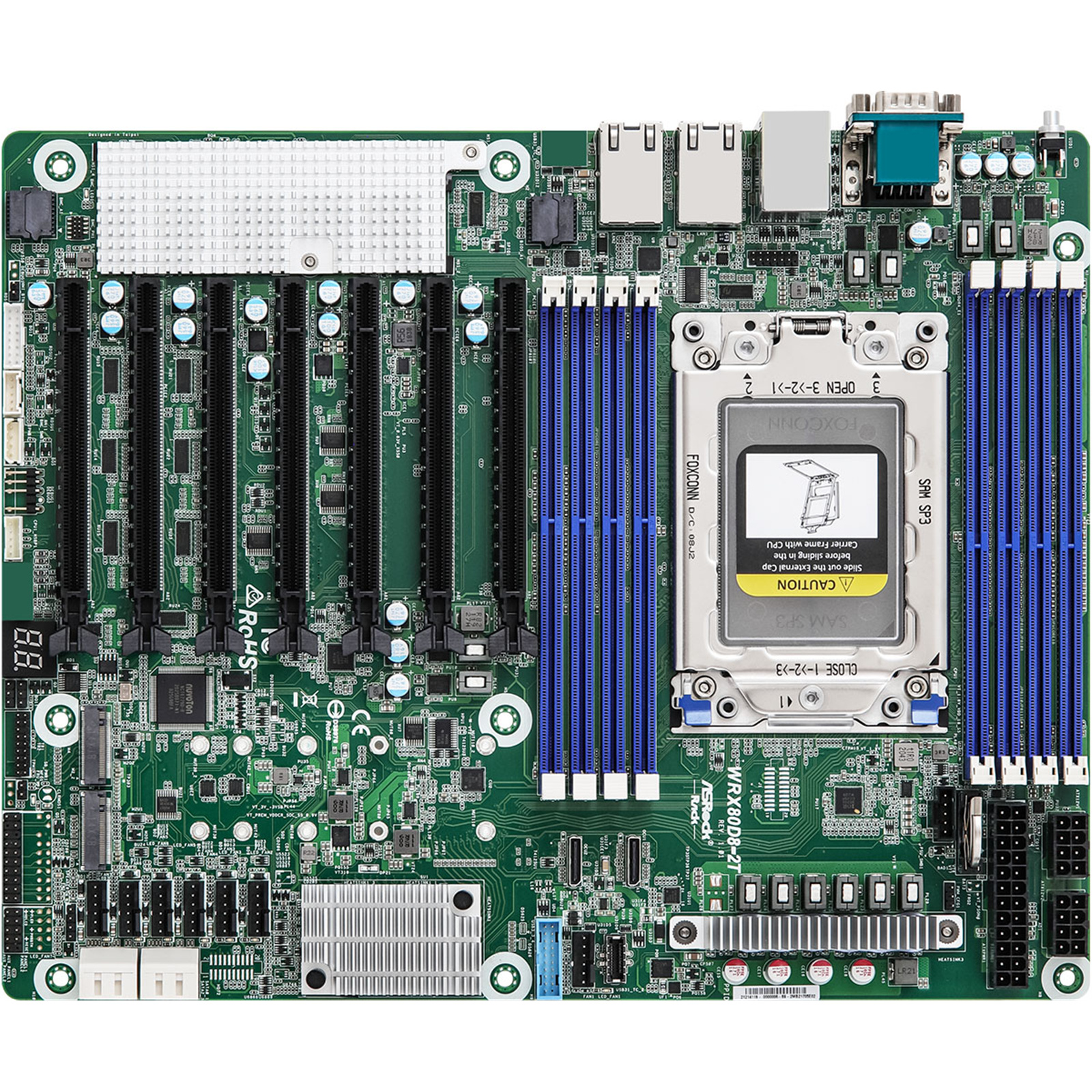

ASRock Rack WRX80D8-2T Workstation Board, ATX, Socket sWRX8 (Threadripper Pro), WRX80, 8 DIMM, 2x 10Gbe LAN, 12x SATA, 7x PCIe 4.0 x16, 2x M.2, IPMI

PB Tech price
PB Tech price
NZD $ 1,602 .87
$ 1,602 .87

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

ASRock Rack WRX80D8-2T Workstation Board, ATX, Socket sWRX8 (Threadripper Pro), WRX80, 8 DIMM, 2x 10Gbe LAN, 12x SATA, 7x PCIe 4.0 x16, 2x M.2, IPMI

PB Tech price
NZD $ 1,602 .87 $ 1,602 .87
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
Click or hover over image to enlarge

MB Socket

AMD sWRX8

Chipset

WRX80

Form Factor

ATX

Wireless Connectivity

No

M.2 Connectors

2 Connectors

SATA Connectors

4 Connectors

LAN Ports

2x 10GbE Ports

RAM Slots

8 Slots

View full specs
Returns & Warranty Bulk Quote Print Page

Features

WRX80D8-2T

- ATX (12" x 9.6")
- Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX
- 8 DIMM slots (1DPC), supports ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS
- 7 PCIe4.0 x16
- 2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
- Supports 2 M.2 (PCIe4.0 x4)
- 12 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X710-AT2
- Remote Management (IPMI)

Specifications

Physical Status

Form Factor

ATX

Dimensions

12" x 9.6" (305 mm x 244 mm)

Processor System

CPU

Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX

Socket

Single Socket sWRX8 (LGA4094)

Chipset

AMD WRX80

System Memory

Supported DIMM Quantity

8 DIMM slots (1DPC)

Supported Type

Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS

Max. Capacity per DIMM

ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB
RDIMM-3DS*: up to 256GB
*RDIMM-3DS Max. memory capacity is to be validated

Max. DIMM Frequency

ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS*: max. 3200MHz
*RDIMM-3DS Max. memory frequency is to be validated

Voltage

1.2V

PCIe Expansion Slots (SLOT7 close to CPU)

PCIe x 16

SLOT7: PCIe4.0 x16 [CPU]
SLOT6: PCIe4.0 x16 [CPU]
SLOT5: PCIe4.0 x16 [CPU]
SLOT4: PCIe4.0 x16 [CPU]
SLOT3: PCIe4.0 x16 [CPU]
SLOT2: PCIe4.0 x16 [CPU]
SLOT1: PCIe4.0 x16 [CPU]

Other PCIe Expansion Connectors

M.2 slot

2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor [FCH]

OCuLink

2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [FCH]

SATA/SAS Storage

PCH Built-in Storage

AMD WRX80 (12 SATA 6Gb/s):
2 OCuLink, 4 SATA 7-pin

Ethernet

Additional GbE Controller

Intel® X710-AT2: 2 RJ45 (10GbE)

Server Management

BMC Controller

ASPEED AST2500

IPMI Dedicated GLAN

1 x Realtek RTL8211E for dedicated management GLAN

Graphics

Controller

ASPEED AST2500

VRAM

DDR4 512MB

Rear I/O

UID Button/LED

1

VGA Port

1 DB15

Serial Port

1 DB9

USB 3.2 Gen1 Port

2 Type-A (USB3.2 Gen1)

RJ45

2 RJ45 (10GbE)
1 dedicated IPMI

Internal Connector/Headers

Power Connector

1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)

Auxiliary Panel Header

1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus

System Panel

1 (9-pin): RSTBTN, PWRBTN, HDDLED, PWRLED

Speaker Header

1 (4-pin)

Fan Header

7 (6-pin)

Thermal Sensor Header

2

TPM Header

1 (13-pin, SPI), 1 (17-pin, LPC)

HSBP

1

SMBus header

1

PMBus header

1

IPMB Header

1

Clear CMOS

1 (contact pads)

USB 3.2 (Gen1) Header

1 (19-pin, 2 USB3.2 Gen1)

USB 3.2 (Gen2) Header

1 (Type-C, 1 USB3.2 Gen2)

NMI Header

1

LED Indicators

Standby PWR LED 5vsb

1

80 Debug Port LED

1

Fan Fail LED

7

BMC heartbeat LED

1

System BIOS

BIOS Type

AMI 256 Mb SPI Flash ROM

BIOS Features

Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash

Hardware Monitor

Temperature

CPU, DRAM, MB, Card Side, Chipset Temperature Sensing

Fan

CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control

Voltage

3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V

Environment

Temperature

Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Humidity

Non operation humidity: 20% ~ 90% ( Non condensing)

Manufacturer Part No:
WRX80D8-2T
Brand:
ASRock Rack
Product Type:
Workstation Board,
UPC
-
Product Family:
-
Shipping Weight:
1.15 kg
PB Part No:
MBDASR8539
Product Model:
WRX80D8-2T
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
