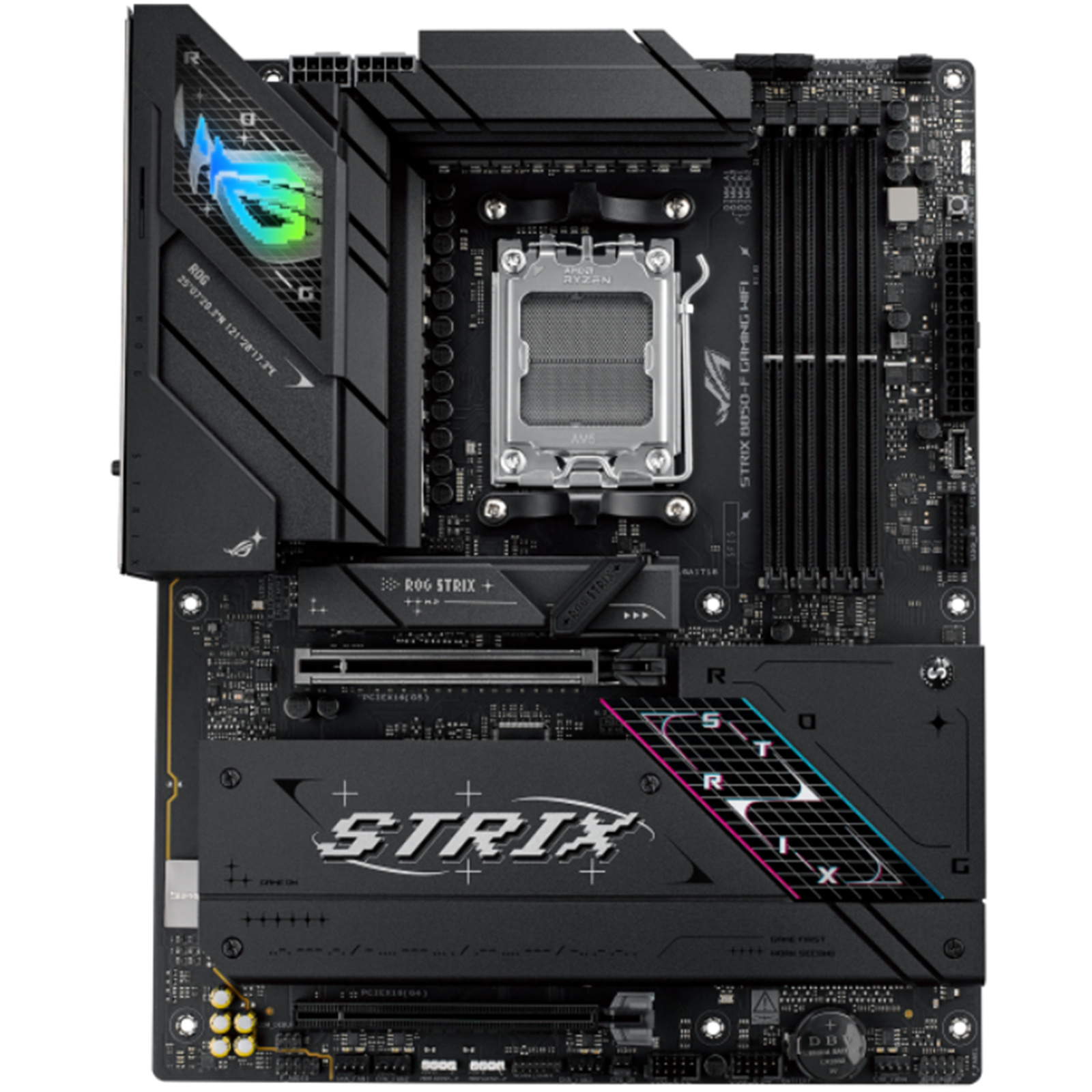

ASUS ROG STRIX B850-F GAMING WIFI ATX Motherboard For AMD Ryzen 7000/8000/9000 Series CPUs Socket AM5 - AMD B850 Chipset - PCIE 5.0 - 4x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 7
ASUS ROG STRIX B850-F GAMING WIFI ATX Motherboard For AMD Ryzen 7000/8000/9000 Series CPUs Socket AM5 - AMD B850 Chipset - PCIE 5.0 - 4x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 7
- Brand: ASUS
- MPN: ROG STRIX B850-F GAMING WIFI
- Part #: MBDASU28522
- UPC: 197105771024
- Brand: ASUS
- MPN: ROG STRIX B850-F GAMING WIFI
- Part #: MBDASU28522
- UPC: 197105771024
COMBO DEALS: Buy Together and SAVE!
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V...
$169.00
$169.00
Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket...
$155.29
$155.29
AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP -...
$399.00
$399.00
Features
ROG STRIX B850-F gaming wifi
The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
DDR5 DOMINATION
The Strix B850-A is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
M.2 BACKPLATE
An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
VRM HEATSINK ARRAY
Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 9000 Series processors
High-conductivity Thermal Pads
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
PCIE 5.0
Fully embracing the new standard, the Strix B850-A offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
USB 20Gbps PORT
A USB 20Gbps Type-C® port offers speedy data transfers up to USB 20Gbps.
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular AMD Desktop Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
ASUS ROG STRIX B550-A GAMING ATX Motherboard For AMD Ryzen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
ASUS ROG STRIX B850-F GAMING WIFI ATX Motherboard For AMD Ryzen 7000/8000/9000 Series CPUs Socket AM5 - AMD B850 Chipset - PCIE 5.0 - 4x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 7
- Brand: ASUS
- MPN: ROG STRIX B850-F GAMING WIFI
- Part #: MBDASU28522
- UPC:197105771024
Product URL: https://www.pbtech.com/pacific/product/MBDASU28522/ASUS-ROG-STRIX-B850-F-GAMING-WIFI-ATX-Motherboard
Features
ROG STRIX B850-F gaming wifi
The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
DDR5 DOMINATION
The Strix B850-A is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
M.2 BACKPLATE
An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
VRM HEATSINK ARRAY
Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 9000 Series processors
High-conductivity Thermal Pads
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
PCIE 5.0
Fully embracing the new standard, the Strix B850-A offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
USB 20Gbps PORT
A USB 20Gbps Type-C® port offers speedy data transfers up to USB 20Gbps.
Specifications
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD B850 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort*
1 x HDMI™ port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)**
* Specifications vary by CPU types.
** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Documentation
1 x Quick start guide
Operating System
Windows 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
