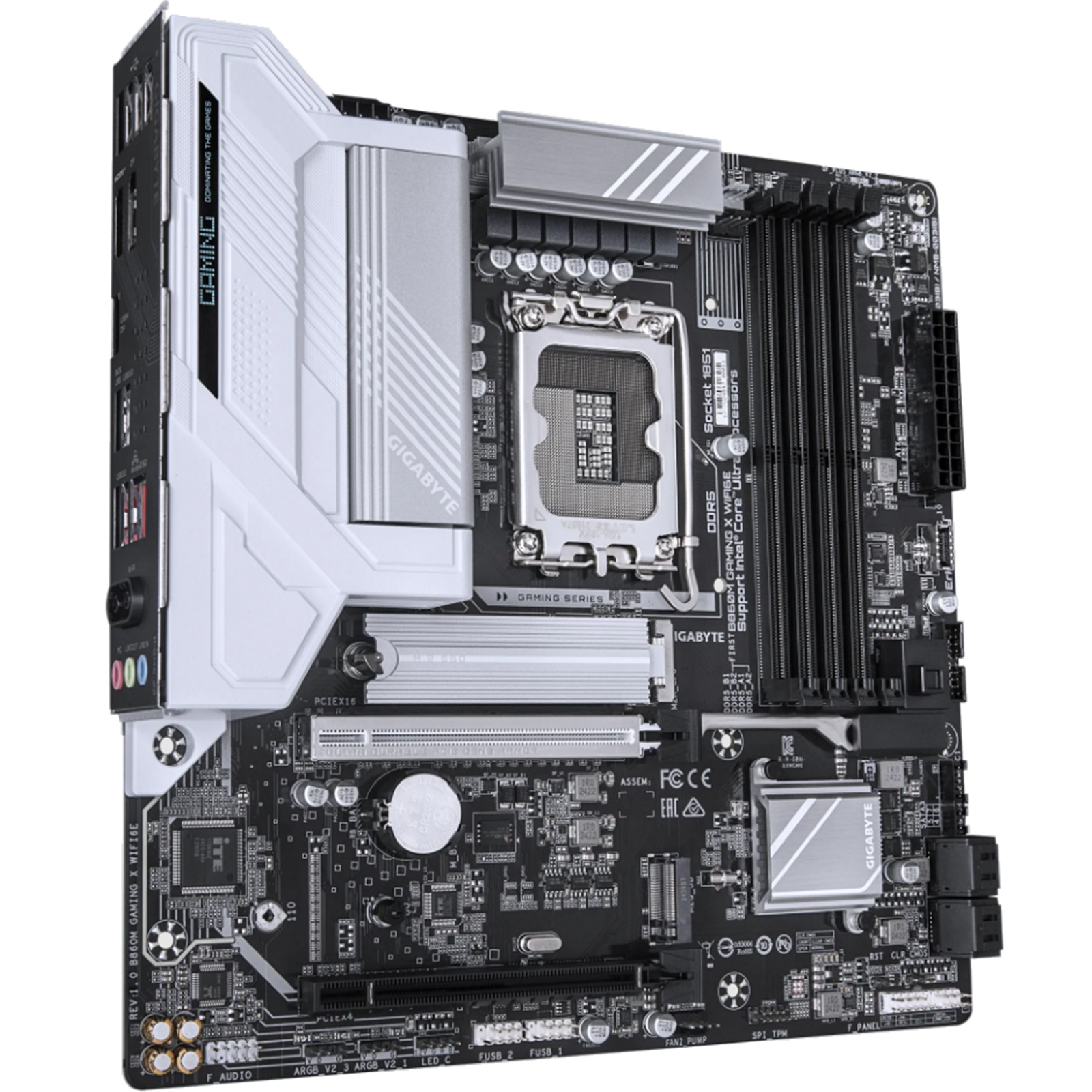

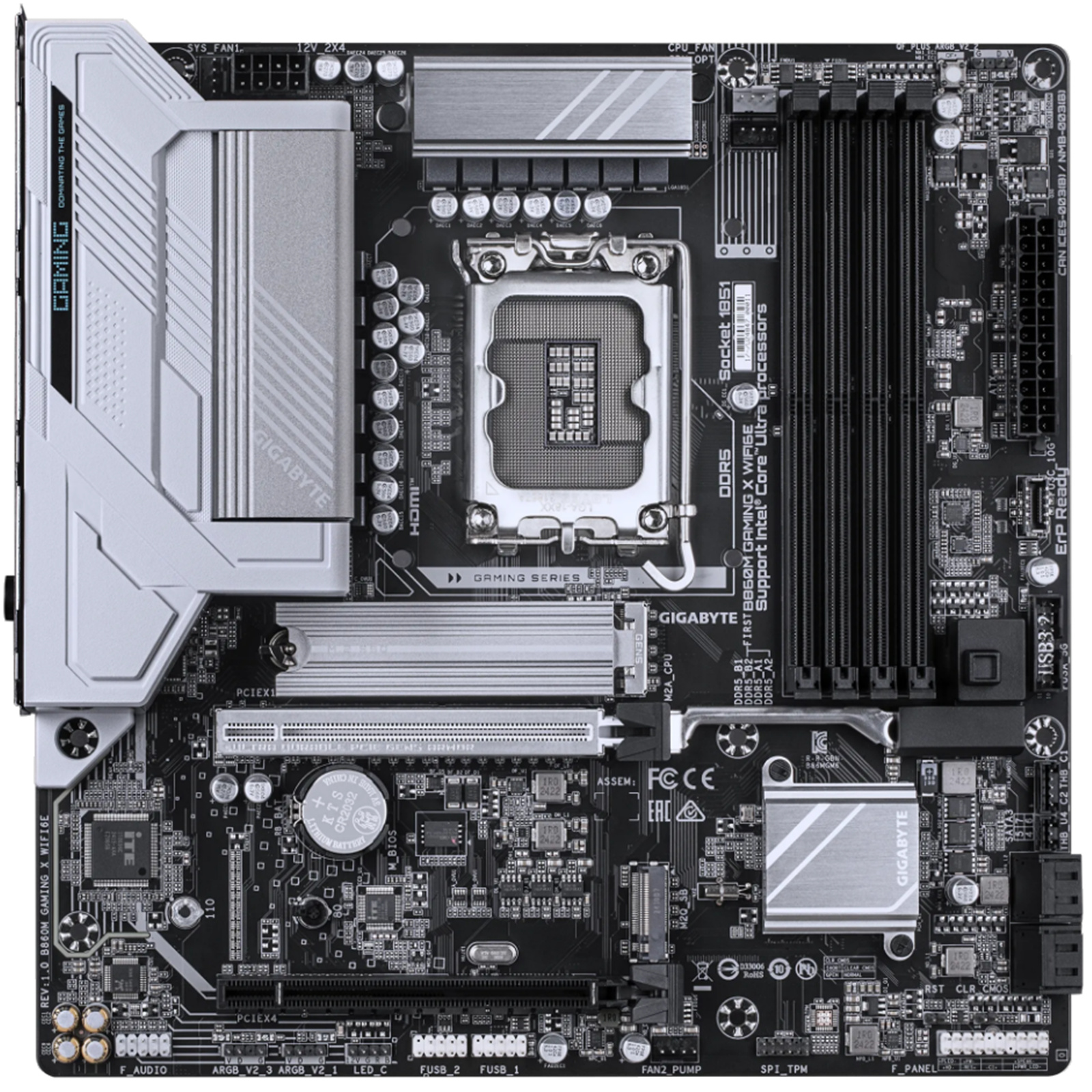

Gigabyte B860M GAMING X WIFI6E MATX Motherboard For Intel LGA1851 - B860 Chipset - PCIE 5.0, 2x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6E + BT

PCIE 5.0 For The Latest Graphics Cards
  • Brand: Gigabyte
  • MPN: B860M GAMING X WIFI6E
  • Part #: MBDGBM62412
  • UPC: 889523046951
1
With promo code $259.00
With promo code $259.00
Save $32 with code PBGAMER25
Save $32 with code PBGAMER25
Without promo code
NZD $ 291 .30 $ 291 .30
Hurry, while stocks last!
In stock
Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$291.30  +GST
$291.30
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Gigabyte
  • MPN: B860M GAMING X WIFI6E
  • Part #: MBDGBM62412
  • UPC: 889523046951

MB Socket

Intel LGA 1851

Chipset

B860

Form Factor

mATX

Wireless Connectivity

WiFi 6E (802.11ax) + Bluetooth

M.2 Connectors

2 Connectors

SATA Connectors

4 Connectors

LAN Ports

1x 2.5GbE Port

RAM Slots

4 Slots

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"I have built on an H110 Gaming X and a B450 Gaming X and thi ...view more"

BD
By: BhavikD67 07/02/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Gigabyte B860M GAMING X WIFI6E MATX Motherboard For Intel LGA1851 -...
Gigabyte B860M GAMING X WIFI6E MATX Motherboard For Intel LGA1851 - B860 Chipset - PCIE 5.0, 2x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6E + BT
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included
Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket LGA 1851 / 1700, AMD AM5 / AM4
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V - 36-36-36-96 - F5-6000J3636F16GX2-RS5K
Total:
NZD $ 1,083 .59
NZD $ 1,083 .59
Buy together and save $20.71 $20.71
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included

Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series...

Ships today
$469.00 $469.00
NZD

$468.00

$468.00

Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket LGA 1851 / 1700, AMD AM5 / AM4
Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket LGA 1851 / 1700, AMD AM5 / AM4

Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket...

Ships today
$165.00 $165.00
NZD

$155.29

$155.29

You save $9 You save $9
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V - 36-36-36-96 - F5-6000J3636F16GX2-RS5K
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V - 36-36-36-96 - F5-6000J3636F16GX2-RS5K

G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V...

Ships today
$179.00 $179.00
NZD

$169.00

$169.00

Save $13 with code PBGAMER25 Save $13 with code PBGAMER25

Features

- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid Digital 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New  Power Monitor  in  HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort

Infinite Memory Performance

Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Hybrid Digital VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal

GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

4X larger surface area for enhanced heat dissipation

- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.

Multi-cut design with channels for improved airflow

- More grooves, more airflow.
- Better airflow, cooler system.

True one-piece heatsink design

- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

RL-ILM design

The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Specifications

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset

Intel® B860 Express Chipset

Memory

Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

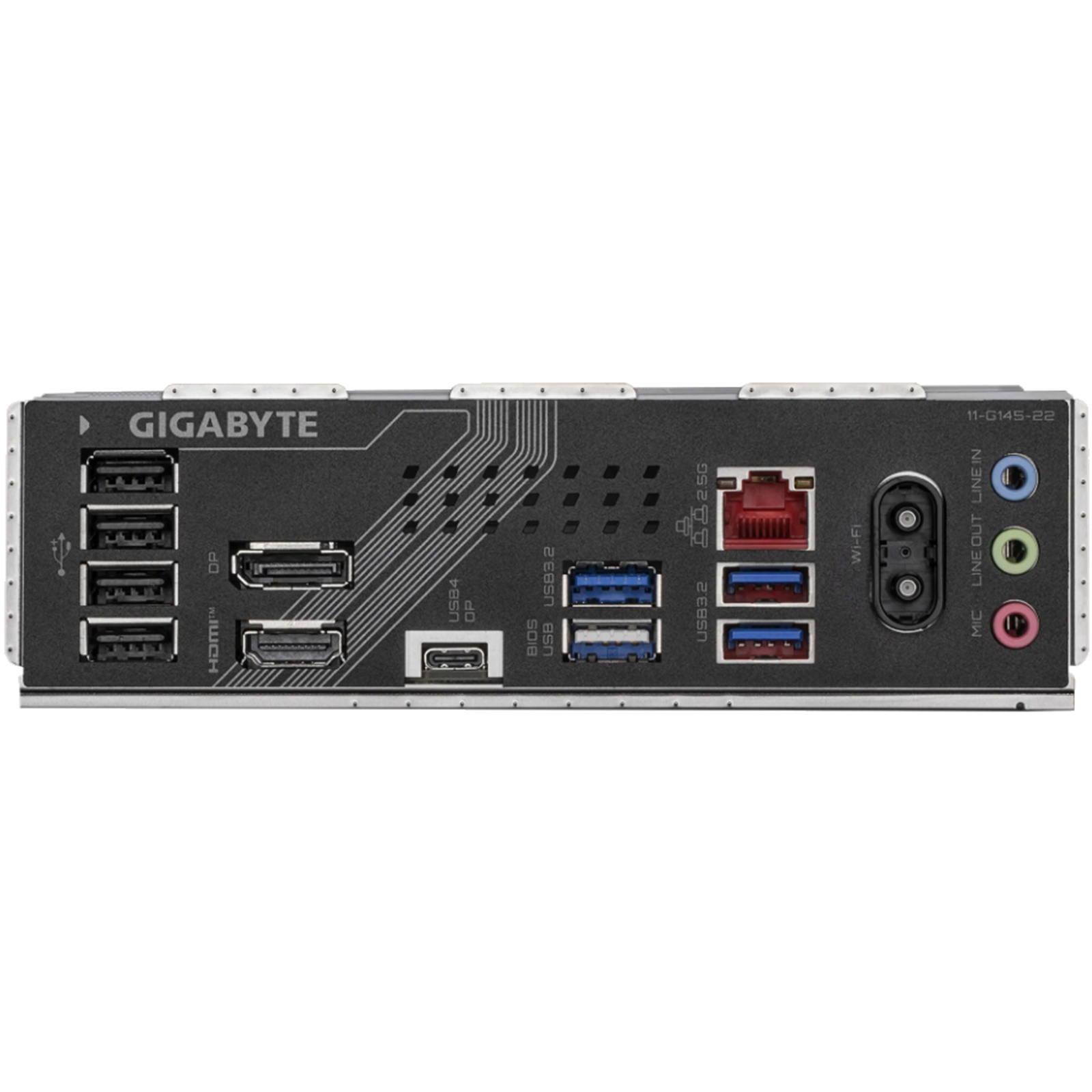

Back Panel Connectors

1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Manufacturer Part No:
B860M GAMING X WIFI6E
Brand:
Gigabyte
Product Type:
MATX Motherboard
UPC
889523046951
Product Family:
-
Shipping Weight:
1.3 kg
PB Part No:
MBDGBM62412
Product Model:
B860M GAMING X WIFI6E
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 1 review
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Wow what a Motherboard

I have built on an H110 Gaming X and a B450 Gaming X and this B860m Gaming X is probably one of the most feature-rich Motherboards (MB). Don't look any further and buy it.

Positives:
- Quick release on NVME SSD slots
- Extended release on GPU PCIe slot
- Easy single-sided clips for Ram installation
- Preinstalled IO plate.

Negatives:
- The MB Installation Guide provided doesn't match the board and recommends the inappropriate ram position (B1 and B2 - Do NOT follow this). Refer to the board itself as instructed on the physical boards install a stick in A2 and B2 First if running only two sticks (i.e. the second and fourth slots).
- The MB I...view more

BD
By: BhavikD67 07/02/25
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Accessories

5

Intel Core Ultra 5 225 CPU

10 Cores up to 4.2Ghz - 20MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Intel Core Ultra 5 225 CPU 10 Cores up to 4.2Ghz - 20MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Wishlist Compare
CPU Family:
Intel Core 5
CPU Socket:
Intel LGA1851
Number of Cores:
10
Integrated Graphics:
Yes
Base Clock Speed:
3.3GHz
Turbo Boost Clock Speed:
4.9GHz
TDP:
65W
CPU Cooler Included:
Yes
MPN:
BX80768225
Part #:
CPUIT155225
1 review
PB Tech price
PB Tech price
$339 .00
$339.00
$339 .00
$339.00
Intel Core Ultra 5 225 CPU 10 Cores up to 4.2Ghz - 20MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
1 review
Hurry, while stocks last!
Ships today
Wishlist Compare

Intel Core Ultra 5 225F CPU

10 Cores up to 4.2Ghz - 20MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No integrated Graphics
Intel Core Ultra 5 225F CPU 10 Cores up to 4.2Ghz - 20MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No integrated Graphics
Wishlist Compare
CPU Family:
Intel Core Ultra 5
CPU Socket:
Intel LGA1851
Number of Cores:
10
Integrated Graphics:
No
Base Clock Speed:
3.3GHz
Turbo Boost Clock Speed:
4.9GHz
TDP:
65W
CPU Cooler Included:
Yes
MPN:
BX80768225F
Part #:
CPUIT155225F
4 reviews
PB Tech price
PB Tech price
$295 .00
$295.00
$295 .00
$295.00
Intel Core Ultra 5 225F CPU 10 Cores up to 4.2Ghz - 20MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No integrated Graphics
4 reviews
Hurry, while stocks last!
Ships today
Wishlist Compare

Intel Core Ultra 9 285 CPU

24 Cores - 36MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Intel Core Ultra 9 285 CPU 24 Cores - 36MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Wishlist Compare
CPU Family:
Intel Core Ultra 9
CPU Socket:
Intel LGA1851
Number of Cores:
24
Integrated Graphics:
Yes
Base Clock Speed:
2.5GHz
Turbo Boost Clock Speed:
5.6GHz
TDP:
65W
CPU Cooler Included:
Yes
MPN:
BX80768285
Part #:
CPUIT159285
PB Tech price
PB Tech price
$979 .00
$979.00
$979 .00
$979.00
Intel Core Ultra 9 285 CPU 24 Cores - 36MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Hurry, while stocks last!
Ships today
Wishlist Compare

Intel Core Ultra 7 265 CPU

20 Cores - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Intel Core Ultra 7 265 CPU 20 Cores - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Wishlist Compare
CPU Family:
Intel Core Ultra 7
CPU Socket:
Intel LGA1851
Number of Cores:
20
Integrated Graphics:
Yes
Base Clock Speed:
2.4GHz
Turbo Boost Clock Speed:
5.3GHz
TDP:
65W
CPU Cooler Included:
Yes
MPN:
BX80768265
Part #:
CPUIT157265
PB Tech price
PB Tech price
$599 .00
$599.00
$599 .00
$599.00
Intel Core Ultra 7 265 CPU 20 Cores - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required
Hurry, while stocks last!
Ships today
Wishlist Compare

Intel Core Ultra 7 265F CPU

20 Cores - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated graphics
Intel Core Ultra 7 265F CPU 20 Cores - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated graphics
Wishlist Compare
CPU Family:
Intel Core Ultra 7
CPU Socket:
Intel LGA1851
Number of Cores:
20
Integrated Graphics:
No
Base Clock Speed:
2.4GHz
Turbo Boost Clock Speed:
5.3GHz
TDP:
65W
CPU Cooler Included:
Yes
MPN:
BX80768265F
Part #:
CPUIT157265F
PB Tech price
PB Tech price
$579 .00
$579.00
$579 .00
$579.00
Intel Core Ultra 7 265F CPU 20 Cores - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated graphics
Hurry, while stocks last!
Ships today
Wishlist Compare

Delivery & Pick-up

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

Delivery Estimates

The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.

Overseas Shipments

If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To return a product to PB Tech, please complete our request a return form.

Or view our returns policy for more information.

 Popular Intel Desktop Motherboards

#1
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
NZD $219.00 NZD $219.00
#2
Gigabyte Z790 EAGLE AX ATX Motherboard Intel Socket LGA1700 -...
NZD $346.95 NZD $346.95
#3
Gigabyte B760M Gaming X WIFI6E DDR4 GEN5 mATX Motherboard Intel...
NZD $260.00 NZD $260.00
#4
Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 -...
NZD $240.74 NZD $240.74
#5
Gigabyte B760 DS3H WIFI6E GEN5 ATX Motherboard Intel B760,...
NZD $262.20 NZD $262.20

Gigabyte B860M GAMING X WIFI6E MATX Motherboard For Intel LGA1851 - B860 Chipset - PCIE 5.0, 2x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6E + BT

PCIE 5.0 For The Latest Graphics Cards
  • Brand: Gigabyte
  • MPN: B860M GAMING X WIFI6E
  • Part #: MBDGBM62412
  • UPC:889523046951
PB Tech price NZD $291.30

Date Created: 02:45, 05-09-2025
Product URL: https://www.pbtech.com/pacific/product/MBDGBM62412/Gigabyte-B860M-GAMING-X-WIFI6E-MATX-Motherboard-Fo?is-review=1

Features

- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid Digital 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New  Power Monitor  in  HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort

Infinite Memory Performance

Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Hybrid Digital VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal

GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

4X larger surface area for enhanced heat dissipation

- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.

Multi-cut design with channels for improved airflow

- More grooves, more airflow.
- Better airflow, cooler system.

True one-piece heatsink design

- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

RL-ILM design

The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Specifications

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset

Intel® B860 Express Chipset

Memory

Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors

1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Date Created: 02:45, 05-09-2025
Product URL: https://www.pbtech.com/pacific/product/MBDGBM62412/Gigabyte-B860M-GAMING-X-WIFI6E-MATX-Motherboard-Fo?is-review=1
