Ergotron 45-475-026 HX DESK MONITOR ARM POLISHED

PB Tech price
PB Tech price
NZD $ 393 .51
$ 393 .51

Out of stock

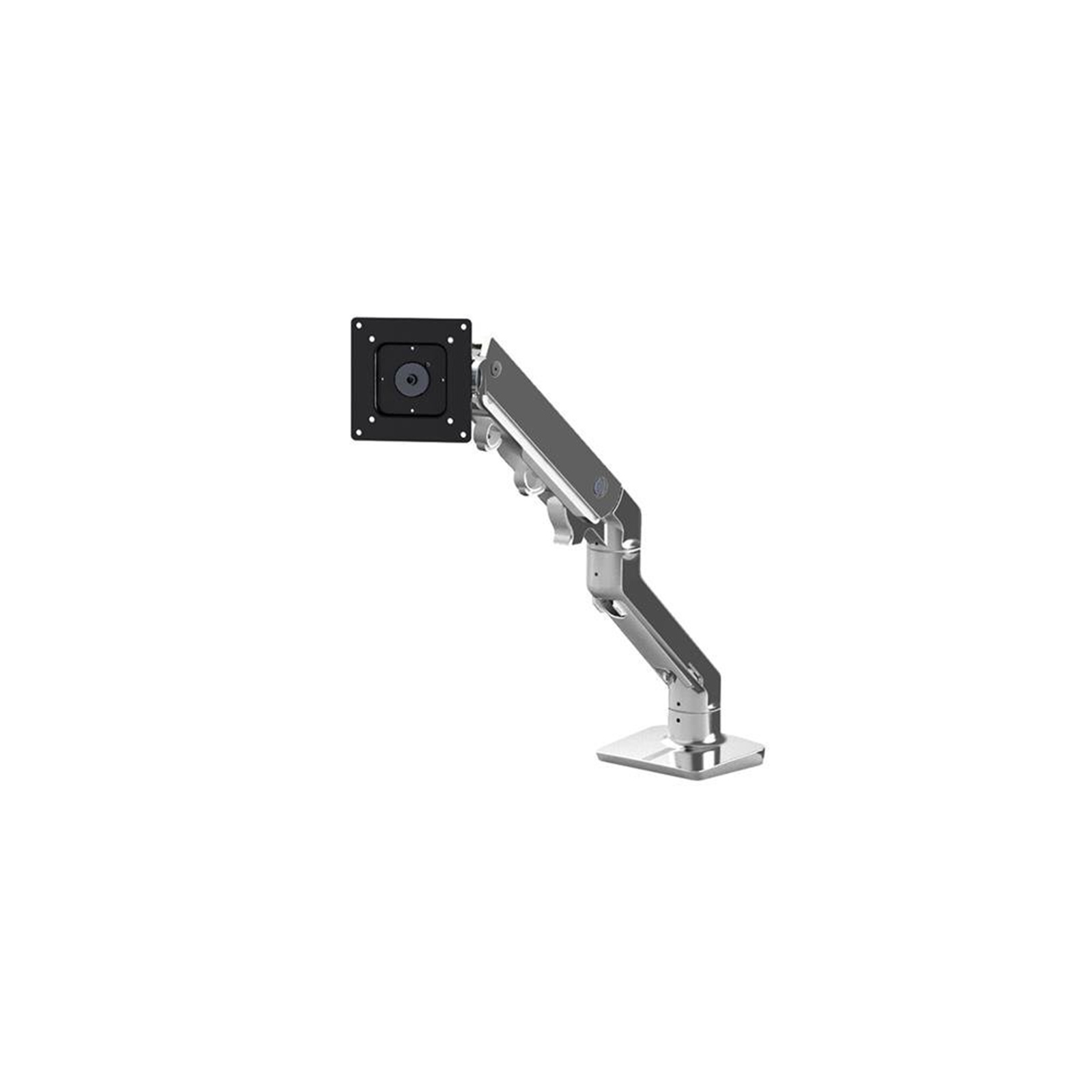

Ergotron 45-475-026 HX DESK MONITOR ARM POLISHED

  • Brand: Ergotron
  • MPN: 45-475-026
  • Part #: MOAERG3519801
  • UPC:
PB Tech price
NZD $ 393 .51 $ 393 .51


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
  • Brand: Ergotron
  • MPN: 45-475-026
  • Part #: MOAERG3519801
  • UPC:

Mounts Supported

1

Min Screen Size Supported

Not Specified

Max Screen Size Supported

Not Specified

Max Weight Supported

19kg

Max Rotation

Not Specified

Colour

Grey

Similar in-stock products available at PB Tech right now

Features

HX Monitor Arm 45-475-026 provides flexibility in the form of height adjustability and extension to your heavy monitors, weighing from 20-42 lbs. Mount the HX arm on your desk, install your heavy monitor and what you have freed up is valuable desk space for your writing material, keyboard, mice and other devices. This arm's 11.5" vertical as well as 23.6" horizontal adjustability not only allows you to position your display to suit your ergonomic preference but it also lets you retract the arm over the base or tuck away the monitor under the shelf or cabinet, when not in use. This feature is especially important in space constrained areas. The display adjustability increases ergonomic comfort by reducing strain on shoulders, neck and eyes.

Higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing and surveillance needs that demand heavy monitors. Modular ability to increase from single monitor setup to triple monitor setup (with a HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white, matte black and polished aluminum, this arm looks slick  and comes with a ten year warranty.

The HX Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The HX features a new post design, frees up space and allows positioning of your display for greater productivity. Sleek and streamlined, it accommodates large monitors weighing up to 42 lbs (19 kg). Extension/retraction motion and height adjustment capability promote user comfort.

Benefits

- Increases viewing comfort: Helps reduce eye, back and neck strain
- Sleek new post design
- Patented CF motion technology provides premium ease-of-use display adjustment
- Cable management feature routes cables tightly under the arm and through the extension, out of the way
- Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
- Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
- Folding arm frees up space in constrained areas
- Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
- Passes Ergotron's 10,000-cycle motion test, which ensures years of trouble-free height adjustment

IMPORTANT NOTE - Please note that mounting ultrawide monitors is an evolving field. As new monitors are coming to market all the time, it is not possible to test each and every ultrawide monitor with all the arms that we are offering. However based on the specifications, we believe this arm is compatible with most ultrawide monitors. We recommend that, if and when you purchase this arm, do not discard the original packaging material in case it is needed for a return.

Specifications

General Specifications

Part Number

45-475-026 (polished aluminum)

Description

HX Desk Monitor Arm

Includes

Arm
Extension
Monitor pivot
Desk clamp
Grommet mount
Monitor mounting hardware

Arm

Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Portrait/Landscape Rotation

Portrait/landscape rotation with lockout

Cable Management

Streamline cable management that routes cables under arm and within extension

Desk Clamp

Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick

Grommet Mount

Grommet mount attaches through surface holes

Clamp Base

Clamp base ensures greater stability of display and arm

Rotation

Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

Mounting Standards

VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

Maximum Screen Size

Maximum screen size determined by the monitor weight

Weight Capacity

20-42 lbs (9.1-19.1 kg)

Tilt Range

70° backward, 5° forward

Shipping Dimensions

12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)

Shipping Weight

18.3 lbs (8.3 kg)

Manufacturer Part No:
45-475-026
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
5 kg
PB Part No:
MOAERG3519801
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
