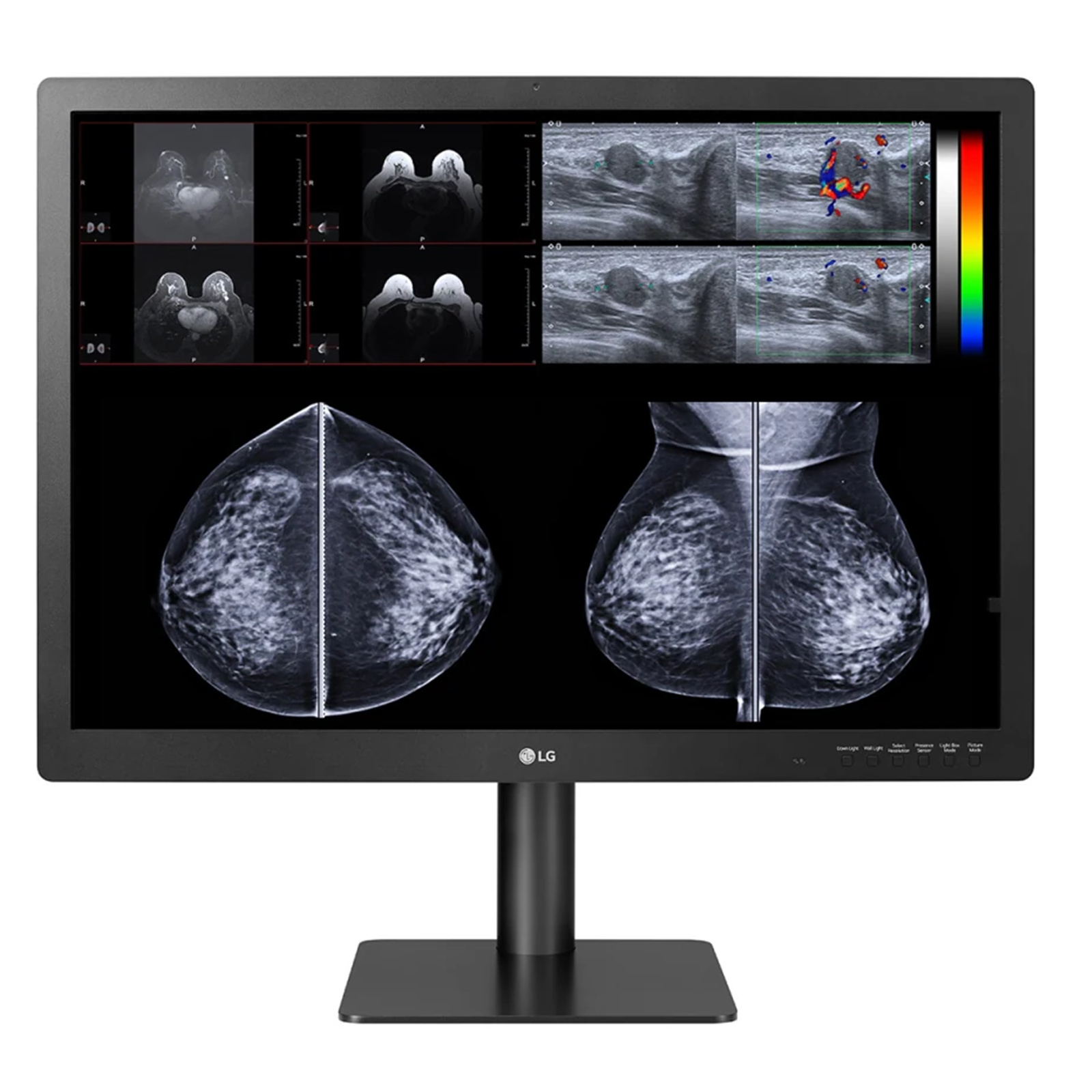

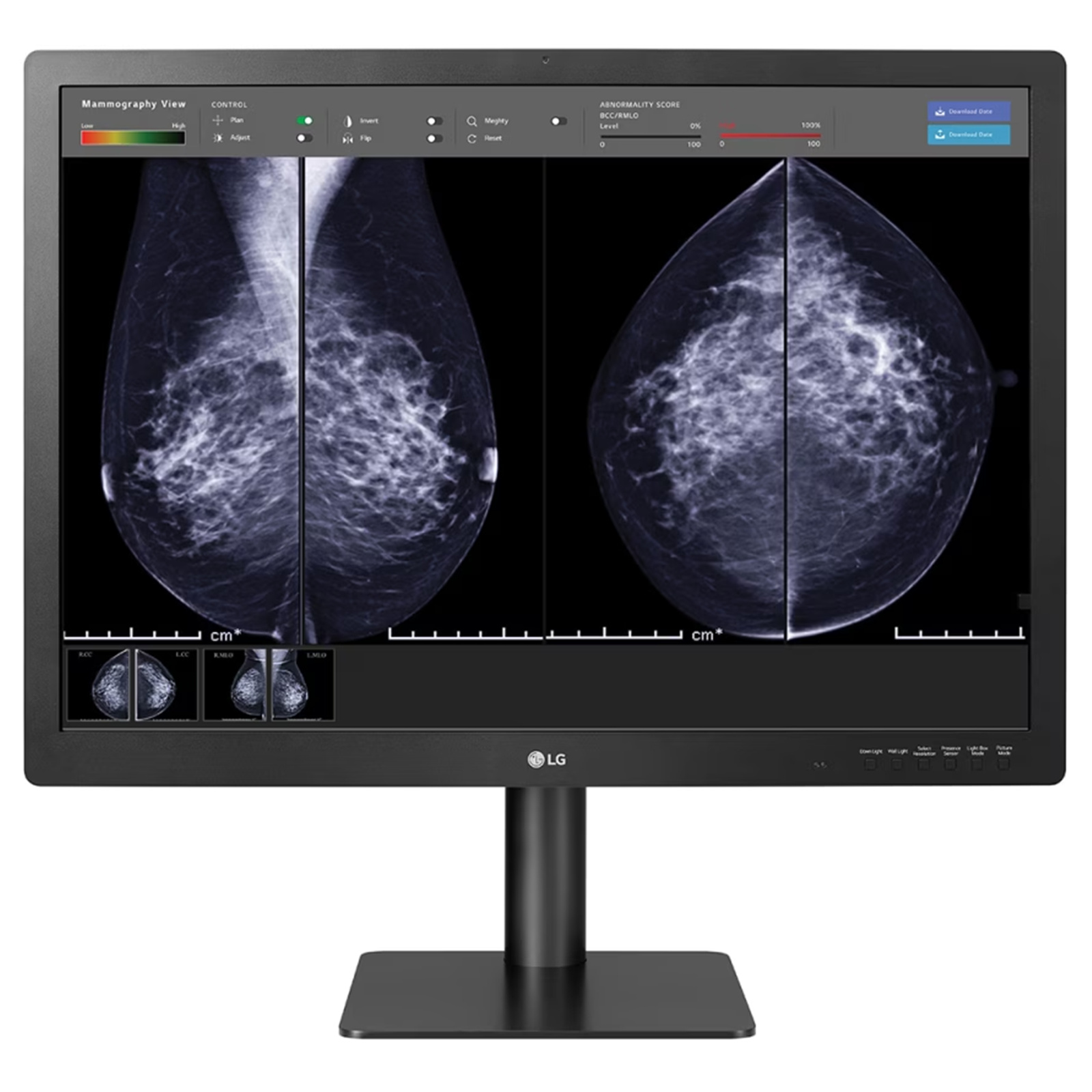

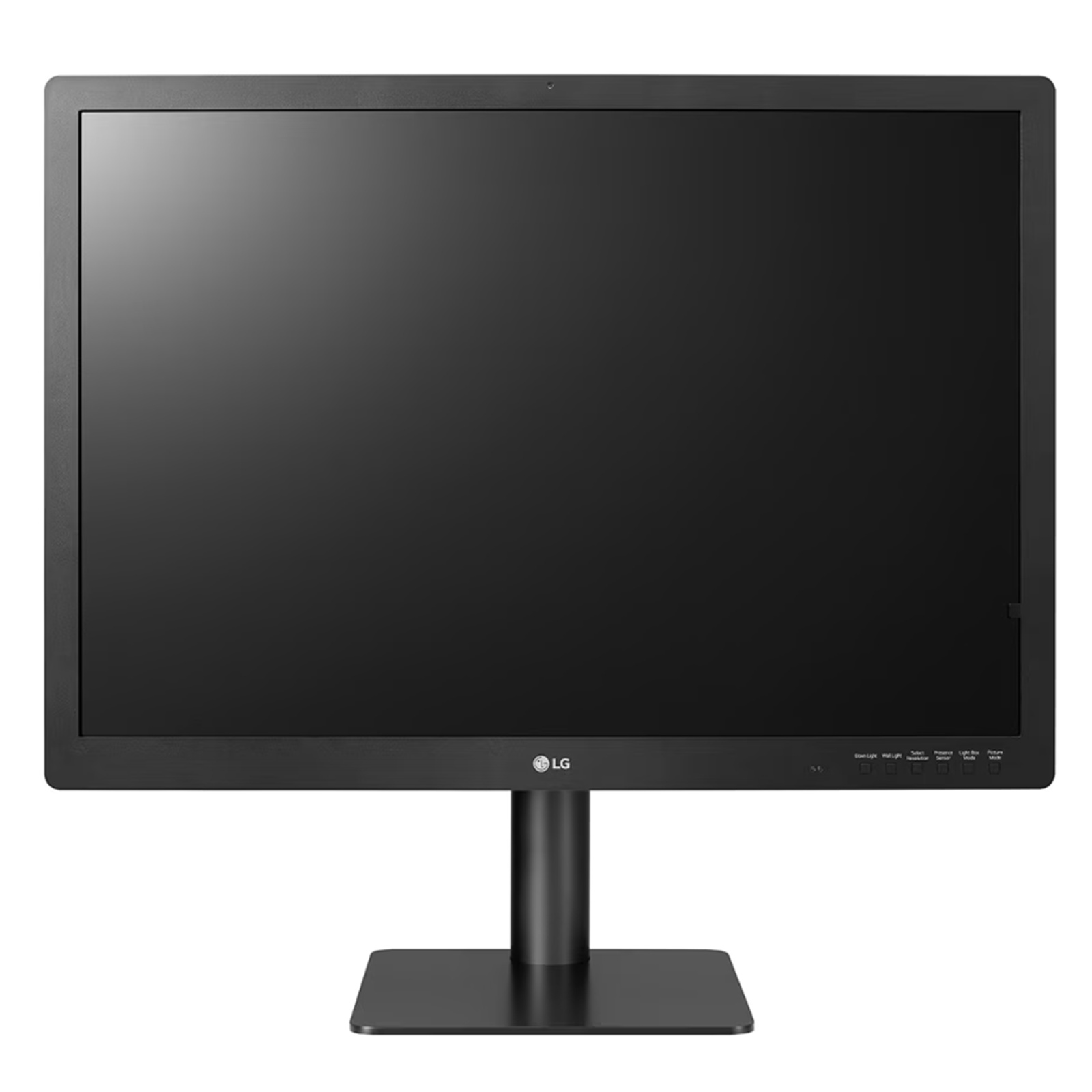

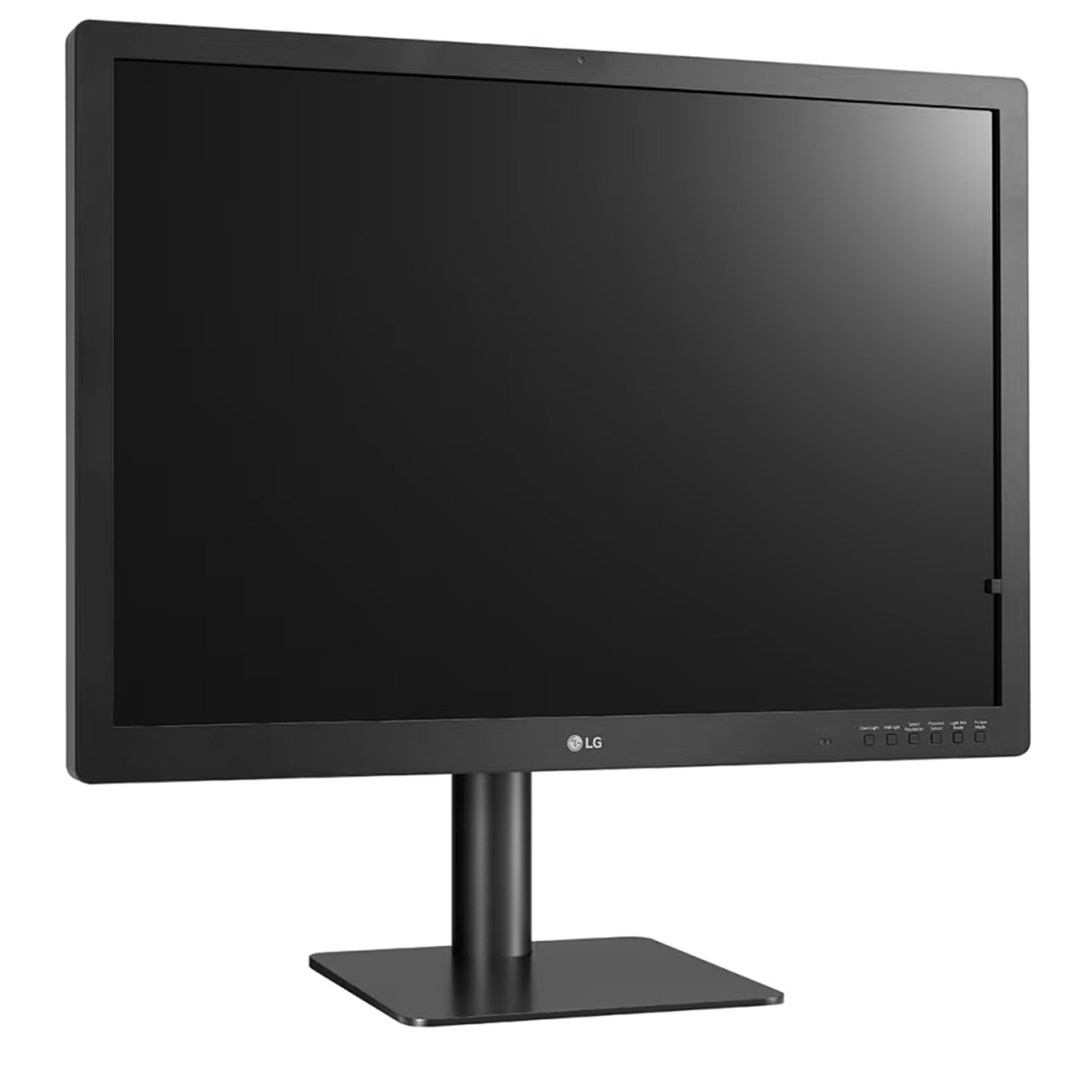

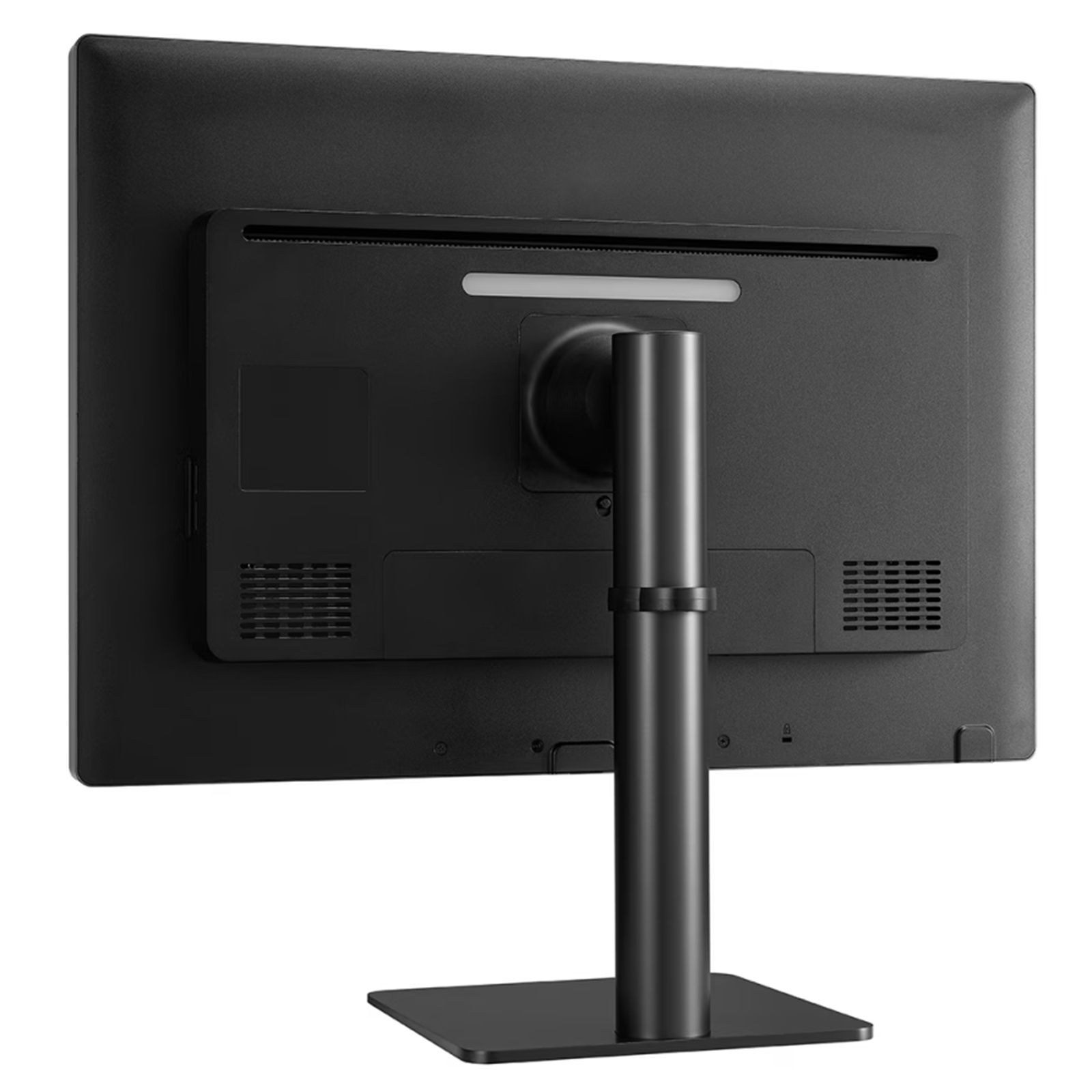

LG 31HN713D 31" 12MP 1200nit Diagnostic Monitor
- Brand: LG
- MPN: 31HN713D
- Part #: MONLGL932718
Product URL: https://www.pbtech.com/pacific/product/MONLGL932718/LG-31HN713D-31-12MP-1200nit-Diagnostic-Monitor
Features
31-inch 12MP IPS Display Designed for Mammography
Accurate Imaging
Multi-resolution Mode - Compatible with Every Device
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 31HN73D's Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
Pathology Mode - True-to-Life Color Reproduction
In Pathology Mode, the 31HN713D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
Self-calibration - Consistency in Medical Images
The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Streamlined and Efficient Workflow
Presence Sensor - Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 31HN713D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
Auto Luminance Sensor - Reducing Eye Strain
LG 31HN713D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.
Focus View - Fully Focus on the Important part
LG 31HN713D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image for a more accurate and efficient diagnosis.
More Ergonomic and Comfortable to Review
Down Lighting & Wall Lighting - Optimal Reading Condition
Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
6 Hot Keys - Intuitive Control
The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.
Ergonomic Design - Easy and Comfort
The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.
Specifications
Display
Aspect Ratio
3:2
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Brightness (Typ.)
1200 cd/m²
Brightness (Stabilization)
550 cd/m²
Color Bit
10bit
Color Gamut (Typ.)
sRGB over 97%(Coverage)
Contrast Ratio (Typ.)
1500:1
Pixel Pitch(H x V)
0.1554mm x 0.1554mm
Resolution
4200x2800
Response Time (GTG)
14ms(Off-setting), 5ms(Faster-setting)
Size (Diagonal, Inch)
31
Size (H x V)
652.68 x 435.12mm (25.70 x 17.13")
Surface Treatment
Anti-glare, 3H
Viewing Angle (CR=10)
178°(Right/Left), 178°(Up/Down)
Feature
Hot Key
Yes(6keys)
Brightness stabilization
Yes
Auto Luminance sensor
Yes
Presence sensor
Yes
Front Sensor
Yes
Black Stabilizer
Yes
HW Calibration
Yes
DICOM Compliant
Yes
Color Temperature
6500K / 7500K / 9300K
Manual (5000K ~ 10000K)
Flicker safe
Yes
PBP
Yes(2PBP)
Multi-resolution Mode
Yes(12MP/6MP)
Pathology Mode
Yes
Reader Mode
Yes(Text Mode)
Focus View
Yes
Light Box Mode
Yes
Smart Energy Saving
Yes
Lighting
Yes(Down/ Wall)
Super Resolution+
Yes
SW Application
Dual Controller
YES

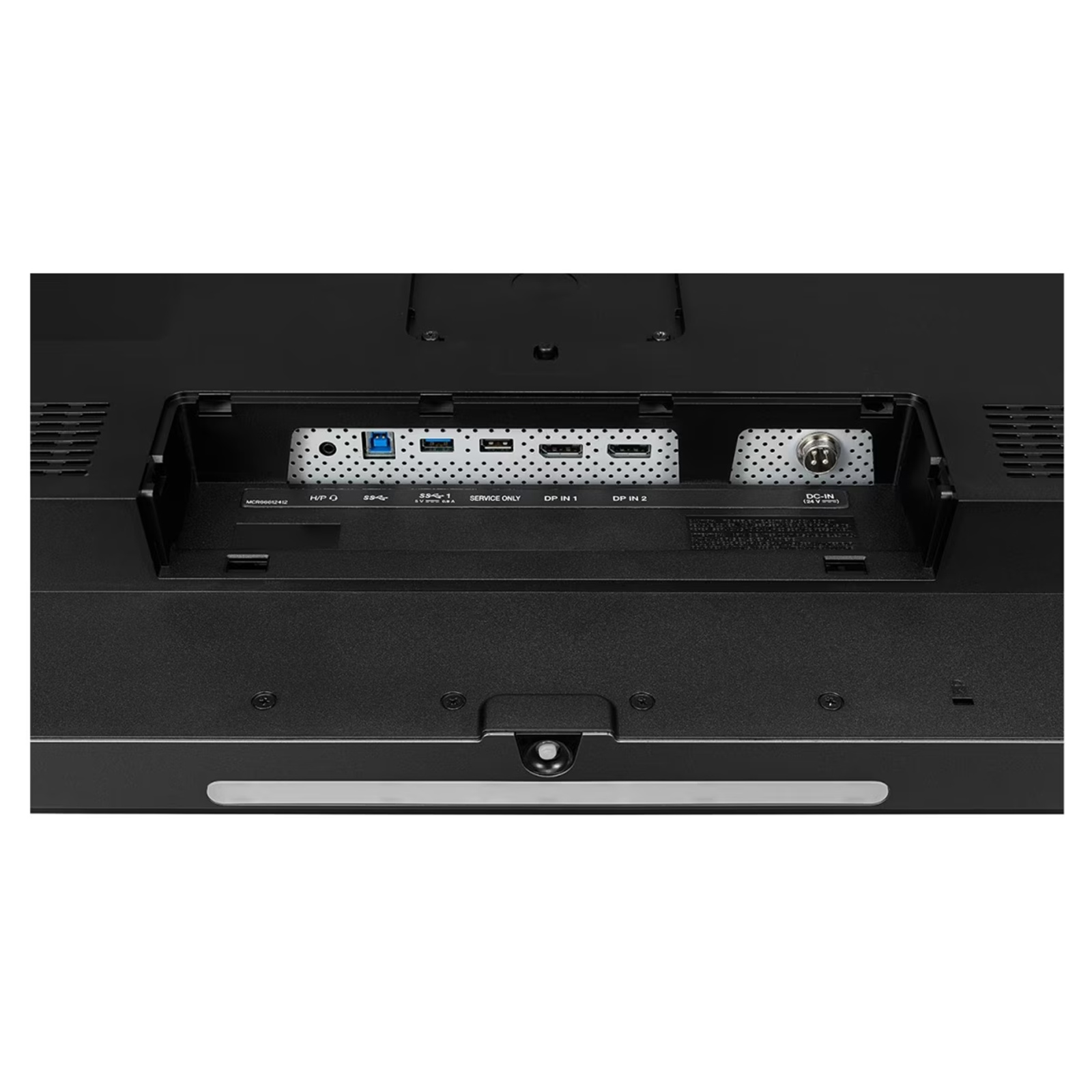

Connectivity
DisplayPort
YES(2ea)
Headphone out
Yes
USB Downstream Port
Yes(3ea/ver3.0)
USB Upstream Port
Yes(1ea/ver3.0)
Power
AC Input
100-240Vac, 50/60Hz
DC Input (Monitor)
24V, 7.5A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
180W
Type
External Power(Adapter)
Mechanical
Borderless Design
Normal

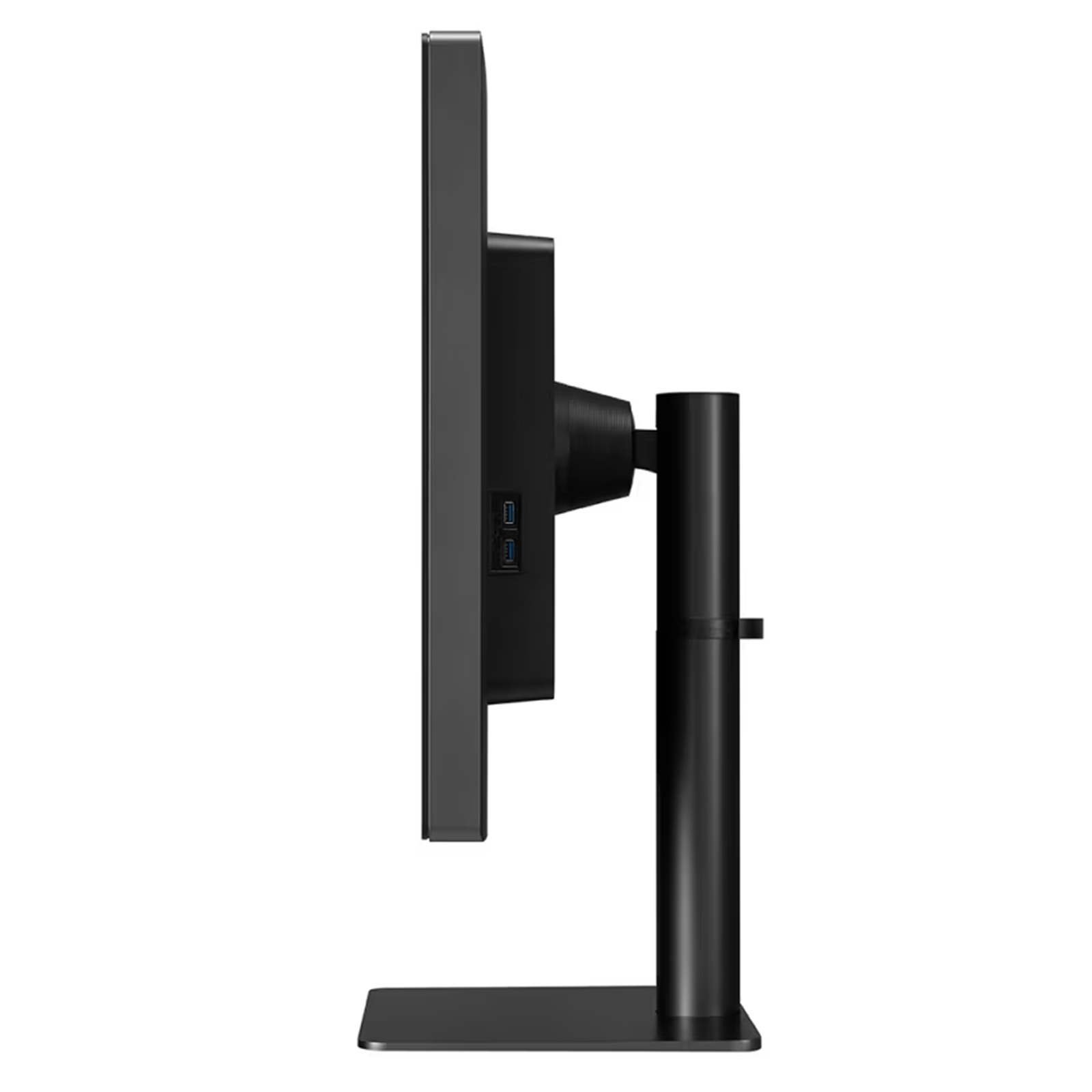

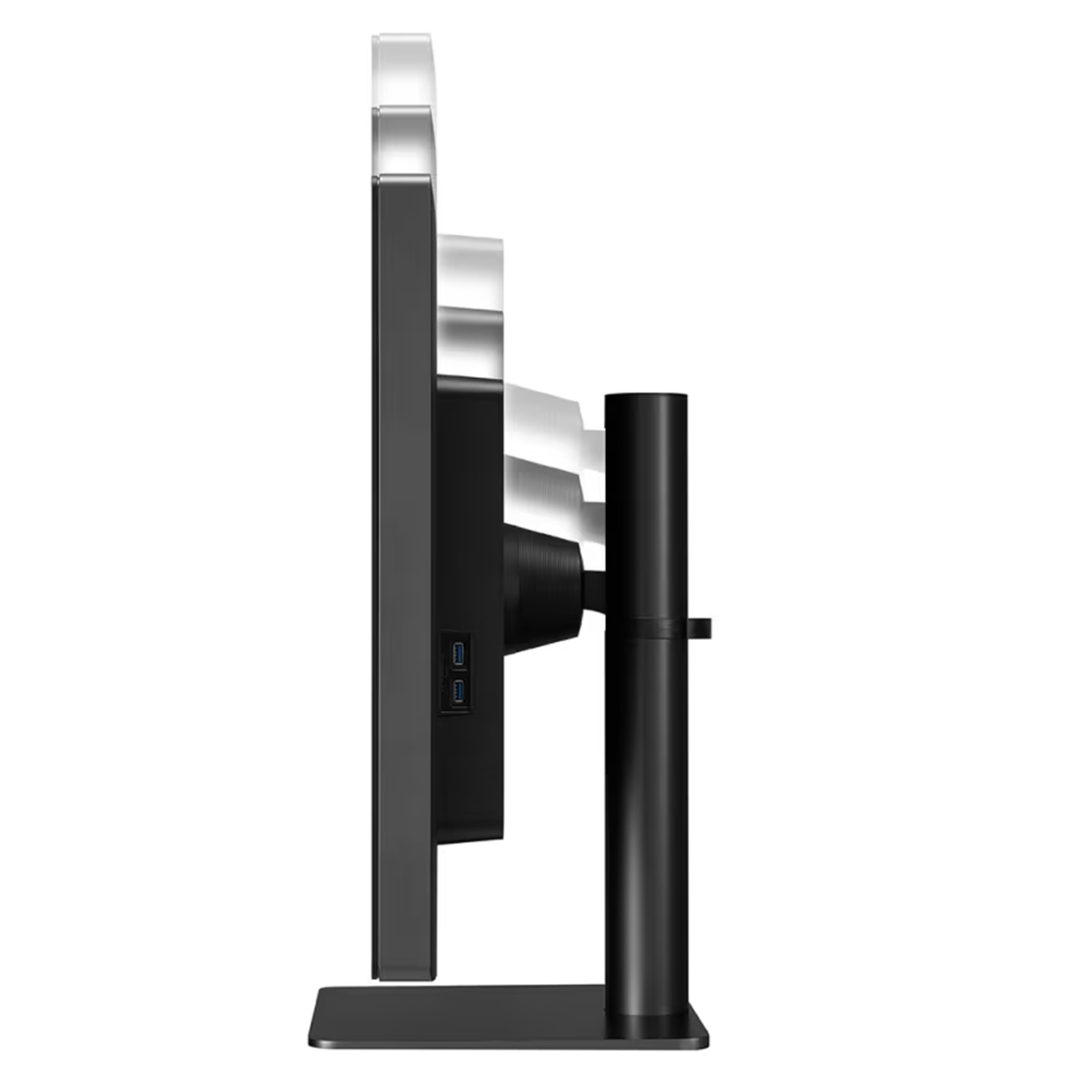

Display Position Adjustments
Tilt/Height/Swivel
Down Height
90.9mm
Height Range
110mm
Machanical Power Switch
Yes
OneClick Stand
YES
Swivel
Yes(±15°)
Tilt
Yes(-5°~15°)
Wall Mount Size
100x100mm
Dimensions/Weight
Dimension with Stand (W x H x D)
704.7x662.6x280mm
Dimension without Stand (W x H x D)
704.7x499.5x83.2mm
Weight with Stand
14.0kg
Weight without Stand
10.7kg
Standard
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
EN (EN 60601-1 / EN 60601-1-2)
Yes
IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
Yes
EN (EN 62368-1 / EN 55032, 55035)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
CE
MDR
FDA
510(k) (Class II)
ISO13485
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
