LG 75XS4G 4000Nit 75" Window Face Display Monitor,
- Brand: LG
- MPN: 75XS4G
- Part #: MONLGS87522
- UPC:
Features
Deliver Your Message with High Visibility Even Under the Strong Sunlight
With a great brightness of 4,000 nits** and UHD picture quality, 75XS4G clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility. QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.
High Energy Efficiency
The 75XS4G is *energy efficient, allowing for an efficient total cost management while showing content in UHD resolution even with 4,000 nits of high brightness.

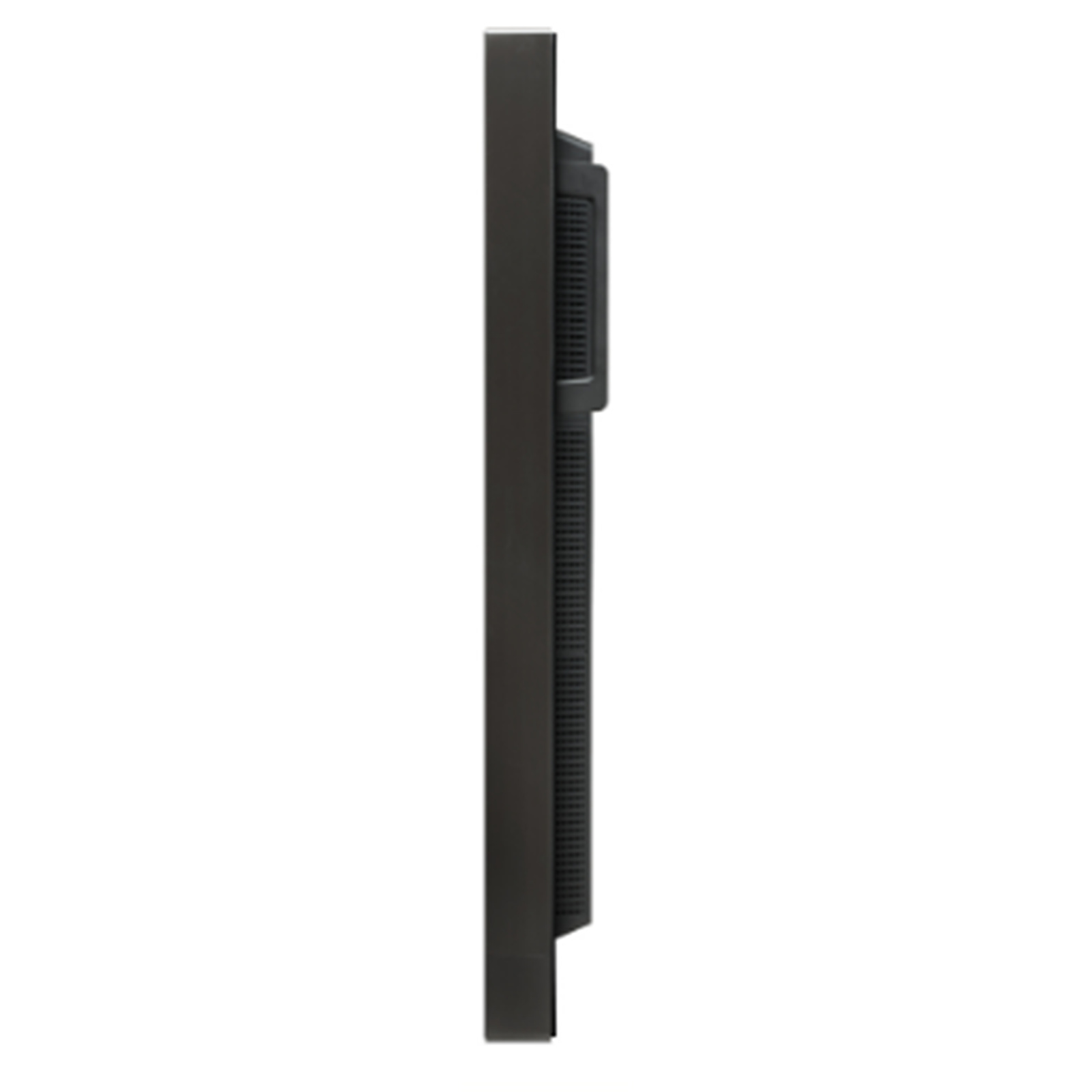

Space Blending Slim Design
Given that window-facing displays are usually installed indoors close to the window, 75XS4G's slim design is useful as it can blend naturally inside the store.
Double-sided Usage with Dedicated Bracket
Due to the 75XS4G flat-back design and dedicated bracket*, store owner can attach LG's UHD display** to the back for the purpose of displaying a variety of content for both external and internal customers.
Wide Operating Temperature Range
75XS4G can operate at various temperatures of 0-40°C.
Conformal Coating
*Conformal Coating improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.
High Performance with webOS
Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
Multiple Display Control with a Remote Control
Multiple device controls are available through the RJ45 & RS- 232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.
Easy Content Distribution & SW Update
75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.
Web Monitoring (Control Manager)
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Standalone Displays
Samsung QM32C 32" Full HD Digital Signage Display -- 400Nit, ...
Samsung QB43C 43" UHD Digital Signage Display - 16x7, 350Nit
Samsung QM55B-T 55" UHD Touch Screen
Commbox A11 55" 4K Smart Digital Signage Display -- 3840x2160 -...
Samsung QB50C 50" UHD Digital Signage Display - 16x7, 350Nit
LG 75XS4G 4000Nit 75" Window Face Display Monitor,
- Brand: LG
- MPN: 75XS4G
- Part #: MONLGS87522
Product URL: https://www.pbtech.com/pacific/product/MONLGS87522/LG-75XS4G-4000Nit-75-Window-Face-Display-Monitor
Features
Deliver Your Message with High Visibility Even Under the Strong Sunlight
With a great brightness of 4,000 nits** and UHD picture quality, 75XS4G clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility. QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.
High Energy Efficiency
The 75XS4G is *energy efficient, allowing for an efficient total cost management while showing content in UHD resolution even with 4,000 nits of high brightness.
Space Blending Slim Design
Given that window-facing displays are usually installed indoors close to the window, 75XS4G's slim design is useful as it can blend naturally inside the store.
Double-sided Usage with Dedicated Bracket
Due to the 75XS4G flat-back design and dedicated bracket*, store owner can attach LG's UHD display** to the back for the purpose of displaying a variety of content for both external and internal customers.
Wide Operating Temperature Range
75XS4G can operate at various temperatures of 0-40°C.
Conformal Coating
*Conformal Coating improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.
High Performance with webOS
Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
Multiple Display Control with a Remote Control
Multiple device controls are available through the RJ45 & RS- 232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.
Easy Content Distribution & SW Update
75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.
Web Monitoring (Control Manager)
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Specifications
Panel
Screen Size
75"
Panel Technology
IPS, M+ (WRGB)
Aspect Ratio
16:9
Native Resolution
3,840 x 2,160 (UHD)
Refresh Rate
60 Hz
Brightness
4,000 nit (Typ.), 3,200 nit (Min.)
Contrast Ratio
1,200:1 (Typ.)
Dynamic CR
500,000:1
Color gamut
NTSC 68%
Viewing Angle (H x V)
178 x 178
Color Depth
10 bit, 1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
3%
Operation Hours (Hours / Days)
24 / 7
Portrait / Landscape
Yes / Yes
Mechanical Specification
Bezel Color
Black
Bezel Width
Even bezel : 13.8 mm
Weight (Head)
39.6 kg
Packed Weight
50 kg
Monitor Dimensions (W × H × D)
1,679.2 x 957.6 x 104 mm
Carton Dimensions (W × H × D)
1,816 x 1,106 x 285 mm (Box outer size)
Handle
Yes
VESA™ Standard Mount Interface
600 x 400
Connectivity
Input
HDMI (2), HDCP2.2 / 1.4, DP (1), HDCP2.2 / 1.3, USB2.0 Type A (1)
Output
DP Out (1), Input DP/HDMI
External Control
RS232C In/Out, RJ45 In/Out, IR In
Environment Conditions
Operation Temperature
0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System)
0 °C to 30°C (Direct Sunlight)
Operation Humidity
10 % to 80 %
Power
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption
Typ./Max.
750 W / 790 W
Power off
0.5 W Under
Smart Energy Saving
400 W
DPM
0.5 W Under
BTU (British Thermal Unit)
2,559 BTU/Hr (Typ.), 2,696 BTU/Hr (Max.)
