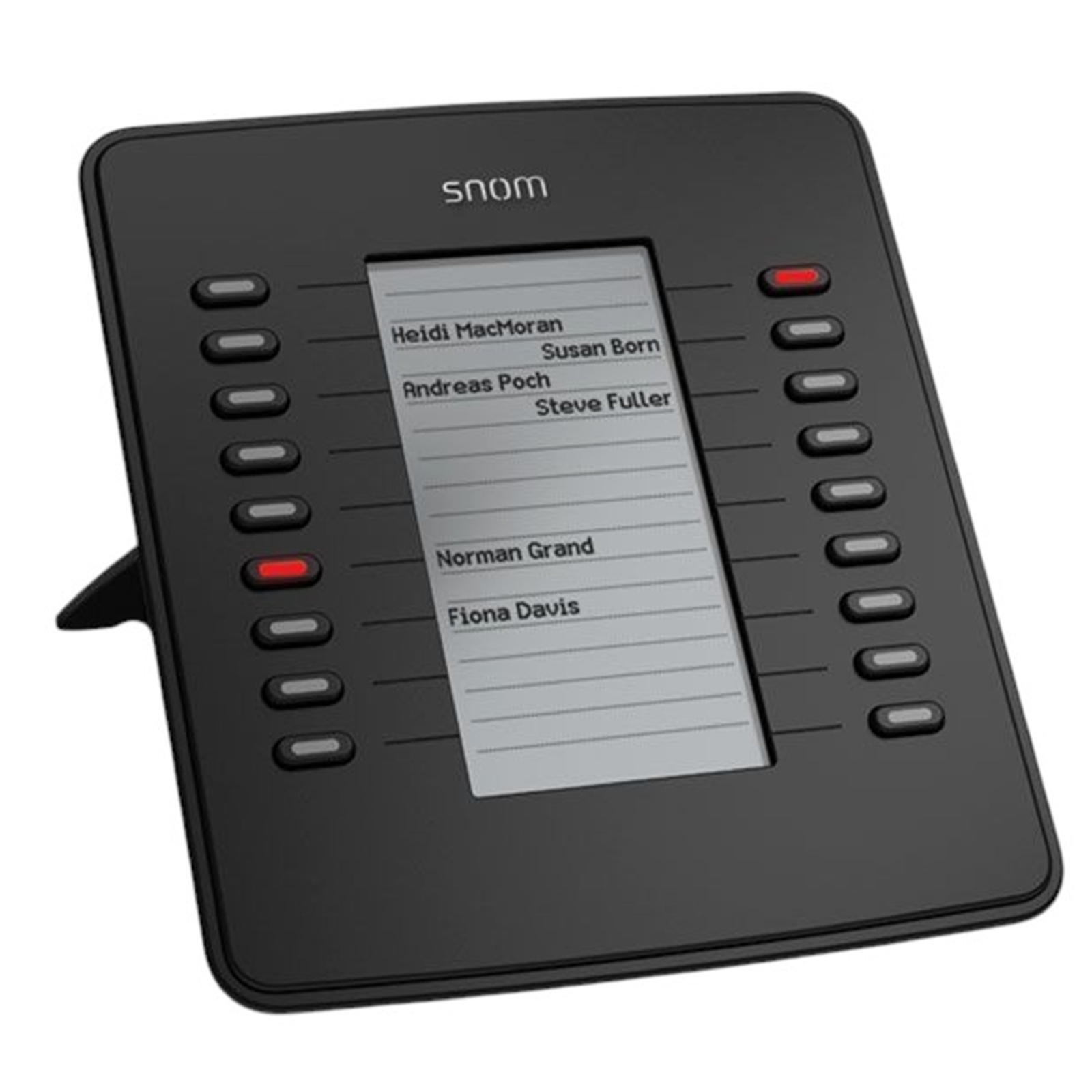

Snom D7 18-Button DSS Module for D715/725/745/765
Snom D7 18-Button DSS Module for D715/725/745/765
- Brand: Snom
- MPN: 00004011
- Part #: MPHSNM1104
- UPC:
- Brand: Snom
- MPN: 00004011
- Part #: MPHSNM1104
- UPC:
Features
An expansion module provides users who experience high call coverage with greater flexibility and increased productivity. The D7 expansion module enhances the 700 series by adding 18 programmable keys with LEDs to deliver features such as speed dial, busy lamp field and presence indication.
The high-resolution display provides an ideal visual interface. The D7 connects to the telephone via a USB cable, and up to three expansion modules can be daisy chained to add 54 function keys. The final D7 in the chain provides a USB port to connect other peripheral devices such as a USB headset. When more than one D7 is used with a telephone, additional external power is needed.
- 18 highly configurable self-labeling LED keys
- High-resolution black display with backlight
- Daisy chain up to 3 modules
- Plug and play
- Power supplied by phone via USB port
Notes:
Please note that from the second connected D7 onwards, this must be supplied with power using an additional Snom power supply unit. This will then power the second and, if desired, the third D7 in the series.
As each D7 has a USB port, other devices such as a USB headset can be connected to the last connected D7 in the row.
Expansion module connectable
To have additional speed dial or BLF keys available on your desk phone, this device can be supplemented with expansion modules.
Plug & Play
This device comes with Plug & Play. This means you can use accessories connected via USB without rebooting the phone.
USB port
This device has at least one USB port.
Self-labeling keys in additional display
Unlike in the past, where the freely programmable function keys were labeled by means of paper, this device has labeling in a display.
18 programmable, multi-coloured LED keys
The keys can be assigned with all functions available on the Snom phones, e.g. short and direct dial or extension. The multicolour LEDs indicate the call and presence status of a direct dialling.
Up to 3 expansion packs can be combined
If you really need a lot of programmable function keys, the Snom D7 is just right for you, because you can connect up to 3 in a row to each Snom desk phone.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Business Phone Accessories
Fanvil FAN-EHS20 EHS Interface Cable, connects to Jabra Pro 920...
NEAT Board Rolling Floor Stand
Yealink BLT60 Busylight for WH6X & MP50
Kuando Busylight UC Alpha - Skype for Business
Yealink WMB-T55 Wall Mount Bracket for T55
Snom D7 18-Button DSS Module for D715/725/745/765
- Brand: Snom
- MPN: 00004011
- Part #: MPHSNM1104
Product URL: https://www.pbtech.com/pacific/product/MPHSNM1104/Snom-D7-18-Button-DSS-Module-for-D715725745765
Features
An expansion module provides users who experience high call coverage with greater flexibility and increased productivity. The D7 expansion module enhances the 700 series by adding 18 programmable keys with LEDs to deliver features such as speed dial, busy lamp field and presence indication.
The high-resolution display provides an ideal visual interface. The D7 connects to the telephone via a USB cable, and up to three expansion modules can be daisy chained to add 54 function keys. The final D7 in the chain provides a USB port to connect other peripheral devices such as a USB headset. When more than one D7 is used with a telephone, additional external power is needed.
- 18 highly configurable self-labeling LED keys
- High-resolution black display with backlight
- Daisy chain up to 3 modules
- Plug and play
- Power supplied by phone via USB port
Notes:
Please note that from the second connected D7 onwards, this must be supplied with power using an additional Snom power supply unit. This will then power the second and, if desired, the third D7 in the series.
As each D7 has a USB port, other devices such as a USB headset can be connected to the last connected D7 in the row.
Expansion module connectable
To have additional speed dial or BLF keys available on your desk phone, this device can be supplemented with expansion modules.
Plug & Play
This device comes with Plug & Play. This means you can use accessories connected via USB without rebooting the phone.
USB port
This device has at least one USB port.
Self-labeling keys in additional display
Unlike in the past, where the freely programmable function keys were labeled by means of paper, this device has labeling in a display.
18 programmable, multi-coloured LED keys
The keys can be assigned with all functions available on the Snom phones, e.g. short and direct dial or extension. The multicolour LEDs indicate the call and presence status of a direct dialling.
Up to 3 expansion packs can be combined
If you really need a lot of programmable function keys, the Snom D7 is just right for you, because you can connect up to 3 in a row to each Snom desk phone.
Specifications
MPN
00004011
Colour
Black
Operating system
Linux
Placement
Indoor, desktop
Daisy-chain up to 3 modules
Dimensions (L x W x D, approx.) without footstand
158 mm × 140 mm × 40 mm
Dimensions (H × W × D, approx.) with footstand
158 mm × 140 mm × 220 mm (high angle 46°)
158 mm × 140 mm × 200 mm (low angle 28°)
Weight (approx.)
400 g without footstand
520 g with footstand
Display
TFT liquid crystal display (LCD), graphical, monochrome, backlit
Size (diagonal): 4.0″ (101 mm)
Size (W × H): 92 mm × 42 mm
Resolution: 384 × 160 pixel
Function key status indication
18 multicolour LEDs
Function keys
18 SmartLabel keys (with multicolour LED)
Power options
USB powering: 5 V
Power adapter: 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W
Wired interfaces
Daisy chaining|USB powering|USB headsets and other accessories
USB 2.0 type A port
attached USB 2.0 cable with type A plug
Power adapter: coaxial power connector (socket)
Operating ambient temperature
0 °C - +35 °C
Nonoperating (storage) temperature
-10 °C - +45 °C
Humidity (non-condensing)
5 % - 95 %
