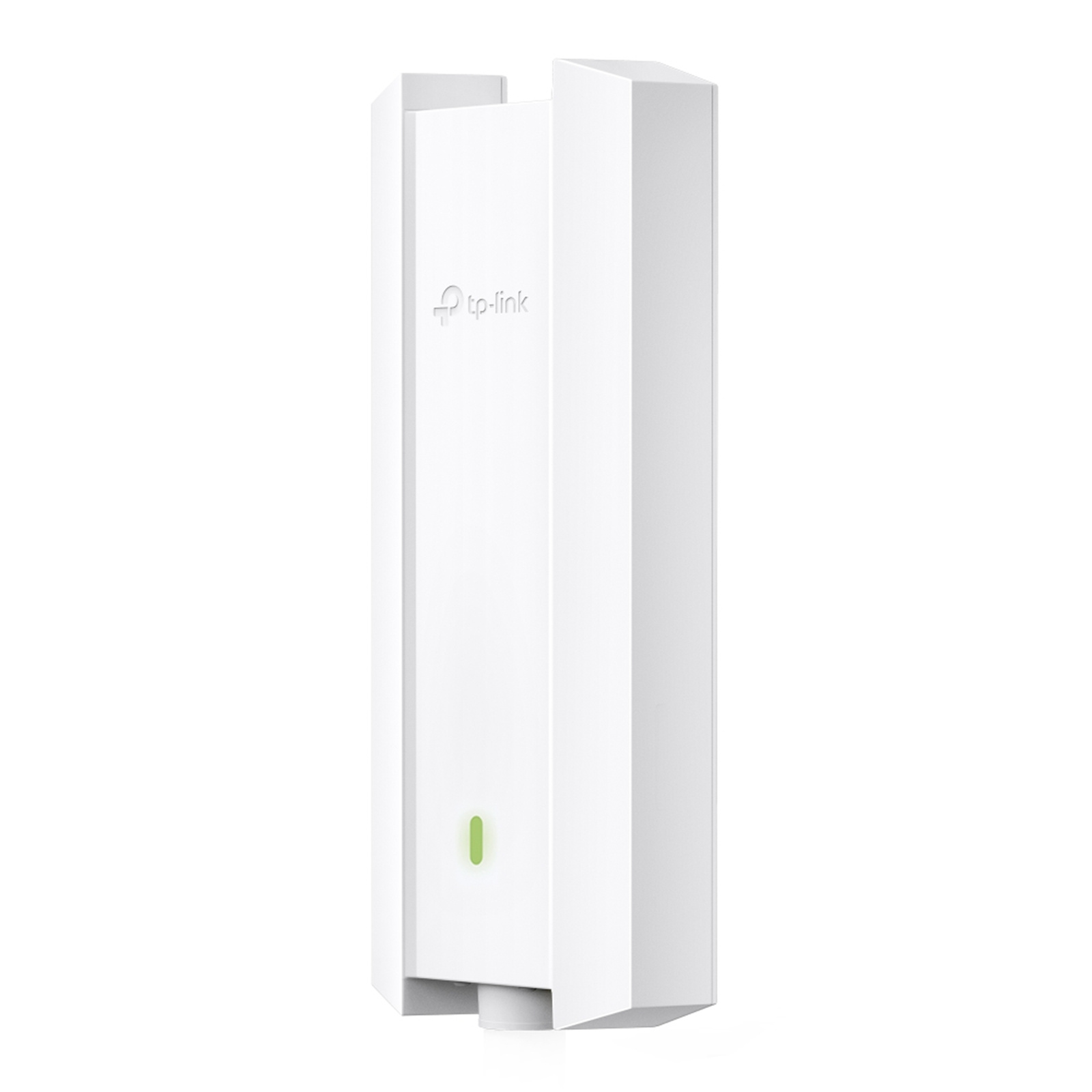

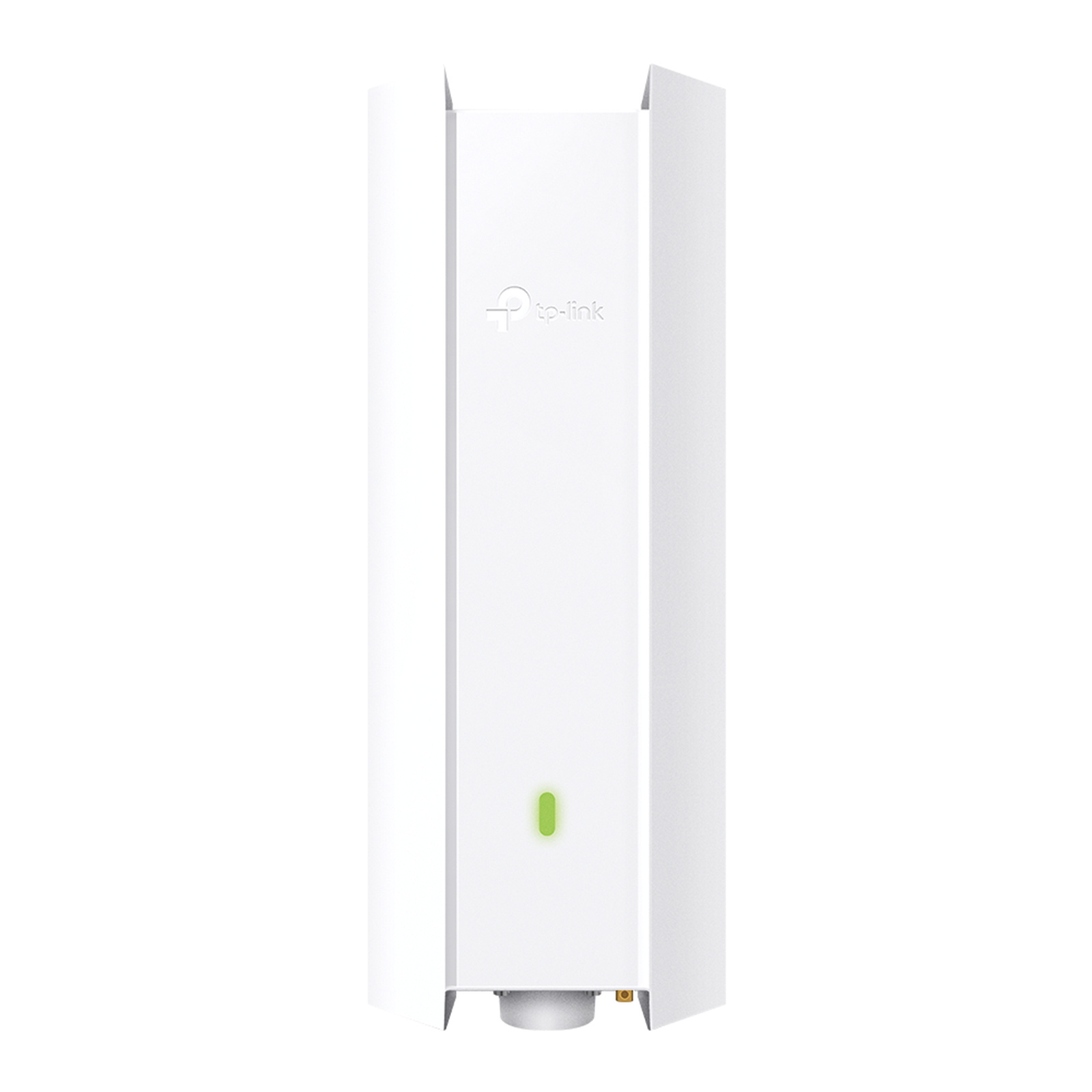

TP-Link Omada EAP623-Outdoor HD (AX1800) Dual-Band 4-Stream High-Density IP67 Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)

EAP623-Outdoor HD

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.[1]
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.[2]
- High-density connectivity up to 1,000+ clients.[3]
- Long-range coverage with the high-power amplifier and smart antennas.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.[4]
- PoE+ Powered: Supports both 802.3at PoE (adapter not included).

Long-Range, High-Speed WiFi 6

Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.[1]

Explore More with Smart Antennas

Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD's intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.

Ideal for High-Density Outdoor Scenes

OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.[2]
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.

- IP67 Weatherproof Enclosure
- 6KV Lightning Protection

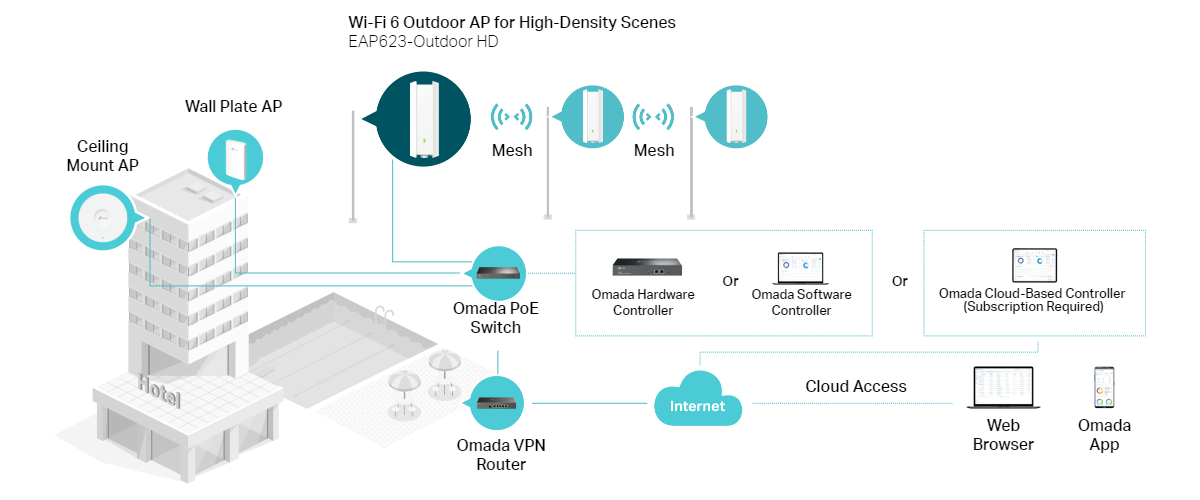

Flexible Deployment with Omada Mesh and PoE Support

Seamless Integration into Omada SDN

[1]Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.

[2]Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

[3]The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

[4]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides for Omada SDN Controllers for configuration methods.

[5]Based on field tests. The number listed here is the maximum distance of one EAP623-Outdoor HD can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
