TP-Link Omada EAP683 LR (AX6000) Dual-Band 8-Stream Long-Range Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
Out of stock
TP-Link Omada EAP683 LR (AX6000) Dual-Band 8-Stream Long-Range Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
- Brand: TP-Link
- MPN: EAP683 LR
- Part #: NAPTPL0683
- UPC:
- Brand: TP-Link
- MPN: EAP683 LR
- Part #: NAPTPL0683
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
EAP683 LR
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz[1]
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.[2]
- Integrates with Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.[3]
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

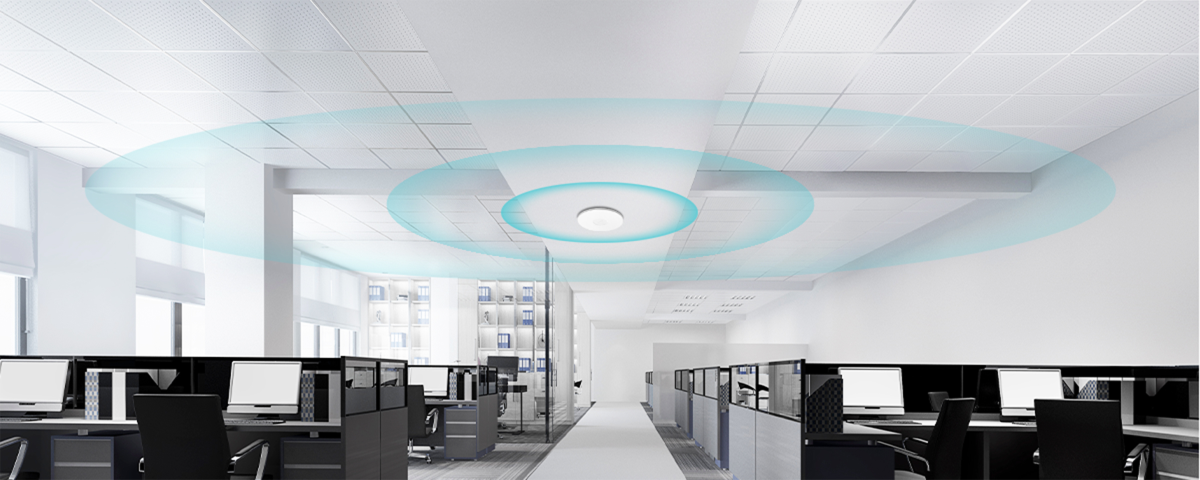

Long-Range Coverage

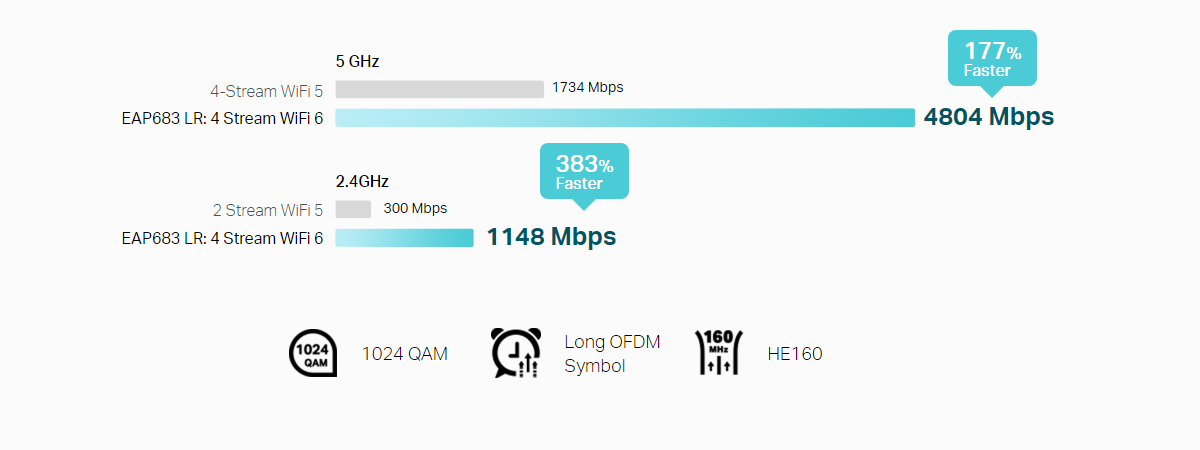

Ultra-Fast AX6000 WiFi 6 Speeds[1]

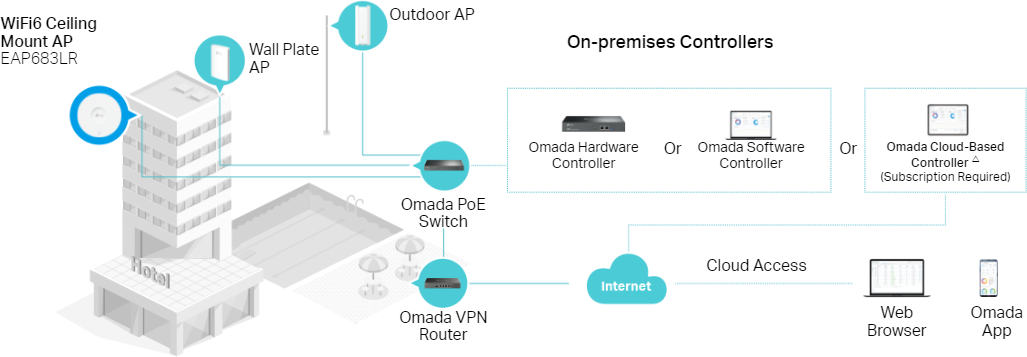

Seamless Integration into Omada SDN
Easy Deployment and Higher Performance with Omada Mesh[3]
Optimized Network Performance
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
[2]Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
[3]Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /us/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
[4]Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /us/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
[5]The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
[6]Use of Omada Cloud-Based Controller may incur device license fees.
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Indoor Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
TP-Link TL-WA1201 Wi-Fi Access Point MU-MIMO - Dual-Band AC1200 ...
TP-Link Omada EAP683 LR (AX6000) Dual-Band 8-Stream Long-Range Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
- Brand: TP-Link
- MPN: EAP683 LR
- Part #: NAPTPL0683
Product URL: https://www.pbtech.com/pacific/product/NAPTPL0683/TP-Link-Omada-EAP683-LR-AX6000-Dual-Band-Wi-Fi-6-A
Features
EAP683 LR
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz[1]
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.[2]
- Integrates with Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.[3]
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Long-Range Coverage
Ultra-Fast AX6000 WiFi 6 Speeds[1]
Seamless Integration into Omada SDN
Easy Deployment and Higher Performance with Omada Mesh[3]
Optimized Network Performance
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
[2]Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
[3]Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /us/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
[4]Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /us/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
[5]The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
[6]Use of Omada Cloud-Based Controller may incur device license fees.
Specifications
HARDWARE FEATURES
Interface
1× 2.5 Gigabit PoE+ Port
Button
Reset
Power Supply
- 802.3at PoE
- 12 V / 2 A DC
Note: Power adapter is not included.
Power Consumption
- EU: 20.43W
- US: 23.69W
Dimensions ( W x D x H )
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type
Internal Omni
- 2.4 GHz: 4× 4 dBi
- 5 GHz: 4× 5 dBi
Bluetooth
Yes
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage
185m2(2000ft2)
Concurrent Clients
512
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 1148 Mbps
Wireless Functions
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
- FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging
Local/Remote Syslog Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE,FCC,RoHS
Package Contents
- EAP683 LR
- Ceiling/Wall Mounting Kits
- Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
- Operating Temperature: 0-40 ? (32-104 ?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
