TP-Link Omada EAP650 D120-Outdoor (AX3000) Dual-Band 4-Stream IP68 Outdoor Directional Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)
TP-Link Omada EAP650 D120-Outdoor (AX3000) Dual-Band 4-Stream IP68 Outdoor Directional Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)
- Brand: TP-Link
- MPN: EAP650 D120-Outdoor
- Part #: NAPTPL65011
- UPC:
- Brand: TP-Link
- MPN: EAP650 D120-Outdoor
- Part #: NAPTPL65011
- UPC:
Features
EAP650 D120-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point
Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz[1].
Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage[2].
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners[3].
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI[3].
Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
- Durable Waterproof Enclosure
- Operating Temperature of -30°C to 70°C
- No Ingress of Dust
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4 x built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage[2].
Directional Antennas for Ultra-Range Coverage in Outdoor Scenarios*
*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D120-Outdoor which the client's signal strength is = 75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
Seamless Integration into Omada SDN
[1]Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
[2]Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
[3]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of an Omada controller.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling Mounted Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-LR (AX3000) Dual-Band 8-Stream Wi-Fi 6 Access...
TP-Link Omada EAP650 D120-Outdoor (AX3000) Dual-Band 4-Stream IP68 Outdoor Directional Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)
- Brand: TP-Link
- MPN: EAP650 D120-Outdoor
- Part #: NAPTPL65011
Product URL: https://www.pbtech.com/pacific/product/NAPTPL65011/TP-Link-Omada-EAP650-D120-Outdoor-AX3000-Dual-Band
Features
EAP650 D120-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point
Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz[1].
Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage[2].
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners[3].
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI[3].
Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
- Durable Waterproof Enclosure
- Operating Temperature of -30°C to 70°C
- No Ingress of Dust
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4 x built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage[2].
Directional Antennas for Ultra-Range Coverage in Outdoor Scenarios*
*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D120-Outdoor which the client's signal strength is = 75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
Seamless Integration into Omada SDN
[1]Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
[2]Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
[3]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of an Omada controller.
Specifications
HARDWARE FEATURES
Interface
1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48V Passive PoE
Max. Power Consumption
EU: 12.5W (802.3at PoE or Passive PoE)
US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )
9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna
Built-in Directional Antennas:
2.4 GHz: 2× 8 dBi
5 GHz: 2× 10 dBi
Beamwidth: 120° Horizontal; 30° Vertical
Bluetooth
Yes
Weatherproof Enclosure
IP68
Mounting
Optional bracket accessory APM-110:
Supports vertical ±180°, horizontal ±45° adjustment
Optional bracket accessory APM-100:
Supports vertical ±45° , horizontal ±45° adjustment
Note: Optional bracket accessories need to be purchased separately
WIRELESS FEATURES
Coverage
2.4 GHz: 200+ m*
5 GHz: 500+ m*
Concurrent Clients
250+**
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Frequency
2.4 GHz, 5 GHz
Signal Rate
574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)***
Wireless Functions
1024-QAM
DL/UL OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
Omada Mesh§
Seamless Roaming(802.11k/v/r)§
Band Steering
Load Balance
Airtime Fairness
Beamforming
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication****
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
Management Features
Omada App
Yes
Restore & Backup
Yes
NTP
Yes
Centralized Management
Omada Hardware Controller
Omada Software Controller
Omada Cloud-based Controller
Omada APP
Cloud Access
Yes, through
Omada Hardware Controller
Omada Software Controller
Omada Cloud-based Controller
Omada APP
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-based Management
Yes
Multi-site Management
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification
CE, FCC, RoHS

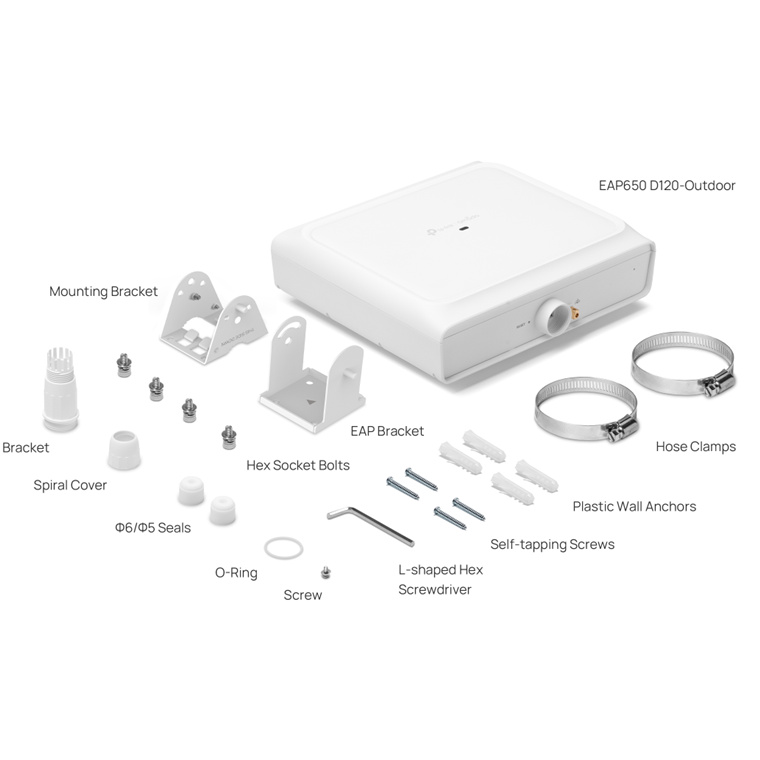

Package Content
Access Point EAP650 D120-Outdoor
Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: -30-70°C (-22-158°F)
Storage Temperature: -40-70°C (-40-158°F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Note
Note
*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
****Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of an Omada controller.
