Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W)
Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W)
- Brand: Ubiquiti
- MPN: U7-Pro-Max
- Part #: NAPUBI1702
- UPC: 810084695555
What PB Tech customers are saying about this product...
See More Reviews"My poorly performing wifi has dramatically improved"
COMBO DEALS: Buy Together and SAVE!






$192.44
$192.44


Ubiquiti U-POE++ 60W Gigabit PoE Adapter (48V DC /1.25A)
$60.45
$60.45


Dynamix PLSE-C6-0.5 Cat6A RJ45 Patch Lead - 50cm - Blue UTP - 10G - 30AWG - Ultra-Slim - Gold Plated...
$5.13
$5.13
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling Mounted Access Points





Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W)
- Brand: Ubiquiti
- MPN: U7-Pro-Max
- Part #: NAPUBI1702
- UPC:810084695555

Product URL: https://www.pbtech.com/pacific/product/NAPUBI1702/Ubiquiti-UniFi-U7-Pro-Max-BE15000-Tri-Band-8-Strea?is-review=1
Features
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
*Requires UniFi Network 8.2.93 and later.
Specifications
Mechanical
Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8")
Weight
680 g (1.5 lb)
Enclosure material
Polycarbonate, aluminum
Mount material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface
(1) 1/2.5 GbE RJ45 port
Management interface
Ethernet
Power method
PoE+
Power supply
UniFi PoE switch
Supported voltage range
44-57V DC
Max. power consumption
25W
Max. TX power
2.4 GHz: 23 dBm
5 GHz: 29 dBm
6 GHz: 23 dBm
MIMO
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
6 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz: 688 Mbps (BW40)
5 GHz: 8.6 Gbps (BW240)
6 GHz: 5.7 Gbps (BW320)
Antenna gain
2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.9 dBi
LEDs
White/blue
Button
Factory reset
Mounting

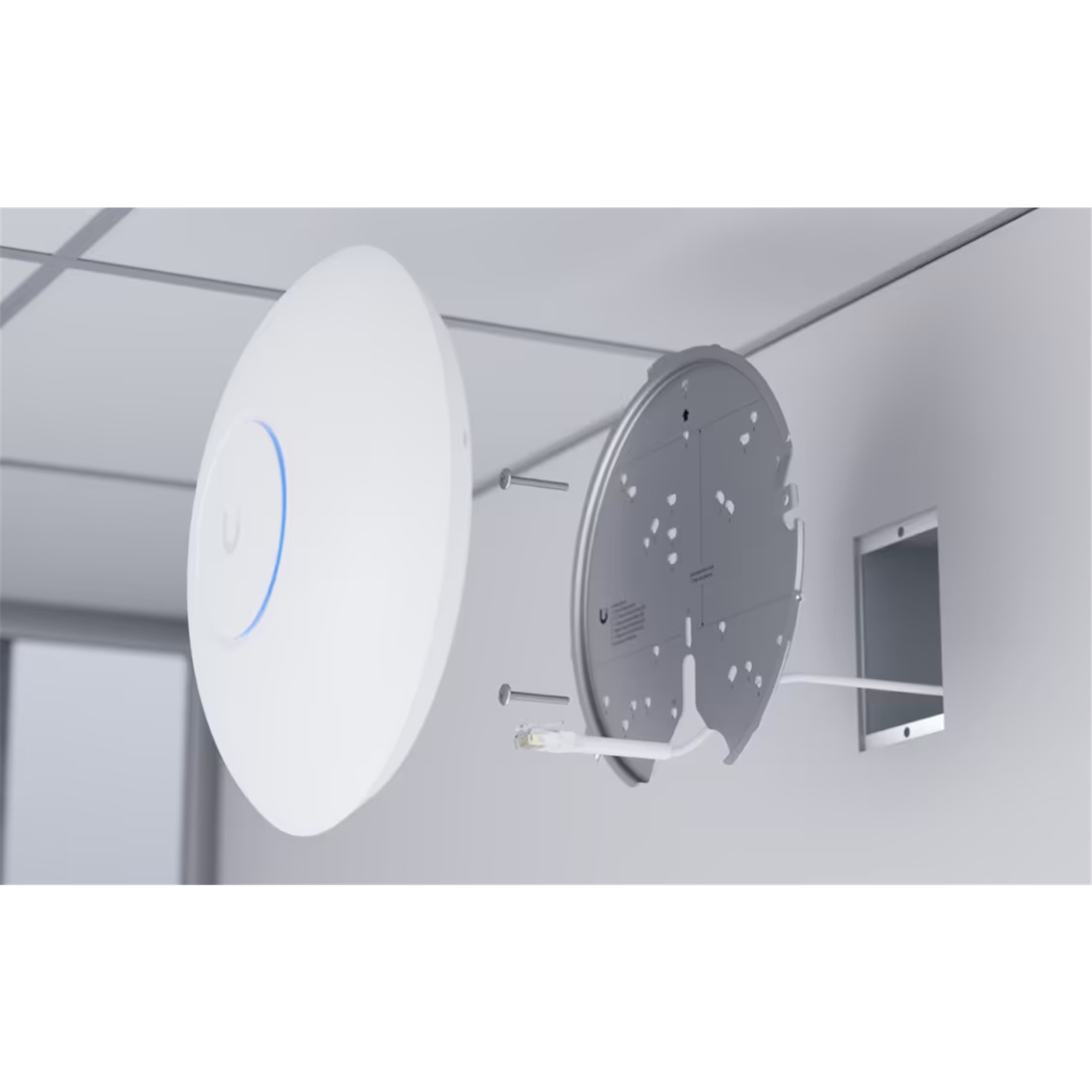

Wall, ceiling (Included)
Ambient operating temperature
-30 to 50° C (-22 to 122° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
500+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz: 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.2.93 and later
