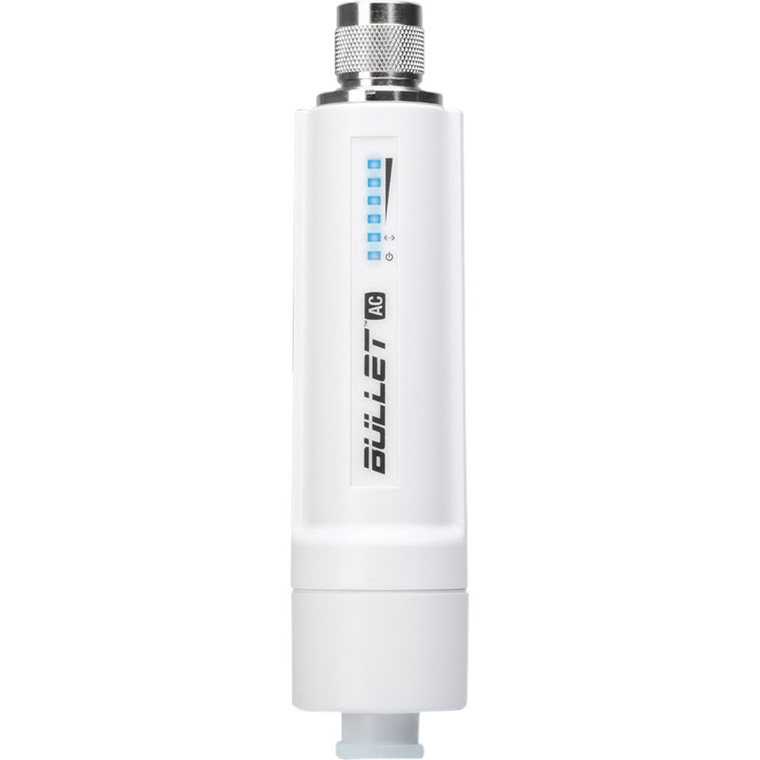

Ubiquiti Bullet ac B-DB-AC Dual-Band airMAX ac Radio withDedicated Wi-Fi Management
Ubiquiti Bullet ac B-DB-AC Dual-Band airMAX ac Radio withDedicated Wi-Fi Management
- Brand: Ubiquiti
- MPN: B-DB-AC
- Part #: NAPUBI5202
- UPC: 817882021319
- Brand: Ubiquiti
- MPN: B-DB-AC
- Part #: NAPUBI5202
- UPC: 817882021319
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular CPE





Ubiquiti Bullet ac B-DB-AC Dual-Band airMAX ac Radio withDedicated Wi-Fi Management
- Brand: Ubiquiti
- MPN: B-DB-AC
- Part #: NAPUBI5202
- UPC:817882021319

Product URL: https://www.pbtech.com/pacific/product/NAPUBI5202/Ubiquiti-Bullet-ac-B-DB-AC-Dual-Band-airMAX-ac-Rad
Features
Dual-Band airMAX® ac Radio with Dedicated Wi-Fi Management
Bullet™ AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links.
Fully Integrated Radio
Launched in 2008, the Bullet™ design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.
Carrier-Class Throughput
The Bullet™AC delivers up to 300+ Mbps real TCP/IP throughput.
Durability to Last Outdoors
The robust, weatherproof case withstands harsh outdoor conditions.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Integration
Connect the Bullet™AC to any existing antenna with an N-type female connector to create an airMAX® basestation.
Specifications
Dimensions
190 x 46 x 46 mm (7.48 x 1.81 x 1.81")
Weight
116 g (4.09 oz)
Enclosure
Polycarbonate
Networking Interface
Gigabit Ethernet Port
Antenna Connector
N-Type Connector
Throughput
2.4 GHz
5 GHz
160+ Mbps
300+ Mbps
Max. Power Consumption
8W
Output Power
22 dBm
Power Supply
AC to 24VDC, 0.5A Gigabit PoE Adapter
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
ESD/EMP
Protection ± 24 kV Contact / Air
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Condensing
Shock and Vibration
ETSI300-019-1.4
Certifications
CE, FCC, IC
