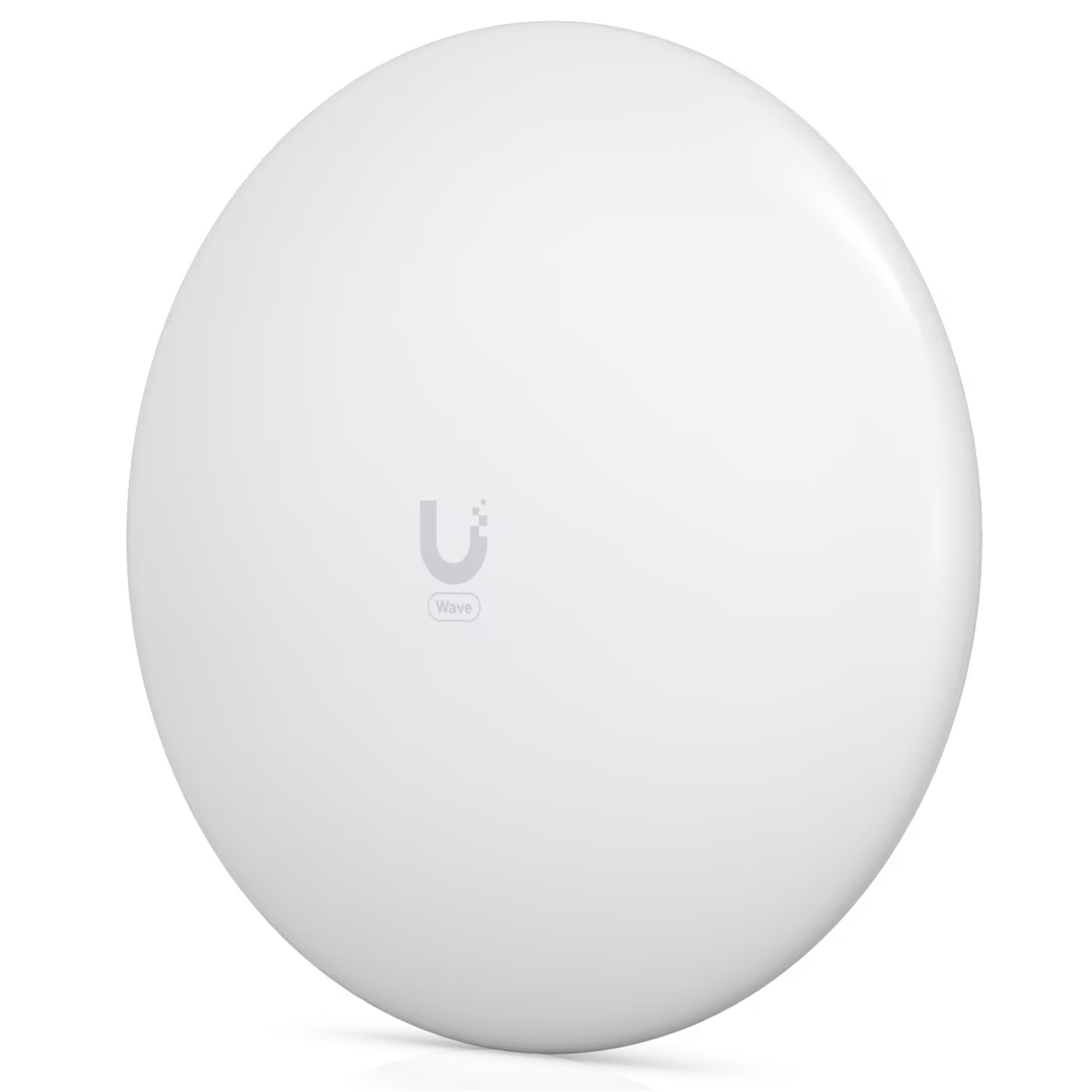

Ubiquiti UISP WAVE-LR 60GHz 2Gbps PtMP Wave Client Station with 5Ghz Backup

PB Tech price
PB Tech price
NZD $ 761 .02
$ 761 .02
$761.02  +GST
$761.02

Ubiquiti UISP WAVE-LR 60GHz 2Gbps PtMP Wave Client Station with 5Ghz Backup

  • Brand: Ubiquiti
  • MPN: WAVE-LR
  • Part #: NAPUBI6037
  • UPC: 810010078957
PB Tech price
NZD $ 761 .02 $ 761 .02
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 08 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$761.02  +GST
$761.02
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Ubiquiti
  • MPN: WAVE-LR
  • Part #: NAPUBI6037
  • UPC: 810010078957

Ethernet Ports

1

USB Ports

None

WiFi Bands

N/A

Wireless Technology

N/A

Wireless Transmission Speed

Not Specified

Pack Size

1-Pack

View full specs
Returns & Warranty Bulk Quote Print Page

Features

60 GHz PtMP station powered by Wave Technology.

- Max. link range:
- Wave AP: 8 km
- Wave AP Micro: 6 km

- Max. total throughput: 2 Gbps (1.5 Gbps duplex)

- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)

- (1) GbE RJ45 port

- Precision alignment mount

- Integrated GPS & Bluetooth

Specifications

Mechanical

Dimensions

Ø424.4 x 166.2 mm (Ø16.7 x 6.5")

Weight

Without mount: 2.6 kg (5.7 lb)
With mount: 3.8 kg (8.4 lb)

Enclosure material

UV stabilized plastic

Mount material

Stainless steel

Pole mount diameter

25 to 76.2 mm (1 to 3") on pipe outer diameter

Wind loading

286 N at 200 km/h (64.3 lbf at 125 mph)

Weatherproofing

IPX6

Hardware

Processor

Dual-core ARM® Cortex®-A53 at 1 GHz

Memory

DDR3L 512 MB

Networking interface

(1) GbE RJ45 port

Max. power consumption

20W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only

Power supply

48V DC, 0.65A gigabit PoE adapter (Included)
Can be powered by a UISP Router or UISP Switch

Supported voltage range

44-54V DC
22-27V DC

GPS

Yes

Button

Factory reset

LEDs

Power, Ethernet, GPS, link

Ambient operating temperature

-40 to 60° C (-40 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE

Software

Operating mode

PtMP station, PtP*
*FW version 3.2.0 and later.

Ubiquiti specific features

Wave AI, discovery protocol

Services

UISP, ping watchdog, NTP client, SNMP

Tools

Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping**
*FW version 3.3.0 and later.
**FW version 3.4.0 and later.

Network

Bridge/Router* mode
*Router is available in PtMP station mode only.

Application requirements

UISP: Version 1.4.5 and later

System

Total throughput

2 Gbps (1.5 Gbps duplex)

Max. range

8+ km

Encryption

WPA2-PSK (AES)

RF

Operating frequency*

57-71 GHz
*Depends on regulatory region.

Channel bandwidth

2160, 1080, 540* MHz
*FW version 3.3.0 and later.

Operating channels*

58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.

Modulation

16QAM, QPSK

Antenna gain

46 dBi

Polarization

Vertically linear

Beamwidth

Azimuth: 3 dB 1°
Elevation: 3 dB 1°

Back-Up RF

WiFi standard

802.11ax (WiFi 6)

Operating frequency*
US/CA


Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.

Channel bandwidth

20, 40, 80 MHz

Modulation

BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)

Antenna gain

22 dBi

Polarization

Dual-linear

Beamwidth

Azimuth: 3 dB 8°
Elevation: 3 dB 8°

Cross-pol isolation

20 dB

LEDs

Power

Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress

Ethernet

Flashing blue: Ethernet traffic detected

GPS

Blue: receiving at least (4) GPS satellite signal

Links

White: 5GHz link
Blue: 60GHz link

Manufacturer Part No:
WAVE-LR
Brand:
Ubiquiti
Product Type:
-
UPC
810010078957
Product Family:
UISP
Shipping Weight:
6.88 kg
PB Part No:
NAPUBI6037
Product Model:
WAVE-LR
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
