Ubiquiti UISP WAVE-AP 60GHz 5.4Gbps PtMP Wave Access Point with 5Ghz Backup, 30° Sector Coverage
- Brand: Ubiquiti
- MPN: WAVE-AP
- Part #: NAPUBI6039

Product URL: https://www.pbtech.com/pacific/product/NAPUBI6039/Ubiquiti-UISP-WAVE-AP-60GHz-54Gbps-PtMP-Wave-Acces
Features

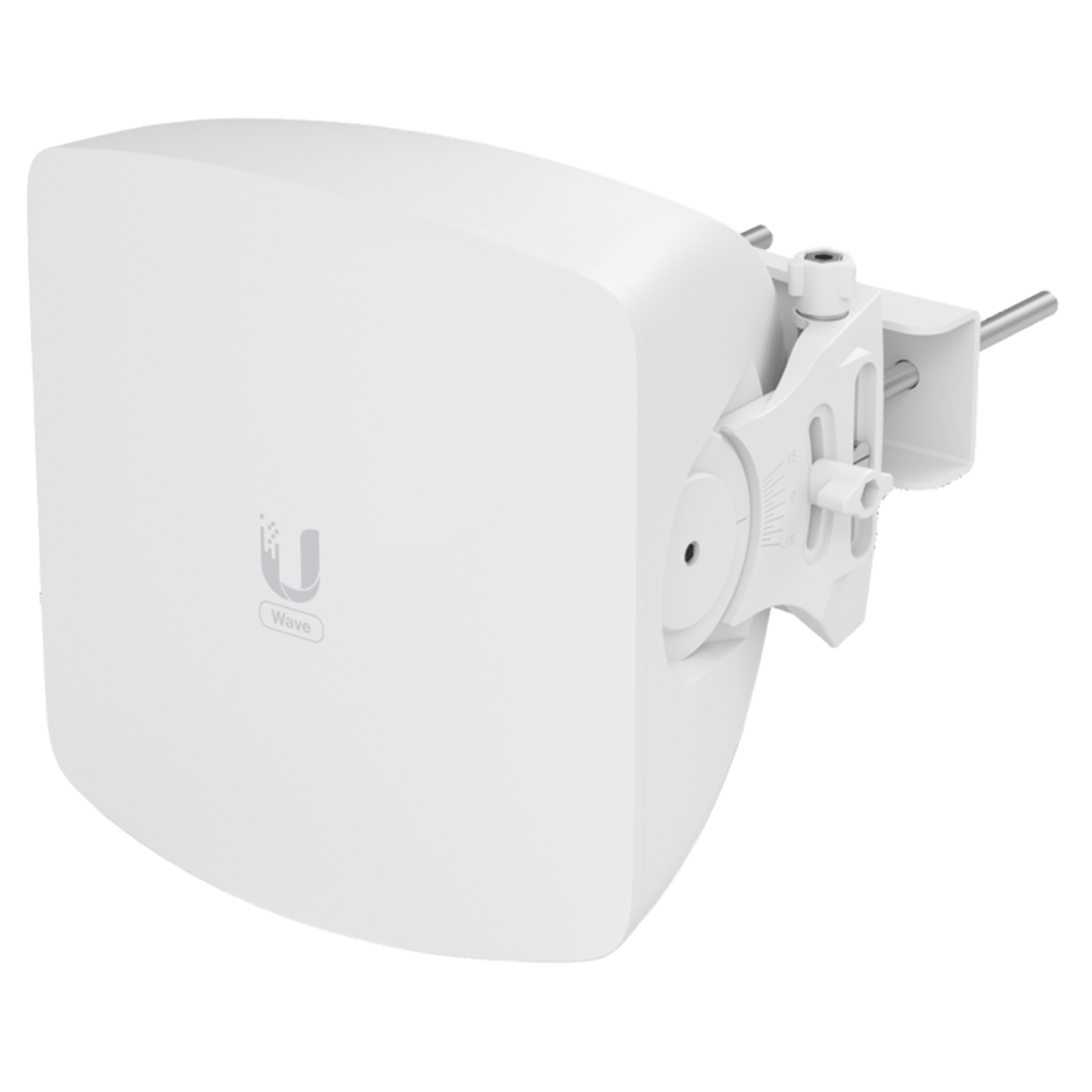

Ubiquiti UISP Wave 60GHz Access Point. 60 GHz PtMP access point powered by Wave Technology. The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
- 5 GHz backup radio
- Supported stations and distances: Wave Long-Range: up to 8 km, Wave Nano: up to 5 km
- WAN Ports: (1) 10G SFP+, (1) 2.5GbE
- 15 client capacity
- 30 degree sector coverage
- Integrated GPS antenna and Bluetooth
- Link planning support via the ISP Design Center
Building Features
Specifications
Brand
Ubiquiti
MPN
WAVE-AP
Processor
Quad ARM® Cortex®-A53 cores at 1.4 GHz
Memory
DDR3L 512 MB
Networking interface
(1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10),
* Active only when SFP+ port is down.
Max. power consumption
24W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only
Power supply
48V DC, 0.65A 2.5GbE PoE adapter (included)
Supported voltage range
44-54V DC, 22-27V DC
GPS
Yes
Button
Factory reset
LEDs
Power, Ethernet, GPS
Operating mode
PtMP access point
Ubiquiti specific features
Wave technology
Services
UISP, ping watchdog, NTP client, SNMP
Tools
Antenna alignment, discovery utility, ping, trace route, speed test
Network
Bridge mode
Application requirements
UISP: Version 1.5.7 and later
Total throughput
5.4 Gbps (2.7 Gbps duplex)
Supported clients count
15
Max. range
Connecting to a Wave Pro: up to 8 km, Connecting to a Wave Long-Range: up to 8 km, Connecting to a Wave Nano: up to 5 km
Encryption
WPA2-PSK (AES)
Operating frequency
57-71 GHz
Channel bandwidth
2160, 1080 MHz
Operating channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Modulation
16QAM, QPSK
Antenna gain
24 dBi
Polarization
Vertically linear
Beamwidth
Azimuth: 3 dB 30°, Elevation: 3 dB 3°
Electrical downtilt
0°
Back-Up WiFi standard
802.11ax (WiFi 6); 20, 40, 80 MHz
Dimensions
212 x 205 x 187 mm (8.3 x 8.1 x 7.4")
Weight
2.3 kg (5.07 lb)
Enclosure materials
Aluminum alloy, UV stabilized polycarbonate
Pole mount diameter
25 to 76 mm (1 to 3") on pipe outer diameter
Wind loading
98 N at 200 km/h (22 lbf at 125 mph)
Weatherproofing
IPX6
Operating temperature
-40 to 60° C (-40 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE
