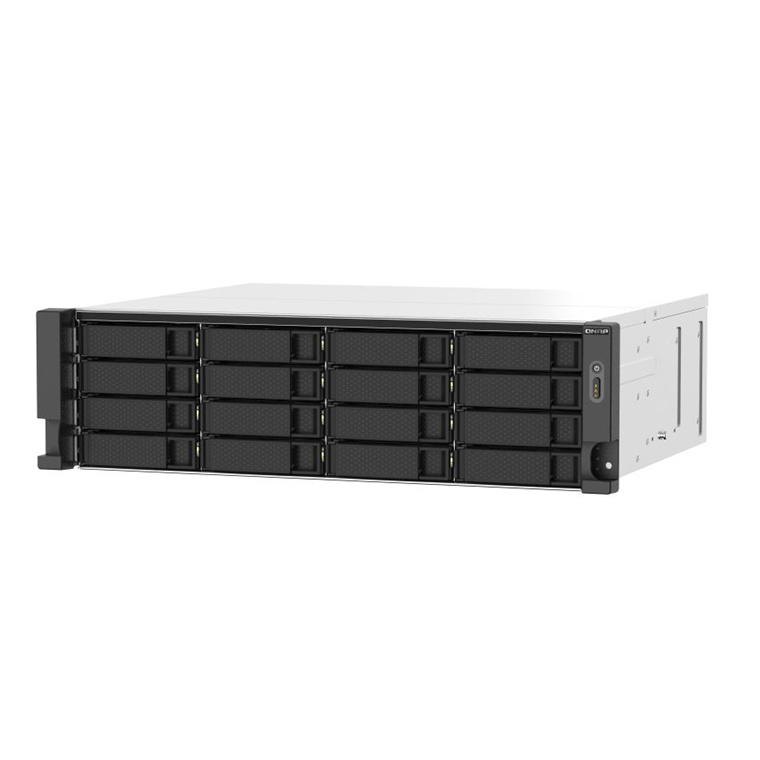

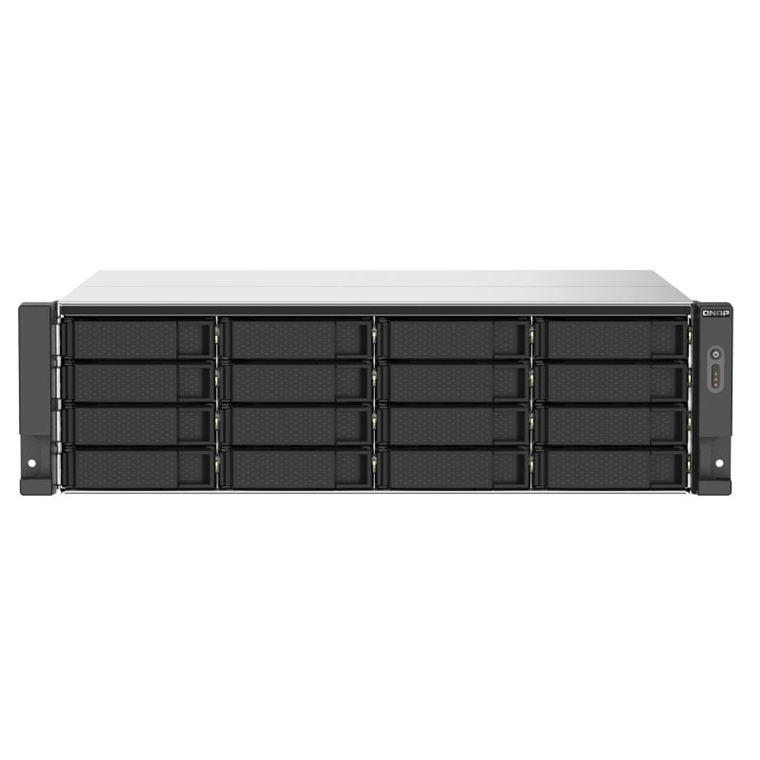

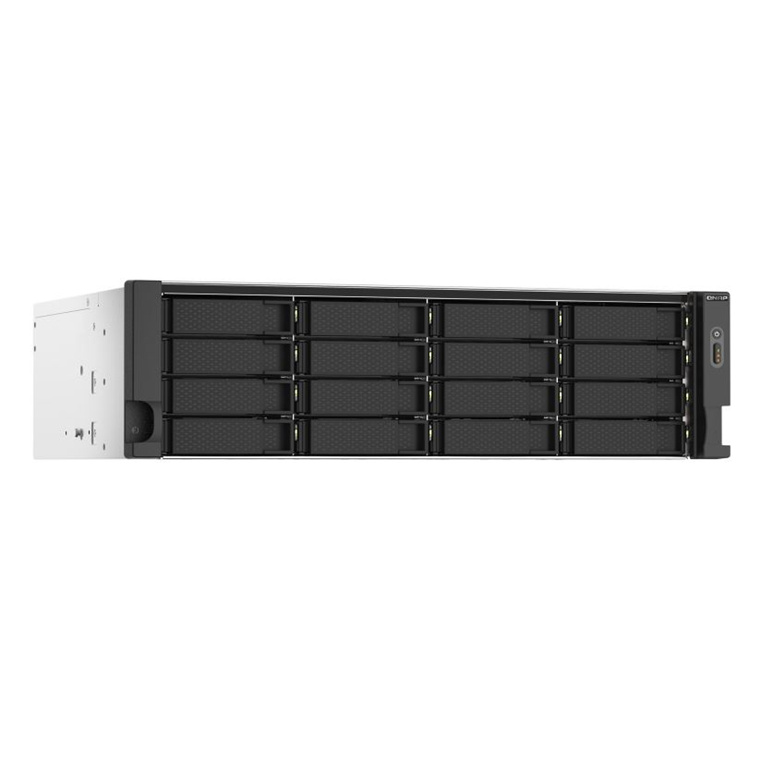

QNAP TS-1673AU-RP-16G Business 3U 16-Bay Rackmount NAS Server, AMD Ryzen V1500B 4C/8T, 2.2GHz, 16GB DDR4 (64GB Max), 16 x 3.5"/2.5" Sata, Hot-swappable, M.2 Via PCIe, 2x2.5GbE, 2xPCIe, 3 Years Warranty, Come with 8 Camera License
QNAP TS-1673AU-RP-16G Business 3U 16-Bay Rackmount NAS Server, AMD Ryzen V1500B 4C/8T, 2.2GHz, 16GB DDR4 (64GB Max), 16 x 3.5"/2.5" Sata, Hot-swappable, M.2 Via PCIe, 2x2.5GbE, 2xPCIe, 3 Years Warranty, Come with 8 Camera License
- Brand: QNAP
- MPN: TS-1673AU-RP-16G
- Part #: NASQNP70127
- UPC: 885022019915
- Brand: QNAP
- MPN: TS-1673AU-RP-16G
- Part #: NASQNP70127
- UPC: 885022019915
Features
QNAP TS-1673AU-RP-16G 3U Rackmount NAS
- 16-Bay, Ryzen V1500B 4C 2.2GHz, 16GB RAM, 2x 2.5GbE LAN, 2x 550W redundant power supply, Without Rail Kit
High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications.
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
Add extra functionality to the TS-1673AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Absolute performance with AMD Ryzen™ and up to 32GB RAM
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1673AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
Note: Purchase the optional RAIL-B02 rail kit to deploy the TS-1673AU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-1673AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1673AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1673AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the NVIDIA® Mellanox ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible NVIDIA® Mellanox NICs and switches compatible with NVIDIA® Mellanox or supporting PFC (Priority Flow Control) configuration.
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1673AU-RP to simplify network deployment.
- Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). You can run multiple virtual server applications on a single TS-1673AU-RP without needing additional physical servers.
- Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
Upgrade to 2.5GbE networking
The TS-1673AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed networks, QNAP offer various adapters and peripherals, including a USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) and 5GbE PCIe expansion card (Model name QXG-5G1T-111C).
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-1673AU-RP-16G
OS: QTS 4.4.2
Volume Type: 16 x Samsung 850 Pro 512GB SSDs, RAID 5, thick volume; QXG-10G2SF-CX4
Client PC: Windows 10 Pro, Intel Core i7-6700 3.4 GHz, 64GB RAM; LAN-10G2SF-MLX
IOmeter: 1M, RAM*4, 30-sec ramp up time, 3-min seq. run time, 2 workers, 64-outstanding.
Virtualization Certifications Supported by TS-1673AU-RP
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.
Note: The QSW-1105-5T 2.5GbE switch will be available from Q3 2020.
Abundant I/O capabilities with PCIe expansion
The TS-1673AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.
Note: Compatible with a low-profile graphics card that does not require additional power.
GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1673AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.
NOTE:
1. Supported video formats depend on the hardware and software specifications of the devices. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for virtual machines is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the TS-1673AU-RP will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List before purchasing or attempting to install a graphics card into the TS-1673AU-RP.
Accelerate IOPS performance with SSD Caching
Adding an SSD cache to the TS-1673AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.
Optimum Performance and Reliability
The TS-1673AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.
Move business data to the cloud flexibly and economically
By deploying cloud storage gateways and enabling local caching on the TS-1673AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
- HybridMount file-based cloud gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
- VJBOD cloud block-based cloud gateway
VJBOD Cloud supports mounting object cloud storage as a block-based volume or LUN on a NAS. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).
Complete backup planning
The TS-1673AU-RP provides reliable and cost-effective solutions for backup and disaster recovery planning.
- HBS
Consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
- Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable data protection method in the face of growing ransomware threats. The TS-1673AU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
- VM backup
With its high performance, huge storage potential, integrated virtualization solutions, and snapshot support that records system status any time, the TS-1673AU-RP is perfect for backing up virtual machines.
- Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-1673AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Flexible and economical storage expansion
QNAP provides easy storage expansion solutions. Here are several ways to expand the storage of your TS-1673AU-RP to accommodate data and business growth:\
- Attach Expansion Enclosures
Besides supporting SAS or QXP SATA expansion cards, the TS-1673AU-RP provides USB interfaces to connect a RAID Expansion Enclosure or JBOD Storage Enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
- VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-1673AU-RP.
- Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your TS-1673AU-RP can grow with your business.
- Migrate to a New NAS
Install your TS-1673AU-RP hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular NAS Devices
Ubiquiti UNAS-Pro 2U 10Gbps Rack-Mount NAS with (7) 2.5/3.5"...
QNAP TS-133 1-Bay NAS with 1x 4TB NAS HDD Bundle
QNAP TBS-464 4-Bay 8GB Flash NAS with 4x 4TB NVME SSD Bundle
Synology DS425+ With 2X Synology 3300 Series 4TB NAS HDD Bundle
QNAP TS-133 1-Bay NAS with 1x 2TB NAS HDD Bundle
QNAP TS-1673AU-RP-16G Business 3U 16-Bay Rackmount NAS Server, AMD Ryzen V1500B 4C/8T, 2.2GHz, 16GB DDR4 (64GB Max), 16 x 3.5"/2.5" Sata, Hot-swappable, M.2 Via PCIe, 2x2.5GbE, 2xPCIe, 3 Years Warranty, Come with 8 Camera License
- Brand: QNAP
- MPN: TS-1673AU-RP-16G
- Part #: NASQNP70127
- UPC:885022019915
Product URL: https://www.pbtech.com/pacific/product/NASQNP70127/QNAP-TS-1673AU-RP-16G-Business-3U-16-Bay-Rackmount
Features
QNAP TS-1673AU-RP-16G 3U Rackmount NAS
- 16-Bay, Ryzen V1500B 4C 2.2GHz, 16GB RAM, 2x 2.5GbE LAN, 2x 550W redundant power supply, Without Rail Kit
High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications.
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
Add extra functionality to the TS-1673AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Absolute performance with AMD Ryzen™ and up to 32GB RAM
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1673AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
Note: Purchase the optional RAIL-B02 rail kit to deploy the TS-1673AU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-1673AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1673AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1673AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the NVIDIA® Mellanox ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible NVIDIA® Mellanox NICs and switches compatible with NVIDIA® Mellanox or supporting PFC (Priority Flow Control) configuration.
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1673AU-RP to simplify network deployment.
- Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). You can run multiple virtual server applications on a single TS-1673AU-RP without needing additional physical servers.
- Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
Upgrade to 2.5GbE networking
The TS-1673AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed networks, QNAP offer various adapters and peripherals, including a USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) and 5GbE PCIe expansion card (Model name QXG-5G1T-111C).
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-1673AU-RP-16G
OS: QTS 4.4.2
Volume Type: 16 x Samsung 850 Pro 512GB SSDs, RAID 5, thick volume; QXG-10G2SF-CX4
Client PC: Windows 10 Pro, Intel Core i7-6700 3.4 GHz, 64GB RAM; LAN-10G2SF-MLX
IOmeter: 1M, RAM*4, 30-sec ramp up time, 3-min seq. run time, 2 workers, 64-outstanding.
Virtualization Certifications Supported by TS-1673AU-RP
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.
Note: The QSW-1105-5T 2.5GbE switch will be available from Q3 2020.
Abundant I/O capabilities with PCIe expansion
The TS-1673AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.
Note: Compatible with a low-profile graphics card that does not require additional power.
GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1673AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.
NOTE:
1. Supported video formats depend on the hardware and software specifications of the devices. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for virtual machines is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the TS-1673AU-RP will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List before purchasing or attempting to install a graphics card into the TS-1673AU-RP.
Accelerate IOPS performance with SSD Caching
Adding an SSD cache to the TS-1673AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.
Optimum Performance and Reliability
The TS-1673AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.
Move business data to the cloud flexibly and economically
By deploying cloud storage gateways and enabling local caching on the TS-1673AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
- HybridMount file-based cloud gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
- VJBOD cloud block-based cloud gateway
VJBOD Cloud supports mounting object cloud storage as a block-based volume or LUN on a NAS. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).
Complete backup planning
The TS-1673AU-RP provides reliable and cost-effective solutions for backup and disaster recovery planning.
- HBS
Consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
- Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable data protection method in the face of growing ransomware threats. The TS-1673AU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
- VM backup
With its high performance, huge storage potential, integrated virtualization solutions, and snapshot support that records system status any time, the TS-1673AU-RP is perfect for backing up virtual machines.
- Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-1673AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Flexible and economical storage expansion
QNAP provides easy storage expansion solutions. Here are several ways to expand the storage of your TS-1673AU-RP to accommodate data and business growth:\
- Attach Expansion Enclosures
Besides supporting SAS or QXP SATA expansion cards, the TS-1673AU-RP provides USB interfaces to connect a RAID Expansion Enclosure or JBOD Storage Enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
- VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-1673AU-RP.
- Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your TS-1673AU-RP can grow with your business.
- Migrate to a New NAS
Install your TS-1673AU-RP hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Specifications
Hardware
CPU
AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture
64-bit x86
Memory Slot
2 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
lash Memory
5GB (Dual boot OS protection)
Drive Bay
16 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
Yes
M.2 SSD Slot
Optional via a QNAP QM2 PCIe card
SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (also support 10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
Optional via a network adapter
10 Gigabit Ethernet Port
Optional via a network adapter
Wake on LAN (WOL)
Yes
Only the 2.5GbE port
Floating Point Unit
Yes
Encryption Engine
Yes (AES-NI)
Hardware-accelerated Transcoding
Optional via a PCIe graphics card
System Memory
16 GB UDIMM DDR4 (1 x 16 GB)
Maximum Memory
32 GB (2 x 16 GB)
Jumbo Frame
Yes
PCIe Slot
2 x PCIe Gen3 x4
USB 3.2 Gen 1 port
1 x Type-A
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-C
1 x Type-A
HDMI Output
Optional via a PCIe graphics card
Form Factor
3U Rackmount
LED Indicators
HDD 1-16, Status, LAN, USB, Power
Buttons
Power, Reset
Dimensions (HxWxD)
132 × 482 × 425 mm
Weight (Net)
12 kg
Weight (Gross)
17.15 kg
Operating temperature
0 - 40 °C (32°F - 104°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

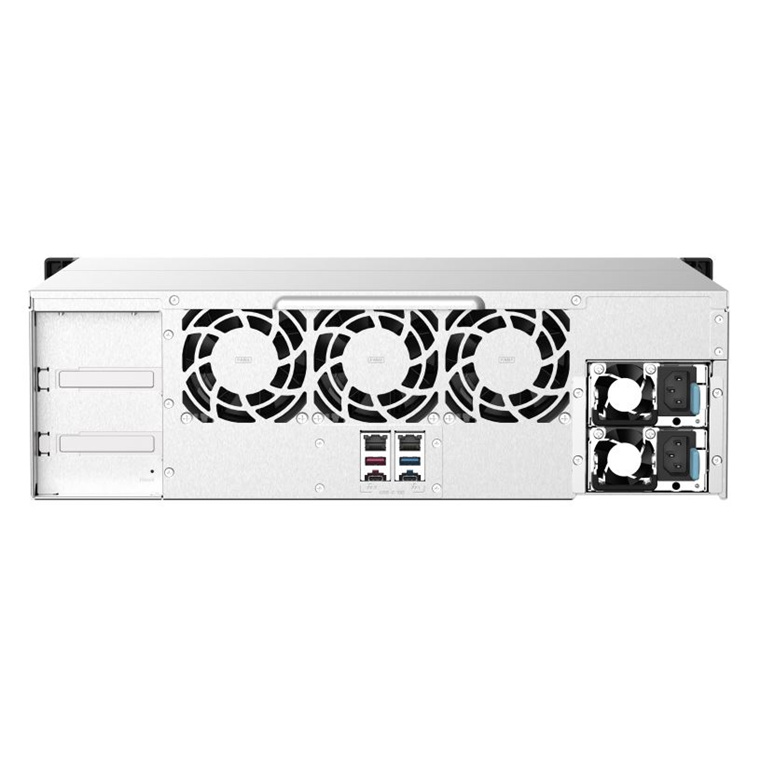

Power Supply Unit
550W (x2), 100-240V AC, 50-60Hz, 7-3.5A
Power Consumption:
HDD Sleep Mode 47.75 W
Power Consumption: Operating Mode, Typical
97.34 W
Tested fully populated with WD10EFRX hard drives.
Fan
3 x 80mm, 12VDC
Sound Level
23~47.9 db(A)
System Warning
Buzzer
Software
Operating System
QTS 4.4.2 (embedded Linux)
Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, and 10
Microsoft Windows Server 2008 R2, 2012, 2012 R2 and 2016, 2019
Supported Browsers
Apple Safari 7 or later
Google Chrome
Microsoft Internet Explorer 10 or later
Mozilla Firefox
Supported Languages
Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Supported File Systems
Internal hard drive (EXT4)
External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Note: To use exFat you must purchase an exFAT driver license from License Center.
Network & Virtual Switch
TCP/IP: Dual stack (IPv4 and IPv6)
Jumbo frame
DHCP server and client
RADVD
USB Wi-Fi adapter
Note: This feature does not support ad hoc networks because of security considerations.
Static Route
NCSI (Network Connectivity Status Indicator)
DDNS settings (Customize & Multiple Service)
Port trunking (Link aggregation)
failover
Load balancing
Virtual switch
Network Address Translation (NAT)
Spanning Tree Protocol (STP)
Software-Defined Switch mode
Web Server
HTTP/HTTPS Connections (TLS 1.0/1.1/1.2)
Supports WebDAV Connection
Supports Virtual Host (Max: 32)
Importable SSL Certificate
Security
Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
Host access control for shared folders (CIFS/SMB)
AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
256-bit external drive encryption (AES)
Importing of SSL certificates from Let's Encrypt
Instant alerts through email, SMS, push service, and audio
2-step verification
Storage Management
Supported RAID types: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
RAID Hot Spare and Global Hot Spare
RAID Rebuild Speed Customization
Online RAID capacity expansion
Online RAID level migration
SSD RAID Over-provisioning
Note: RAID 0 and JBOD Data RAID does not support Over-provisioning.
SSD RAID Performance evaluation (with SSD Profiling Tool)
SSD TRIM for RAID 0,1,10
Bitmap support
Disk auto S.M.A.R.T. data migration
Disk bad block scan and S.M.A.R.T test.
Disk bad block recovery
Disk secure data erase
Ironwolf Health Management
Storage pools
Online volume expansion
Volume type conversion
Volume shrink
Storage space utilization
Storage expansion using QNAP expansion units
JBOD enclosure roaming
SSD read-only and read-write cache
SSD write-only cache
Note: SSD Cache supports Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 configuration. The maximum cache size depends on installed memory.
Qtier™ Data Tiering Technology
Automatic or scheduled data tiering
IO-aware auto tiering
Shared folder tiering on demand
Flexible volumes and LUNs with thin provisioning and space reclaiming
If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB.
If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB.
Snapshots
Note: The maximum number of snapshots varies depending on installed memory.
Volume and LUN snapshots
Snapshot Dashboard
Snapshot Manager
Snapshot local restore and revert
Snapshot Clone
Snapshot Replica and Snapshot Vault
Snapshot remote restore and revert
Unified Snapshot Directory
Support for Windows Previous Versions (CIFS/SMB)
Snapshot Agent for Microsoft Windows and VMware vSphere
iSCSI (IP SAN)
iSCSI targets with multiple LUNs per target
Note: The maximum number of targets + LUN is 256.
LUN mapping (LUN can be moved between iSCSI and FC)
LUN masking
Online LUN capacity expansion
SPC-3 persistent reservation
MPIO & MC/S
iSCSI Extensions for RDMA (iSER) with VMware ESXi
Note: This feature requires a PCIe slot, and a compatible NVIDIA® Mellanox network card.
iSCSI LUN backup, one-time snapshot, and restoration
Virtual disks using iSCSI initiator
Note: The maximum number of virtual disks is eight.
Stack chaining master
Fibre Channel (FC SAN)
Support of Fibre Channel protocol (Optional Fibre Channel adapter required, please consult the compatibility list)
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
VJBOD Cloud
VJBOD Cloud is a block-based storage gateway solution that allows you to backup the storage space (LUN/Volume) on your local NAS using cloud space from cloud services providers such as Amazon, Azure, and Google Cloud.
VJBOD Cloud now supports one-to-one pairing between cloud volumes/LUNs and local stored spaces.
VJBOD Cloud now supports Amazon S3 Azure, BackBlaze, HuaWei Cloud, Alibaba Cloud, HKT, Google Cloud, OpenStack, RackSpace, Wasabi cloud, IBM cloud object storage service.
VJBOD Cloud now supports local stored mode, which means that data can be stored on the NAS and the data can be backed up to the cloud.
VJBOD Cloud now supports 20 recovery points for recovering volumes/LUNs.
Notification Center
Added support for sending notifications via SMS center (SMSC) or providers, including Nexmo, Twilio, and Clickatell.
Added Outlook as an SMTP service option.
Added support for sending notifications via instant messaging applications, including Skype and Facebook Messenger.
Added support for Overview and History in Notification Center.
Added support for creating custom notification rules to specify notification criteria, including application categories, severity levels, and keywords.
Delivery method and message recipient settings are now more flexible.
Added support for creating multiple notification rules at the same time.
Added support for sending notifications for a single system event.
Power Management
Wake-on-LAN (WoL)
Standby mode for internal drives
Scheduled power on and off
USB and network UPS support with SNMP management
Access Rights Management
Multiple user creation
User data importing and exporting
User quota management
Local user access control (AFP, CIFS/SMB, FTP, and WebDAV)
Domain Authentication
Microsoft Active Directory (AD) and domain controller support
LDAP server and client
Domain user login (AFP, CIFS/SMB, FTP, and File Station)
myQNAPcloud
Free host name registration (DDNS)
Optional myQNAPcloud SSL certificates (DDNS)
Auto router configuration using UPnP
Web-based file manager with HTTPS 2048-bit encryption
myQNAPcloud Link for remote access without complex router setup
Qsync
File syncing across multiple devices with SSL secure connection
Selective synchronization for specific folders or subfolders
Team folders as file center for better collaboration
File sharing using email links
Policy settings for conflicting files and file type filter
Version control for a maximum of 64 versions
Unified privilege and configuration management
Central configuration mode
Remote erase and restore
Qsync client supported platforms: Windows, Mac, Ubuntu, Android and iOS
Resource Monitor
Monitoring of NAS system resources such as CPU, memory and network
Monitoring of NAS storage resources such as volumes, RAID, and disk activity
Monitoring of NAS application resource use
Creation of extra swap space when SSDs are installed
Helpdesk
Reporting of issues to the QNAP support team, with automatic collection of system information
Remote connection between QNAP support engineers and NAS for issue resolution (with user permission)
Web Desktop Administration
Multi-window, multitasking system management
Smart toolbar and dashboard for system status display
SNMP versions 2 and 3
Resource monitor
Comprehensive logs (events and connections)
Syslog server and client
Backup and restoration of system settings
Qmanager: Mobile application for remote system monitoring and management
Qboost
Network recycle bin
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup
File type filter
File Server
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
Windows ACL (CIFS/SMB)
Advanced folder permissions (AFP, CIFS/SMB, and FTP)
Shared folder aggregation (CIFS/SMB)
FTP Server
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
File Station
Restore QDFF files and folders with HBS 3
Document viewing using Office Online, Google Docs, and Chrome extension
Microsoft Office file editing using Google Docs, Sheets, and Slides
ISO file mounting (maximum: 256 ISO files)
Mount smart phones as external storage
Read access for compatible optical disc drives
Read access for compatible smartphones (MTP)
Download and upload link sharing
File dragging and dropping (Chrome and Firefox)
File compression (ZIP and 7z)
Download link creation and sending for publicly shared files, with expiration date and password protection
Subtitle display (SRT and UTF-8)
Slideshow playback in media viewer
Convert image files to pdf by "Image2PDF" integration
Qfile: Mobile app for file browsing and management
Integrate with HybridMount which supports File Cloud Gateway and File Station Mount mode. File Station Mount mode supports:
Cloud drive mounting for Google Drive, Dropbox, Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and Box
Remote shared folder mounting (CIFS/SMB, FTP, and WebDAV)
Qfiling
Auto filing
Recipe function
Archiving through iSCSI, USB, DVD and remote NAS
Advanced settings
Source File Filters
File Editing
File deletion
Data integrity check
File conflict policy
HBS (Hybrid Backup Sync)
Cloud storage backup to Amazon Glacier, Amazon S3, Azure Storage, Google Cloud Storage, HKT Object Storage, OpenStack Swift, WebDAV
Cloud storage syncing with Alibaba Cloud, Amazon Drive, Amazon S3, BackBlaze B2, Box, Dropbox, OneDrive, Google Drive, HiDrive, hubiC, OneDrive, OneDrive For Business, ShareFile, Yandex Disk
RTRR server & client with bandwidth control
Rsync server with download bandwidth control
Remote server syncing (CIFS/SMB, FTP, Rsync, and RTRR)
Scheduled backup to local and remote storage spaces
Backup versioning
Encryption, compression, and file filters
Centralized management for backup, restoration, and sync jobs
Support for Apple Time Machine
Data backup to multiple external storage devices
Desktop backup with QNAP NetBak Replicator for Windows
Support for the following third-party backup software: Veeam Backup & Replication, Acronis True Image, Arcserve Backup, Retrospect, Nakivo Backup & Replication, and Veritas Backup Exec
Multimedia Console
Integrating indexing, thumbnail generation, and content management.
New content management design, configuring content sources for QTS multimedia applications.
View the status of multimedia apps and services all on the same screen.
QuMagie
Browse photos in timeline view or folder view.
Virtual albums and smart albums.
AI-assisted photo management, classifying people, things, places, etc.
Photo Station
Photo organization by thumbnail, list, timeline, or folder
Virtual and smart albums
Validity control for album sharing
Photo tagging with text, colors, and ratings
Slideshows with background music and transition effects
Album configuration backup and restoration
Advanced folder permissions
Support for domain users
Qphoto: Mobile application for online browsing and sharing
Music Station
Music playing and sharing through web browsers
Music streaming to multiple devices
Changing of album covers through Google search or by uploading photos
Internet radio (MP3)
Eight music alarms
Switching between spotlight mode and manage mode
Advanced search
Scrolling lyrics
Qmusic: Mobile application for music streaming and management
Video Station
Video organization by thumbnail, list, timeline, or folder
Virtual and smart collections
Video tagging with text, colors, and ratings
Video link sharing through social media and email
Movie information and poster display from Internet sources or user-uploaded files
Subtitle display (SRT, ASS, SSA)
Subtitle search and downloading
Subtitle file importing
Subtitle display style adjustment
Playback speed adjustment
Direct video streaming for certain file formats
Facebook login
Advanced folder permissions
Support for LDAP users
Video uploading to YouTube and Youku
Multi-zone video display
Qvideo: Mobile application for online video browsing and management
Virtualization Station
Virtual machine creation (Windows, Linux, Unix, and Android)
Virtual machine importing, exporting, cloning, snapshot capturing, backup, and restoration
Console display using HDMI output (QVM)
HTML5-based shared remote console
Various networking modes using virtual switches
GPU pass-through using additional discrete cards
Container Station
Support for LXC and Docker
Application downloading from the built-in Docker Hub Registry
One-click installation
Container importing and exporting
Console mode
Three networking modes
Note: Docker containers support Bridge, NAT, and Host mode. Linux containers (LXC) support only NAT.
Auto-start containers
Docker certificate downloading
Private registry addition
Application repository for switching to any repository on GitHub.com
Qsirch
Full-text search
Data distribution using a bar chart
Previews for photos, music, videos, PDFs, Gmail, and others
Advanced search operators and search scope
Customized search filters with included or excluded conditions
Related files suggestion in Viewer
Chrome, Firefox and Safari extension
QVR Pro
Free 8 built-in camera channels for all models
Note: The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
Support for using QVR Pro as the motion detector
Camera management across different networks
Pre-allocation of dedicated recording spaces
User-defined trigger events and corresponding actions
Data sources paired with cameras for quick search
Network interfaces assigned to each camera for recording sessions
Support for RTSP and WebRTC
Support for exporting and importing camera connection information as CSV files
Integration with QVR Pro Client for viewing live and recorded surveillance videos
Daily auto backup for QVR Pro configuration files
Support for importing recordings
Support for recording H.264 camera video streams
QVR Pro Client (Desktop)
Instant switch between Live and Playback modes
Dynamic and adjustable layouts for camera and E-map views
Qdewarp technique for dewarping fisheye and 360-degree cameras
Region of interest for each channel
Support for adding and editing cameras on QVR Pro Client
Hardware acceleration for fisheye cameras
Video wall (up to 8 monitors)
Hardware acceleration on Windows, Mac, Ubuntu, and HybridDesk Station (Optional graphics card)
Multithreaded decoding
Synchronized video playback
Support for specifying exported recordings on the timeline
Virtual keyboard (for HybridDesk Station version) (Optional graphics card)
Support for playing back recordings on deleted channels
Notification messages for changes in system time zone on QVR Pro
Server dashboard (when connected to QVR Center)
Playback control via the keyboard (space and arrow keys)
Support for displaying camera locations and event notifications on e-maps
Support for selecting the format of export files
Support for 2-step verification
Cross-platform support: Windows, macOS, Ubuntu, QNAP HybridDesk Station
QVR Pro Client (Mobile)
Instant switch between Live and Playback modes
Cross-platform support: Android and iOS
Various advanced monitoring options, including sequential mode, PTZ control, auto cruising, and preset point control
Support for receiving Instant push notifications
Support for displaying camera locations on e-maps
Server dashboard that displays NAS information, camera status, and recording space status.
QVR Center
Support for managing up to 128 QVR Pro servers (QVR Pro Gold license required)
Statistical graphics for visualizing event data
Log management for all added servers
Integration with QVR Pro Client for central monitoring across multiple servers
Centralized views using cameras from multiple servers
Backward compatibility with Surveillance Station and VioStor NVR
QVR Guard
Failover solution designed for QVR Pro to ensure server availability
Viewing task details during the failover period
Automatic switch between Standby and Takeover modes based on the QVR Pro server status
QUSBCam2
Support for configuring USB webcams as ONVIF IP cameras (remotely manageable)
Support for monitoring live views (no other apps required)
Support for RTSP
Surveillance Station
Support for up to 5,000 IP cameras
2 free camera licenses
Note: Surveillance Station supports a maximum of 64 camera channels. To add more camera channels, you need to purchase licenses from the QNAP License Store.
Instant playback for recent surveillance events
Visual options for e-maps
Playback speed control
Supporting for displaying preview snapshots on the timeline
Intelligent video analytics (IVA) for advanced video searching
Surveillance client designed for macOS
Mobile surveillance application (Vmobile) for iOS and Android
Mobile recording application (Vcam) for iOS and Android
QVPN Service
Support utility and Mobile apps for Windows, Mac, iOS, Android.
VPN server
Secure remote access with PPTP, L2TP/IPSec, OpenVPN, Qbelt (QNAP proprietary) protocol.
Support for a maximum of 100 clients.
Support public/ NAS default/ manually DNS server.
Support manually assign/auto detect/none outgoing network interface.
Support privilege settings for domain/Local users.
VPN client
Support PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary) protocol.
Support using VPN as a NAS default gateway.
Support connection log check.
DLNA Server
Support for DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
Support for CUE indexing file for APE and FLAC
Q'center (NAS CMS)
Monitoring of multiple NAS devices
Utilization history reports
Unified configuration management
Monitoring of NAS devices behind NAT routers with Connect to Q'center
Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Qfinder Pro
QNAP NAS location on the same local network
NAS shared folder mounting
Basic setting configuration (firmware, SMTP server, and network settings)
Storage Plug & Connect (Windows only)
Creation and mapping of NAS shared folders
Creation of and connection to iSCSI targets and LUNs
Media upload (Windows only)
Media file upload to the NAS
Automatic creation of thumbnails or transcoding of videos using the computer
App Center
Official and community software add-ons
Automatic updates and notifications for new versions
Repository for imported third-party content
User-specified volume for storing applications
Chromecast
Video, photo and music streaming to Chromecast using the following:
NAS applications: File Station, Music Station, Photo Station, and Video Station
Mobile applications: Qfile, Qmusic, Qphoto, and Qvideo
Note: You must install the Media Streaming add-on from App Center.
Download Station
BitTorrent: Support for search, magnet links, private trackers, and proxy
Scheduled download and bandwidth control
RSS subscription and download (broadcatching)
Support for add-ons that extend download functionality
Qget: Mobile application for download browsing and management
PC-less downloads (BitTorrent, FlashGet, FTP/FTPS, HTTP/HTTPS, QQDL, and Thunder)
Note:
The application supports a maximum of 500 tasks.
The maximum number of concurrent downloads is 90 (30 BT/PT, 30 HTTP, 30 FTP)
Notes Station 3
Insert Evernote Notes in Notes Station 3
Enable Embedding YouTube video into Notes
Table creation using the insert table editor
HD (HybridDesk) Station
An optional graphics card is required
Photo, video, and music playback on TV through HDMI
Support for Chrome and Firefox
Support for international keyboards and mouse input
User login permissions
Note: The decoding capability of the CPU and graphics card may affect playback of some video files.
Linux Station
Usage of the NAS as a Linux-based computer
Support for Ubuntu 14.04, Ubuntu 16.04 and Ubuntu Kylin 16.04
Application downloading and usage from the Ubuntu Software Center
Remote desktop for remote monitoring and accessing of Ubuntu
Note: The application requires at least 4 GB of memory and installation of Container Station.
Qcontactz
One-way scheduled sync of contacts from multiple Google accounts
Contact importing from CSV or vCard 3.0 files
Contact exporting to CSV or vCard 3.0 files
Duplicate contact searching and merging
Contact management: Groups, favorites, lock, search, delete and restore
Support for Android and iOS
IFTTT Agent
Daily task automation
Social media data archiving
File synchronization between the NAS and various cloud services
System event notifications on Line, Skype, Gmail, and mobile phones
Music playback on Music Station using Amazon Echo voice commands
Usage of motion detection sensors as trigger for camera recording on Surveillance Station
Qmiix Agent:
Trigger based file synchronization between the NAS and various cloud storage services
View miixes made using the Qmiix web portal that include triggers and actions involving QNAP apps.
Create miixes for web-based and NAS-related apps.
Create miixes on the Qmiix web portal that include File Station, a QNAP app
System event notifications to Line, Skype, Gmail, and mobile phones
Security Counselor
Multiple Security Policies (Basic/Intermediate/Advanced/Custom).
Checks NAS settings for security weaknesses.
Integrates with existing anti-virus services.
Integrates with existing anti-malware services.
Integrates with the Security Advisory service.
Malware Remover
Detects and removes malware from your QNAP NAS.
Note: To ensure the security of your NAS, update this app when new versions become available.
QIoT Suite
Launch your IoT application with the shortest time and least human force
Supports multiple protocols (MQTT, HTTP and CoAP) and dashboards, and allows for the quick connection of development boards along with multiple sensors
The graphical rules engine provides drag-and-drop blocks with connection nodes, making it flexible to form a workflow
The customizable dashboard offers great advantages to help monitor important information of connected IoT devices.
Added support for the OPC UA protocol, QIoT OPC UA Client: connects to OPC UA servers and QIoT OPC UA Server: communicates with OPC UA clients and transfers data
Note: The application requires at least 4 GB of memory and installation of Container Station.
AWS Greengrass
Respond to Local Events in Near Real-time
Operate Offline
Secure Communication
Simplified Device Programming with AWS Lambda
Reduce the Cost of Running IoT Applications
QRM+
Centralized Remote Management solution designed for IT Teams in every industry relying on networked computing devices.
Remote Management of Windows, Linux and IPMI compatible devices
Offers you threshold-based alerts to fix performance problems before they impact your users, applications and the business.
Supports many active monitors like CPU Utilization, Memory Utilization, Disk Utilization, CPU Temperature, CPU Fan speed, and many more, giving complete visibility for administrators across all the mission critical computing devices.
Enable you to benefit from higher productivity, better collaboration and faster recovery from device downtime or system performance
Support Android mobile app
Note: The application requires installation of Container Station.
General Notes
Designs and specifications are subject to change without notice.
Some features may vary by model.
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Includes
Package Contents
TS-1673AU-RP
Ethernet cable x 1
Power cord x 2
Flat head screw (for 3.5" HDD) x 64
Flat head screw (for 2.5" HDD) x 48
Quick installation guide (QIG)
