StarTech.com ST10GSPEXNB2 1-Port 10Gbps PCIe Network Adapter Card

1-Port 10Gbps PCIe Network Adapter Card

Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®, HPE®, and Juniper®.

- Network Adapter For PC: This 10 GbE capable PCIe network adapter card provides high-speed data transfer rates for desktops/servers leveraging an existing Cat5e, Cat6, or Cat6a cabling infrastructure
- Specifications: Multiple Speeds NIC 10/5/2.5/1Gbps and 100/10Mbps; 10GBASE-T and NBASE-T; 1x RJ45 Port; PCIe 3.0 x2; Marvell AQC113CS; 16K Jumbo Frame; VLAN; PXE Boot; EEE; Wake On Lan (WoL); Full-Height and Low-Profile Brackets Included
- Compatibility: The network card for PC is compatible with Windows, Windows Server, and Linux; The variable speed options and included low profile bracket widen the compatibility of the PCIe network card with current and legacy devices
- Multi-gigabit Connectivity: The network interface card auto negotiates speed and supports 2.5/5 Gbps network speeds on Cat5e cabling, and 10 Gbps on Cat6/6a; The Ethernet network card supports IP/TCP/UDP checksum offload, secure boot, PTP, and AVB
- The IT Pro's Choice: Designed and built for IT Professionals.

Increased Network Speeds

This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.

NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.

Enhance Existing Hardware

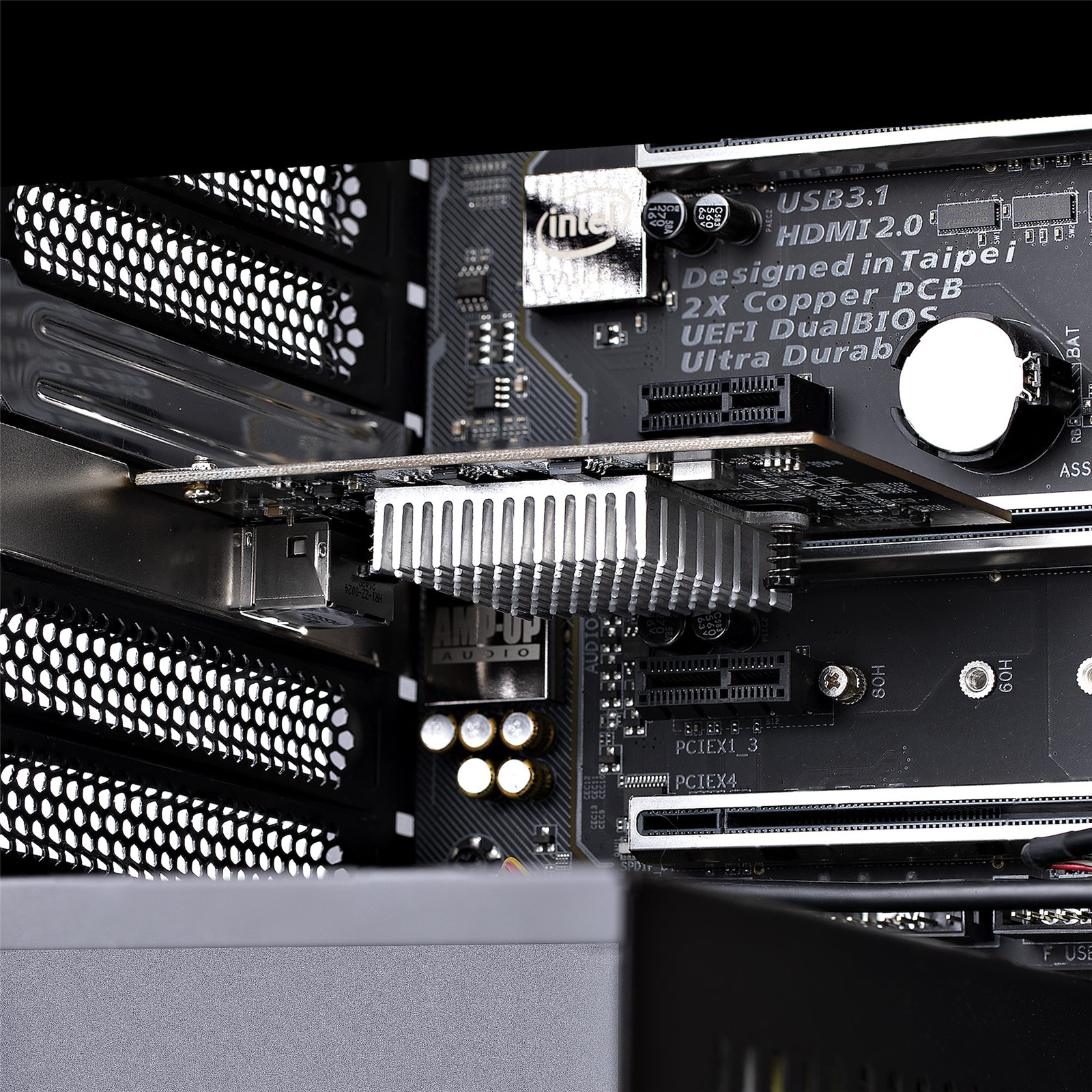

The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.

Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.

Compatibility

Windows 11
Windows 10
Windows 8
Linux 3.10.x and up - LTS Versions only
