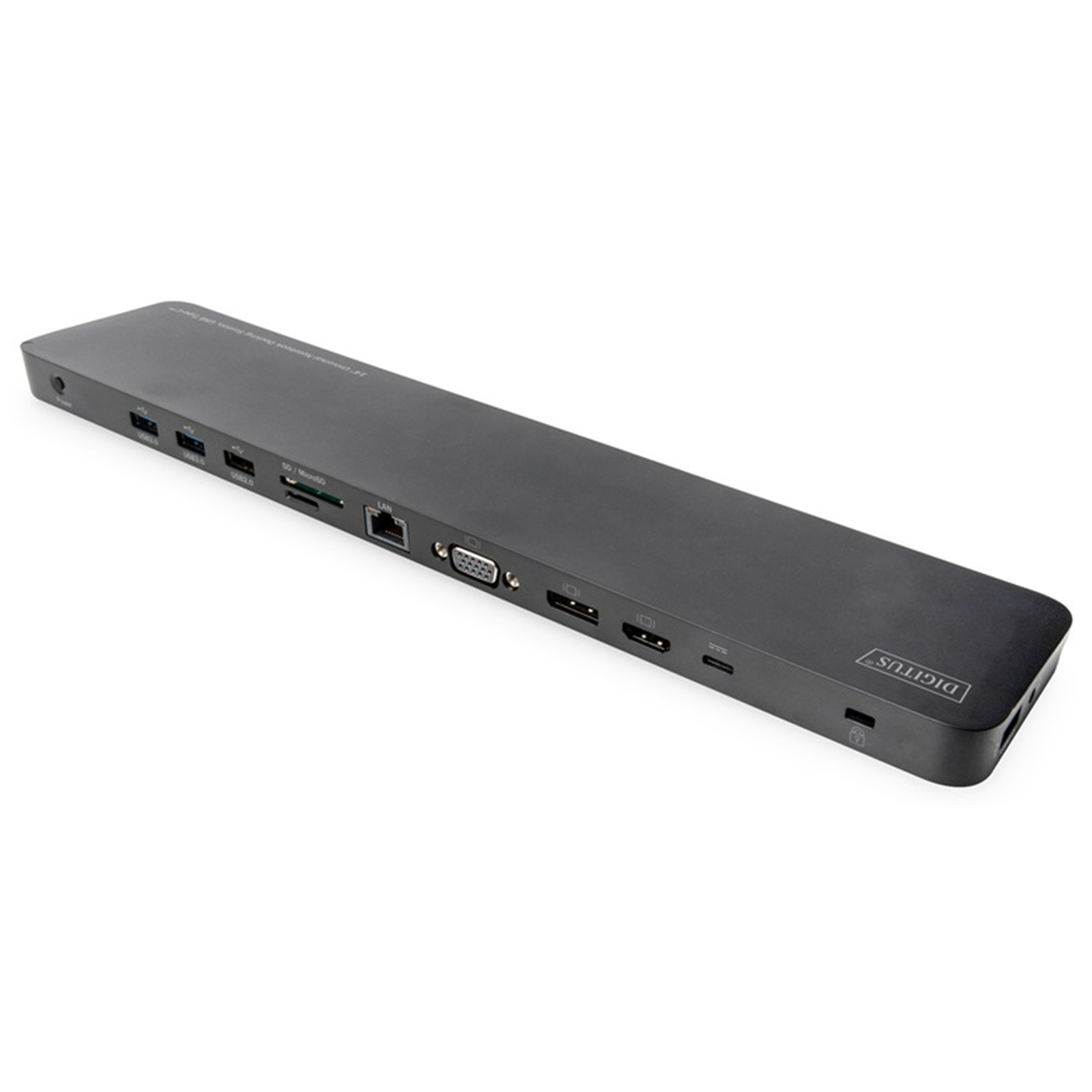

Digitus DA-70868 14" Type-C Universal Notebook Dock with Power Delivery
- Brand: Digitus
- MPN: DA-70868
- Part #: NBDDIG7112

Product URL: https://www.pbtech.com/pacific/product/NBDDIG7112/Digitus-DA-70868-14-Type-C-Universal-Notebook-Dock
Features
Digitus DA-70868 USB-C Universal Docking Station with Power Delivery for up to 14 Inch Laptops
The 14" Docking Station from DIGITUS extends your notebook by 14 extra ports via one USB-C connection. It contains, inter alia, three video ports (HDMI, DisplayPort, VGA) for connecting monitors, projectors, TVs, etc. Thanks to triple monitor support, these can be used simultaneously. Under Windows, a video signal can be output simultaneously to three different video ports (SST mode); additionally, three different video signals can be output to three different graphics ports (MST mode). Mac OS supports only SST mode. The other interfaces offer connectivity to all common connections that a modern docking station should have. For example, a network connection, other USB connections (USB-C, USB-A), an audio output or two independent card readers. The integrated USB-C port with PD charging can charge your notebook whilst using the docking station. The docking station also offers various USB 3.0 and 2.0 ports for data transfer, connection to periphery devices such as mouses and keyboards and for charging mobile devices. Thanks to the smart cable routing, the docking station can be connected to either side (left or right) of your notebook. Get the most out of your notebook and extend your options - all you need is one free USB-C connection.
Features:
- 14 additional interfaces on your notebook for video signals, data, power, Ethernet and audio
- Suitable for notebooks up to 14" with a USB-C port, can also be used separately lying for all sizes
- Supports UHD up to 4K/30Hz to 3840 x 2160p resolution
- 3x Video interfaces (HDMI, DP, VGA) to connect up to three monitors at the same time (triple display support)
- Triple display support under Windows OS - mirror and extend monitor
- Triple display support under Mac OS - mirror the monitor
- 3x USB 3.0 connections with up to 5 Gbps SuperSpeed data transfer, a port with BC 1.2 mobile device charging function (1.5 A max.)

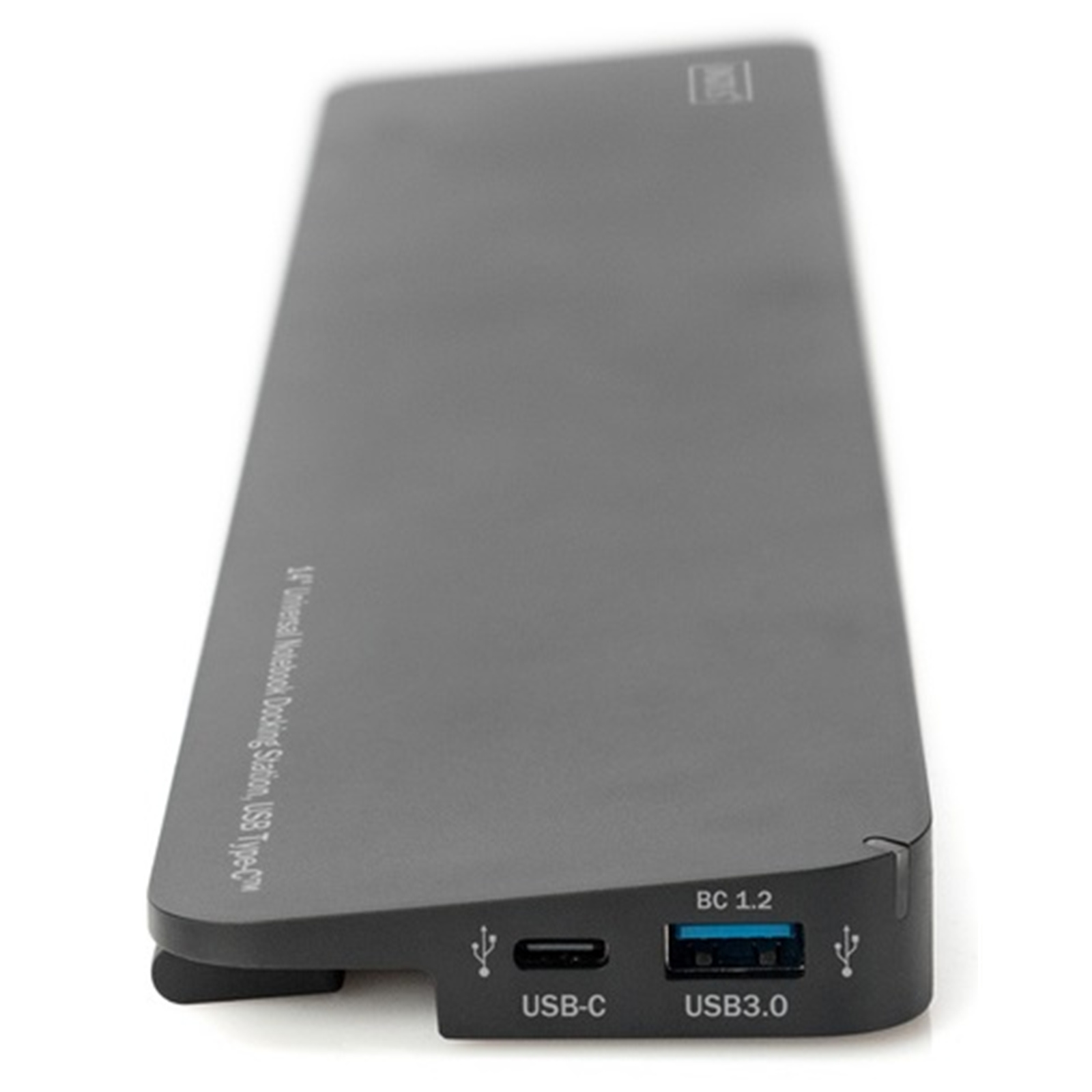

- 2x USB-C connections - 1x Power Delivery (PD), 1x data transfer of up to 5 Gbps
- Supports Power Delivery 3.0 (100W max.) to charge your notebook quickly

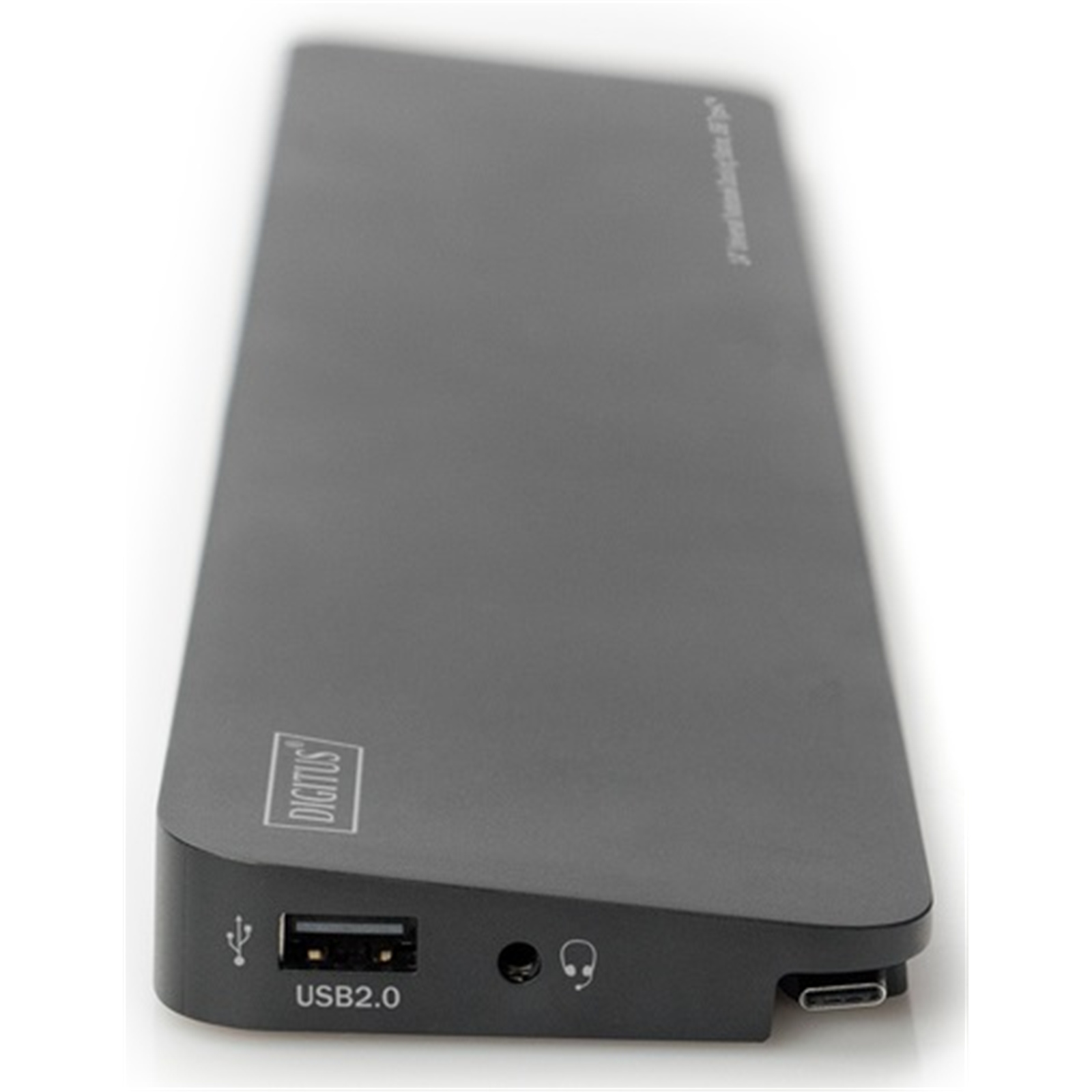

- 2x USB 2.0 connections with up to 480 Mbps data transfer and 500 mA (downstream) charging function per port
- Smart cable routing - connections are possible on both sides of the notebook (left and right), cables are routed underneath the docking station
Specifications
Input
1x USB-C Female(Connect to Type-C™ Host)
Output
1x USB-C Female (for data)
1x USB-C Female (for PD Charging) 3x USB 3.0 Female
2x USB 2.0 Female 1x HDMI Female
1x DisplayPort Female 1x VGA Female
1x RJ45
1x Micro SD 1x SD/MMC
1x Audio Jack
Mechanical
Weight
247.3 g
Size
349.5*74*18mm
Environmental
Operating Temperature
0°C to +45°C
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10°C to +70°C
Storage Humidity
5% to 90 % RH (no condensation)
Power Supply
USB-C Female Port
100 W
