J5create Ergonomic Monitor Mount With 4K60 HDMI PD Docking Station
- Brand: J5create
- MPN: JTSA301
- Part #: NBDJ5C3301

Product URL: https://www.pbtech.com/pacific/product/NBDJ5C3301/J5create-Ergonomic-Monitor-Mount-With-4K60-HDMI-PD
Features

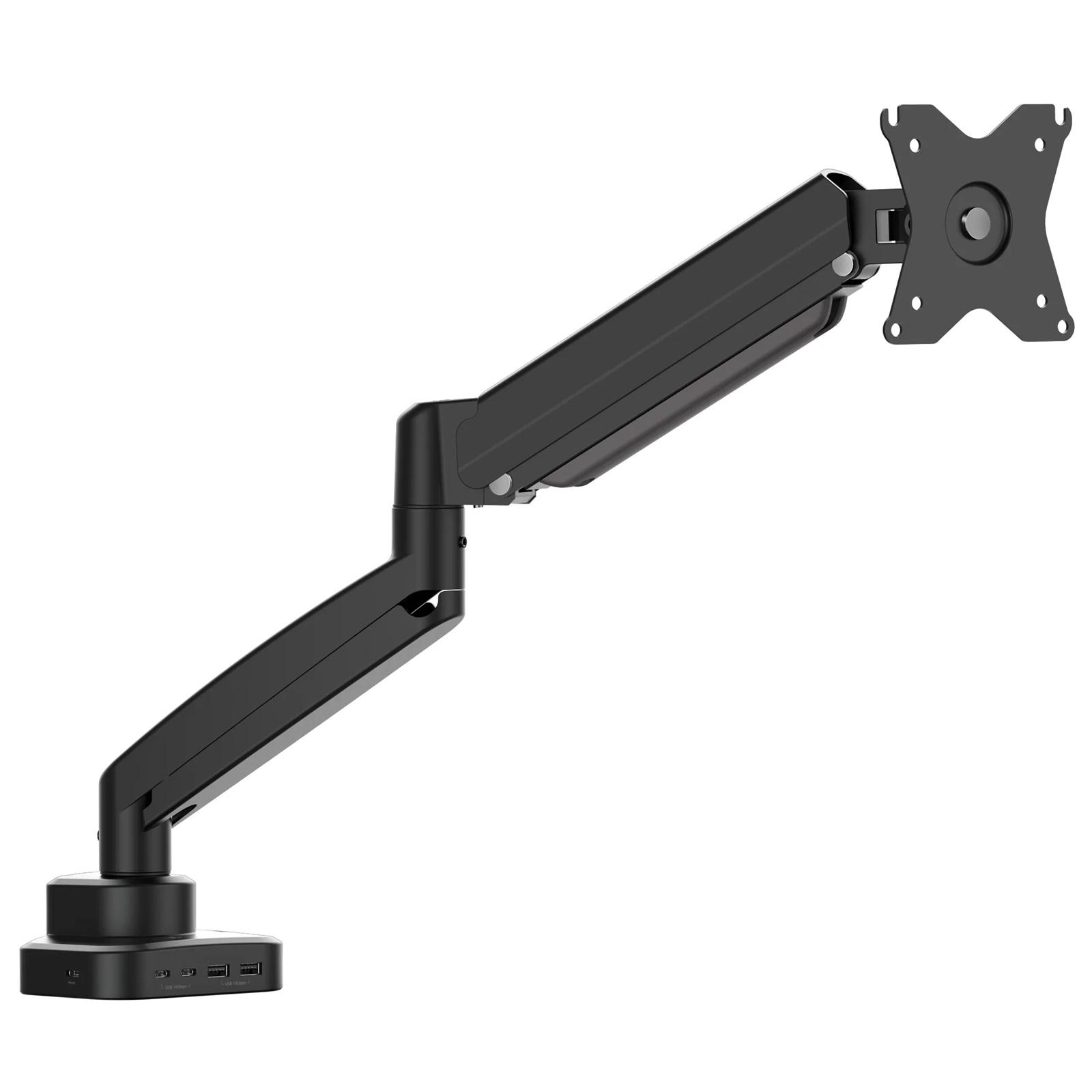

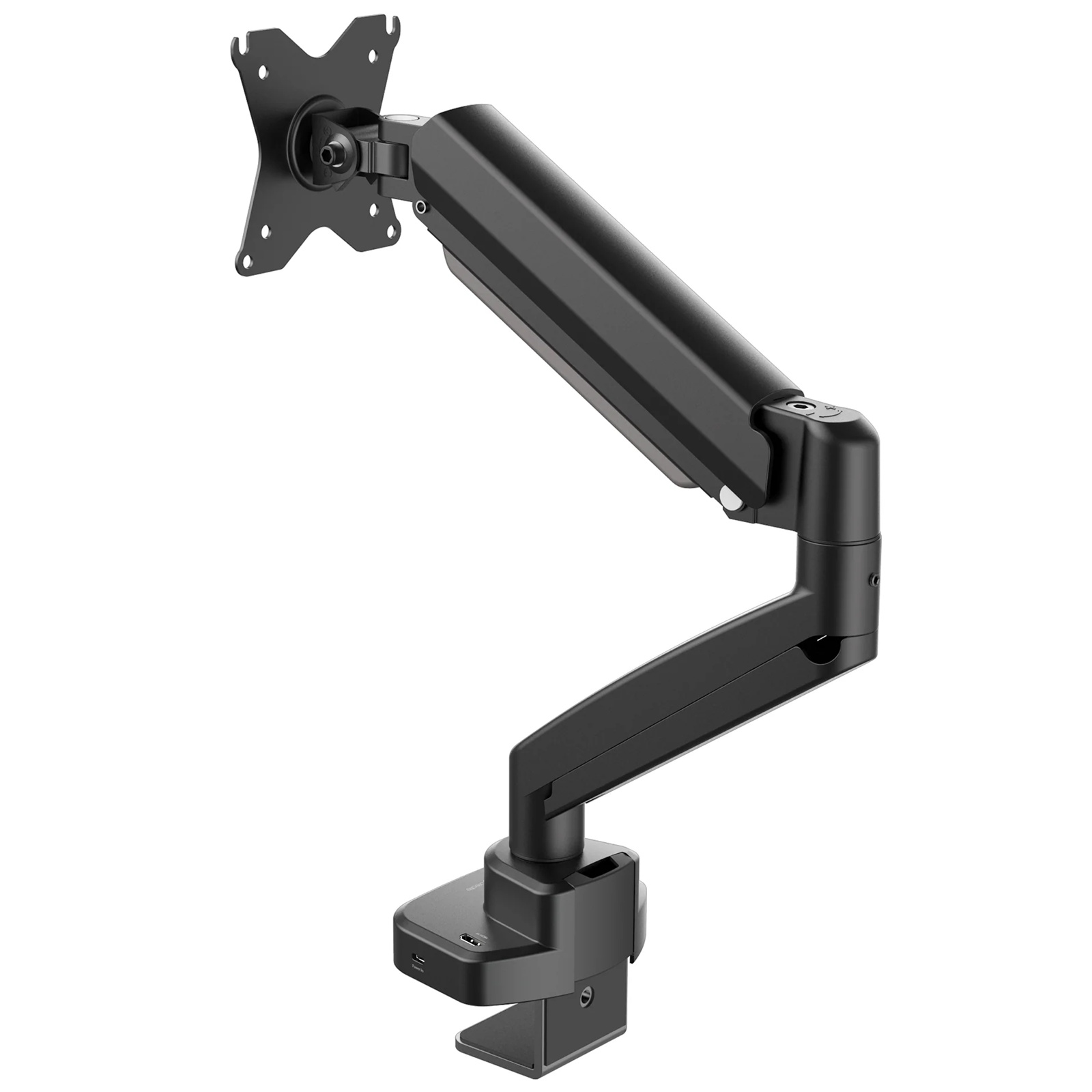

The JTSA301 is a gas spring monitor mount. Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging. The arm can hold max a 32" screen weighting up to 8kg/17.6 lbps. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
- Fully adjustable gas spring monitor mount with multi-function dock
- Easily adjusts monitor to any height and allows the screen to swivel 180°, tilt -45° to +90° and rotate 360° Conveniently set your monitor at an optimal angle
- Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging
A Sleek Way To Optimize Your Workspace

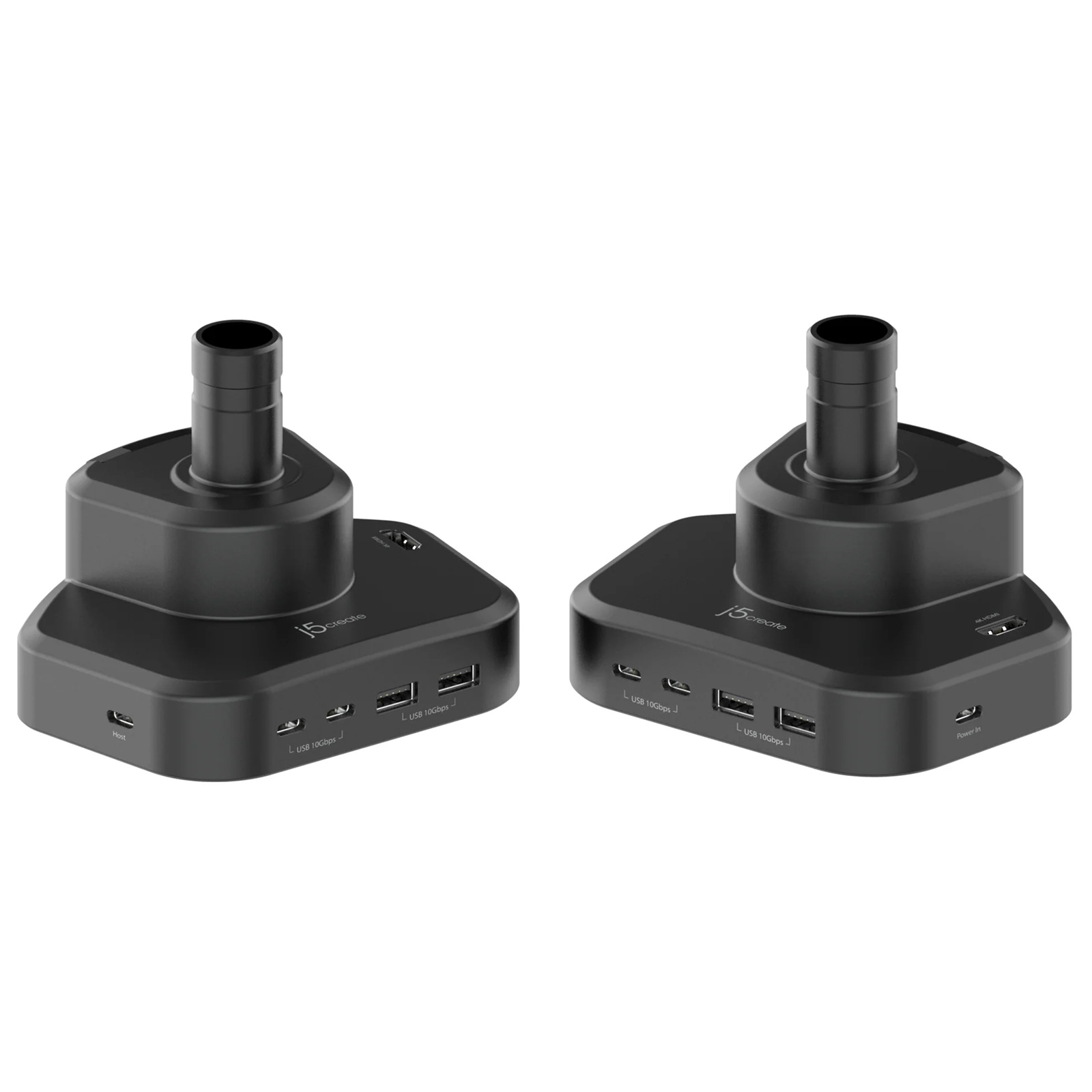

Embrace Effortless Efficiency with Integrated 6-in-1 Multi-Function Dock
Support Crisp and Fluid 4K Resolution
Built-in 4 Ultra-High Speed USB™ 10Gbps Ports
Connecting Various Peripherals and Transferring Large Files in Seconds.
Supports PD Pass-Through Fast Charging
Charge Your Laptop and Power Your Connected Devices with Convenience
Fully Adjustable, Conveniently Set Your Monitor At An Optimal Angle
Easily Adjust Your Monitor With The Flexible Gas Spring Arm
Safer And Stronger, Made with High Grade Aluminum and Passed A 20,000 Repetition Motion Test
Integrated Cable Management, Keep Your Desk Organized
Comes with Clamp and Grommet Mount Options, Simple to Install
Wide Compatibility
Perfect For Home And Office
Specifications
Hardware
Additional Storage
No
Adjustable Angle
Screen Tilt: -45° to +90° Arm Swivel: -180° to +180° Screen Swivel: -90° to +90 Screen Rotation: 360°
Assembly Required
Yes
Audio Supported
Yes
C-Clamp Base
Yes (10~50mm)
Docking Station Included
Yes
Grommet Mounting Base
Yes (10~50mm)
Host Connector
1 - USB-C® Female
Maximum Weight Capacity
17.6 lbs. (8 kg)
Network Interface
No
Ports
1 - 4K60 HDMI™
2 - USB-C® 10Gbps (Data transfer)
2 - USB™ Type-A 10Gbps
1 - 100W PD pass through charging
Power Source
Bus-powered or self-powered
VESA® Pattern
75x75mm/100x100mm
Video Output
1 - HDMI™ Female
Performance
Audio Channel
2.1 via HDMI™
Displays Supported
1
Max Display Refresh Rate
4K @ 60 Hz
Max Display Resolution
3840 x 2160
Wide Screen Supported
Yes
Power
Input Current
Up to 5A
Input Voltage
Up to 20V
Output Current
Up to 4.25A
Output Voltage
Up to 20V
Power Consumption
<= 900 mA
Power Delivery
Up to 100W
Compatibility
System Requirements
DisplayPort™ 1.4 required on graphics card or video source to support 4K @ 60Hz
Supports 17" to 32" monitors weighing up to 8 kg/17.6 lbs
Windows® and macOS® compatible
Physical Specifications
Color
Black
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (0 to 30°C)
Product Depth
465 mm / 18.3 in
Product Height
320 mm / 12.6 in
Product Width
130 mm / 5.11 in
Product Weight
Approx. 4.2 lbs. (1.9 kg)
Stand Material
Aluminum/Steel/Plastic
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-10 to 65°C)
What's in the Box
Package Contents
1 x JTSA301 Ergonomic Monitor Mount with Dock
1 x USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft)
1 x Installation tools & accessories
1 x Quick Installation Guide (QIG)
