J5create Ergonomic Dual-Monitor Mount With Dual 4K60 HDMI PD Docking Station
- Brand: J5create
- MPN: JTSA302
- Part #: NBDJ5C3302

Product URL: https://www.pbtech.com/pacific/product/NBDJ5C3302/J5create-Ergonomic-Dual-Monitor-Mount-With-Dual-4K
Features

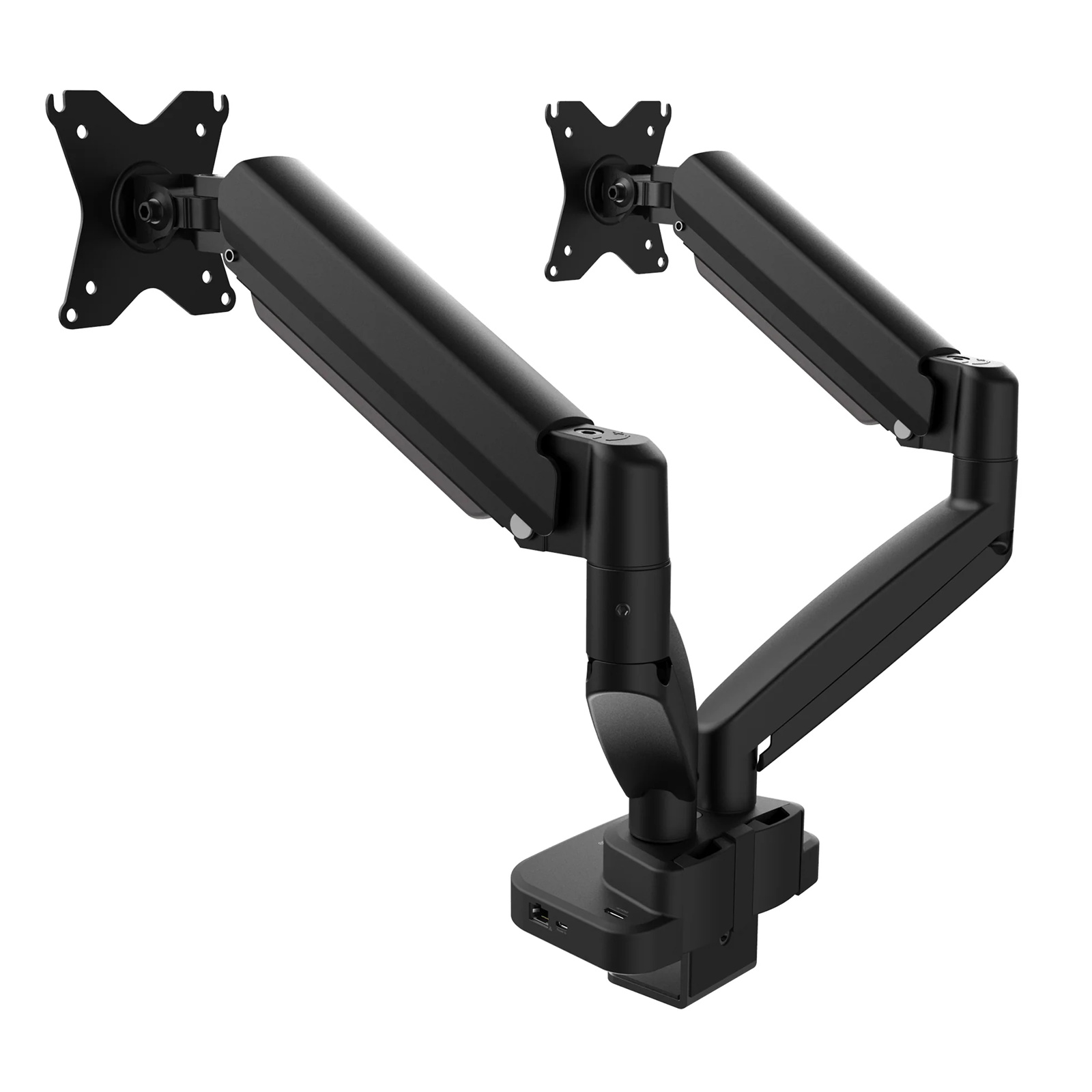

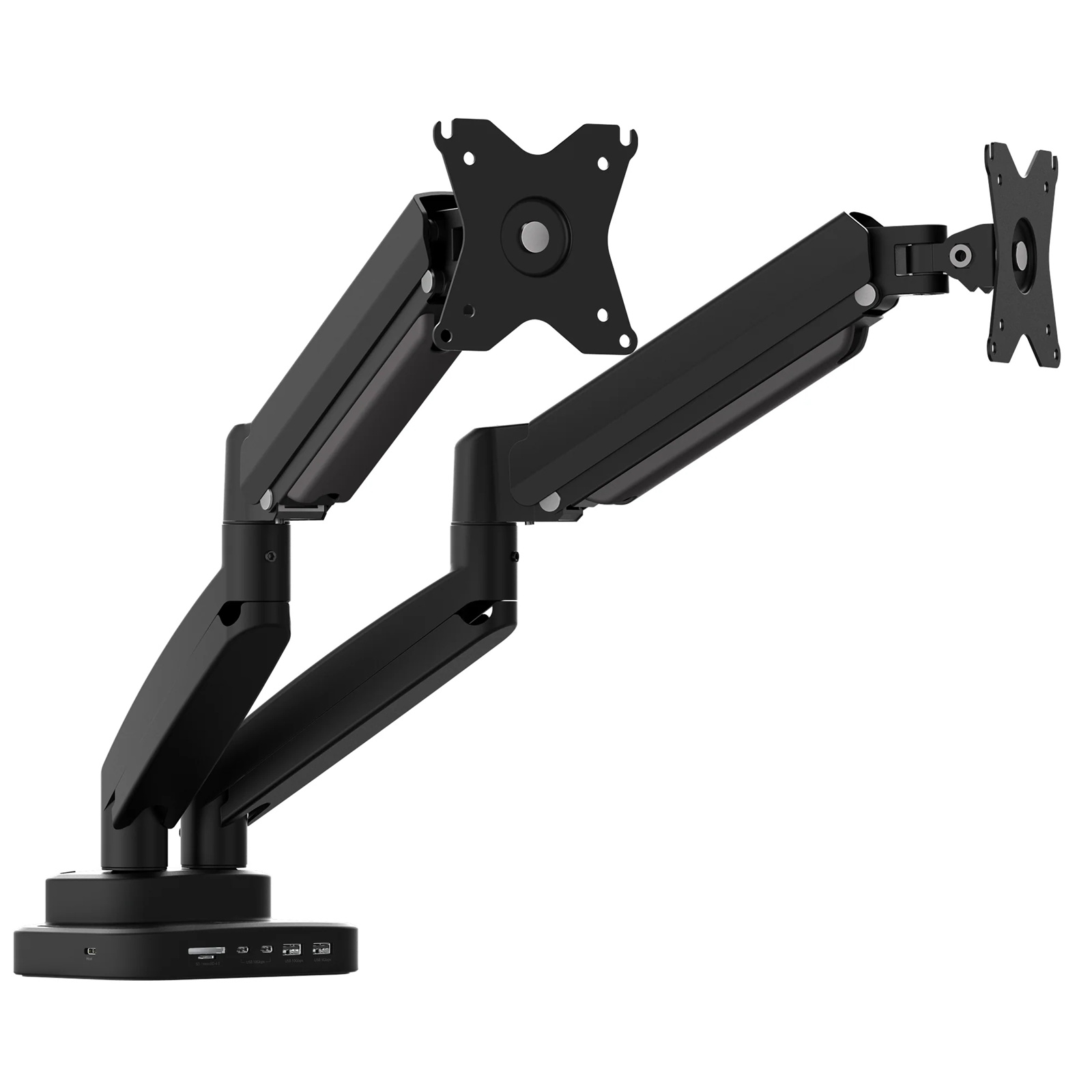

The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™, Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps 2 x USB-C® 10Gbps, SD™ /microSD ™ 4.0, and up to 100W PD pass through charging. The arm can hold max two 32" screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
- Fully adjustable gas spring dual monitor mount with 10-in-1 dock
- Easily adjusts monitors to any height and allows the monitors to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitors at optimal angles
- Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™ , Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps, 2 x USB-C® 10Gbps, SD™ /microSD™ 4.0, and up to 100W PD pass through charging
The Ideal Companion For Upgrading Your Workspace

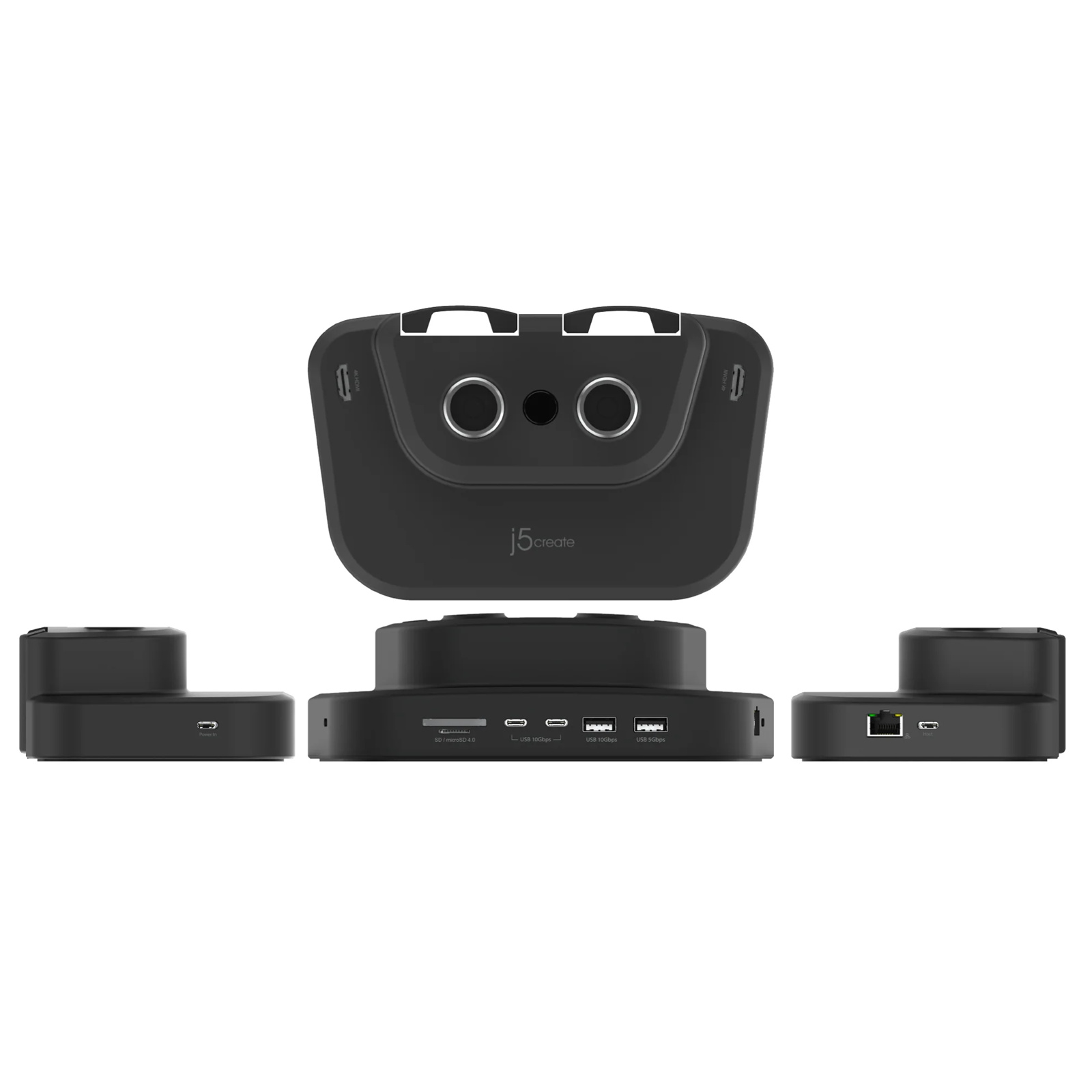

Effortless Efficiency Through Integrated 10-in-1 Dock
Supports MST Dual 4K60 Display For Stunning Display Experience
High-Speed USB™ 3.2 Gen 2 10Gbps
Supports PD Pass-Through Fast Charging
Support power input up to PD 100W. Charge your laptop and power your connected devices with convenience
Integrate a SD™/micro SD™ 4.0 card reader with up to 312 MB/s ultra-high speed
Allows you to transfer videos, images and files from SD™/micro SD™ card effortlessly
Includes A Gigabit Ethernet Port
Featuring fast and reliable network connection

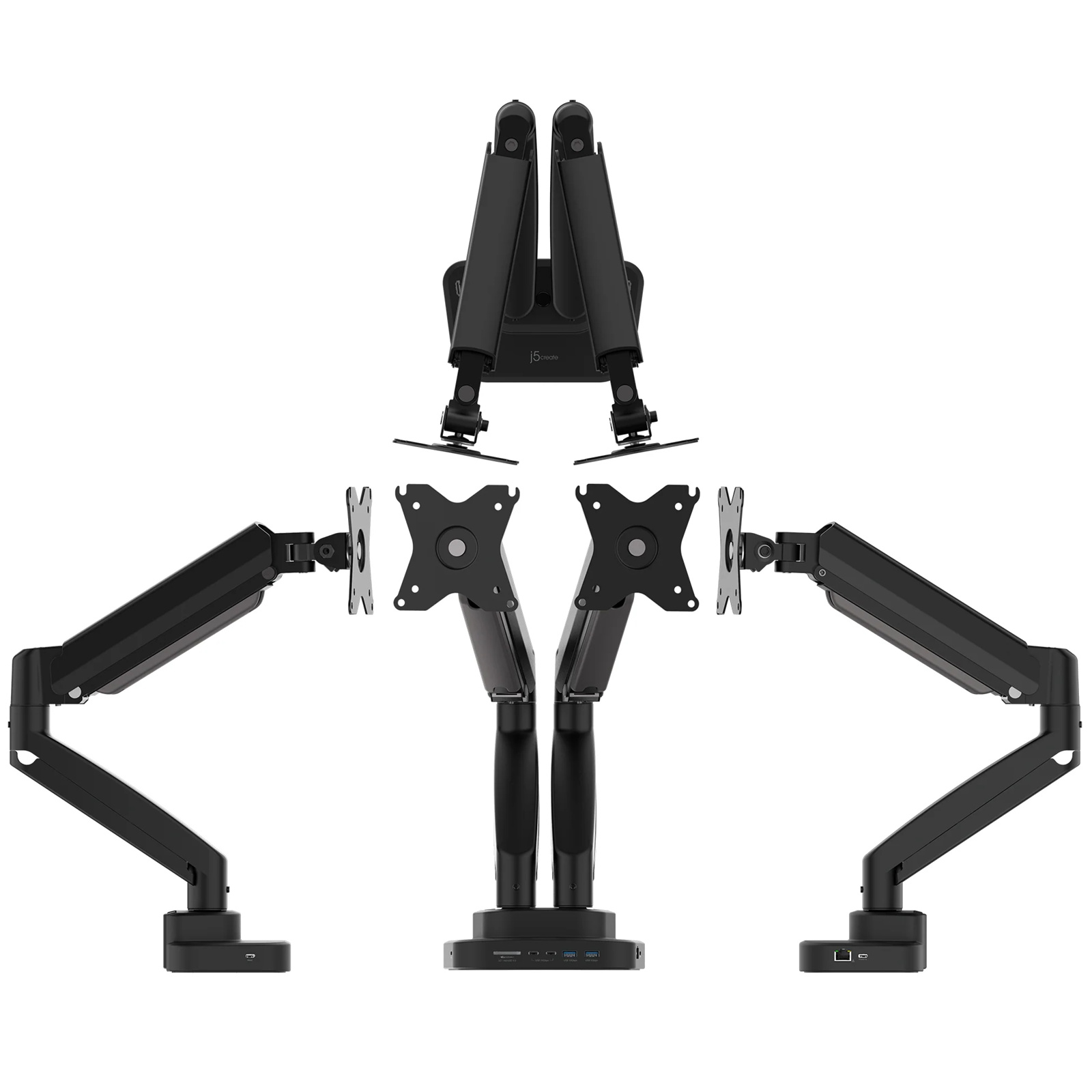

Personalize Your Workspace With Various Screen Combinations Easily
Fully Adjustable, Conveniently Set Your Monitor At An Optimal Angle
Safer And Stronger
Made with high grade aluminum and passed a 20,000 repetition motion test
Integrated Cable Management, Keep Your Desk Organized

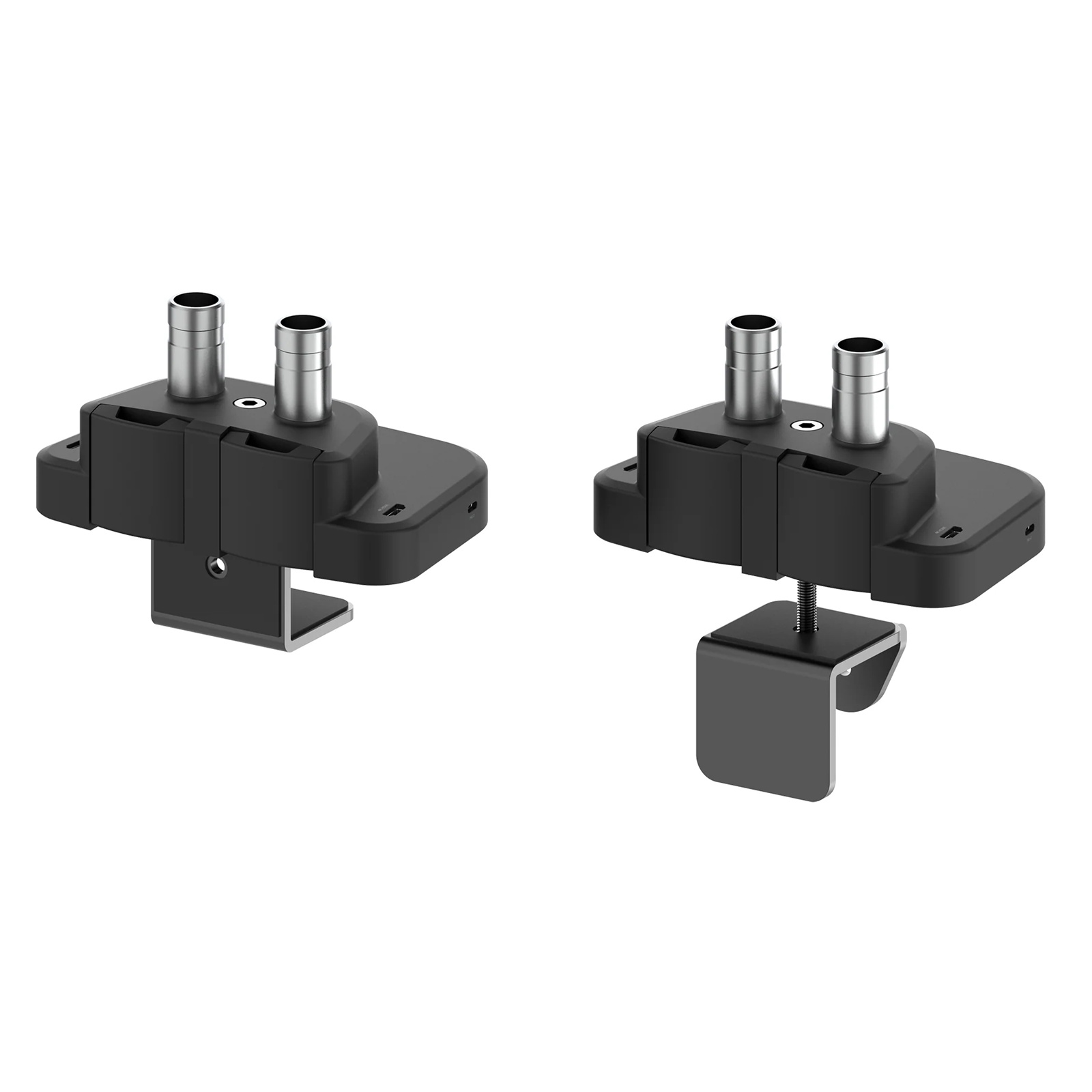

Comes with Clamp and Grommet Mount Options, Simple to Install
Wide Compatibility
Perfect For Home And Office
Specifications
Hardware
Additional Storage
No
Adjustable Angle
Screen Tilt: -45° to +90°
Arm Swivel: -180° to +180°
Screen Swivel: -90° to +90
Screen Rotation: 360°
Assembly Required
Yes
Audio Supported
Yes
C-Clamp Base
Yes (10~50mm)
Docking Station Included
Yes
Grommet Mounting Base
Yes (10~50mm)
Host Connector
1 - USB-C® Female
Maximum Weight Capacity
17.6 lbs. (8 kg)
Network Interface
Yes
Ports
2- 4K60 HDMI™ (MST Dual 4K60)
2 - USB-C® 10 Gbps
1 - USB™ Type-A 5Gbps
1 - USB™ Type-A 10Gbps
1 - 100W PD pass through charging
1 - SD™ / microSD™ 4.0
1 - Gigabit Ethernet
Power Source
Bus-powered or self-powered
VESA® Pattern
75x75mm/100x100mm
Video Output
2 - HDMI™ Female
Performance
Audio Channel
2.1 via HDMI™
Displays Supported
2
Max Display Refresh Rate
4K @ 60 Hz
Max Display Resolution
3840 x 2160
Wide Screen Supported
Yes
Power
Input Current
Up to 5A
Input Voltage
Up to 20V
Output Current
Up to 4.25A
Output Voltage
Up to 20V
Power Consumption
<= 900 mA
Power Delivery
Up to 100W
Compatibility
System Requirements
The host device must support MST (Multi-Stream Transport) and DisplayPort™ 1.4 to achieve dual 4K monitor configuration
Supports 17" to 32" monitors weighing up to 8 kg/17.6 lbs.
Windows® and macOS® compatible
*macOS® does not support MST, two monitors will only mirror each other.
Physical Specifications
Color
Black
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (0 to 30°C)
Product Depth
465 mm / 18.3 in
Product Height
320 mm / 12.6 in
Product Width
130 mm / 5.11 in
Product Weight
Approx. 8.82 lbs. (4 kg)
Stand Material
Aluminum/Steel/Plastic
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-10 to 65°C)
What's in the Box
Package Contents
1 x JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
1 x USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft)
1 x Installation tools & accessories
1 x Quick Installation Guide (QIG)
