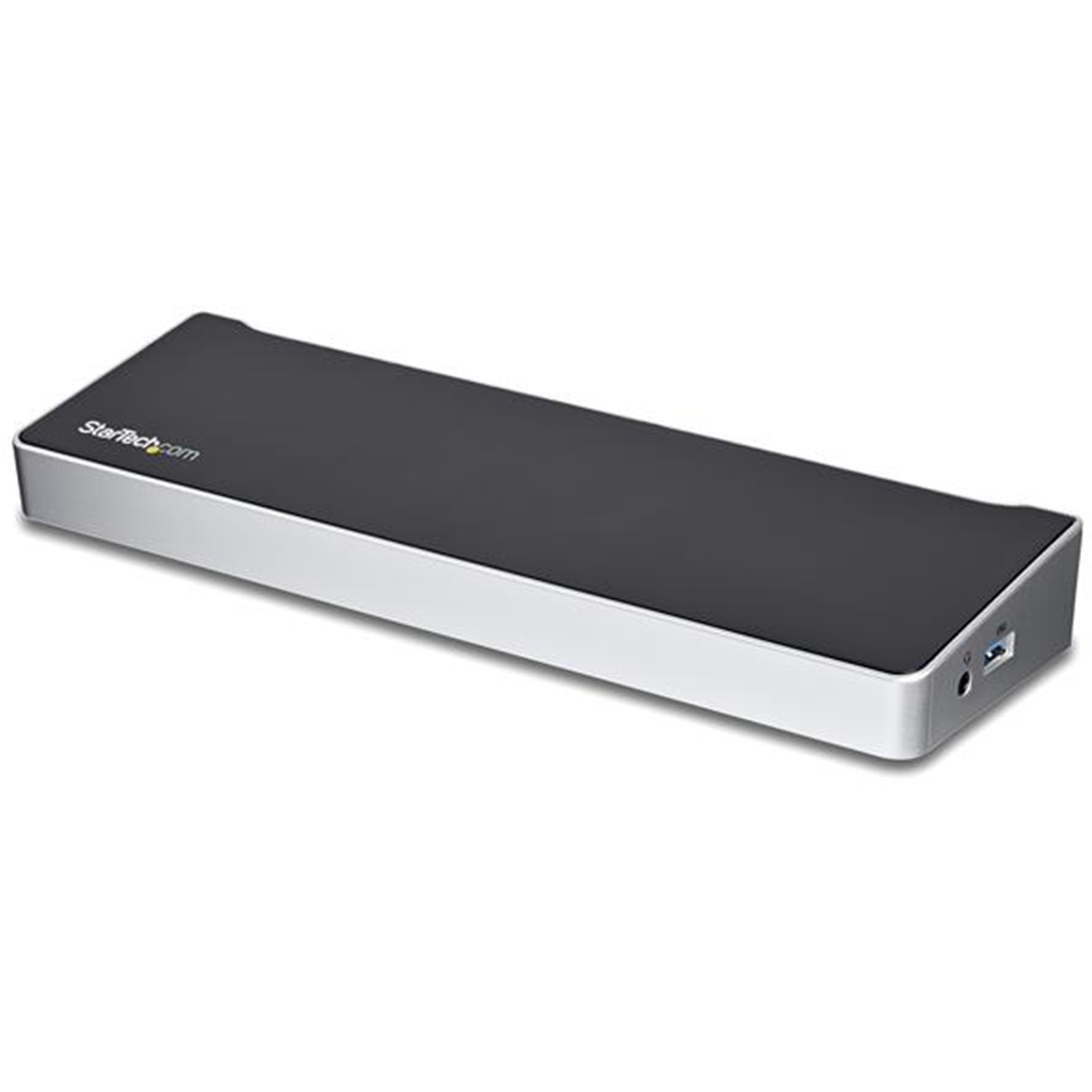

StarTech.com USB-C Triple 4K Docking Station, with 100W Power Delivery, DP x2, HDMI x1, USB-C x2, USB 3.1 x4, RJ45 x1, 3.5mm Audio-in x1, 3.5mm Audio-out x1, Support Apple Intel & M1 (Triple 4K) / ChromeOS / Microsoft Windows / Ubuntu, 3yr

HARDWARE

4K Support

Yes

Bus Type

USB-C

Chipset ID

DisplayLink - DL-6950
Genesys Logic - GL3523
Genesys Logic - GL3523S
Texas Instruments - TPS65982
Parade Technologies - PS176

Displays Supported

3

Fast-Charge Port(s)

Yes

Industry Standards

USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1

PERFORMANCE

Auto MDIX

Yes

Compatible Networks

10/100/1000 Mbps

Full Duplex Support

Yes

Maximum Data Transfer Rate

5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)

Maximum Digital Resolutions

1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz
1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

CONNECTOR(S)

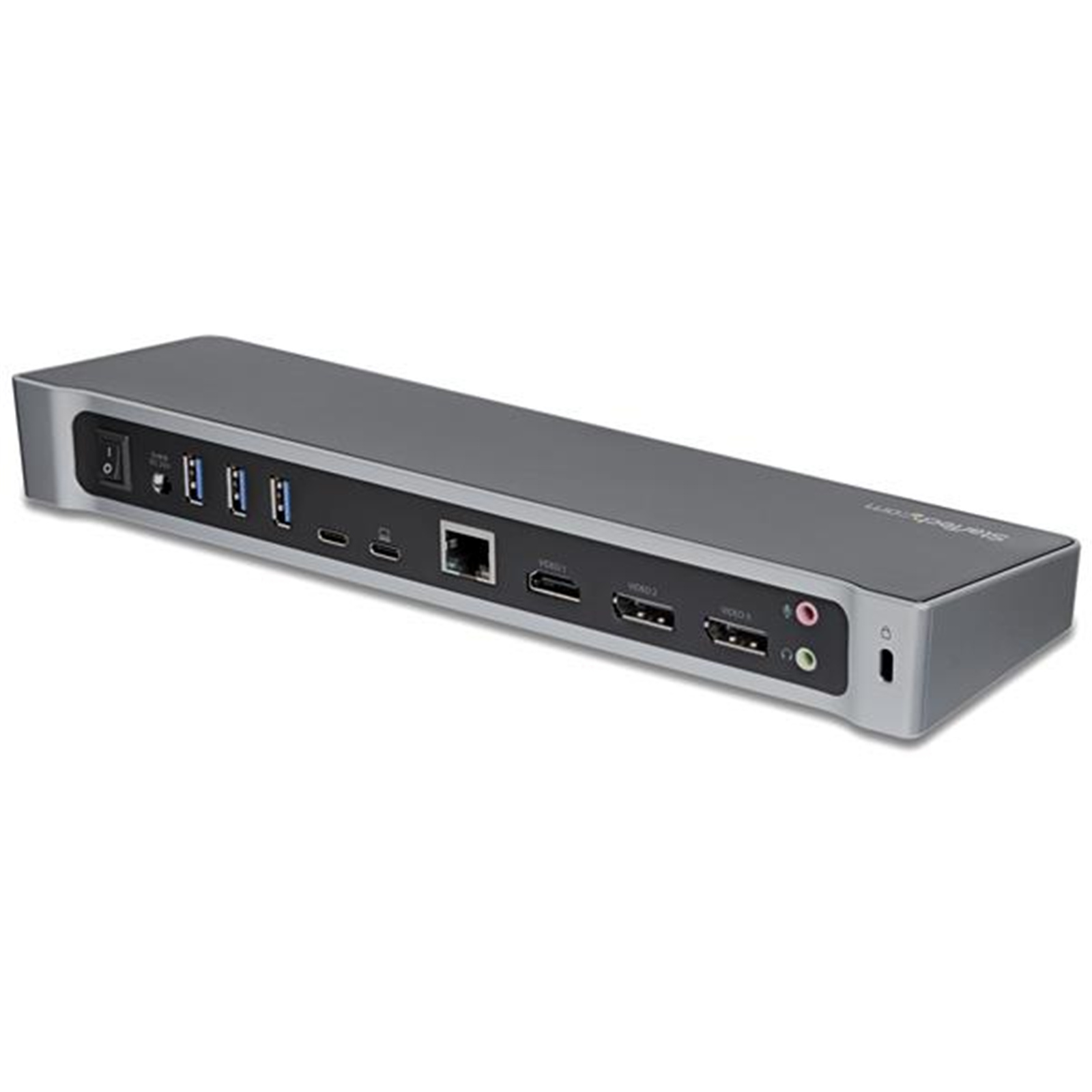

Connector Type(s)

2 - DisplayPort (20 pin) Female
1 - HDMI (19 pin) Female
2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
3 - USB Type-A (9 pin) USB 3.0 Female
1 - RJ-45 Female
1 - 3.5 mm Mini-Jack (4 Position) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
1 - Security Lock Slot Female

SOFTWARE

OS Compatibility

Windows® 7, 8, 8.1, 10
macOS 10.9 - 10.12, 10.14
Chrome OS™ v55+

SPECIAL NOTES / REQUIREMENTS

Note

- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- 4K resolution is supported on all 3 video ports. A 4K-capable display is required to achieve 4Kx2K resolution
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
- The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A

System and Cable Requirements

USB-C enabled computer with an available USB Type-C port

POWER

Center Tip Polarity

Positive

Input Current

2.5 A

Input Voltage

100 ~ 240 AC

Output Current

7.5 A

Output Voltage

20V DC

Plug Type

N

Power Delivery

100W

Power Source

AC Adapter Included

ENVIRONMENTAL

Humidity

0~70% RH

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

PHYSICAL CHARACTERISTICS

Color

Black & Silver

Enclosure Type

Plastic

Product Height

1.3 in [3.4 cm]

Product Length

10.6 in [27 cm]

Product Width

3.2 in [82 mm]

Weight of Product

13.6 oz [385 g]
