StarTech.com DK31C3HDPD Docking Station Triple 4K 60Hz USB-C - USB-A - Hybrid
StarTech.com DK31C3HDPD Docking Station Triple 4K 60Hz USB-C - USB-A - Hybrid
- Brand: StarTech.com
- MPN: DK31C3HDPD
- Part #: NBDSTT5192698
- UPC: 065030881937
- Brand: StarTech.com
- MPN: DK31C3HDPD
- Part #: NBDSTT5192698
- UPC: 065030881937
What PB Tech customers are saying about this product...
See More Reviews"Works well with an MBP M1 Pro. There is no noticeable lag even watching videos. Highly recommend the product."
COMBO DEALS: Buy Together and SAVE!





Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
$8.24
$8.24


Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$68.69
$68.69
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular USB-C Docking Stations





StarTech.com DK31C3HDPD Docking Station Triple 4K 60Hz USB-C - USB-A - Hybrid
- Brand: StarTech.com
- MPN: DK31C3HDPD
- Part #: NBDSTT5192698
- UPC:065030881937

Product URL: https://www.pbtech.com/pacific/product/NBDSTT5192698/StarTechcom-DK31C3HDPD-Docking-Station-Triple-4K-6?is-review=1
Features
This USB-C Gen 2 10Gbps docking station?turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery.
Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included and replacement or extra host cables can be purchased separately here.
HDMI & DisplayPort for Triple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HDR support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.
Power & Charge with 85W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD
Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
1x USB-C 3.2 Gen 2 (10 Gbps)
1x USB-A 3.2 Gen 2 (10 Gbps)
1x USB-C 3.2 Gen 1 (5 Gbps)
3x USB-A 3.2 Gen 1 (5 Gbps)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features

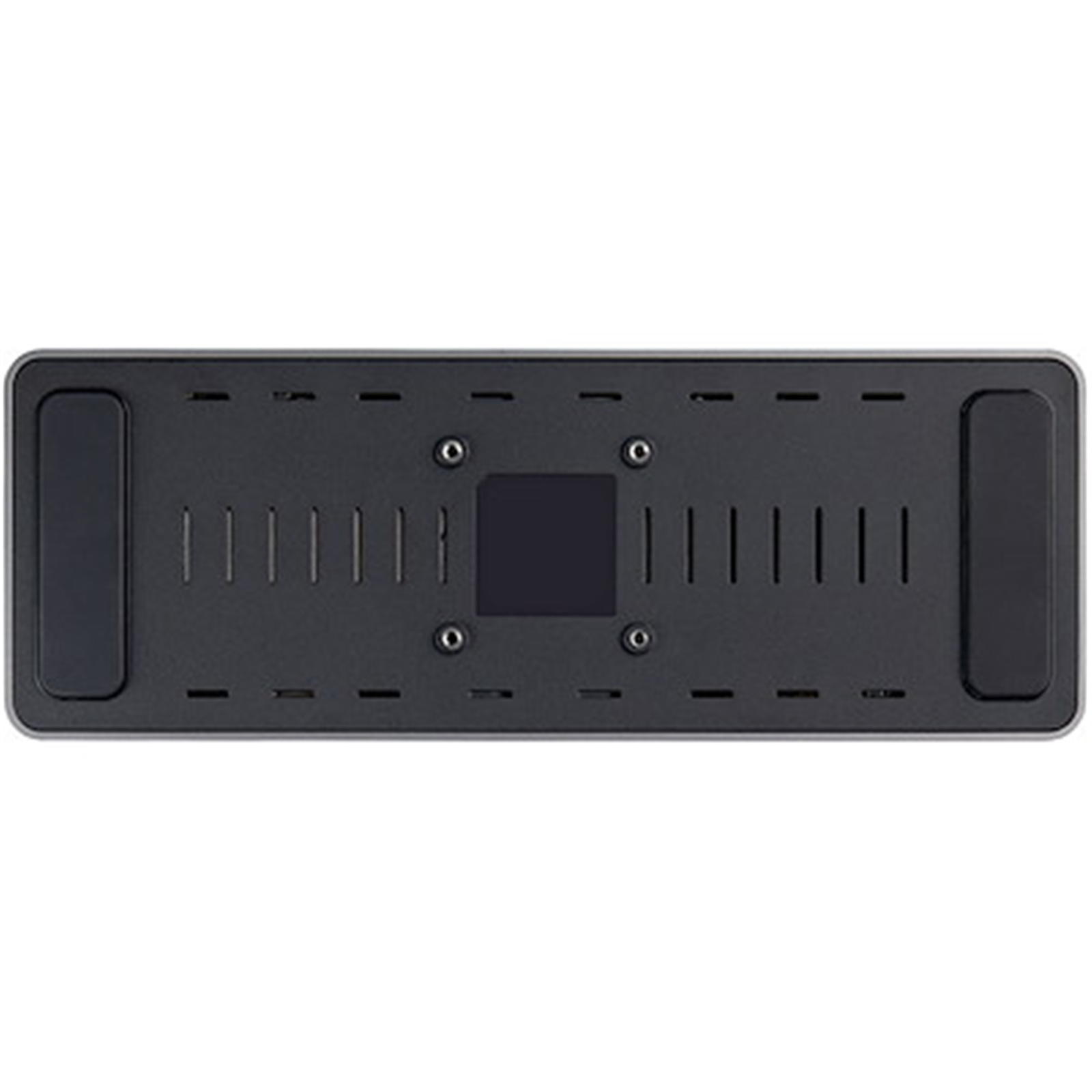

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable; a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall.
Specifications
Connector(s)
3 - Connector Type(s)
HDMI
DisplayPort
1 - Connector Type(s)
Ethernet Gigabit
USB Type-C (24pin, Gen 2, 10Gbps)
USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
USB Type-C (24 pin, 5Gbps)
USB Type-A (9 pin, 5 Gbps)
3.5mm Stereo Female 4 pos
2 - Connector Type(s)
USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
1 - Host Connectors
USB Type-C (24 pin) USB 3.1 (10Gbps)
Environmental
Operating Temperature
0? to 50 ?
Storage Temperature
-20? to 70?
Humidity
0% to 95%
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
3
Ports
16
Audio
Yes
Interface
USB 3.2 Gen 2 - 10 Gbit/s
Bus Type
USB-C
USB-A
USB Pass-Through
Yes
Compatible Lock Slot
Kensington Standard Slot (K-Slot)
Chipset ID
Realtek RTS5423
Realtek RTS5411
Realtek RTS5412
Realtek RTS5451
Realtek RTD2142
DisplayLink DL6950
Packaging Information
Package Height
3.6 in [91.0 mm]
Package Length
10.0 in [25.3 cm]
Shipping (Package) Weight
3.8 lb [1.7 kg]
Package Width
6.8 in [17.2 cm]
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Analog Resolutions
1080p
Maximum Digital Resolutions
4K 60Hz
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
MTBF
40 841 hrs
Physical Characteristics
Color
Black & Gray
Product Height
1.5 in [37.0 mm]
Product Length
9.2 in [23.3 cm]
Weight of Product
14.2 oz [402.0 g]
Product Width
3.3 in [84.0 mm]
Material
Aluminum and Plastic
Cable Length
39.4 in [100 cm]
Power
Power Source
AC Adapter Included
Power Delivery
85W
Input Voltage
100 - 240 AC
Input Current
2.5A
Output Voltage
20V DC
Output Current
7.5A
Plug Type
M
Software
OS Compatibility
Windows 10
Windows 8.1
Windows 8
macOS v10.6 to macOS v10.12, 10.14 to 11.0
Ubuntu 18.04, 20.04
Chrome OS
Special Notes / Requirements
Note
DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.
What's in the Box
1 - Included in Package
Docking Station

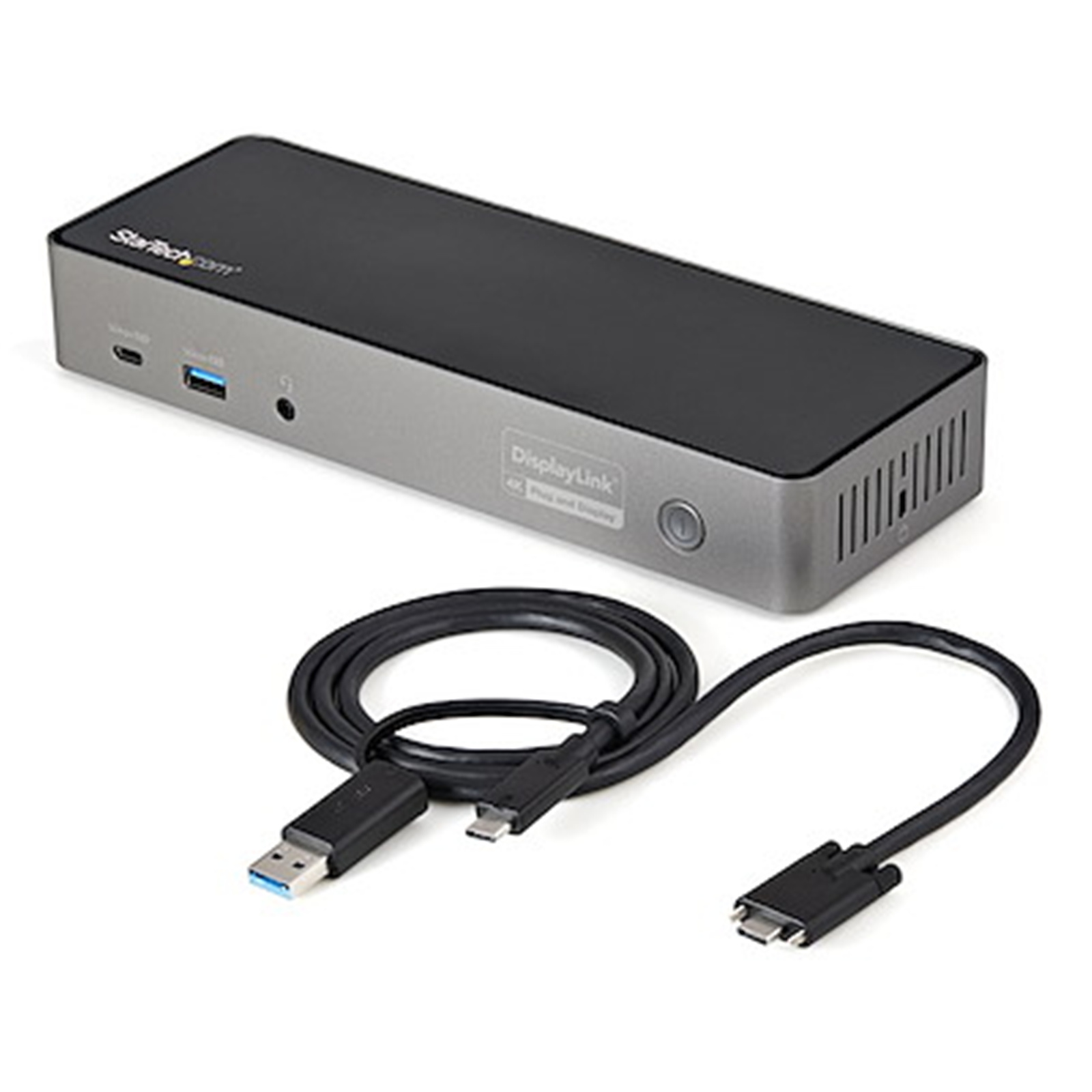

USB-C Screw Lock Cable with USB-A Adapter
Universal Power Adapter (NA, JP, ANZ)
Quick-Start Guide
