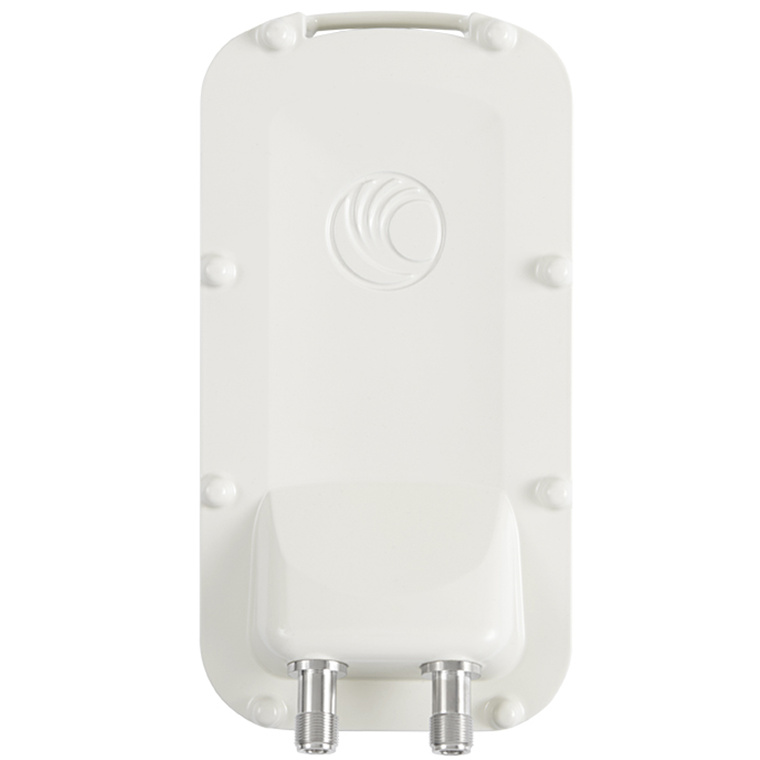

Cambium Networks Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)
Cambium Networks Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)
- Brand: Cambium Networks
- MPN: C050045A001A
- Part #: NETCBN010130
- UPC:
- Brand: Cambium Networks
- MPN: C050045A001A
- Part #: NETCBN010130
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Outdoor Access Points





Cambium Networks Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)
- Brand: Cambium Networks
- MPN: C050045A001A
- Part #: NETCBN010130

Product URL: https://www.pbtech.com/pacific/product/NETCBN010130/Cambium-Networks-Cambium-5-GHz-PMP-450i-Connectori
Features
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Now capable of up to 300 Mbps per sector in a 40 MHz channel!
- Ultra-wide band 5 GHz Radio
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards
- 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
- Dynamic Interference Filtering
- Multi function AUX port with PoE-Out
Specifications
Product Type
Access Point
Brand
Cambium Networks
Manufacturer Part Number
C050045A001A
Frequency Range
5 GHz : 4900 - 5925 MH
Channel Width
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
MAC (Media Access Control) Layer
Cambium Networks proprietary
Physical Layer
2x2 MIMO OFDM
Ethernet Interface
100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used
IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management
IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM
MTU
1700 bytes
VLAN
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber Per Sector
Up to 238
ARQ
Yes
Modulation Levels (Adaptive)
2X QPSK, 4X 16QAM, 6X 64QAM, 8X 256QAM
Maximum Deployment Range
Up to 40 miles (64 km)
Latency
3 - 5 ms, typical
GPS Synchroization
Yes, via Autosync (CMM5 or UGPS)
Quality of Service
Diffserve QoS
Antenna Connection
50 ohm, N-Type (Connectorized version only)
Max Transmit Power
+28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)
Surge Suppression (LPU fitted)
EN61000-4-5: 1.2us/50us, 500 V voltage waveform, Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure
> 40 Years
Environmental
IP67, IP66
Temperature / Humidity
-40°C to +60°C (-40°F to +140°F), 0-100% condensing
Power Consumption
15 W typical, 18 W max, 45 W max with Aux port PoE out enabled
Input Voltage
48-59 V DC, 802.3at compatible
