Features

The Cambium 60GHz cnWave V1000 Terragraph Client Node/PtP is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, the V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Designed For High-speed And High-density Deployments

Cambium Networks' 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

Cloud And On-premises Management

The 60 GHz cnWave product operates with Cambium Networks' cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

- Cloud and on-premises management with cnMaestro
- Supports 57 to 66 GHz
- Integrated 22.5dBi gain antenna
- Up to 2 Gbps (1 Gbps UL and 1 Gbps DL)
- Auto-beamforming, 80º horizontal and 40º vertical
- TDMA channel access and TDD Network Synchronization
- 802.11ay technology with Terragraph certification

Specifications

Frequency Range

57 to 66 GHz in a single SKU

Channel Width

2.16 GHz, 4.32 GHz (available in future release)

Mode of Operation

PMP or Mesh, PTP

Channel Access

TDMA/TDD

Ethernet Interface

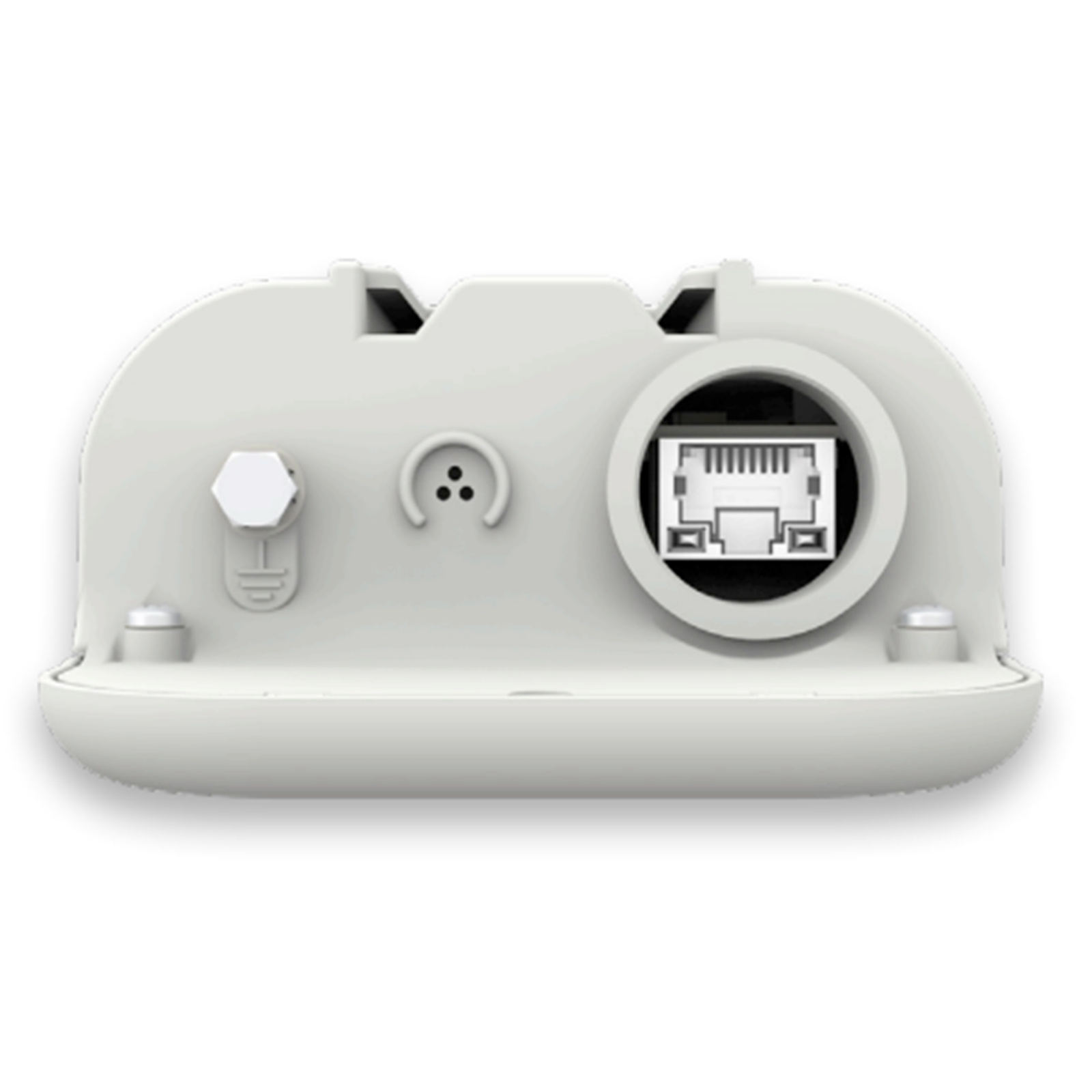

1x 100/1000 BaseT with PoE In

Protocol Supported

IPv4, IPv6

Network Management

cnMaestro, HTTP, HTTPS, SNMP v2c & v3

MTU

4,000 bytes

Encryption

128-bit AES

Firmware Security

Signed Firmware Images

Modulation & Coding Schemes

MCS-0 (BPSK) to MCS-12 (16-QAM)

Latency

< 1 ms

Maximum EIRP

38 dBm

Gain

22.5 dBi

Type

Integrated

Beamforming Scan Range

+/- 40º azimuth, +/- 20º elevation

Beam Width

12º

Power Type

802.3af PoE

Power Consumption

10 W

Environmental

IP66/67

Temperature

-40ºC to 60ºC

Mean Time Between Failure

> 40 years

Weight

0.25 kg

Dimensions W x H x D

140 mm x 85 mm x 40 mm

Wind Survival

200 km/h

Manufacturer Part No:

V1000

Brand:

Cambium Networks

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETCBN010151

Product Model:

Warranty: 12 months *
