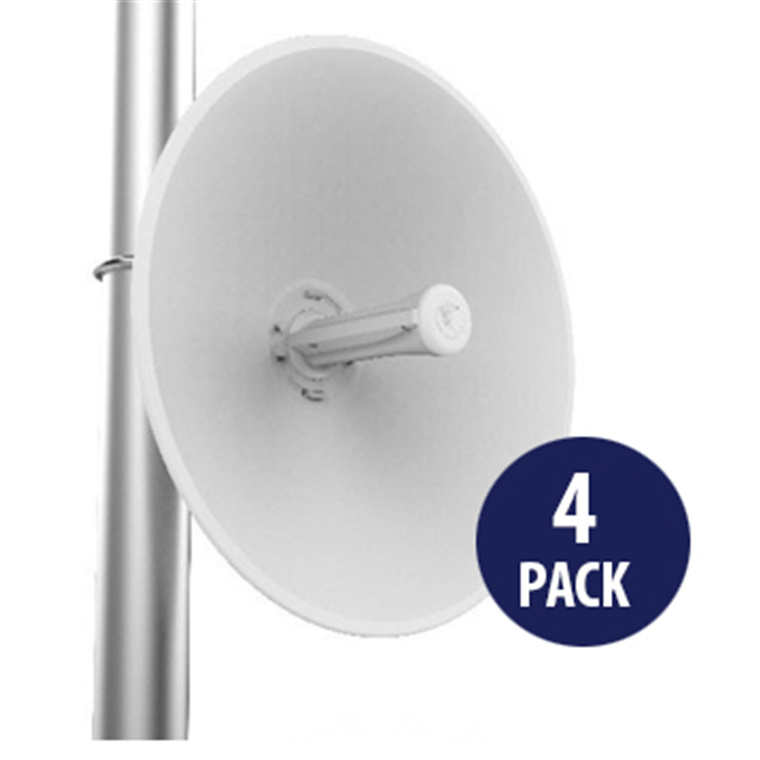

Cambium Networks C050910M801 Cambium ePMP 5 GHz Force 300-25 High Gain, High Power CPE Radio 4-Pack

PB Tech price

NZD $ 1,642 .61

$ 1,642 .61

Cambium Networks C050910M801 Cambium ePMP 5 GHz Force 300-25 High Gain, High Power CPE Radio 4-Pack

Brand: Cambium Networks
MPN: C050910M801
Part #: NETCBN010162
UPC:

PB Tech price

NZD $ 1,642 .61

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 09 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Cambium Networks
MPN: C050910M801
Part #: NETCBN010162
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Cambium ePMP 5 GHz Force 300-25 High Gain, High TX power CPE Radio 4-Pac

The Cambium Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyser.

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.

- Convenient 4-Pack packaging to reduce shipping costs
- Cambium Networks' ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.

Specifications

Channel Width

20/40/80 MHz

Proprietary Physical

Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM)

Channel Spacing

Configurable in 5 MHz increments

Frequency Range

Wide Band Operation 4910-5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)

MAC Layer (Media Access Control)

Cambium Proprietary

Ethernet Interface

10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts

Protocols Used

IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management

IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™

VLAN

802.1Q with 802.1p priority

Modulation

MCS0 (BPSK) to MCS9 (256 QAM 5/6)

Transmit Power Range

0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)

Antenna Gain

25dBi

3 dB Beamwidth Azimuth

6° to 10°

3 dB Beamwidth Elevation

6º to 10º

Front-To-Back Isolation

25 dB

Cross Polarization

25 dB

Surge Suppression

1 Joule Integrated

Environmental

IP55

Temperature

-30°C to +60°C

Weight

2.4 kg (Includes mounting bracket)

Wind Survival

180 km/hour

Dimensions (Dia x Depth)

470 x 310 mm with mounting bracket attached

Pole Diameter Range

64 - 76 mm with included clamp

Power Consumption

12 W (Up to 15 W in extreme cold temperatures when heater is activated.)

Input Voltage

30 V Passive PoE (14-30 V DC Input)

Encryption

128-bit AES (CCMP mode)

Manufacturer Part No:

C050910M801

Brand:

Cambium Networks

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

NETCBN010162

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
