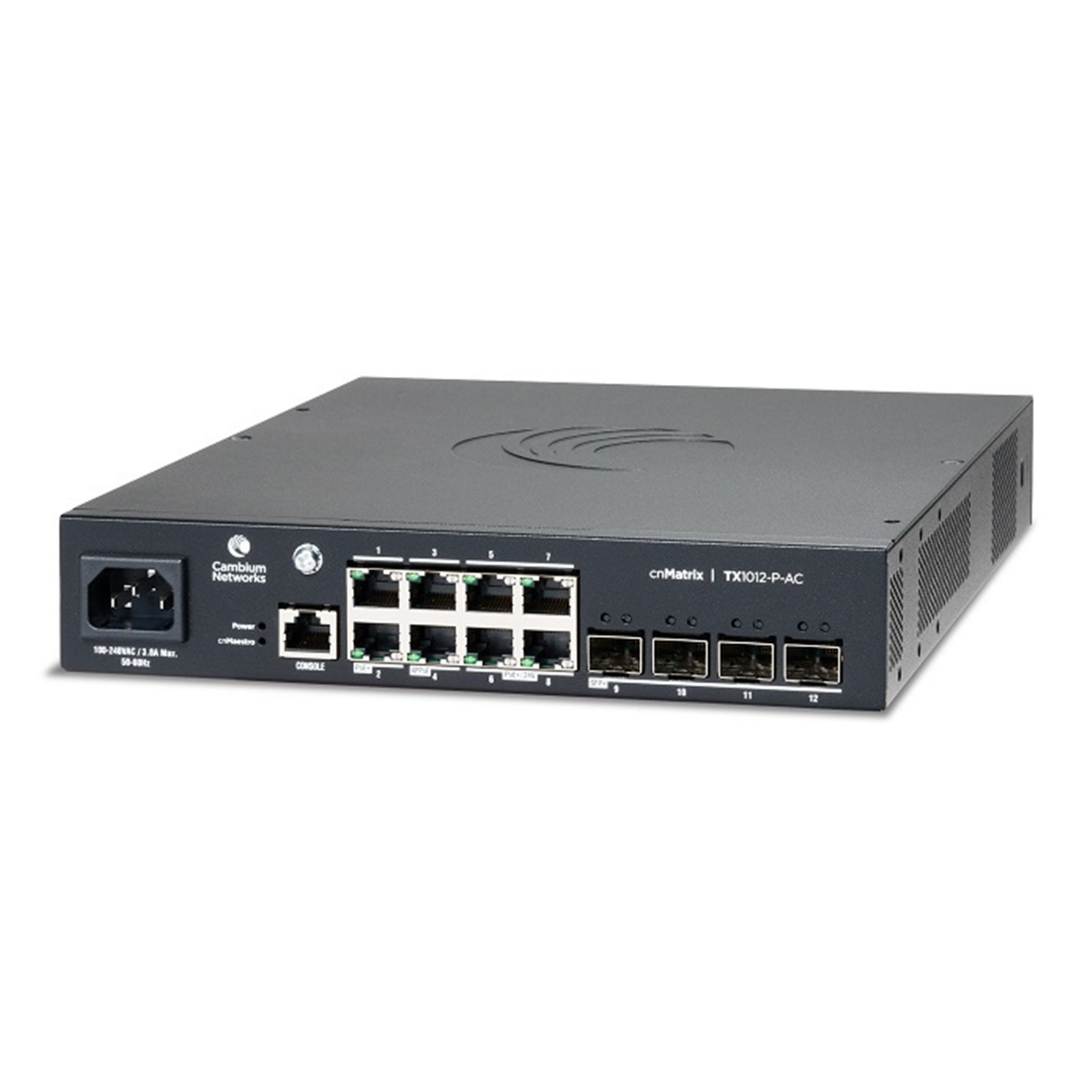

Cambium Networks TX1012-P-AC Cambium cnMatrix TX1012-P-AC, AC Powered Intelligent EthernetPoESwitch,8 x 1Gbps, and 4 SFP+

PB Tech price

NZD $ 1,400 .87

$ 1,400 .87

Cambium Networks TX1012-P-AC Cambium cnMatrix TX1012-P-AC, AC Powered Intelligent EthernetPoESwitch,8 x 1Gbps, and 4 SFP+

Brand: Cambium Networks
MPN: TX1012-P-AC
Part #: NETCBN010176
UPC:

PB Tech price

NZD $ 1,400 .87

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 19 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Cambium Networks
MPN: TX1012-P-AC
Part #: NETCBN010176
UPC:

Be the first to review this product

Form Factor

Not Specified

10 Gigabit Ports

4 Ports

10 Gigabit

Management Level

Not Specified

Number of Ports

12 Ports

PoE Ports

8 Ports

PoE Budget

200 Watts

View full specs

Returns & Warranty Bulk Quote Print Page

Similar in-stock products available at PB Tech right now

HPE Instant On 1930 JL683B 24-Port Smart Managed Layer 2+ Switch with 4 x SFP+, 24 x 802.3af/at PoE Port (Max 195W)

Wishlist Compare

10 Gigabit Ports:

4 Ports

10 Gigabit:

Yes

Form Factor:

1U Rackmount

Management Level:

Smart / Web Managed

Number of Ports:

24 Ports

PoE:

Yes

PoE Ports:

Not Specified

PoE Budget:

195 Watts

MPN:

JL683B

Part #:

SWHAUB56832

PB Tech price

$828 .70

$828.70

Hurry, only 5 units left!

Ships today

Wishlist Compare

Ubiquiti Unifi USW-Pro-HD-24 28-Port 10G L3 Managed Etherlighting Switch - SFP+ x4, 10GbE x2, 2.5GbE x22

Wishlist Compare

Form Factor:

1U Rackmount

10 Gigabit Ports:

4 Ports

10 Gigabit:

Yes

Management Level:

Managed L3

Number of Ports:

22 Ports

PoE:

N/A

PoE Ports:

N/A

PoE Budget:

N/A

MPN:

USW-Pro-HD-24

Part #:

SWHUBI10240

PB Tech price

$1,188 .72

$1,188.72

Hurry, only 5 units left!

Ships today

Wishlist Compare

HPE Instant On 1930 JL686B 48-Port Smart Managed Layer 2+ Switch with 4 x SFP+, 48 x 802.3af/at PoE Port (Max 370W)

Limited Lifetime warranty, NBD switch replacement and 90 days 24x7 phone support

Wishlist Compare

10 Gigabit Ports:

4 Ports

10 Gigabit:

Yes

Form Factor:

1U Rack

Management Level:

Smart / Web Managed

Number of Ports:

52 Ports

PoE:

Yes

PoE Ports:

48 Ports

PoE Budget:

370 Watts

MPN:

JL686B

Part #:

SWHAUB56862

PB Tech price

$1,387 .83

$1,387.83

Hurry, only 3 units left!

Ships today

Wishlist Compare

Ubiquiti Unifi USW-Pro-Max-48 52-Port 10G L3 Managed Etherlighting Switch - SFP+ x4, 2.5GbE x16, 1GbE x32

Wishlist Compare

10 Gigabit:

Yes

10 Gigabit Ports:

4 Ports

Form Factor:

1U Rackmount

Management Level:

Managed L3

Number of Ports:

48 Ports

PoE:

N/A

PoE Ports:

N/A

PoE Budget:

N/A

MPN:

USW-Pro-Max-48

Part #:

SWHUBI2403263

PB Tech price

$1,261 .51

$1,261.51

Hurry, only 2 units left!

Ships today

Wishlist Compare

Netonix WS-12-250-AC WS-12-250-AC Managed PoE Switch

Wishlist Compare

Form Factor:

Desktop

10 Gigabit:

Management Level:

N/A

Number of Ports:

12 Ports

PoE:

Yes

PoE Ports:

12 Ports

PoE Budget:

N/A

Stacking:

MPN:

WS-12-250-AC

Part #:

SWHNTN1002

PB Tech price

$936 .52

$936.52

Hurry, only 2 units left!

Ships today

Wishlist Compare

Features

The Cambium cnMatrix TX1012-P-AC, AC Powered Intelligent Ethernet PoE Switch, with 8x 1Gbps, and 4 SFP+ ports.

- Easy and simple, free cloud (or on premise) management with cnMaestro™
- Full Line Rate, non-blocking architecture
- Comprehensive/Intelligent PoE Solution
- Zero Touch Simplicity with automated configuration
- Automated security with device profiling and policy enforcement
- 100-240VAC Power Input

cnMatrix TX, Tower Switch provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

Comprehensive/Intelligent PoE solution

- 802.3af/at/bt - up to 90W
- 24V Passive PoE - up to 15W
- 54V Passive PoE - up to 90W

Specifications

Throughput

96 Gbps

Forwarding Rate in Mpps (64 Byte Packets)

120

10/100/1000 Mbps RJ45 Ports

10 Gbps Fiber Ports (SFP+)

Serial Console

Yes

Internal Fans

Flash Storage

128 MB

DRAM

512 MB

Internal Power Supply

260W

Max Switch Power (WITH TRAFFIC)

260W

MTBF @25°C (hours)

741,409

MTBF @60°C (hours)

223,619

Unit Weight

2.22 kg

Unit Dimensions (H x L x W)

4.4 x 28 x 23 cm

802.3af/at/bt PoE (54V) Ports

1-8

24V Passive PoE - up to 15W

Ports 5-8

54V Passive PoE - up to 90W

Ports 3-4

54V Passive PoE - up to 30W

Ports 1-2, 5-8

PoE Max Power Per Port

Ports 1-2, 5-8: 30W, Ports 3-4 90W

Total PoE Power Budget

200W

Rack Mount Kit

Not Included (optional accessory)

Wall Mountable

Not Included (optional Accessory)

Temperature Ranges -

30°C up to 60°C / Sea Level

Operating Humidity

20% at 90% RH

Storage Temperature

-40°C to 70°C

Manufacturer Part No:

TX1012-P-AC

Brand:

Cambium Networks

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

NETCBN010176

Product Model:

Warranty: 12 months *
