Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply
- Brand: Procet
- MPN: PT-PSE104GB-60-10
- Part #: NETCET0001

Product URL: https://www.pbtech.com/pacific/product/NETCET0001/Procet-55V-DC-60-Watt-10-Gigabit-8023bt-Power-over
Features

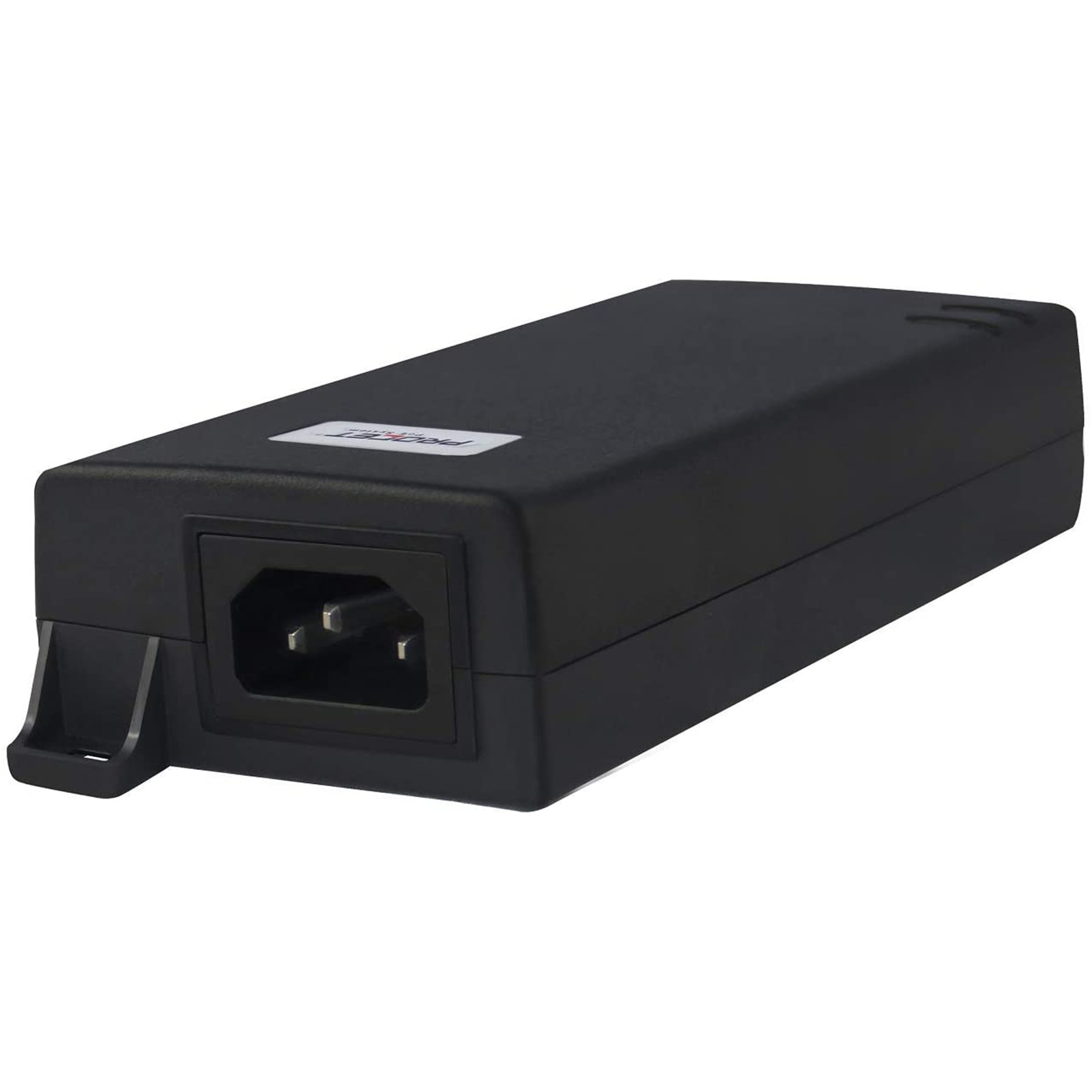

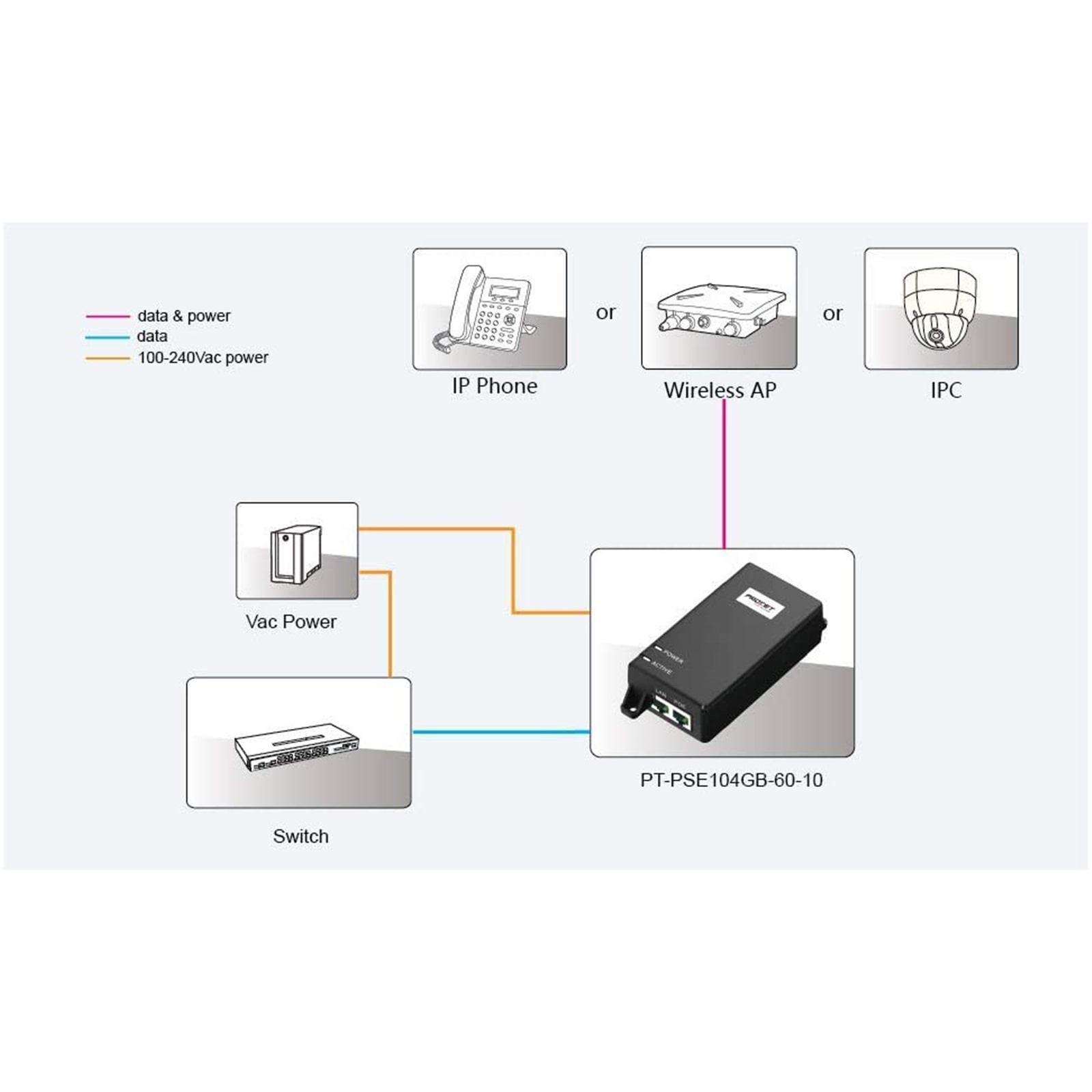

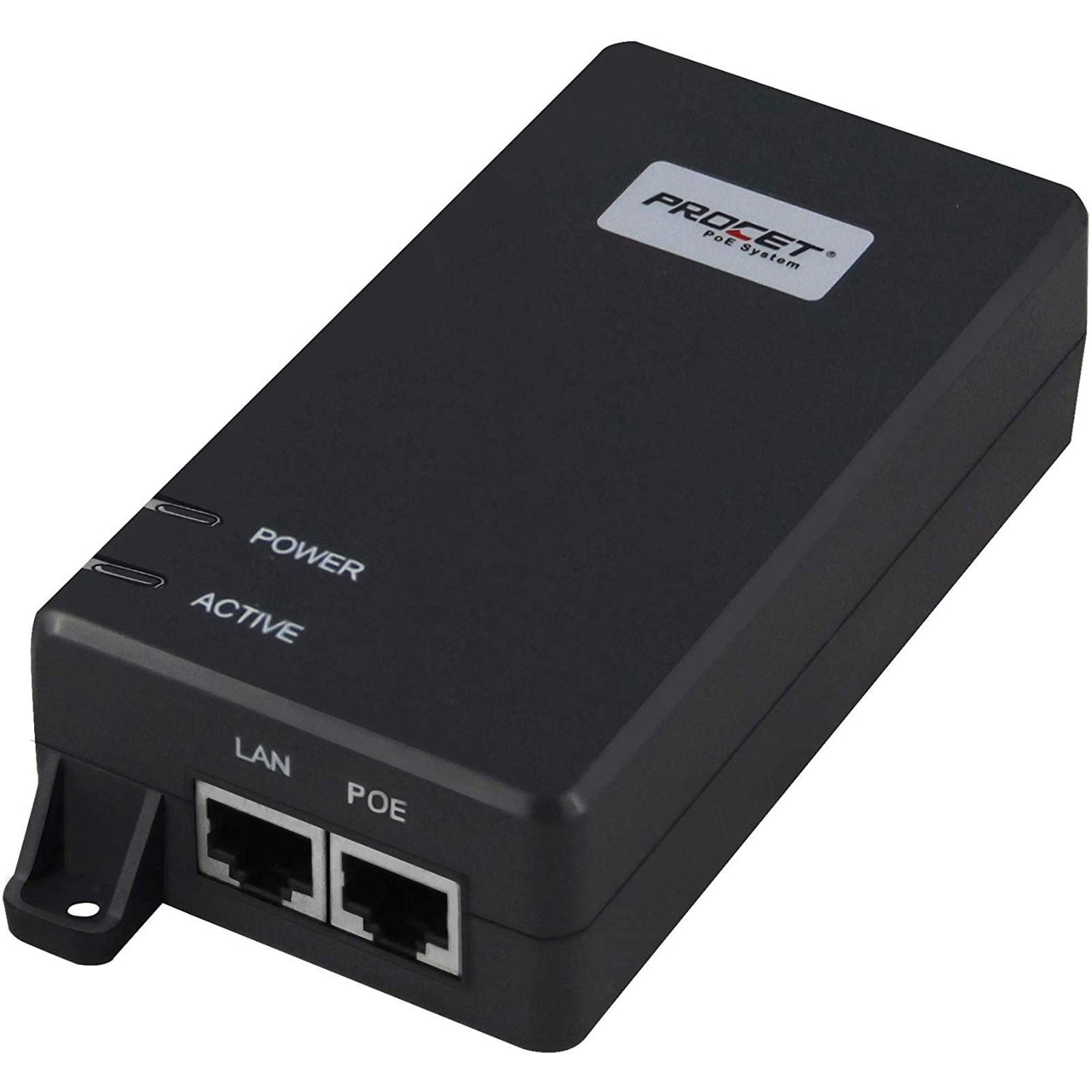

PT-PSE104GB-60-10 is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over full 4 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 60W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It is compliant with IEEE802.3 PoE++ standard and compatibale to use with any IEEE802.3af/at standard terminals.
PT-PSE104GB-60-10 is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/ Cat6 cables.
PT-PSE104GB-60-10 is a single port 10G 10Gbps midspan Injector with 4 Pair PoE up to 60 watts of power at 55VDC at 1.1amp.Designed for the PoE++ powered 60W PoE Powered Devices (PDs),specially for WiFi 6 routers and 10GbE devices.It supports not only 10/100/1000Mbps of data rates, but also 2.5G/5G/10GbE NBase-T.
Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a wall mount bracket.It operates with a wide input voltage of 100-240Vdc.
Specifications
Input
100-240Vac 1.5A 50/60Hz
Output
55Vdc 1100mA
Power Pins
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Data Speed
10/100/1000Mbps & 2.5/5/10GbE
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3bz 2.5GbE/5/10GbE NBASE-T
Full compliant with
IEEE802.3af/at,PoE++
RoHS Compliance
WEEE Compliance
Operating Temperature
0? to 40?
Operating Humidity
20% to 80%, non-condensation
Storage Temperature
-20? to 70?
Storage Humidity
10% to 90%, non-condensation
Operating Altitude
up to 2000meters
Case
Plastic
Color
Black
Mounting
Wall-mounted
IP Rated
IP40
Size
145.51mm X 65.8mm X 33.5mm
Weight
255g
Packing

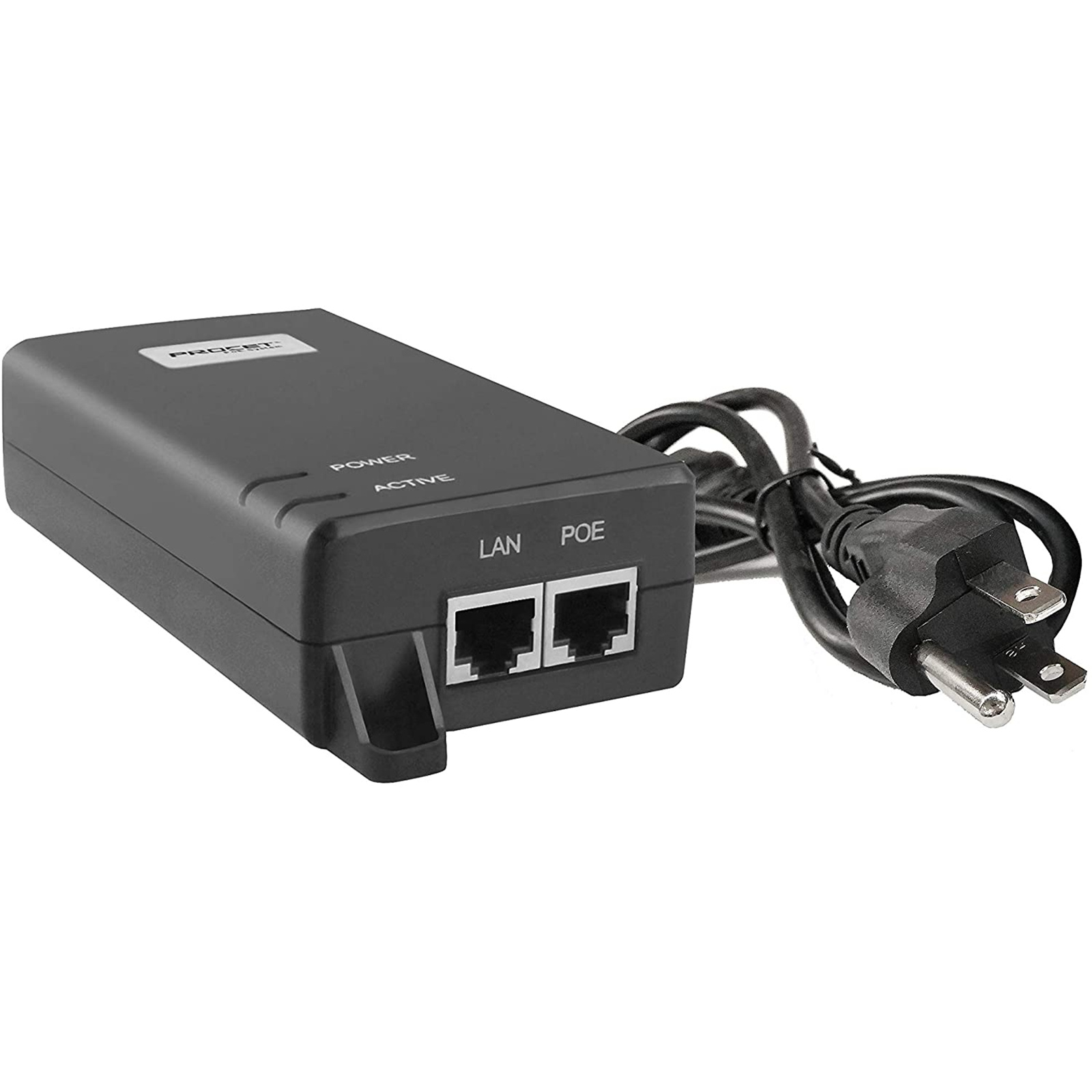

Power Cord x 1(0.8 meters) with US plug, Manual x 1
