Cisco GLC-FE-100LX GLC-FE-100LX -100BASE-LX SFP for FE port

PB Tech price

NZD $ 384 .35

$ 384 .35

Cisco GLC-FE-100LX GLC-FE-100LX -100BASE-LX SFP for FE port

Brand: Cisco
MPN: GLC-FE-100LX=
Part #: NETCIS1001945
UPC:

PB Tech price

NZD $ 384 .35

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Cisco
MPN: GLC-FE-100LX=
Part #: NETCIS1001945
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Cisco GLC-FE-100LX Compatible 100BASE-LX SMF 1310nm 10km SFP Transceiver

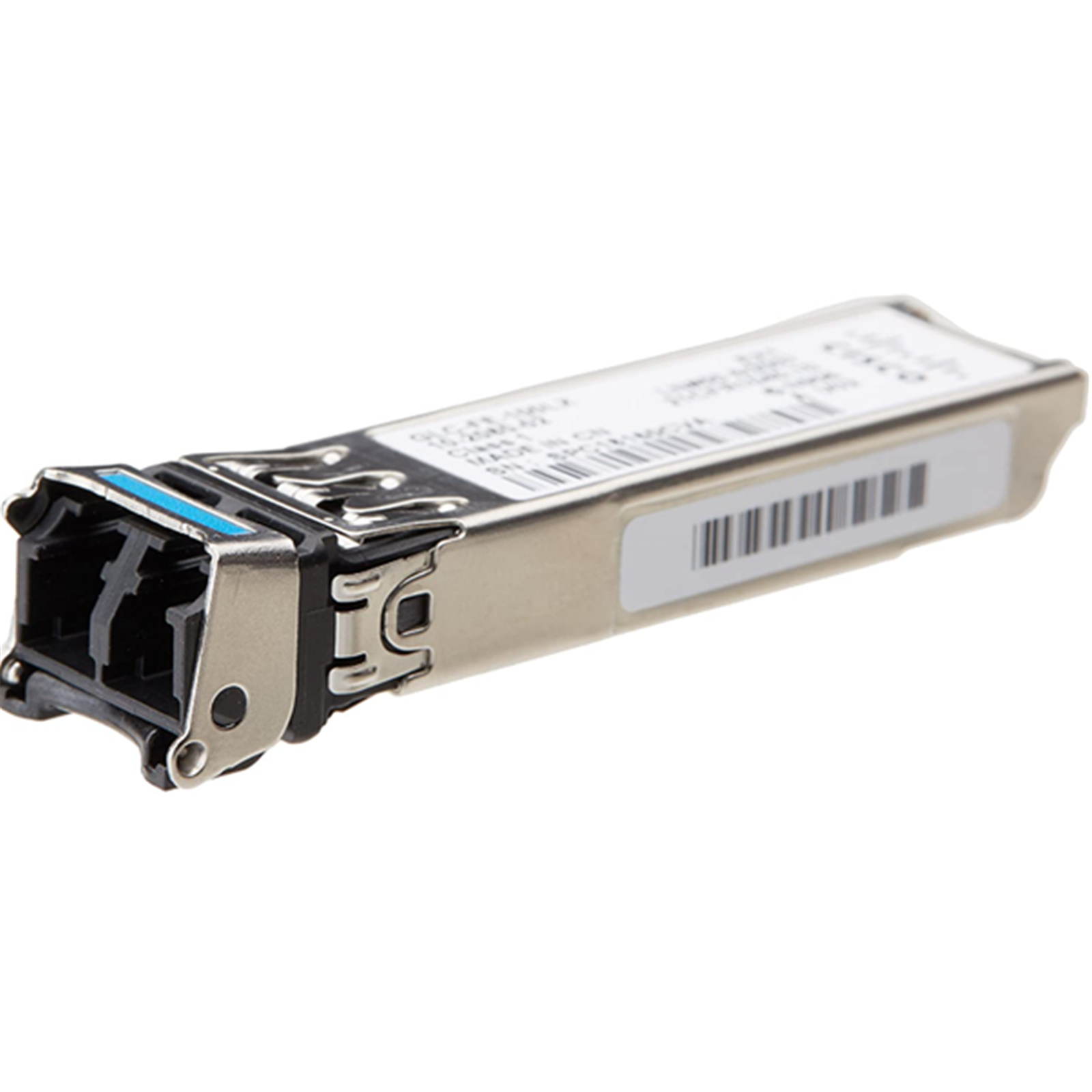

The Cisco® 100BASE-X Small Form-Factor Pluggable (SFP) device (Figure 1) is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.

-Hot-swappable when deployed, the switch or router does not have to reboot
-Supports the "pay-as-you-populate" model
-Interchangeable with other 100BASE-X SFPs on the same line card
-Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
-Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link

GLC-FE-100LX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.These modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-LX10 standard.

Optcore's OSP155-3120NCR-CSC is a high performance small form factor pluggable (SFP) transceiver for 100BASE-LX Fast Ethernet application. It is fully comply with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.

The 100BASE-LX SFP transceiver is tested to be compatible with Cisco networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Ethernet Media Converters. The OSP155-3120NCR-CSC is an ideal equivalent to Cisco GLC-FE-100LX 100BASE-LX SFP module but with much lower price, which provides a reliable compatible SFP optics transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.

The 100BASE-LX SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the FP laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Specifications

Form Factor

SFP

Data Rate

155Mb/s

Wavelength

1310 nm

Fiber Type

SMF

Max Distance

10 km

Optical Components

FP/PIN

Transmitter Power

-13 ~ -8 dBm

Extinction ratio

> 10 dB

Receiver Sensitivity

< -30 dBm

Receiver Overload

> -3 dBm

Connector

Duplex LC

Digital Diagnostic Monitoring

Environment Operating

0°C to 70°C

Storage

-40°C to 85°C

Weight

0.025 kg

Application

100Base Fast Ethernet, SDH OC-3 SONET STM-1, FTTx

Compliance

IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoH

Manufacturer Part No:

GLC-FE-100LX=

Brand:

Cisco

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETCIS1001945

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
