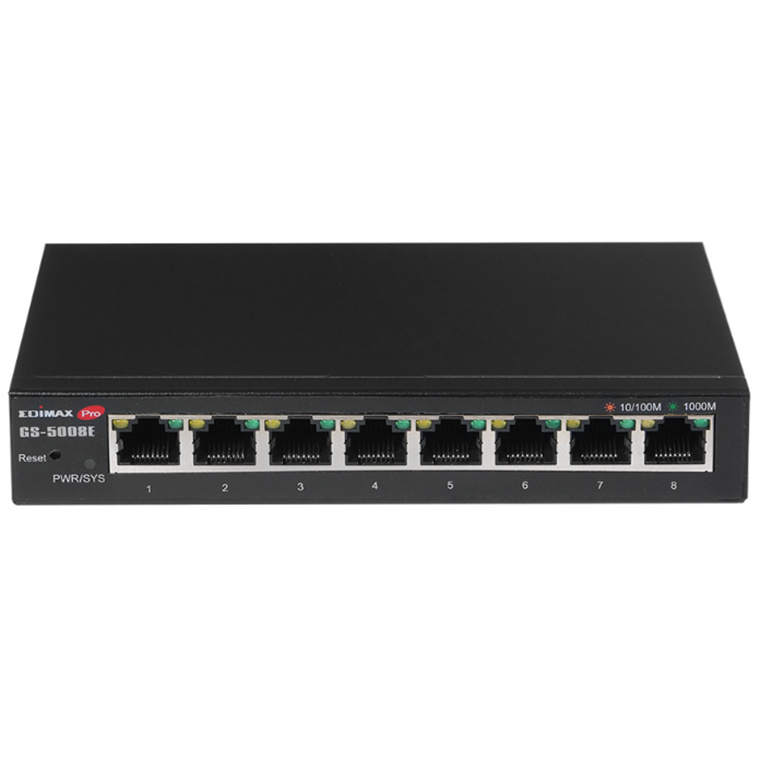

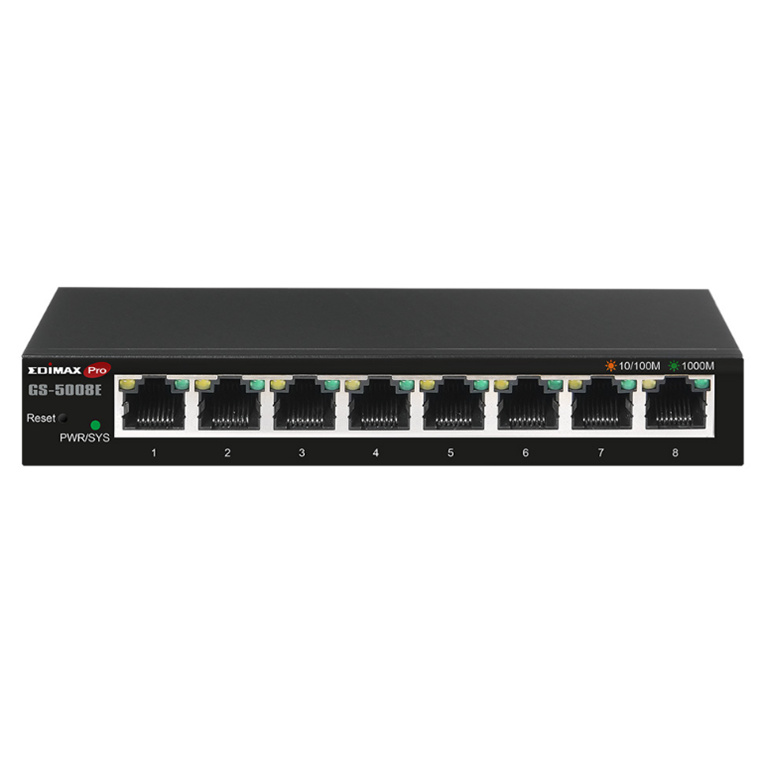

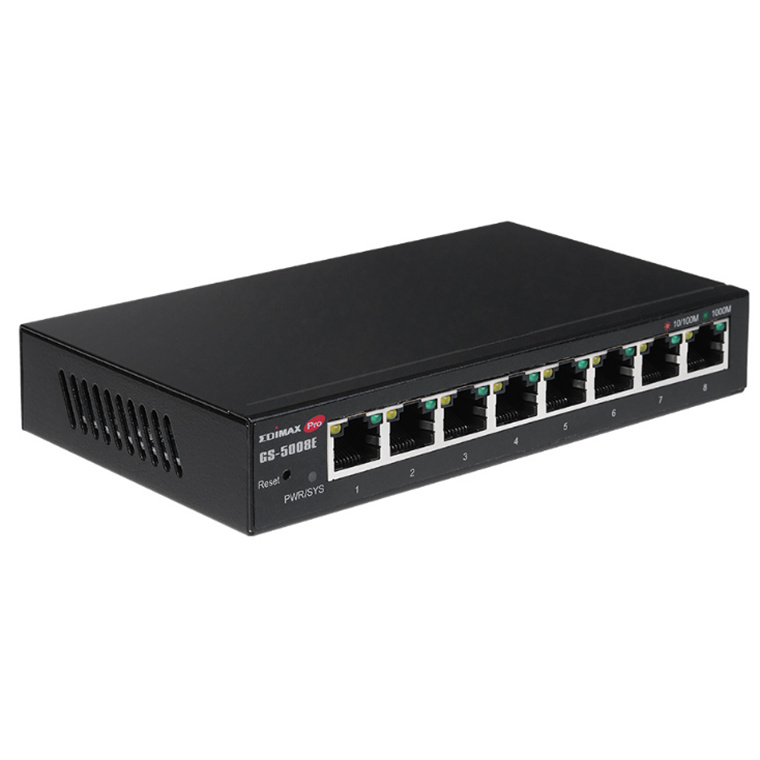

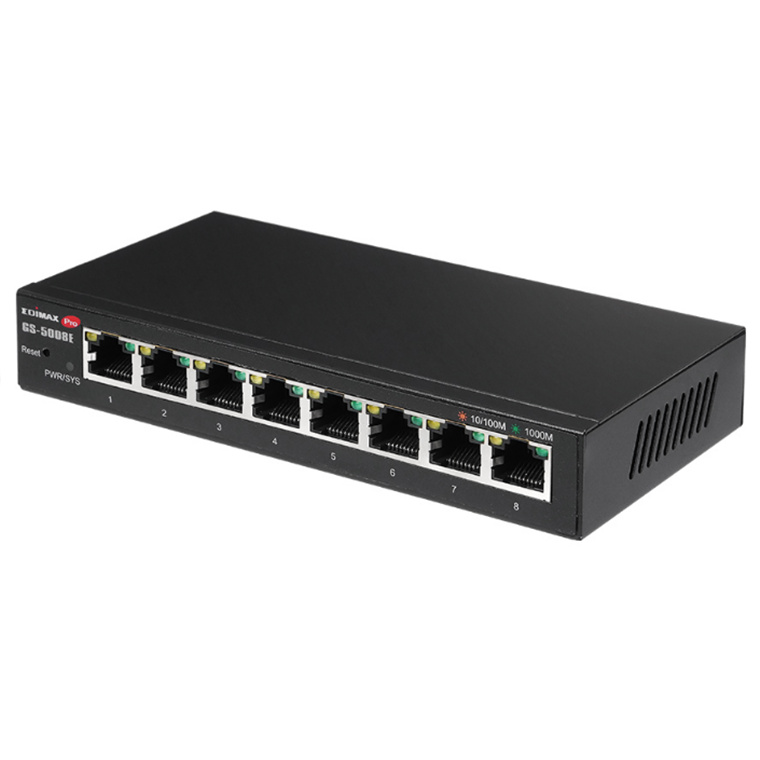

Edimax 8-Port Gigabit Ethernet Web Smart Switch
Edimax 8-Port Gigabit Ethernet Web Smart Switch
- Brand: Edimax
- MPN: GS-5008E8P
- Part #: NETEDM1124
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Modern routers tend to have limited connectivity for ethernet capable devices. This solves that problem and allows a greater number of ethernet capable devices to connect to the ro ...view more"
Features
Edimax 8-Port Gigabit Ethernet Web Smart Switch
- 8 Gigabit Ethernet ports
- Web-based setup interface enables easy configuration and management
- Supports 802.1Q VLAN network segmentation for improved performance and security
- Supports IGMP Snooping v1/v2/v3, effectively reduced Multicast traffic for streaming applications
- Supports 802.1p QoS, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention, Port Mirroring, Port Trunking and more
- Featuring 16Gbps switching capacity, 11.9Mpps forwarding rate, and 9KB jumbo frame

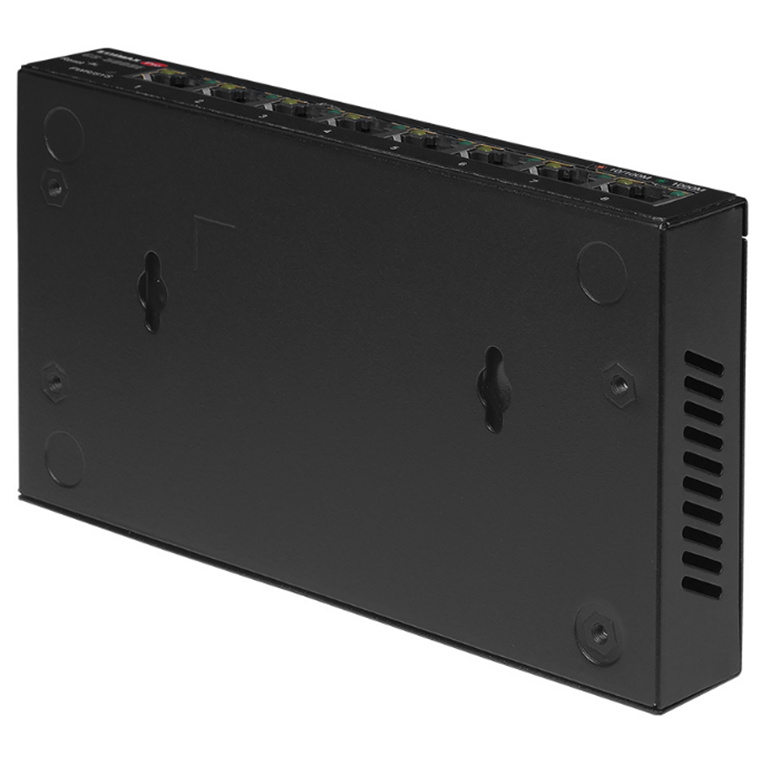

- Fanless, quiet and durable wall-mountable metal chassis design
VLAN Support
Helps separate traffic within a business such as isolating resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
Ideal for Enterprise, Business, Small Office or Home Networks
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax 8-Port Gigabit Ethernet Web Smart Switch
- Brand: Edimax
- MPN: GS-5008E8P
- Part #: NETEDM1124
Product URL: https://www.pbtech.com/pacific/product/NETEDM1124/Edimax-8-Port-Gigabit-Ethernet-Web-Smart-Switch
Features
Edimax 8-Port Gigabit Ethernet Web Smart Switch
- 8 Gigabit Ethernet ports
- Web-based setup interface enables easy configuration and management
- Supports 802.1Q VLAN network segmentation for improved performance and security
- Supports IGMP Snooping v1/v2/v3, effectively reduced Multicast traffic for streaming applications
- Supports 802.1p QoS, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention, Port Mirroring, Port Trunking and more
- Featuring 16Gbps switching capacity, 11.9Mpps forwarding rate, and 9KB jumbo frame
- Fanless, quiet and durable wall-mountable metal chassis design
VLAN Support
Helps separate traffic within a business such as isolating resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
Ideal for Enterprise, Business, Small Office or Home Networks
Specifications
HARDWARE
Ports
8 x RJ45 10/100/1000Base-T Gigabit Ports
Button
Reset Button
LED Indicators
Per Port : Link/Act
Per Unit : Power
Power Input
External Power Supply (DC 5V/1A)
Fan
Fanless Design
Dimensions (L x W x H)
155 x 85 x 26 mm
Weight
325g
PERFORMANCE
Switching Capacity
16Gbps
MAC Address
4K
Jumbo Frames
9KB
Buffer Memory
1.53Mb
Transmission Method
Store and Forward
Filtering / Forwarding Rates
Max. 11.9Mpps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
SMART FEATURES
Quality of Service (QoS)
Port-based QoS,
IEEE802.1p QoS,
4 Priority Queues,
Scheduling Algorithm
- WFQ (Weighted Fair Queue)
- Strict Priority
VLAN
Up to 8 VLANs and 4096 VLAN IDs
802.1Q Tag-based VLAN
Port Trunking
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
Port Mirroring
Port Mirroring both on Ingress and Egress Traffic
IGMP Snooping
IGMP Snooping v1/v2/v3
Block Unknown Multicast Traffic
Multicast Groups: 128
Loop Detection
Loop Detection
Loop Prevention
Security
Broadcast Storm Control
Management
User Interface: Web-based Management
User Account: Login Account Configuration
Firmware Upgrade: Firmware Upgrade by WEB
OTHERS
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p Quality of Service (QoS)
Environmental Condition
Operating temperature: 0 ~ 40? (32~104°F)
Storage temperature: -40 ~ 70? (-40~158°F)
?Operating humidity: 10 ~ 90% (Non-condensing)
Storage humidity: 5 ~ 90% (Non-condensing)
Certifications
CE, FCC, BSMI
