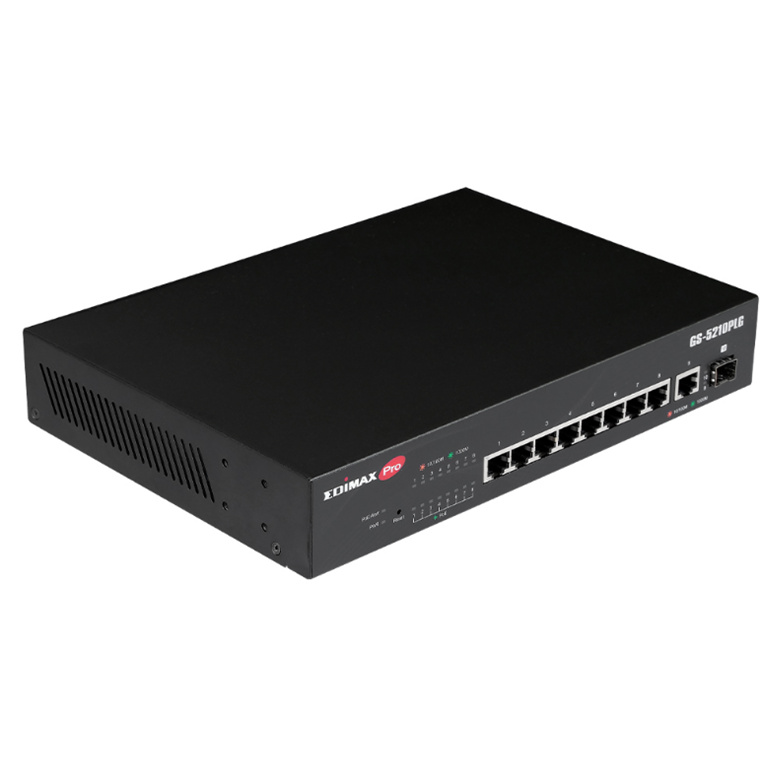

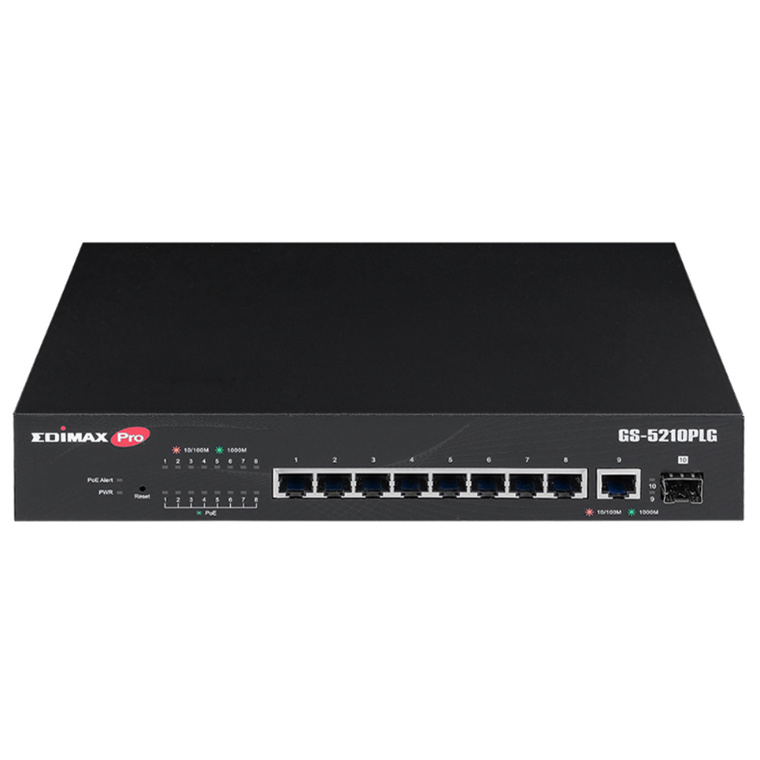

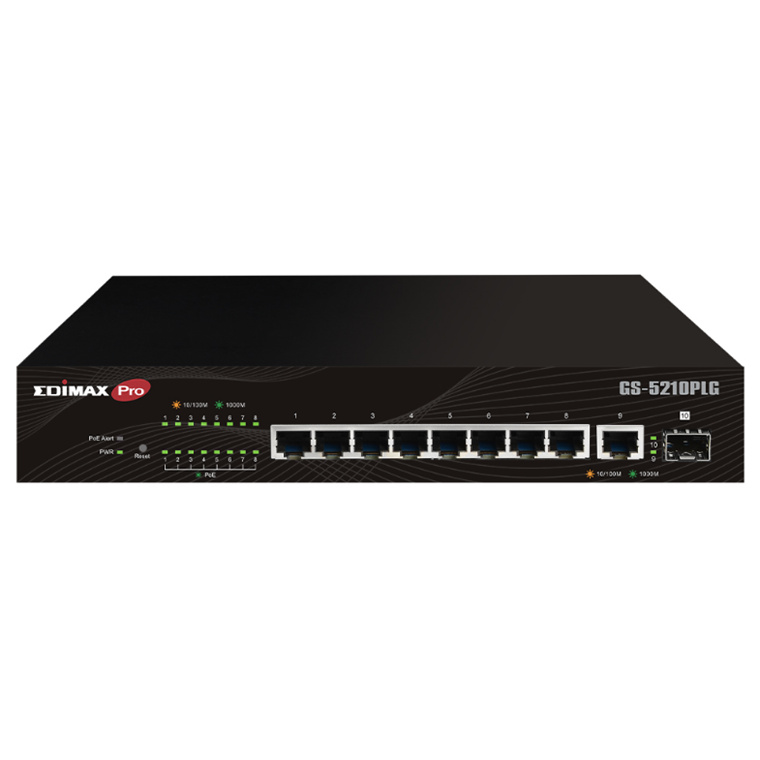

Edimax 10-Port Gigabit PoE+ Web Smart Switch with 1x SFP Port
Features
Edimax 10-Port Gigabit Long Range PoE+ Web Smart Switch with 1 SFP Port
- 8 Gigabit Ethernet PoE+ ports, 1 RJ45 Gigabit uplink port and 1 Gigabit SFP uplink port
- IEEE 802.3af/at PoE/PoE+ compliant to simplify deployment and installation
- Supports PoE+ up to 30W per port (total power budget: 100W) for powering PoE-enabled devices
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- Auto fault-detection on over/under current & voltage
- Power backfeed protection to avoid damaging the PoE ports
- Supports 20 Gbps switching capacity, 14.88Mpps forwarding rate, 4K MAC address table and 9KB jumbo frame
- Supports QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control and more
- Rack-mount design, rack-mount kit included
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.
PoE Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damage done from the connected non-standard PSEs (Power Sourcing Equipments) to the switch.
Flexible RJ45 and Fiber Uplinks
Equiped with 1 RJ45 and 1 SFP fiber-optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.
Intuitive and Powerful Smart Tool
The intuitive web-based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.
VLAN Support
Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax 10-Port Gigabit PoE+ Web Smart Switch with 1x SFP Port
- Brand: Edimax
- MPN: GS-5210PLG
- Part #: NETEDM1125
Product URL: https://www.pbtech.com/pacific/product/NETEDM1125/Edimax-10-Port-Gigabit-PoE-Web-Smart-Switch-with-1
Features
Edimax 10-Port Gigabit Long Range PoE+ Web Smart Switch with 1 SFP Port
- 8 Gigabit Ethernet PoE+ ports, 1 RJ45 Gigabit uplink port and 1 Gigabit SFP uplink port
- IEEE 802.3af/at PoE/PoE+ compliant to simplify deployment and installation
- Supports PoE+ up to 30W per port (total power budget: 100W) for powering PoE-enabled devices
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- Auto fault-detection on over/under current & voltage
- Power backfeed protection to avoid damaging the PoE ports
- Supports 20 Gbps switching capacity, 14.88Mpps forwarding rate, 4K MAC address table and 9KB jumbo frame
- Supports QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control and more
- Rack-mount design, rack-mount kit included
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.
PoE Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damage done from the connected non-standard PSEs (Power Sourcing Equipments) to the switch.
Flexible RJ45 and Fiber Uplinks
Equiped with 1 RJ45 and 1 SFP fiber-optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.
Intuitive and Powerful Smart Tool
The intuitive web-based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.
VLAN Support
Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
HARDWARE
Ports
8 x RJ45 PoE+ 10/100/1000Base-T Gigabit port
1 x RJ45 10/100/1000Base-T Gigabit uplink port
1 x SFP 1000Base-X Gigabit uplink port
Buttons
Reset button
LED Indicators
Per Port: Link/Act, PoE: Act/Status, Per Unit: Power, PoE Alert

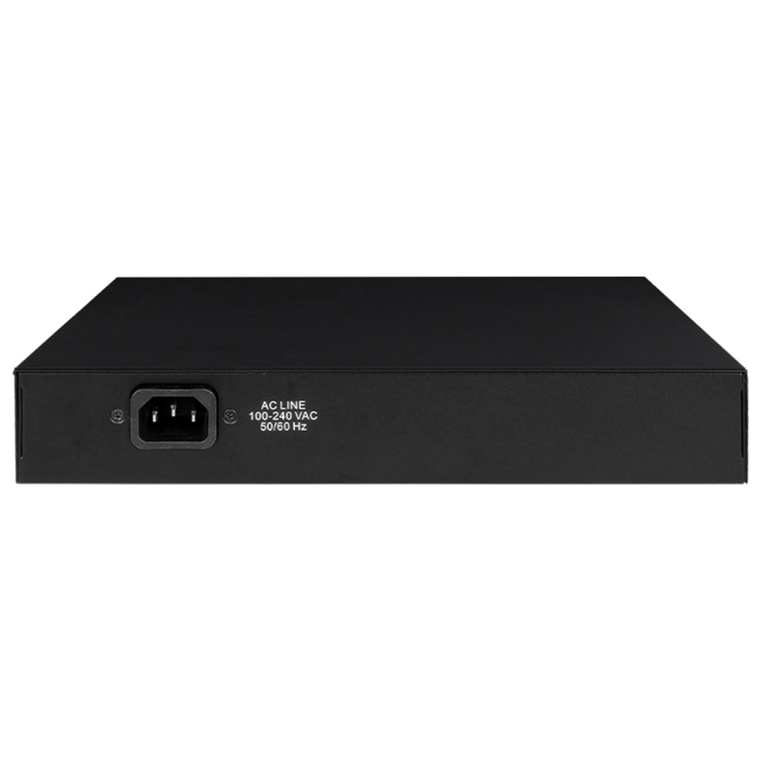

Power Input
100-240V AC, 50-60 Hz, internal power supply
Total Power Budget
100W
Mounting
Desktop / Rack-mount (Rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimensions (L x W x H)
265 (W) x 184 (D) x 44 (H) mm
10.43 (W) x 7.24 (D) x 1.73 (H) in
Weight
1.62kg (3.57lb)
PERFORMANCE
Switching Capacity
20Gbps
MAC Address
4K
Jumbo Frames
9.2K Bytes
Buffery Memory
1.5Mb
Transmission Method
Store and forward
Filtering / Forwarding Rates
Max. 14.88Mpps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A)
Management
PoE status, PoE on/off
PoE Long Range
Guaranteed PoE Long Range to 200 Meters (656 ft.) at 10Mbps
Power Backfeed Protection
Built-in
SMART FEATURES
Quality of Service (QoS)
Port-based QoS
IEEE802.1p QoS
4 Priority Queues
Scheduling algorithm
VLAN
Up to 10 VLANs
802.1Q tag-based VLAN
Port Trunking
IEEE 802.3ad LACP
Mirror
Port mirroring both on ingress and egress traffic
IGMP Snooping
IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Multicast groups: 128
Security
Broadcast storm control
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop Detection/Prevention
OTHERS
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3ad LACP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p Quality of Service (QoS)
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
Environmental Condition
Operating Temperature: 0~40°C (32~104°F)
Storage Temperature: -40~70°C (-40~158°F)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 10~90% (NonCondensing
Certifications
FCC, CE, BSMI
