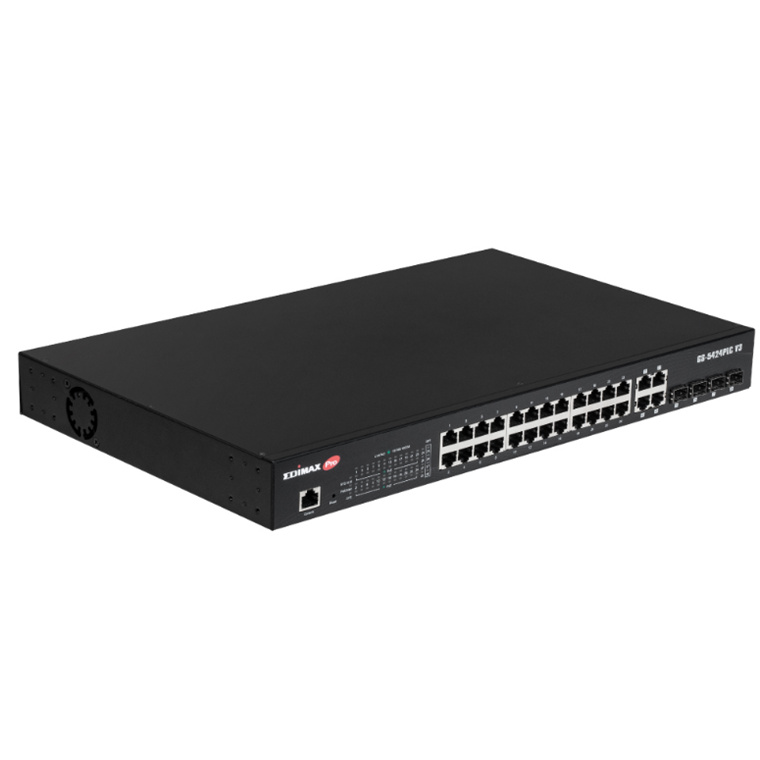

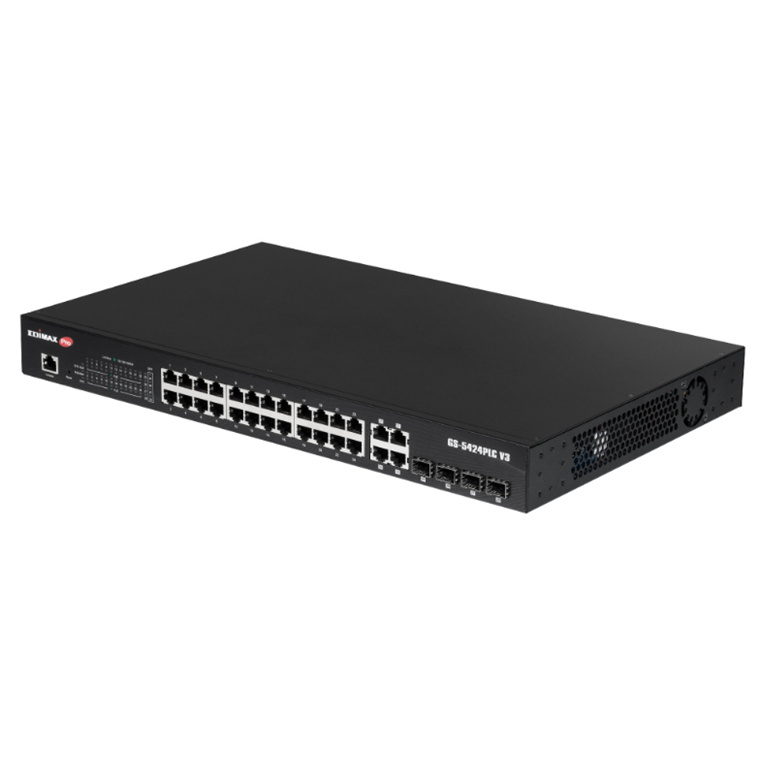

Edimax 28-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports
Edimax 28-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports
- Brand: Edimax
- MPN: GS-5424PLCV3
- Part #: NETEDM1128
- UPC:
- Brand: Edimax
- MPN: GS-5424PLCV3
- Part #: NETEDM1128
- UPC:
Features
Edimax 28-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports
- 28 Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports24 Gigabit Ethernet PoE+ ports and 4 Gigabit RJ45/SFP combo ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 56Gbps backplane bandwidth, 41.6Mpps forwarding rate, 8K MAC address table and 9KB jumbo frame
Dedicated Design for Surveillance Networks
The Surveillance Switch provides system integrators and installers easy configuration, automatic quick discovery, and product control on the network. Experience ease of mind and security.
Beyond Security, All Fits Together
The EDIMAX Surveillance VLAN switches series greatly enhances IP surveillance network systems; it supports fast and easy system settings, device discovery, and user authentication. Just plug and play.
Auto-Created Surveillance VLAN: One-click "Config. Reload" button to initialize Surveillance VLAN for smooth and secure video transmission.
Auto Discovery: It gives you the flexibility to choose optimal products for your needs without being locked into a specific brand by auto discovery functions.
Auto Enrollment: When IP cameras on a network are discovered, they will be added to the Surveillance VLAN automatically.
Power Saving Implementation
With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environtial temperature and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Cost-effective PoE Solution
Offering high-speed network connection with power supply to Powered Devices (PDs) for cost saving of power line deployement, the switch PoE Powered Device (PD) alive check monitors real-time status of connected PDs and enables reboot fail PDs, further enhancing network reliability.
Stable and Reliable Network
The switch has two firmwares stored. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.
Further Network Connection
The long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safeguard Your Devices
Each port is equipped with power backfeed protection in order to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Intuitive and Powerful Smart Tool
This web smart switch meets the network growing need by providing Layer 2 managed functions with advanced essential features such as SNMP v1/v2c/v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention.
For SMB Surveillance Networks
Ideal for use in environments that require extensive IP-based network surveillance system deployment. Such as office spaces/business buildings, residential buildings/community, parking lots, shopping centers, campus, hotels, hospitals, airport/transportation stations, construction sites, casinos, theme parks/amusement parks and more.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax 28-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports
- Brand: Edimax
- MPN: GS-5424PLCV3
- Part #: NETEDM1128
Product URL: https://www.pbtech.com/pacific/product/NETEDM1128/Edimax-28-Port-Surveillance-Long-Range-Gigabit-PoE
Features
Edimax 28-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports
- 28 Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFP Ports24 Gigabit Ethernet PoE+ ports and 4 Gigabit RJ45/SFP combo ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 56Gbps backplane bandwidth, 41.6Mpps forwarding rate, 8K MAC address table and 9KB jumbo frame
Dedicated Design for Surveillance Networks
The Surveillance Switch provides system integrators and installers easy configuration, automatic quick discovery, and product control on the network. Experience ease of mind and security.
Beyond Security, All Fits Together
The EDIMAX Surveillance VLAN switches series greatly enhances IP surveillance network systems; it supports fast and easy system settings, device discovery, and user authentication. Just plug and play.
Auto-Created Surveillance VLAN: One-click "Config. Reload" button to initialize Surveillance VLAN for smooth and secure video transmission.
Auto Discovery: It gives you the flexibility to choose optimal products for your needs without being locked into a specific brand by auto discovery functions.
Auto Enrollment: When IP cameras on a network are discovered, they will be added to the Surveillance VLAN automatically.
Power Saving Implementation
With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environtial temperature and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Cost-effective PoE Solution
Offering high-speed network connection with power supply to Powered Devices (PDs) for cost saving of power line deployement, the switch PoE Powered Device (PD) alive check monitors real-time status of connected PDs and enables reboot fail PDs, further enhancing network reliability.
Stable and Reliable Network
The switch has two firmwares stored. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.
Further Network Connection
The long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safeguard Your Devices
Each port is equipped with power backfeed protection in order to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Intuitive and Powerful Smart Tool
This web smart switch meets the network growing need by providing Layer 2 managed functions with advanced essential features such as SNMP v1/v2c/v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention.
For SMB Surveillance Networks
Ideal for use in environments that require extensive IP-based network surveillance system deployment. Such as office spaces/business buildings, residential buildings/community, parking lots, shopping centers, campus, hotels, hospitals, airport/transportation stations, construction sites, casinos, theme parks/amusement parks and more.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
HARDWARE

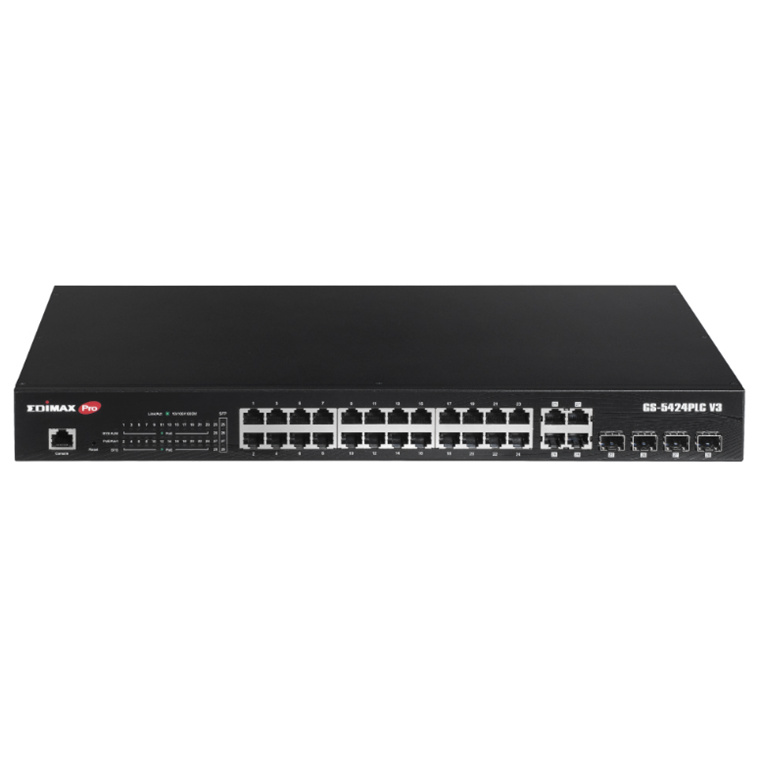

Ports
24 x RJ45 PoE+ 10/100/1000Base-T Gigabit ports
4 x RJ45/SFP Gigabit combo uplink ports
1 x RJ45 Console port (Console cable included)
Buttons
Reset button
LED Indicators
Per Port: Link/Act (1-28 port), PoE (1-24 port)
Per Unit: PoE Alert, SYS ALM (System Alert), SYS (System Power)

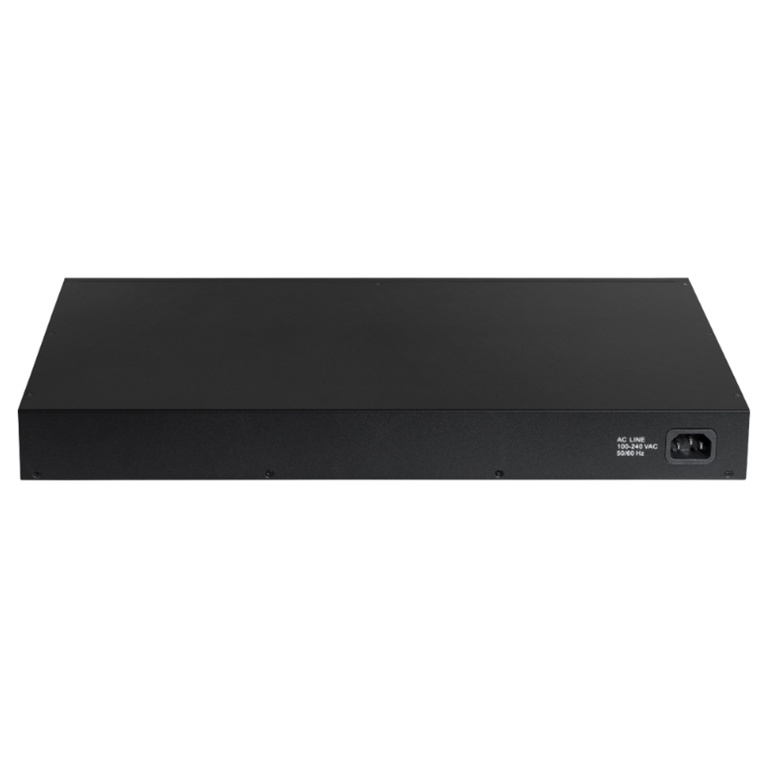

Power Input
100-240V AC, 50-60 Hz, internal power supply
Total Power Budget
400W
Mounting
Desktop / Rack-mount (Rack-mount kit included)
Housing
Metal
Fan
2 x Fans with Intelligent Thermal Controller
Dimensions
441 (W) x 270 (D) x 44 (H) mm
17.36 (W) x 10.63 (D) x 1.73 (H) inches
Weight
4.45kg (9.81lb)
PERFORMANCE
Switching Capacity / Backplane
56Gbps
Forwarding Rates
Max. 41.6Mpps (64-byte package size)
MAC Address
8K
Jumbo Frames
9KB
Packet Buffer
4.1Mb
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A)
Management
PoE status, PoE scheduling, PoE priority, PoE on/off, PoE PD alive check
PoE Long Range
Guaranteed PoE long range to 200 meters at 10Mbps
Power Backfeed Protection
Built-in
SMART FEATURES
Quality of Service (QoS)
Rate limiting on packets sent and received by an interface
8 queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS)
IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN
Up to 256 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
Surveillance VLAN
Voice VLAN
MAC VLAN
GVRP
IPV6
IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking
IEEE 802.3ad LACP Trunk-Static Trunk
Up to 8 trunk groups
IGMP Snooping
IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Port Mirroring
Port Mirroring Traffic Direction:
Both (Ingress and Egress)
Ingress
Egress
Security
RADIUS
TACACS+
AAA
Management Access
Authentication Manager
Port Security
Protected Port
Broadcast Storm Control
DoS
Dynamic ARP Inspection
DHCP Snooping
IP Source Guard
BPDU Guard
Remote Access: HTTPS/SSH/HTTP/Telnet/Session Timeout
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
Dual-firmware image for failover mechanisms
ACL (Access Control List)
CLI (Command-Line Interface)
User Account: Login account configuration
SNMP v1/v2c/v3
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over Fiber
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1x Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP), LLDP-MED (Media Endpoint Discovery)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Environmental Condition
Operating Temperature: 0 ~ 50? (32~122°F)
Storage Temperature: -40 ~ 70? (-40~158°F)
Operating Humidity: 10 ~ 90% (Non-condensing)
Storage Humidity: 10 ~ 90% (Non-condensing)
Certifications
FCC, CE, BSMI
